WorkRite 2110RLN Mouse-Under Microsoft Natural Keyboard Platform
“Build your own system, base starts as keyboard tray only”
More shipping >
Related Products
| Part Number | Description |
|---|---|
| UB-2110RLN | Black UltraThin Mouse Under Microsoft Natural Adjustable Keyboard Platform |
Description

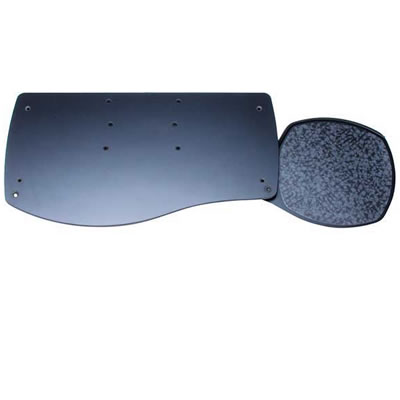

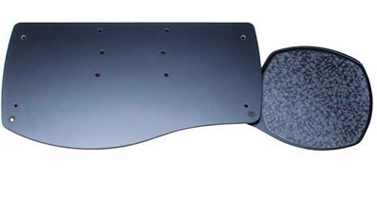

Microsoft Natural keyboard platform with swivel-out mouse platform.
Includes the Optimizer Keyboard Platform Enhancement: The optimizer incorporates many of the unique features found in our best selling Banana-Board keyboard platform and is included with this platform at no additional charge.
Swivel-Out Mouse Platform: Provides Mouse-Forward design. Platform stores under keyboard tray when not in use.
UltraThin Platform: Available in UltraThin only.
Fits the Following Worksurfaces
- Straightaways
- Diagonal corners 17" or wider
- Curved corners 18" or larger radius
- 90 degree (converted to diagonal with 179CCD)
Designed for Microsoft Natural Keyboards: Shaped to allow the front contours of Microsoft Natural and Elite keyboards.
Durable Platform: Our ¼" Ultra-Thin phenolic minimizes the distance between the forearm and thigh, providing a greater range of ergonomic fit.
Thoughtful Features: All Ultra-Thin platforms have the Optimizer, an integrated keyboard cord management feature, along with a built-in document holder.
Mouse Forward: Designed for easy movement within the primary reach zone.

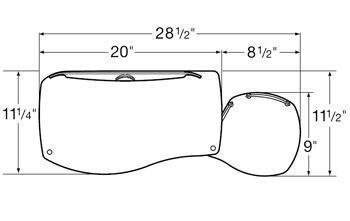

Technical Drawing
Desk Compatibility
Features
- Designed for use with Microsoft Natural or Natural Elite keyboard
- Ultra-thin phenolic platform includes our Optimizer document holder and cable management system and removable memory foam palm support
- Swivel-out mouse platform provides Mouse-Forward design
- Swivel mouse platform under keyboard when not in use
- Platform requires at least 18″ radius or 17″ diagonal for proper installation and use
- Available in UltraThin only
- Available in black
- Removable LeatheRite palm support
- Fits straightaways, diagonal corner over 17", curved corner over 18" and 90 degree corner with adapter
- Mouse platform palm support sold separately
Option 1: Color
Option 2: Mousing Hand
- Mouse Platform on Right Side
- Mouse Platform on Left Side
- Mouse Platforms for Both Sides
Option 3: Material
Ultra Thin : 1/4" Phenolic platform is very light and extremely tough, it doesn`t break and it doesn`t change color. All Ultra-Thin platforms have the Optimizer, and integrated keyboard cord management feature, along with a built-in document holder and mouse cord retainer.
Ultra Thin platform features Optimizer document holder and cable management system.
Option 4: Arm Type
Pinnacle 2 Arm - Pinnacle 2 Extended Arm - Pinnacle AD Arm - Budget Arm - Locking Lever Arm
Pinnacle 2 Arm
22" Track (recommended track length)
Pinnacle 2 Arm (Short Track)
17" Track (short track)
Pinnacle Arm 2 Extended
Longer Arm for corner area
Pinnacle Budget Arm
22" or 17" Budget Arm

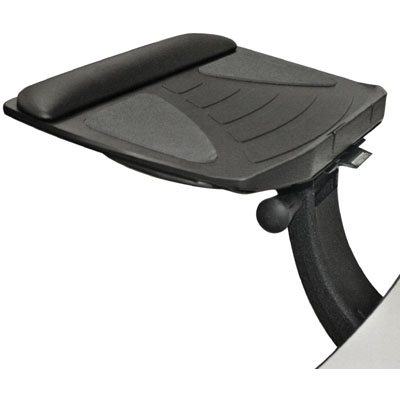

Pinnacle AD Arm
Above Desk Range
Option 5: Clip-On Mouse Support
Easily clips on and off for storage
Clip On Mouse Support Model 2120
- Supports Wrist for Ergonomic Mousing
- Adds mouse area palm support to the following products
- Banana-Board REVO Platforms Mouse-Under Platforms 180S Platforms
- Easy to Attach
- Easily clips on and off for storage
Option 6: Swivel Plate
Swivel Plate 2179-SP: The swivel plate allows you to swivel your keyboard tray horizontally independent from the arm.
Allows keyboard and mouse platform to pivot an extra 45 degree for special mounting requirements.
- Easy to Install
- Mounts between the arm and keyboard platform.
- Weight 3 lbs
Option 7: Mounting Spacer
- Mounting Spacer (1/4" Thickness)
- Mounting Spacer (1/2" Thickness)
- Mounting Spacer (3/4" Thickness)
- Mounting Spacer (1" Thickness)
- Mounting Spacer (1 1/4" Thickness)
- Mounting Spacer (1 1/2" Thickness)
- Mounting Spacer (1 3/4" Thickness)
- Mounting Spacer (2" Thickness)
- Mounting Spacer is required only when the edge of your desk is thicker than the rest of the worksurface.
- Used to attach adjustable arm tracks when edge is thicker than worksurface.
- You can add spacer to make a flat surface under the desktop from front to back in order to install the Adjustable Arm.
- Available in 16" and 21" lengths (please specify).
a = 16" or 21"
b = 11 - 3/4"
Option 8: Corner Solution
179ACD
- Dimensions: 12" W x 1 3/4" H.
- Adjusts to fit 1" to 2" thick work surfaces.
- Clamping design eliminates spacers.
- Converts 90 degree to useable work area.
- Weight: 3 Lbs.
- Color: Black
179CCD
- a = 17.5" ... b = 9.25" ... c = 1.5"
- Move operator closer to work surface
- Designed specifically to fit model # 321 with Pinnacle 2 Arm. Also work with the following platform models: 187,188,487,488
- Converts 90 degree corners and diagonal corners less than 17" to useable work area
- Weight: 4 Lbs
- Color: Black/Gary
179CR
- a = 26" ... b = 15" ... c = 1 1/2"
- Fits all platforms up to 28" wide
- Works with all WorkRite keyboard arms
- Converts 90" corners and corners with keyboard cutouts to useable diagonal area
- Weight: 4 Lbs
- Color: Black/Gray
Option 9: Track Length
- Desk has more than 22" clear space under desktop, front to back
- Less than 22" and more than 17" clearance under desktop, front to back
- Desk has less than 17" clear space under desktop, front to back
Option 10: Positive Tilt Lock
It is a pin that is inserted in the arm to prevent the tilt from going to positive. It restricts the adjustable arms going to negative tilt range from -6 to -15 degrees.
