Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)

ESTIMATED AVAILABLITY IS EARLY JANUARY 2025

Product ID 20144

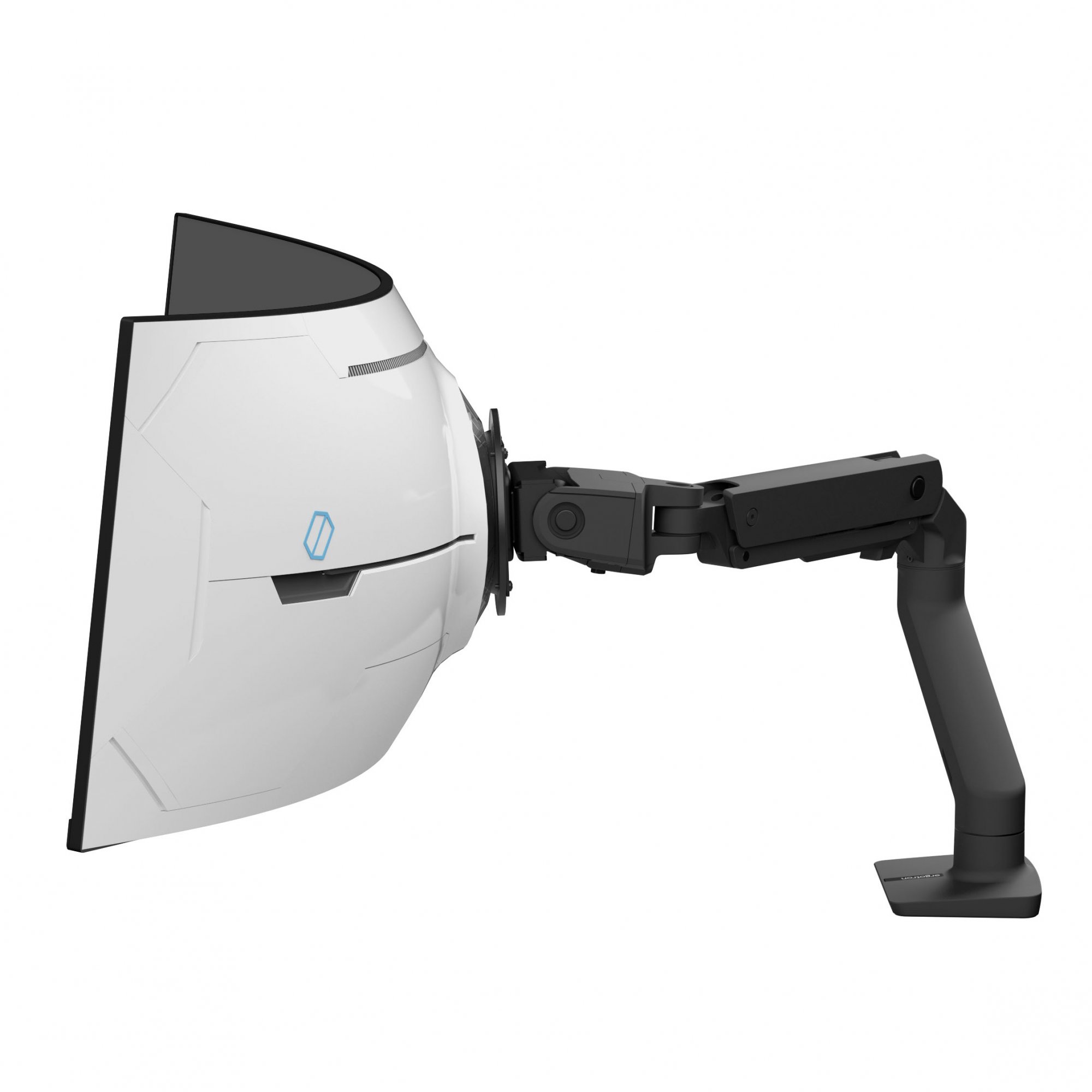

Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (matte black)
Shipping:
$13.99

More shipping >

Our Price:
Qty:

Description

Ergotron 45-693-224 enables immersive viewing experiences and takes back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"-13.8" (23-35 cm) deep and 28.7-37.5 lbs (13-17 kg), like the Samsung 57" Odyssey G9 Gaming Monitor.

NOTE: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.

Technical Drawing

Technical Drawing for Ergotron 45-693-224 HX Desk Curved Monitor Arm with VHD Pivot (black)

Technical Specifications


LCD size
Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 57"

28.7 - 37.5 lbs

13.0 - 17.0 kg

11.5"

29.2 cm

25° 180° 20° MIS-D

Product Information

GTIN 00698833091939
Part Number 45-693-224 (black)
Description HX Desk Monitor Arm with VHD Pivot

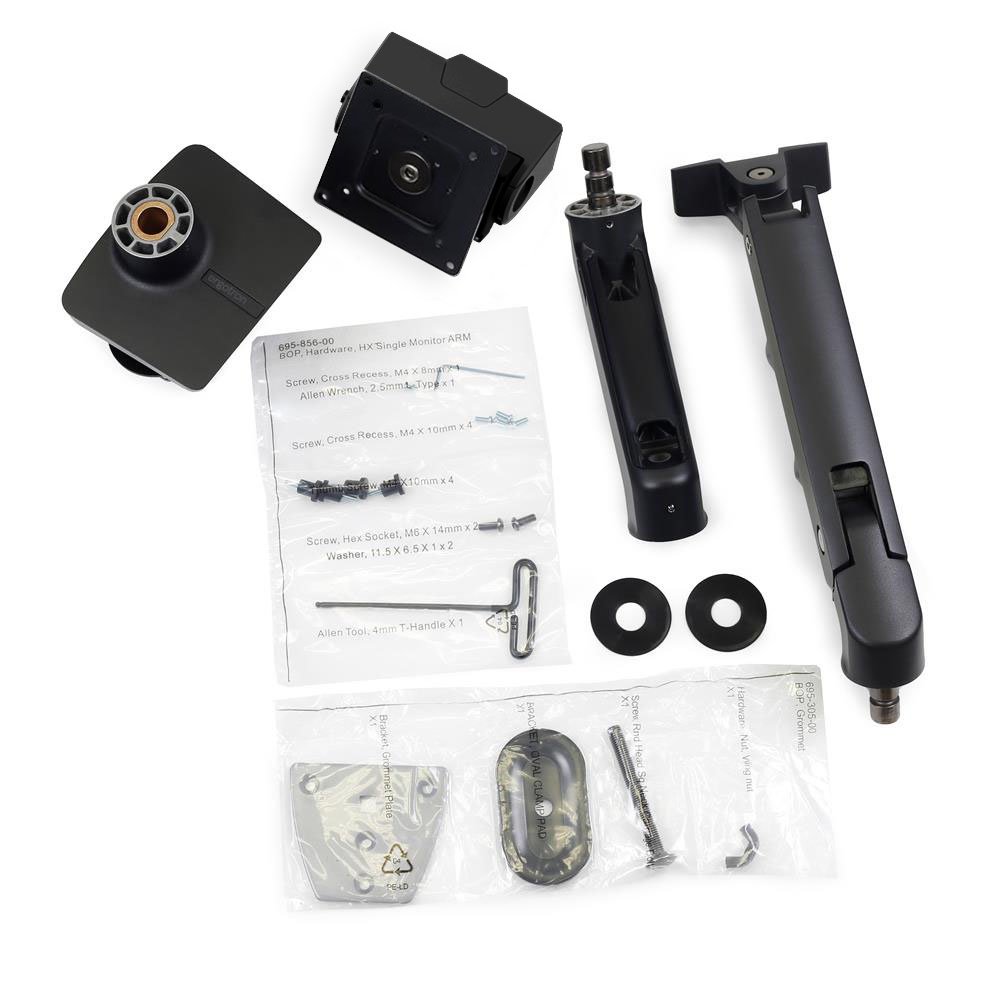

Includes
  • Arm

  • Extension

  • VHD pivot

  • Desk clamp

  • Grommet mount

  • Mounting hardware

Samsung G9Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.

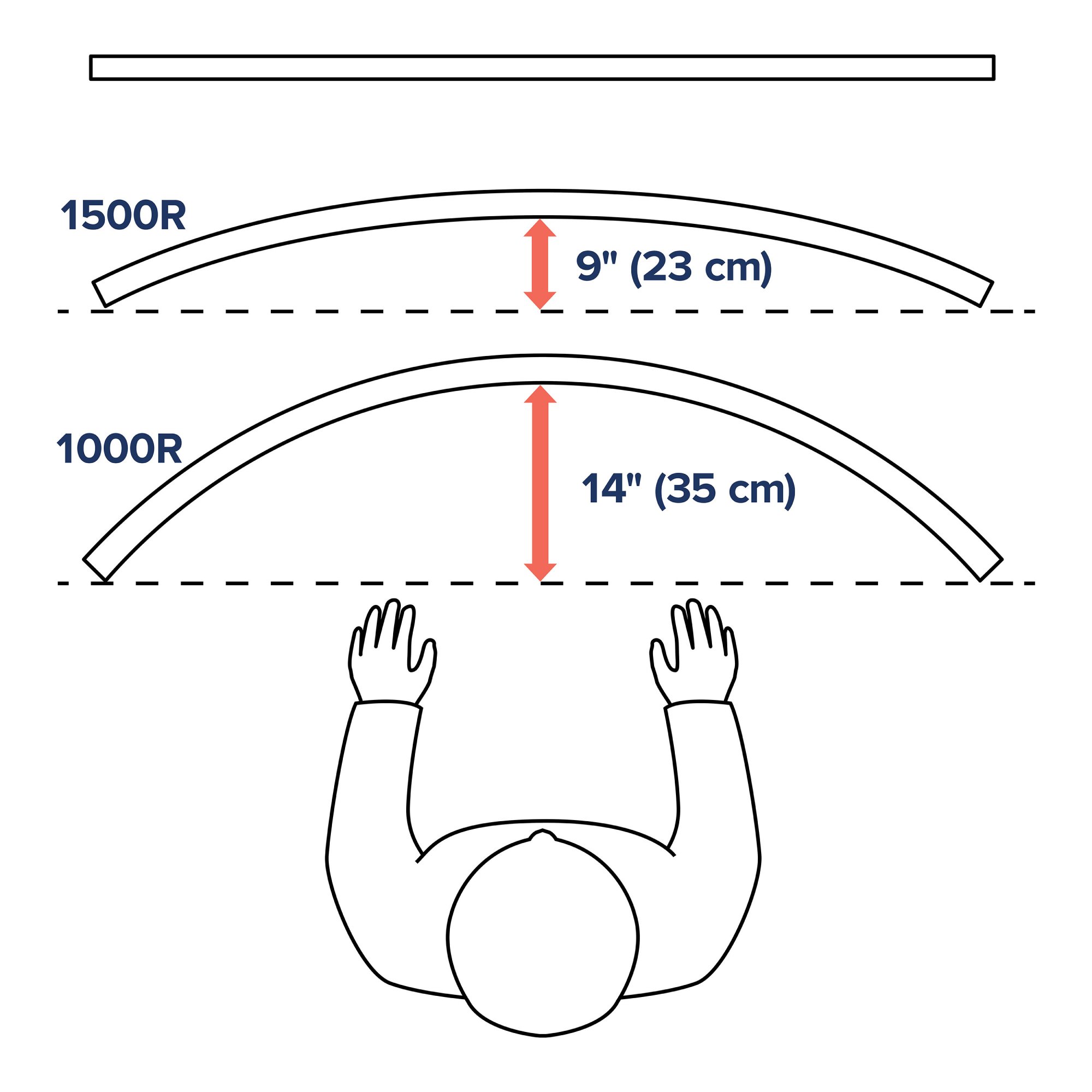

Weight Capacity Suitable for monitors weighing 28.7–37.5 lbs (13–17 kg) with a depth of 9.1"–13.8” (23–35 cm) without stand
Note Note that the standard HX Arm and the HX Arm with HD Pivot cannot be upgraded with a VHD Pivot. When required because of a monitor's weight and depth, the complete HX Arm with VHD Pivot must be ordered
Arm Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Screen Rotation Screen rotates 10° left or right to enable leveling
Cable Management Streamlined cable management routes cables under arm and within extension

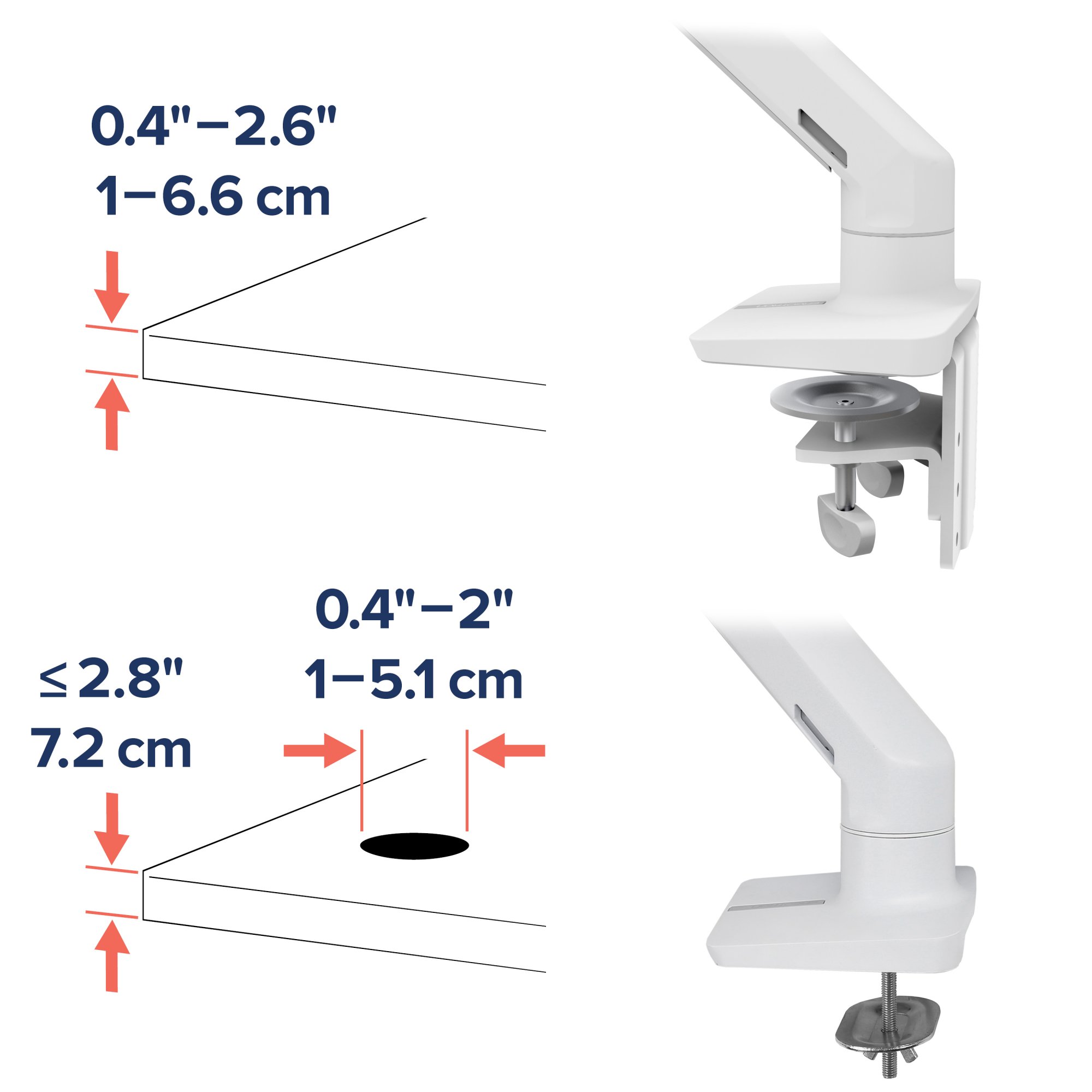

Desk Clamp Desk clamp attaches to surface edge 0.4" to 2.6" (1.0 to 6.6 cm) thick
Grommet Mount Grommet mount attaches through surface holes

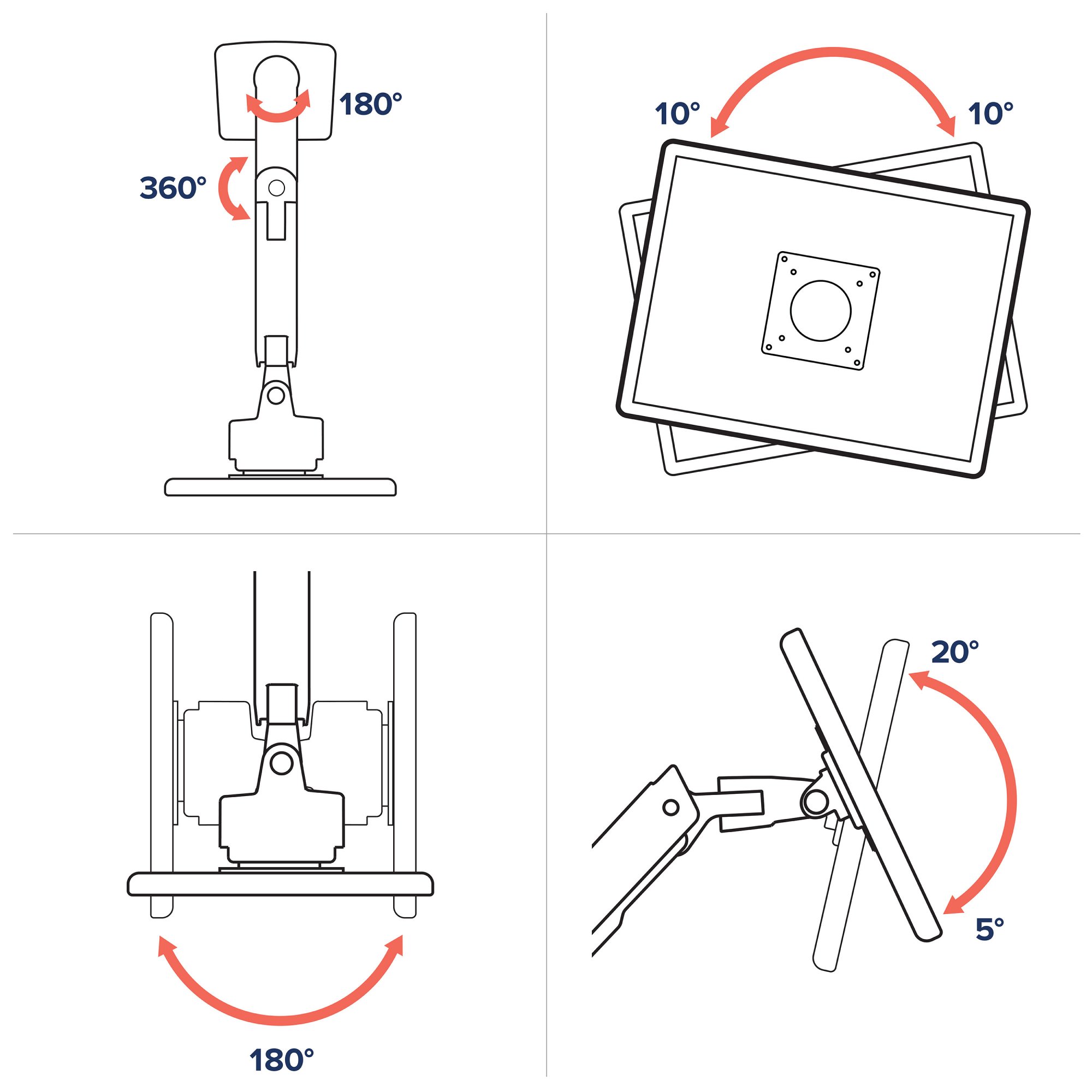

Rotation Monitor can be turned 360° at connection point of arm and extension; turning is restricted to 180° at connection point of extension and base
Tilt Range 20° backward, 5° forward
Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
Samsung Odyssey G9 Monitor shown is the Samsung Odyssey G9. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Product Weight 17.8 lbs
Shipping Dimensions 13.5" x 20.7" x 7.8" (34.2 x 52.5 x 19.8 cm)
Shipping Weight 23.2 lbs
Warranty Ten years

Benefits

  • Protect your investment - Combines a strong monitor arm and very heavy-duty pivot for secure support

  • Immersive viewing -Tilts +20/-5° to work or play comfortably

  • G9 compatible - Designed for 57″ 1000R curved monitors like the Samsung 57″ Odyssey G9

  • Neat look - Cables stay hidden under the arm and through the extension

  • Reclaim space - Replaces bulky monitor bases and lifts screens above the desktop

  • Simple adjustment - Enables precise screen positioning with Constant Force Technology

Frequently Asked Questions

Model 45-693-224
Manufacturer Ergotron
Part Number 45-693-224
Color Matte black
Monitor Size Up to 57"
Weight Capacity 28.7-37.5 lbs (13.0-17.0 kg)

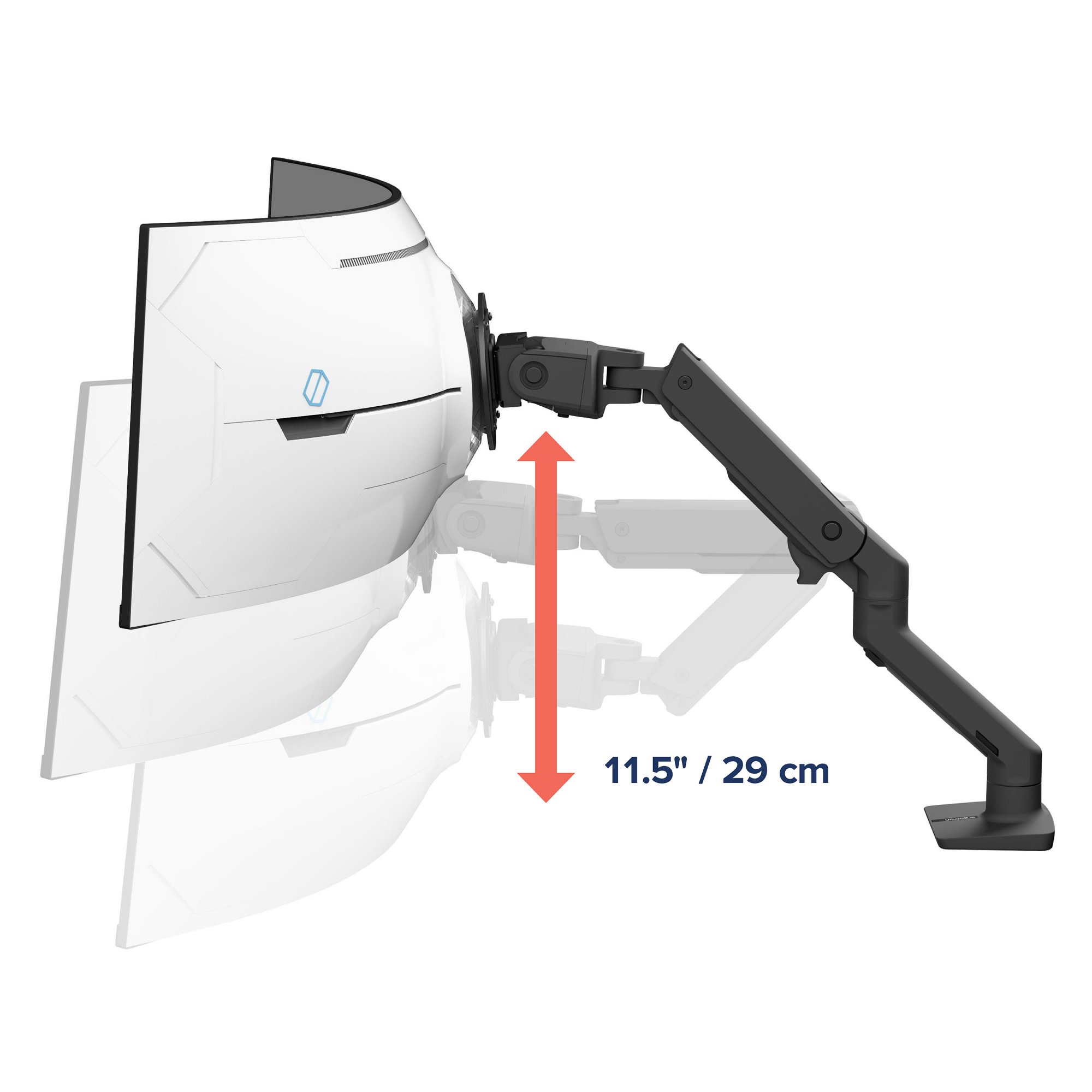

Lift (29.2 cm) 11.5 in
Tilt 25 degree
Pan 180 degree
Rotation 20 degree
Mounting Pattern VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
Weight 17.8 lbs
Surface Edge Thickness 0.4" to 2.6" (1.0 to 6.6 cm)
Shipping Weight 23.2 lbs
Shipping Weight 13.5" x 20.7" x 7.8" (34.2 x 52.5 x 19.8 cm)
Warranty 10 years
