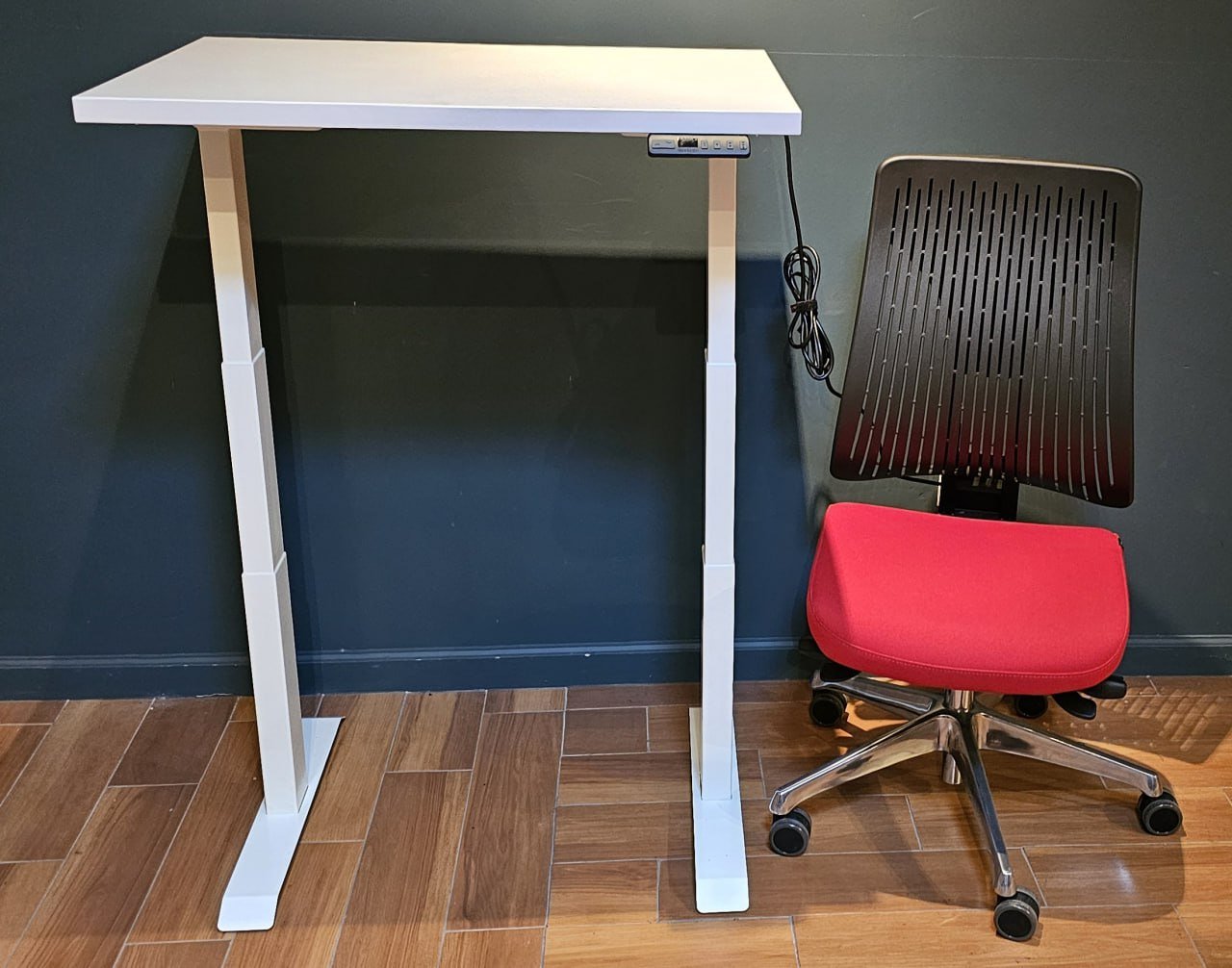

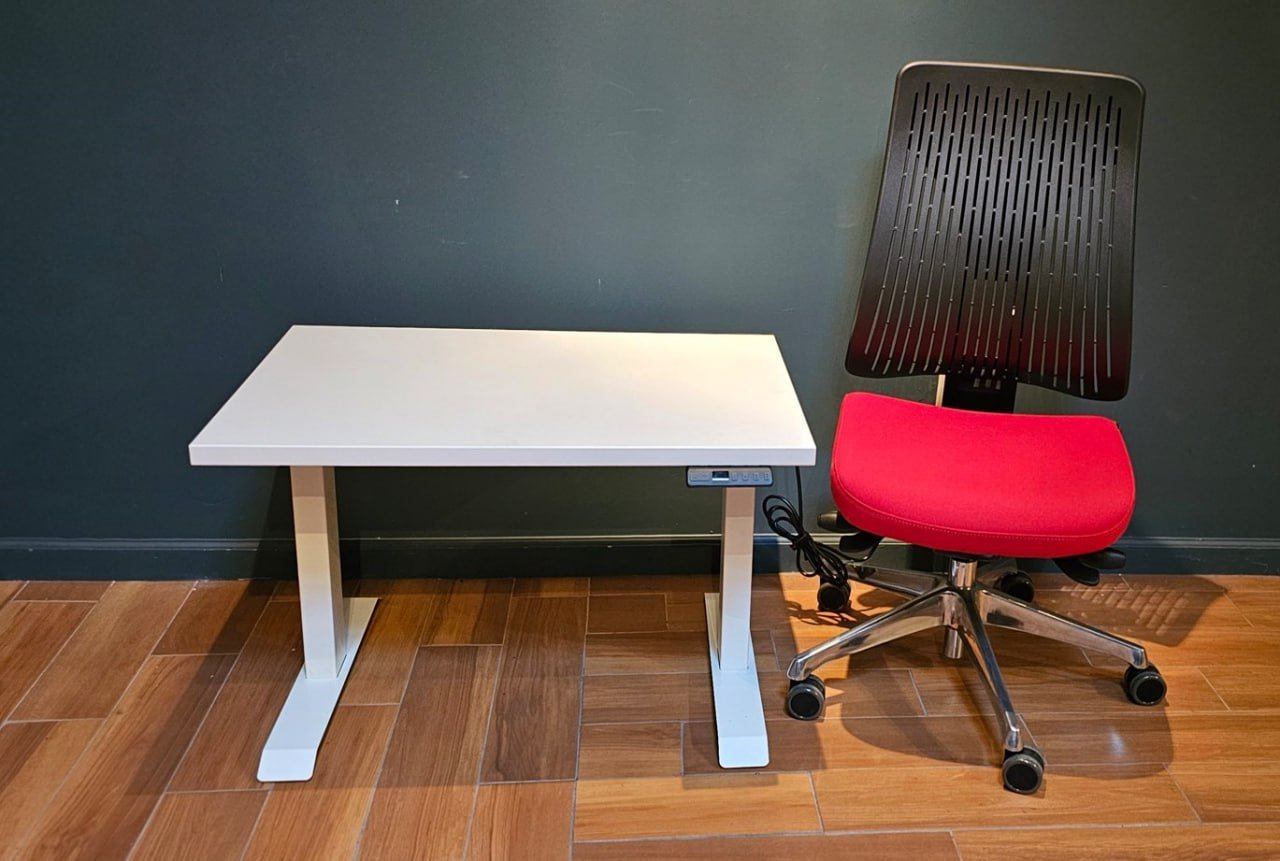

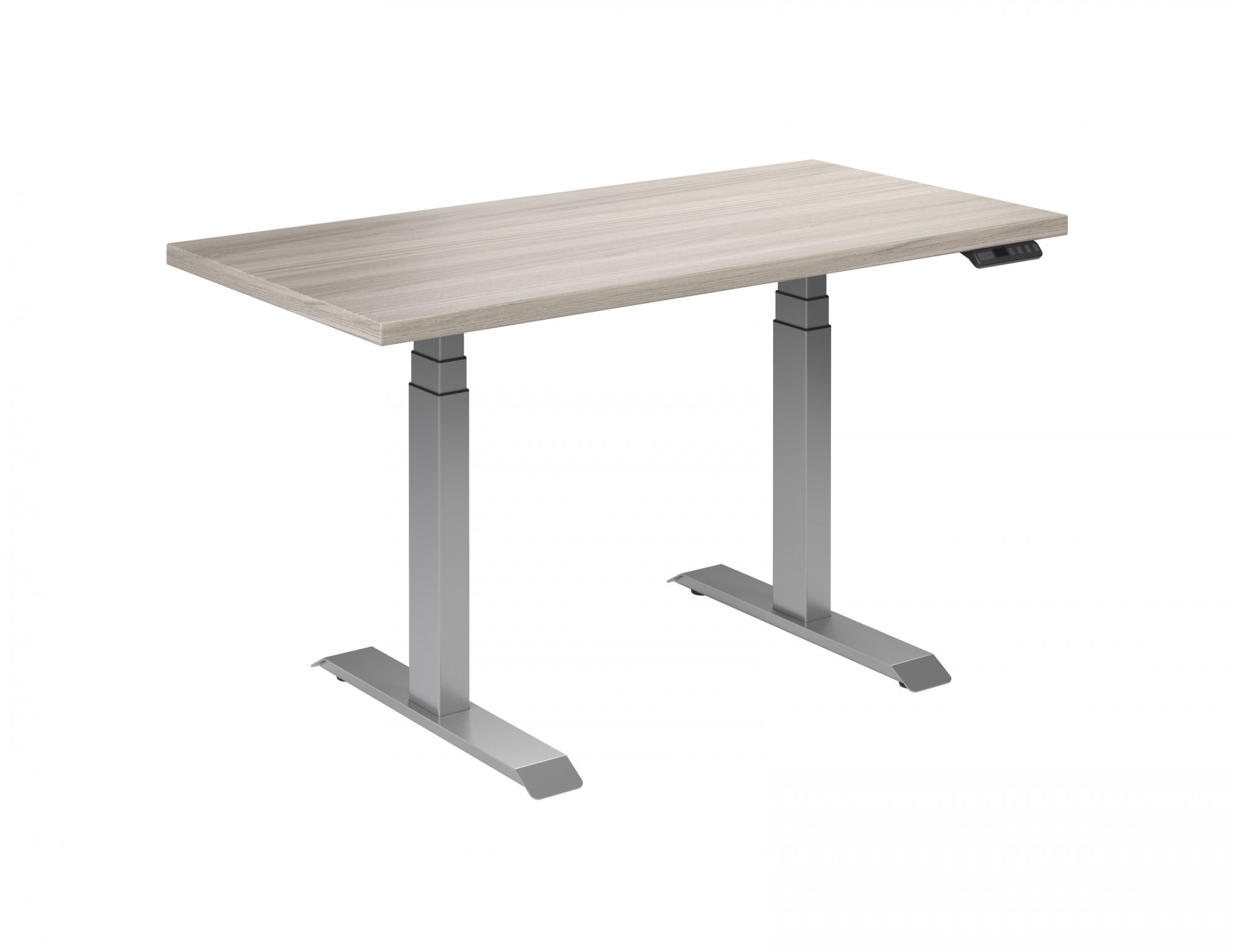

Workrite ASCENT4 EX Electric Rectangular 3-Stage, 2-Leg Workcenter
Description
The Ascent4 Sit-Stand Desk offers all the performance and features you’ve come to know from Workrite, packed into a value based solution. The Ascent4 EX features the BIFMA G1-2013 Ergonomic Height Range, giving you the most ergonomic option in sit-stand tables. The desktop adjusts from the lowest height of 22.52" from the floor to the highest height of 48.7", making it easily possible for petite and tall users to type with relaxed shoulders and unbroken wrists without the need for an under desk keyboard tray.
The desktop of this height adjustable electric desk is available in different sizes - 24" and 30" deep and 34" to 70" wide. With a weight capacity of 200 lbs, this electrical standing desk is equipped with an anti-collision sensor which stops the desktop movement if it detects an obstruction.
The Ascent4 EX is GreenGuard Gold certified for low chemical emissions. It also meets the BIFMA X5.5 standards which require desks and tables to undergo extensive performance tests for features like top loading, load ease, lock mechanism, rebound, racking leg strength, stability, horizontal and vertical adjustment, rebound and so forth. This standing desk also satisfies the UL 962 standard for electrical safety.
Other thoughtful features include Digital Readout Programmable Memory controller, Standard Up/Down Button controls, One-Touch Auto Move, advanced Gyro Anti-Collision, and integrated cable management.
There is a 7 Year Warranty on all ASCENT4 desks.

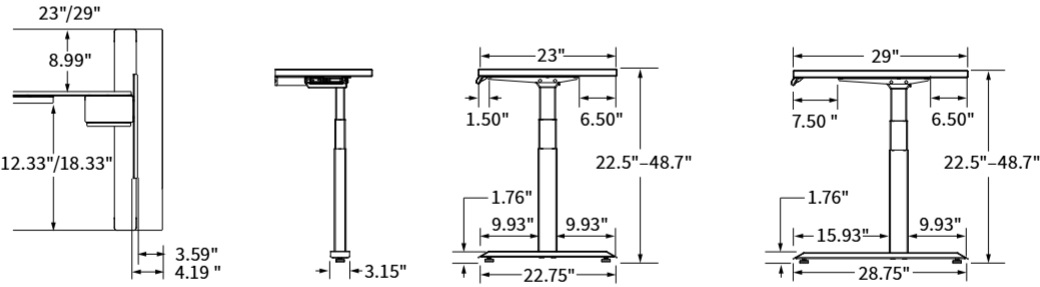

Frame Set Dimensions
Frame Set Features
Available for 24" and 30" deep worksurfaces
Rectangle sizes from 30" to 72" wide
Powder coated steel finish in Silver, Black, or White
Gyro-Sensor Anti-Collision
Optional Digital Memory Switch & Standard Switch

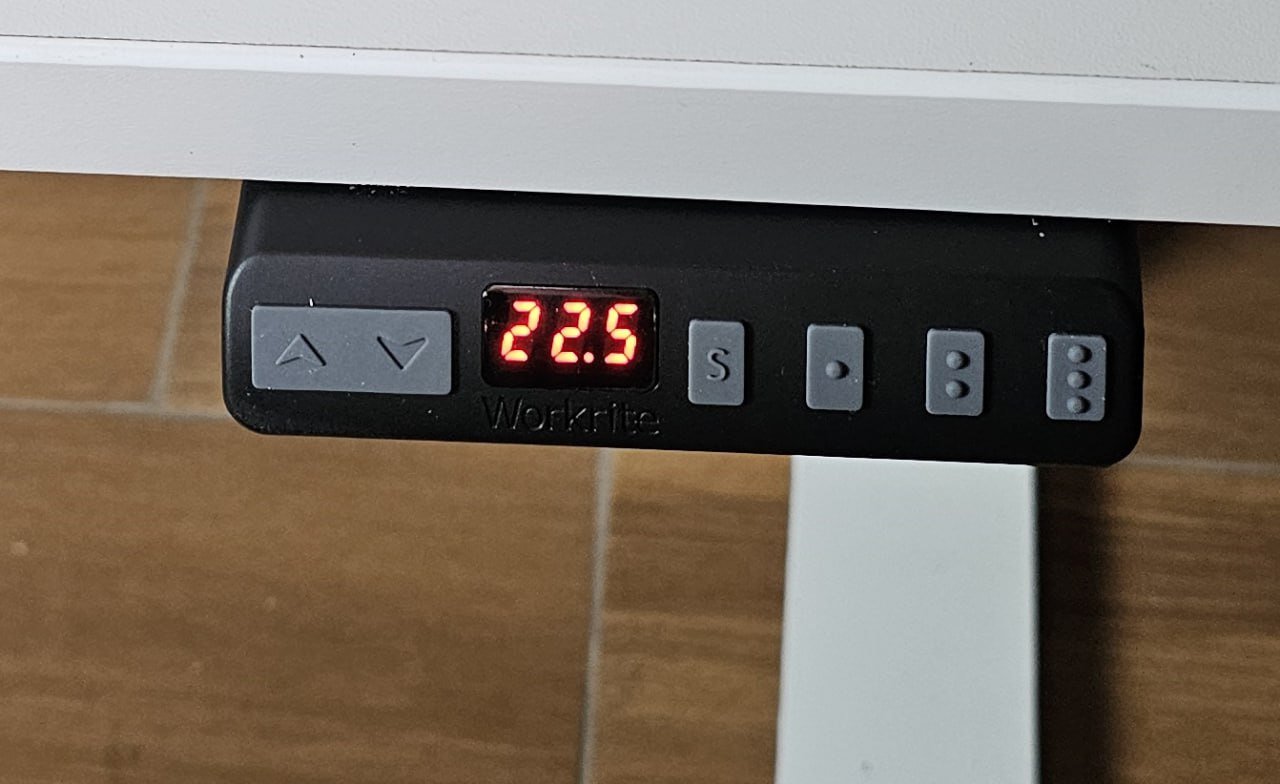

BIFMA G-1 2013 height range: 22.52" to 48.7"
2-leg payload carry capacity: 200 pounds (after top)
2-leg gross load capacity: 308 pounds (not including top and safety factor)
Adjustment speed: 1.5" per second
Maximum power draw: 4.0 A at 120 V, 60 Hz
Standby power draw: 0.3 W
9-foot power cord meets Chicago Code requirements
Meets or exceeds BIFMA X5.5 Standards
GREENGUARD GOLD Certified
UL962 Listed
7-Year Warranty

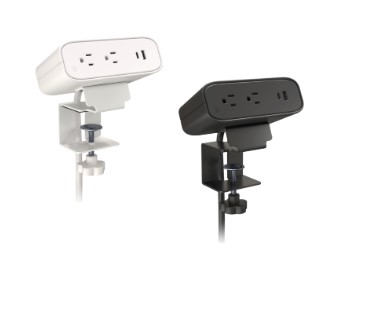

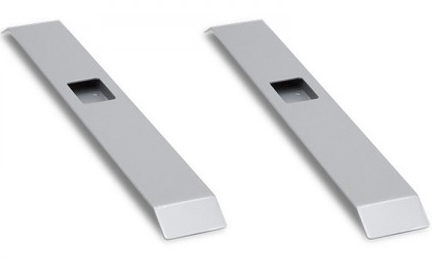

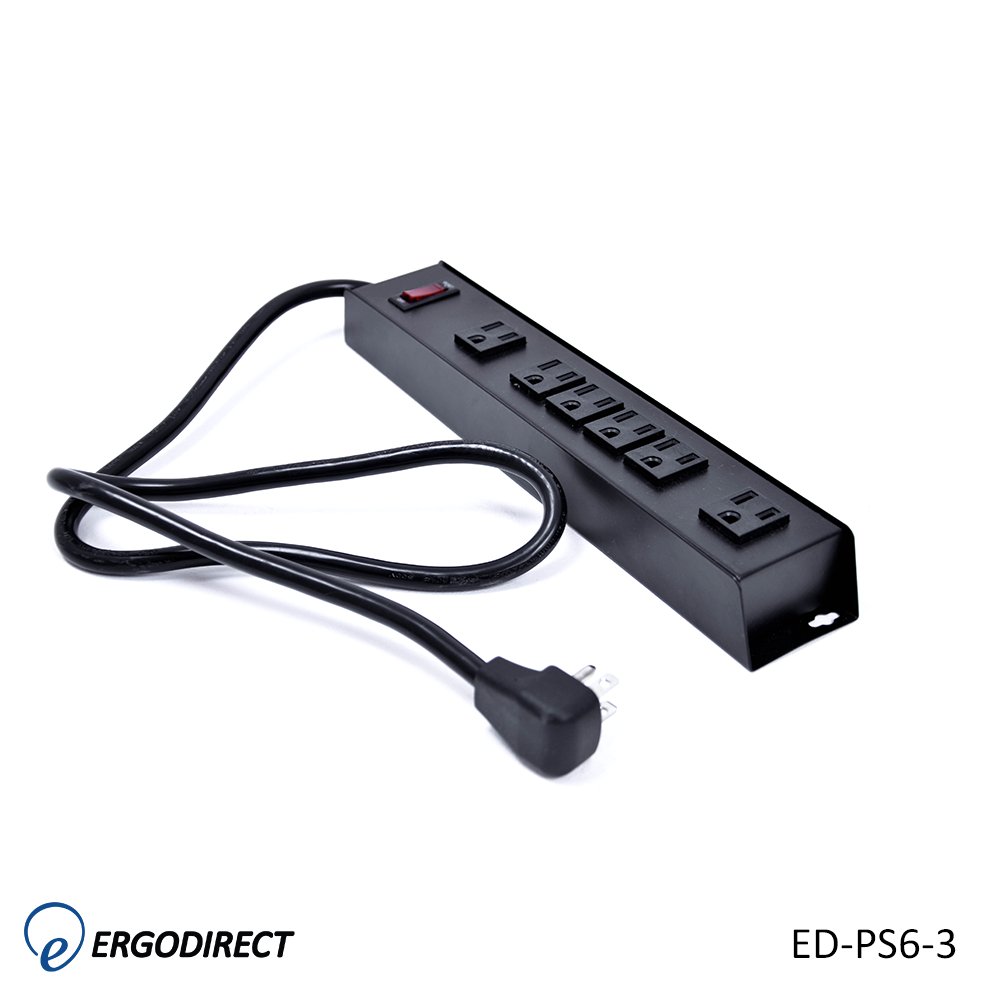

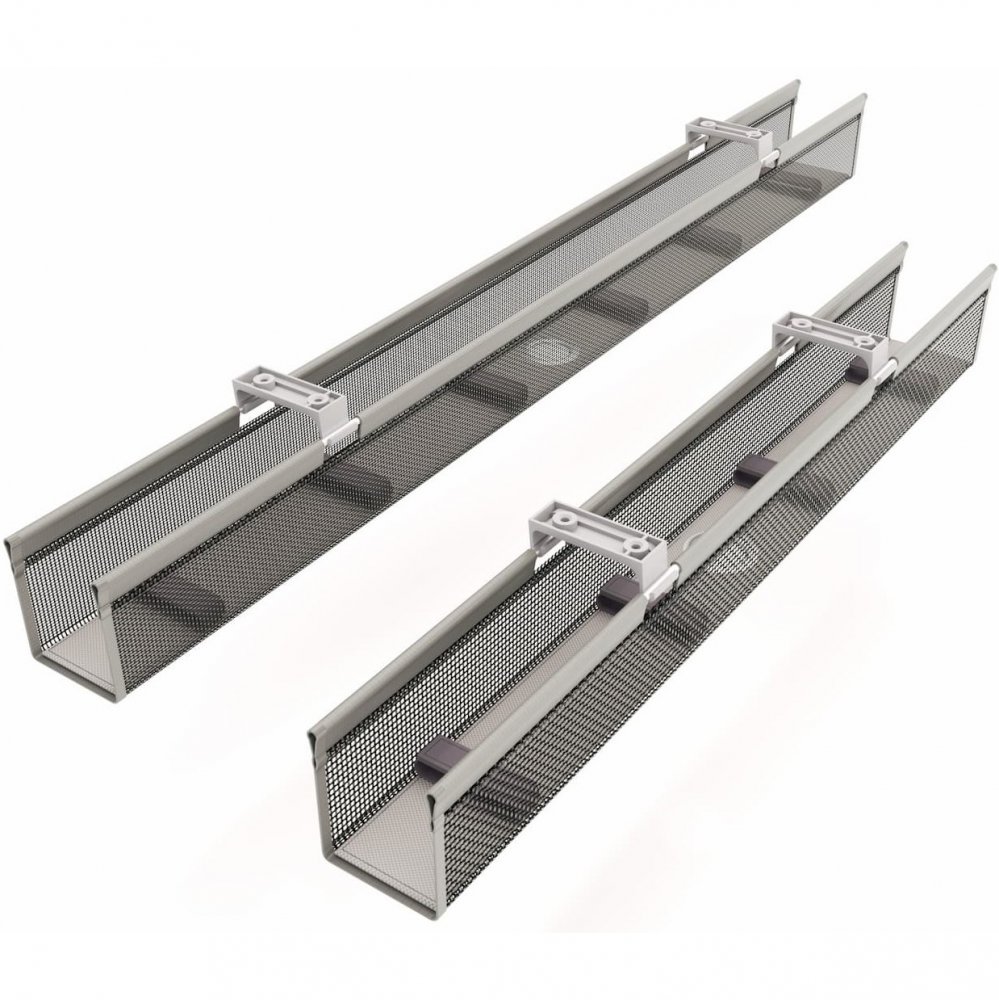

Product Options/Accessories
| Model | ASCENT4 EX |
| Manufacturer | Workrite Ergonomics |
| Part Number | ASCENT4 EX |
| Frame Color | Silver, Black and White |
| Width Range | 30" to 72" |
| Worksurface Depth | 24" and 30" |
| Height Range | 22.52" to 48.7" |
| Weight Capacity | 200 lbs (after top), 308 lbs (not including top and safety factor) |
| Maximum Current | 4 A at 120 V, 60 Hz |
| Speed | 1.5" per second |
| Power Cord | 9' |
| Warranty | 7 year |
| Switch | Digital Memory Switch and Standard Switch |
