Ergotron CareFit Combo Dual-Monitor System with Worksurface
Description

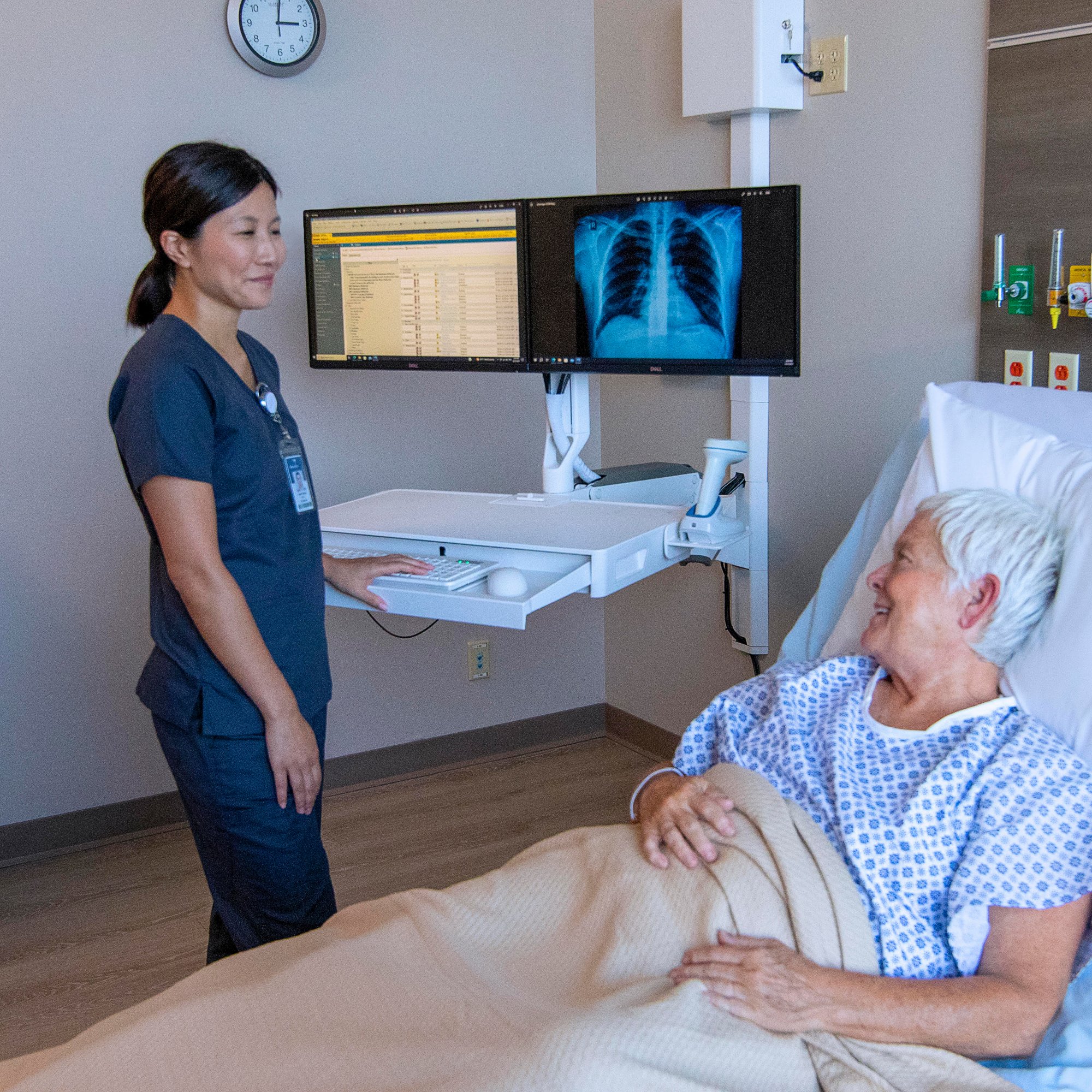

Ergotron CareFit Combo workstation is easy to reposition and store, offers a shelf area for supplies or a full worksurface, and enhances healing spaces with clean lines and hidden cables. Mounting two screens up to 24 inches each creates a large viewing area for caregivers to simultaneously chart at the patient’s bedside and monitor vitals. They can also easily share information with patients or other providers.
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24" |
Up to 18.5 lbs 8.4 kg |
25" 63.5 cm |
25° | 360° | 360° | MIS-D |
Product Information

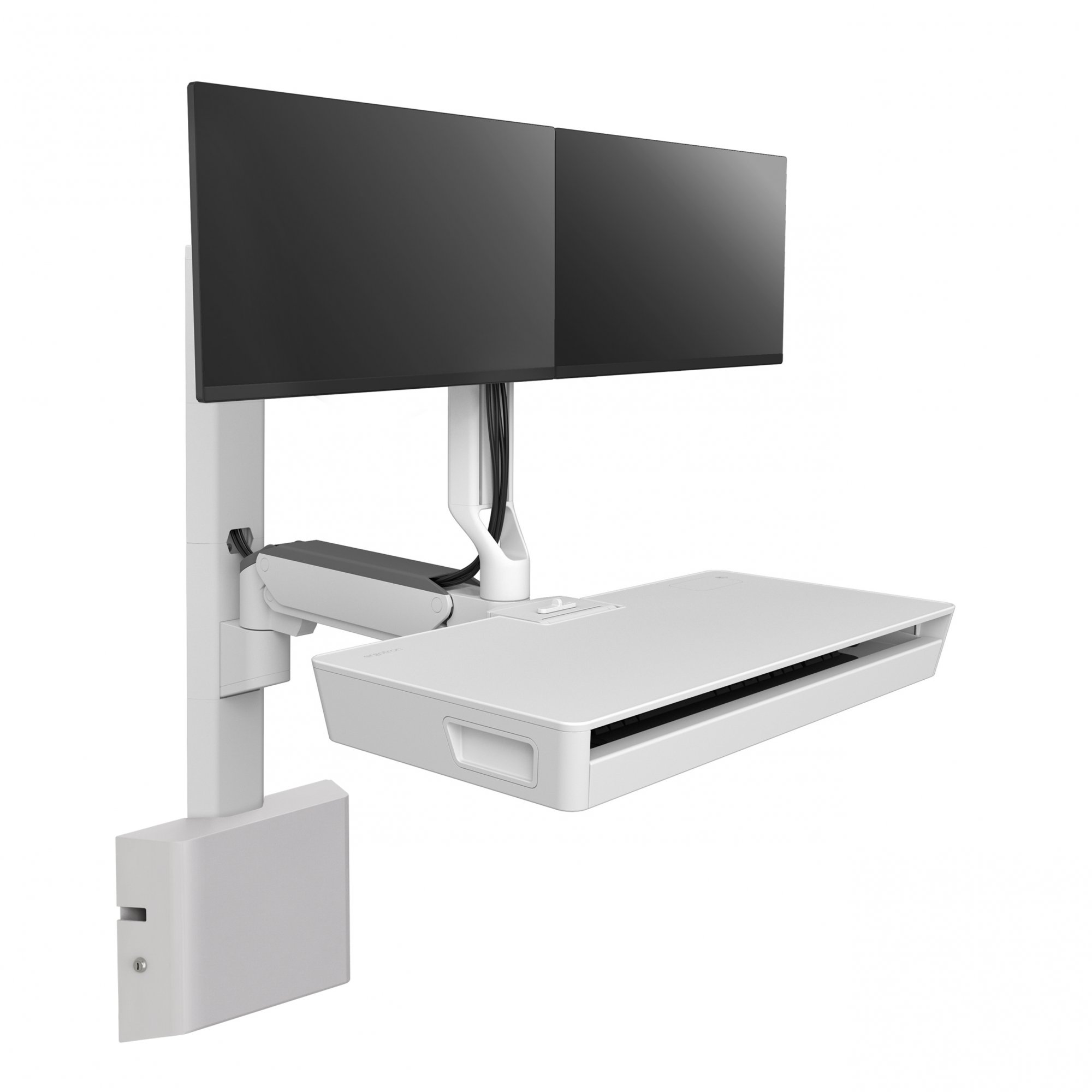

| Description | CareFit Combo Dual Monitor Wall System |
| Weight Capacity | Total maximum load on arm = 18.5 lbs (8.4 kg): individual monitor ≤ 9 lbs (4.1 kg) each; monitors should be equal in weight; keyboard and mouse ≤ 1.5 lbs (0.7 kg). CPU weight ≤ 5 lbs (2.3 kg); CPU weight does not affect arm’s load capacity |
| Lift Range | Monitors and keyboard adjust 20" (51 cm) in tandem with single-motion; monitors adjust 5" (13 cm) independently; maximum monitor height adjustment = 25" (64 cm) |
| Pan Range | Arm can turn 180° at two points for 360° total side to side motion; monitors can also turn 180° independently |
| Tilt Range | Monitors tilt in tandem 20° up / 5° down; keyboard tilts 90° up for space-saving storage |
| Components | |
| Build this tailored solution with the following products | |
| CareFit Combo System, Shelf Area 45-618-251 or CareFit Combo System, Full Worksurface 45-619-251 | |
| Color | White |

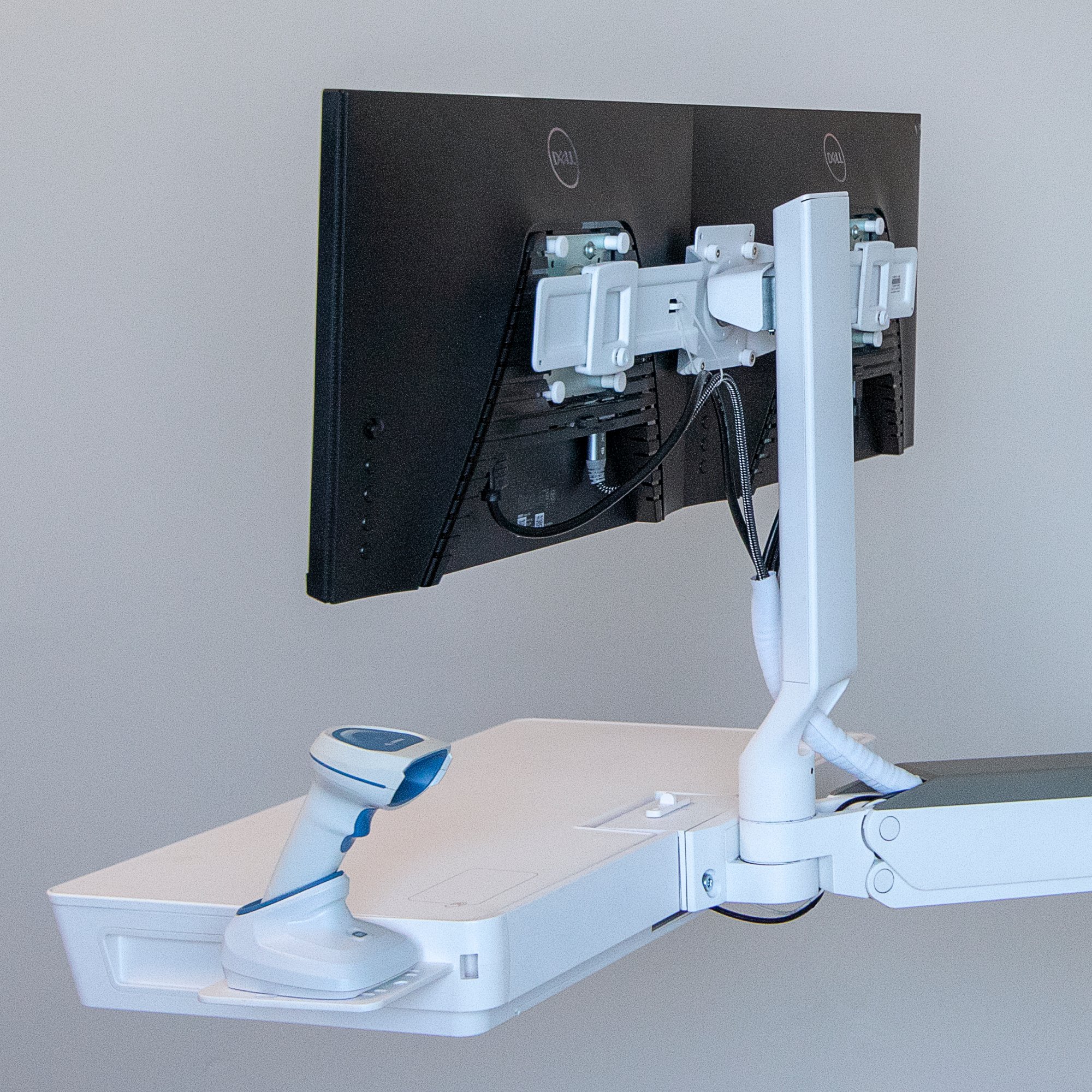

| Includes | Combo arm Keyboard tray Wall mount base Track mount adapter 34" wall track Track mount bracket Wall track covers Cable ties Mounting hardware |
| Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic |
| Product Weight | 47.9 lbs (21.8 kg) |
| Shipping Dimensions | 37.1" x 26.1" x 10" (94 x 66 x 25 cm) |
| Shipping Weight | 59.7 lbs (27.1 kg) |
| Warranty | Five years |

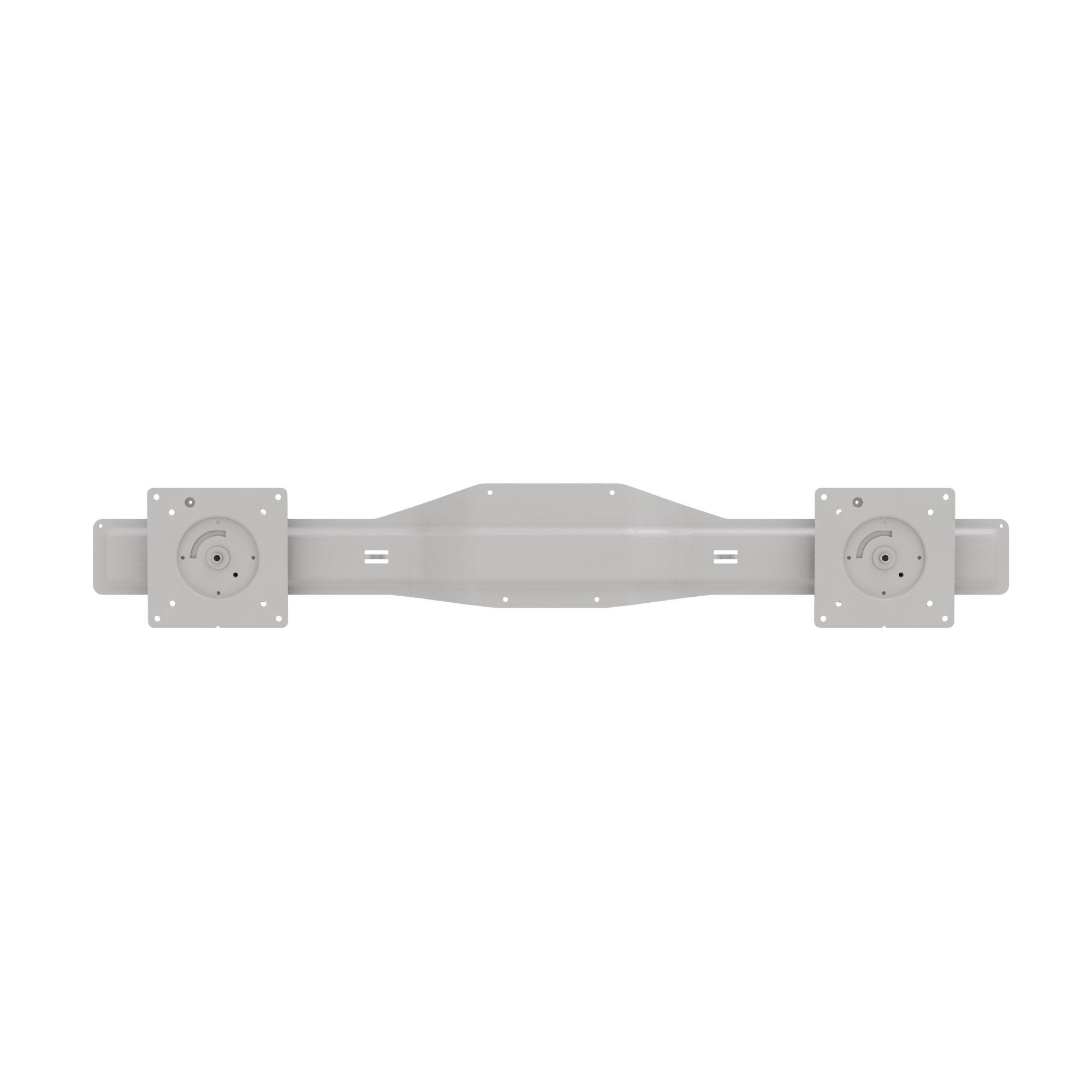

| CareFit Combo Dual Monitor Kit 98-650-251 | |
| Color | White |
| Includes | Bow 2 monitor brackets Cable cover Attachment hardware |
| Maximum outside width of displays | 26" (66 cm) |
| Weight Capacity | This kit adds an additional 5 lbs (2.2 kg) to the arm, which reduces its overall weight capacity to 18.5 lbs (8.4 kg) |
| Not Compatible | Not compatible with these accessory options: CareFit Combo CPU Tray (98-548-251) or Top-Mount Scanner Holder (98-649-251) |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Product Weight | 4.8 lbs (2.2 kg) |
| Shipping Dimensions | 34.6" x 11.2 x 11" (88 x 28.5 x 28 cm) |
| Shipping Weight | 6.9 lbs (3.1 kg) |
| Warranty | Five years |

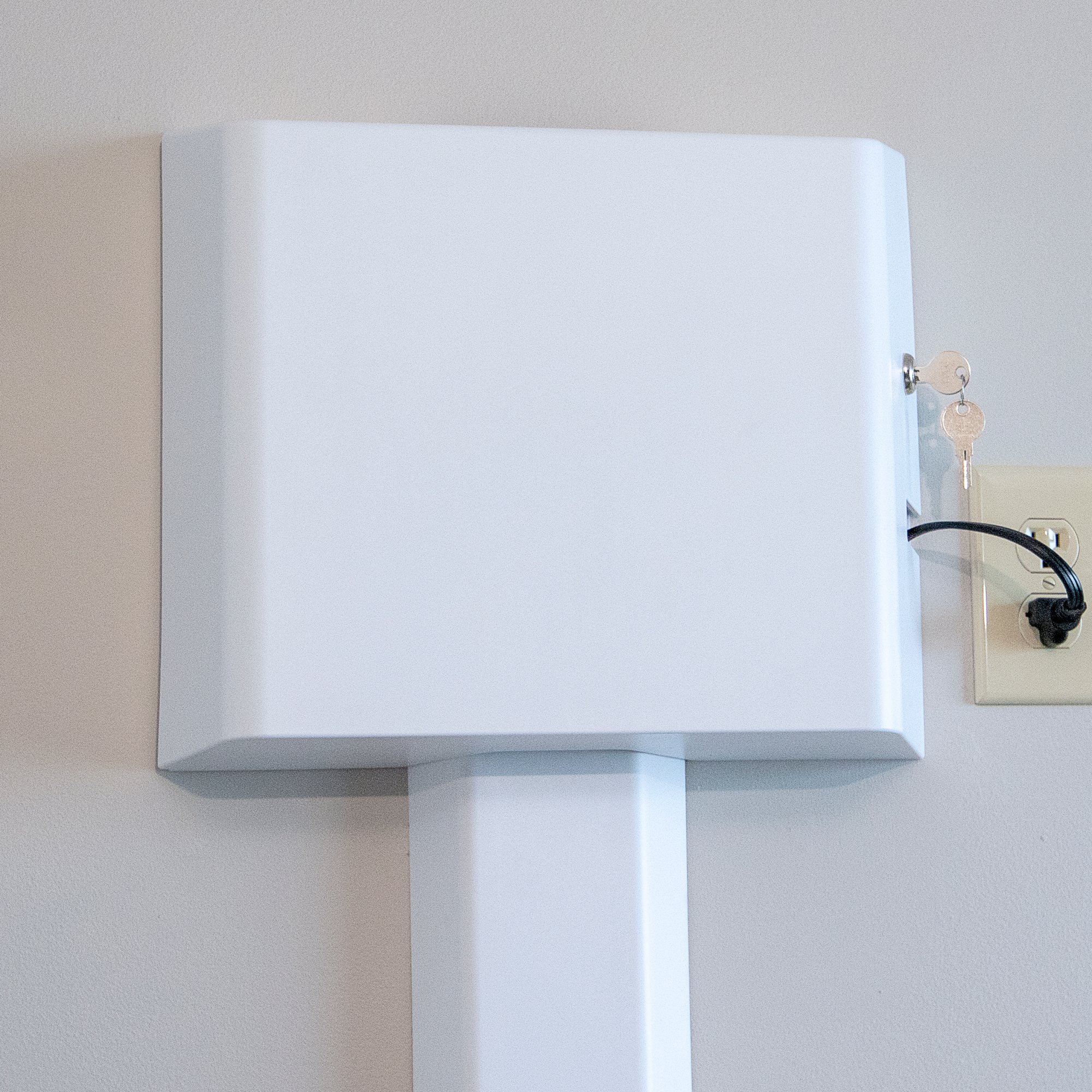

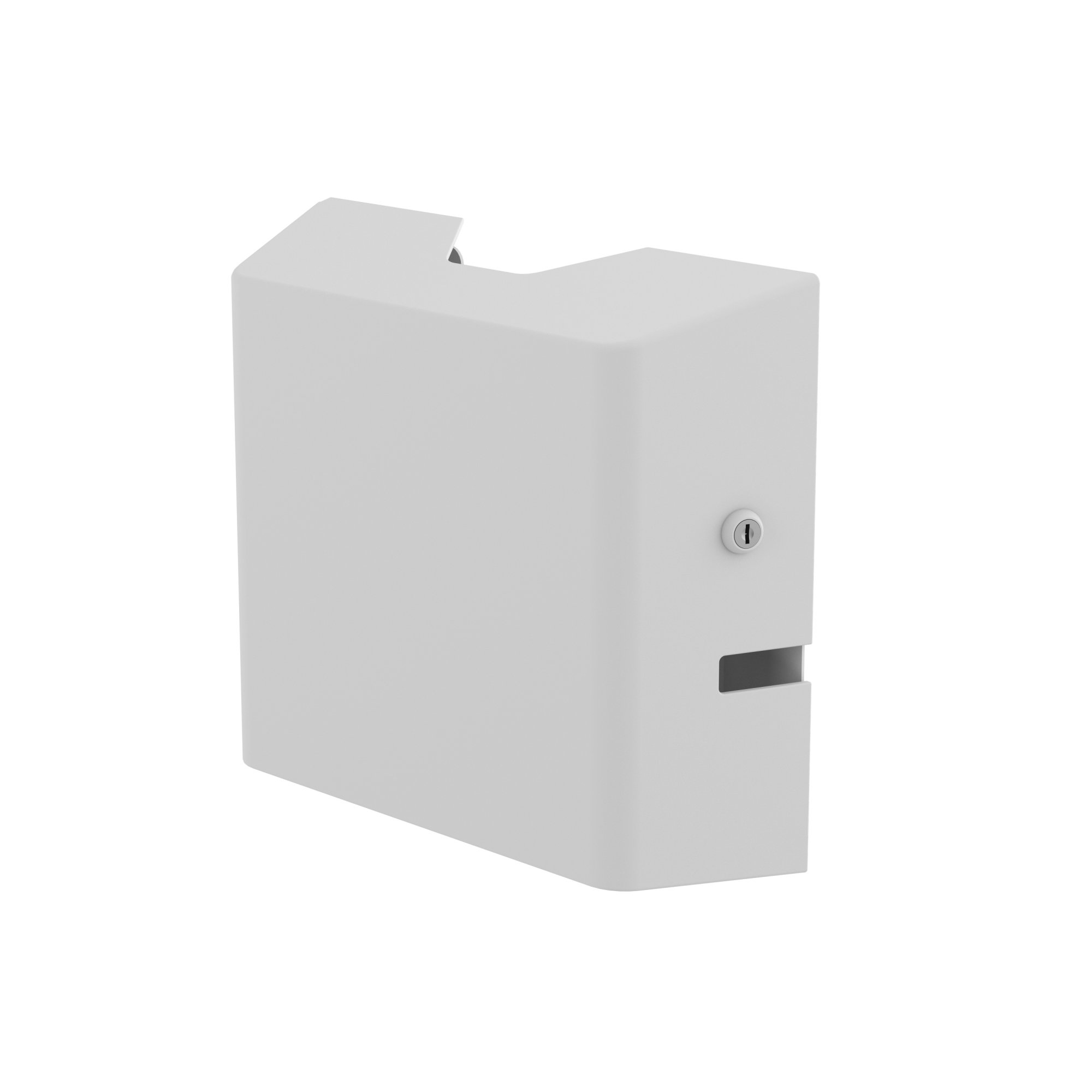

| CPU Wall Cabinet 98-543-251 | |
| Color | White |
| Includes | Cabinet enclosure Wall track cover Strap 2 keys Attachment hardware |

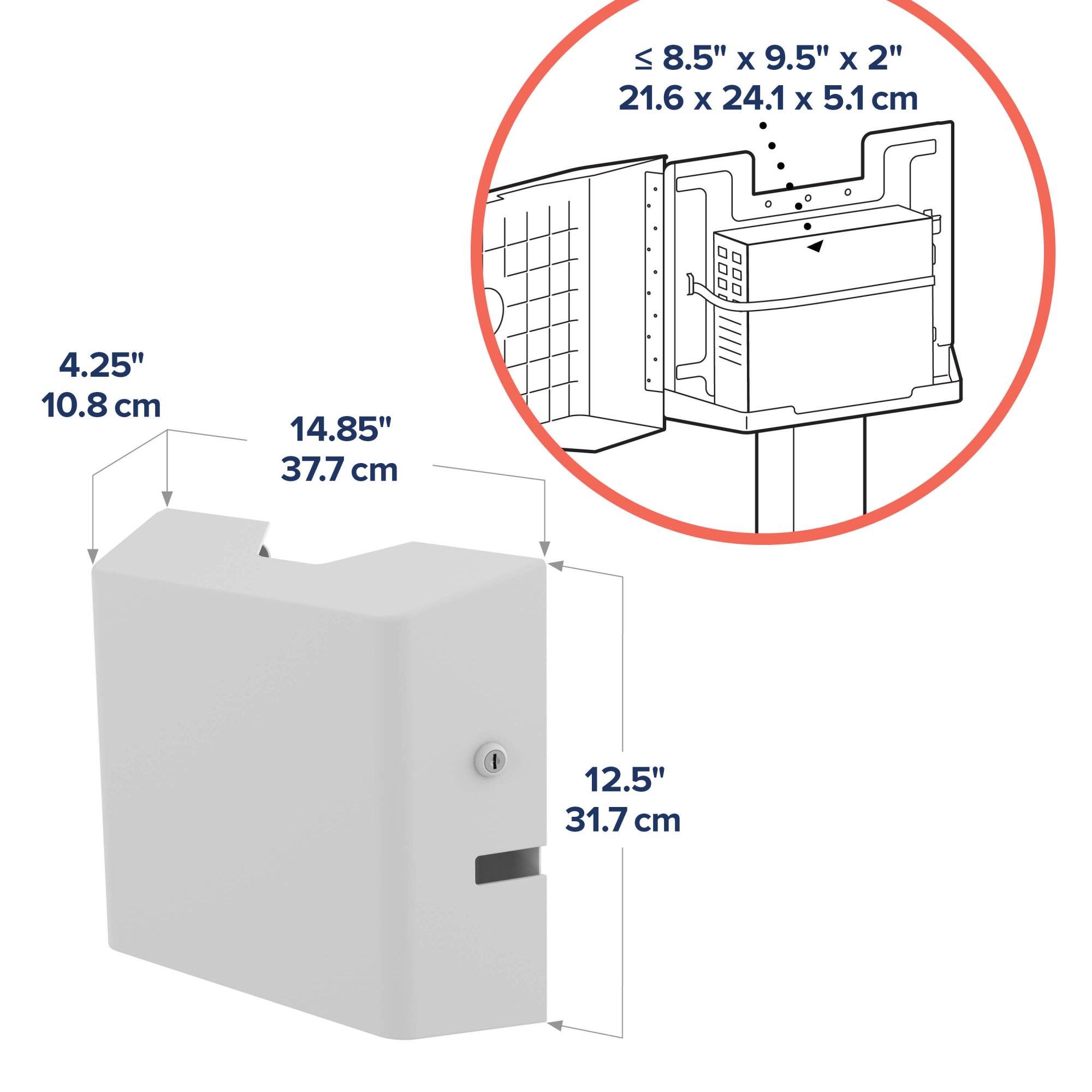

| Maximum CPU Size | 8.5" x 9.5" x 2" (21.6 x 24.1 x 5.1 cm). Maximum power brick size = 6" x 3" x 1" (15.2 x 7.6 x 2.5 cm) |
| Cabinet | May be installed above or below wall track |
| Exterior | Durable, easy-to-clean exterior composed of high-grade plastic |
| Product Weight | 7.8 lbs (3.5 kg) |
| Shipping Weight | 11.4 lbs (5.2 kg) |
| Warranty | Five years |
Benefits
Flexible workflows - Easy screen sharing and one-hand stowing enhances patient interactions.
Comfortable computing - Offers ergonomic height-adjustment and intuitive access to tools.
Neat workspace - Concealed cable management minimizes clutter and supports infection control.
Enhanced security - CPU cabinet locks to control access and protect technology.
Efficient documentation - Displays more information at once to eliminate extra clicks or steps.
Greater visibility - Moves two monitors in one easy motion for information sharing.
Product Options/Accessories
| Model | 45-619-251, 98-650-251, 98-543-251 |
| Manufacturer | Ergotron |
| Part Number | 45-619-251, 98-650-251, 98-543-251 |
| Monitor Size | Up to 24" |
| Weight Capacity | Up to 18.5 lbs (8.4 kg) |
| Lift | (63.5 cm) 25 in |
| Tilt | 25 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Warranty | 5 years |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and
limitations as set forth below.
Exceptions
Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014
Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)
Ten-year warranty on LearnFit Sit-Stand Desks
Three-year warranty on all Neo-Flex Ergotron Products
Two-year warranty on WorkFit-Z Mini
Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted
The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder
One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)
Two-year warranty on Power Modules by Ergotron
Sealed Lead-Acid (SLA) Power Systems, SLA Batteries
Two-year warranty on all SLA power system components by Ergotron
Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)
Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law
Lithium Iron (LiFe) Power Systems, LiFe Batteries
LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)
Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)
Service Programs - 30-day warranty
Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies
Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer
- StyleView Electric Lift motor: Three (3) years on motor and switch
Further Exclusions and Limitations
SLA Batteries
In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void
Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void
Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law
- The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations
SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history
SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history
LiFe Batteries
LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)
The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.
These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.
Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.
Exclusive Remedy
Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.
Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.
For products that are not covered under warranty, Ergotron offers you the following options:
You may upgrade to a newer, functionally equivalent product at a normal MSR list price
Ergotron will return the product to you
You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law
Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.
Warranty Disclaimer
Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.
Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.
Warranty Transferability
This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
