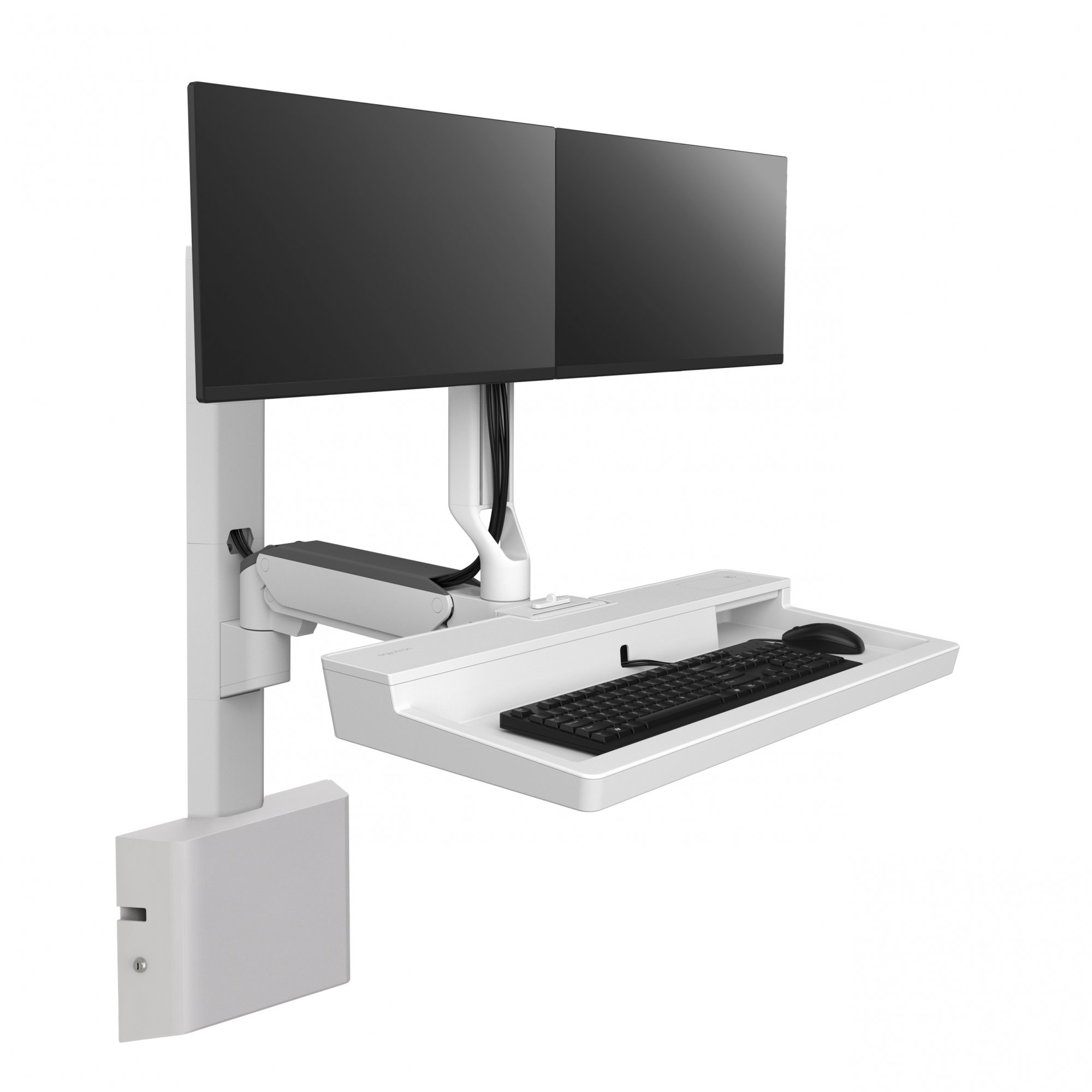

Ergotron CareFit Combo Dual-Monitor System
Description
Ergotron CareFit Combo workstation is easy to reposition and store, offers a shelf area for supplies or a full worksurface, and enhances healing spaces with clean lines and hidden cables. Mounting two screens up to 24 inches each creates a large viewing area for caregivers to simultaneously chart at the patient’s bedside and monitor vitals. They can also easily share information with patients or other providers.
Technical Specifications
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
Up to 24" |
Up to 18.5 lbs 8.4 kg |
25" 63.5 cm |
25° | 360° | 360° | MIS-D |
Product Information
Description | CareFit Combo Dual Monitor Wall System |
Weight Capacity | Total maximum load on arm = 18.5 lbs (8.4 kg): individual monitor ≤ 9 lbs (4.1 kg) each; monitors should be equal in weight; keyboard and mouse ≤ 1.5 lbs (0.7 kg). CPU weight ≤ 5 lbs (2.3 kg); CPU weight does not affect arm’s load capacity |
Lift Range | Monitors and keyboard adjust 20" (51 cm) in tandem with single-motion; monitors adjust 5" (13 cm) independently; maximum monitor height adjustment = 25" (64 cm) |
Pan Range | Arm can turn 180° at two points for 360° total side to side motion; monitors can also turn 180° independently |
Tilt Range | Monitors tilt in tandem 20° up / 5° down; keyboard tilts 90° up for space-saving storage |
Components | |
Build this tailored solution with the following products | |
CareFit Combo System, Shelf Area 45-618-251 or CareFit Combo System, Full Worksurface 45-619-251 | |
Color | White |
Includes | Combo arm Keyboard tray Wall mount base Track mount adapter 34" wall track Track mount bracket Wall track covers Cable ties Mounting hardware |
Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic |
Product Weight | 47.9 lbs (21.8 kg) |
Shipping Dimensions | 37.1" x 26.1" x 10" (94 x 66 x 25 cm) |
Shipping Weight | 59.7 lbs (27.1 kg) |
Warranty | Five years |

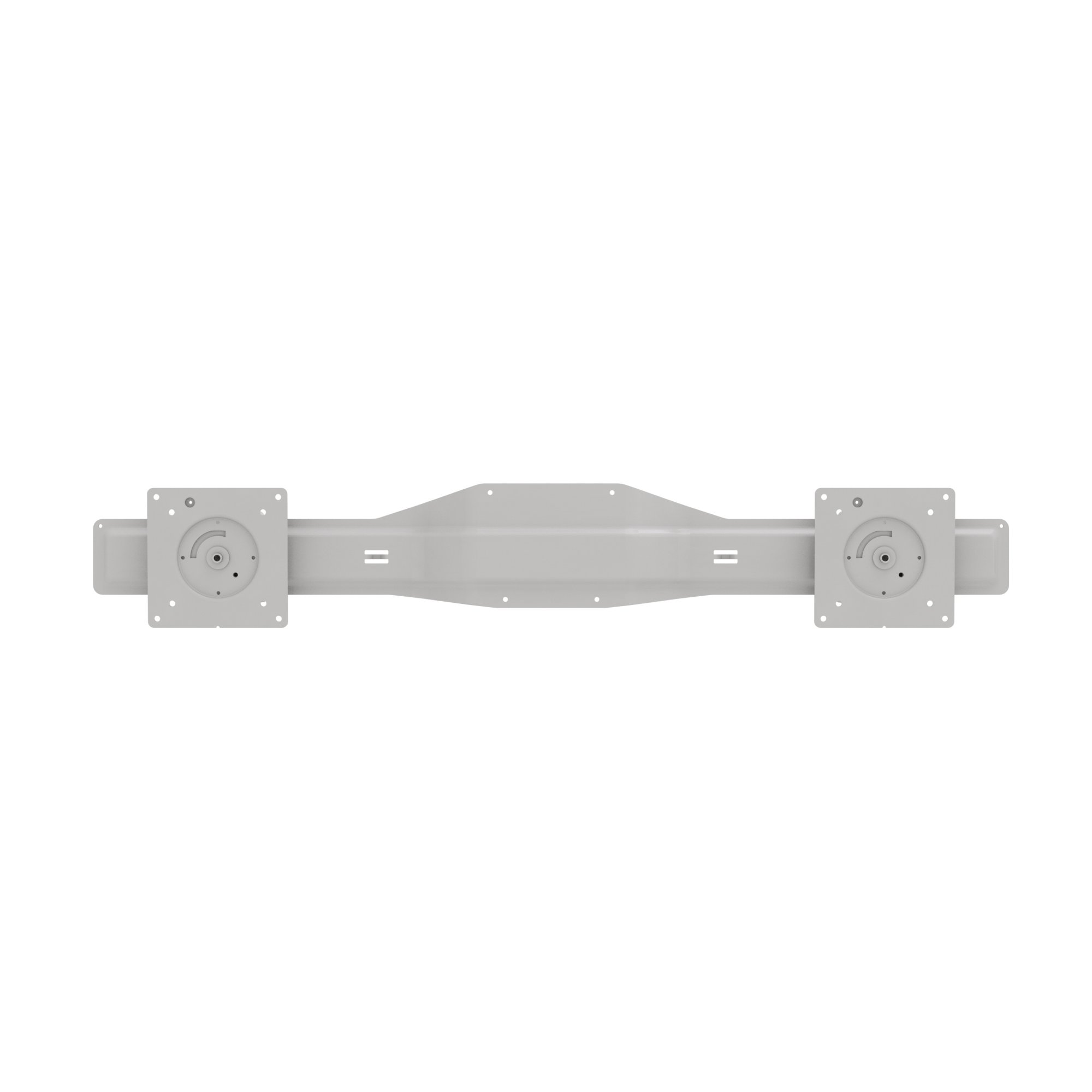

CareFit Combo Dual Monitor Kit 98-650-251 | |
Color | White |
Includes | Bow 2 monitor brackets Cable cover Attachment hardware |
Maximum outside width of displays | 26" (66 cm) |
Weight Capacity | This kit adds an additional 5 lbs (2.2 kg) to the arm, which reduces its overall weight capacity to 18.5 lbs (8.4 kg) |
Not Compatible | Not compatible with these accessory options: CareFit Combo CPU Tray (98-548-251) or Top-Mount Scanner Holder (98-649-251) |
Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
Product Weight | 4.8 lbs (2.2 kg) |
Shipping Dimensions | 34.6" x 11.2 x 11" (88 x 28.5 x 28 cm) |
Shipping Weight | 6.9 lbs (3.1 kg) |
Warranty | Five years |

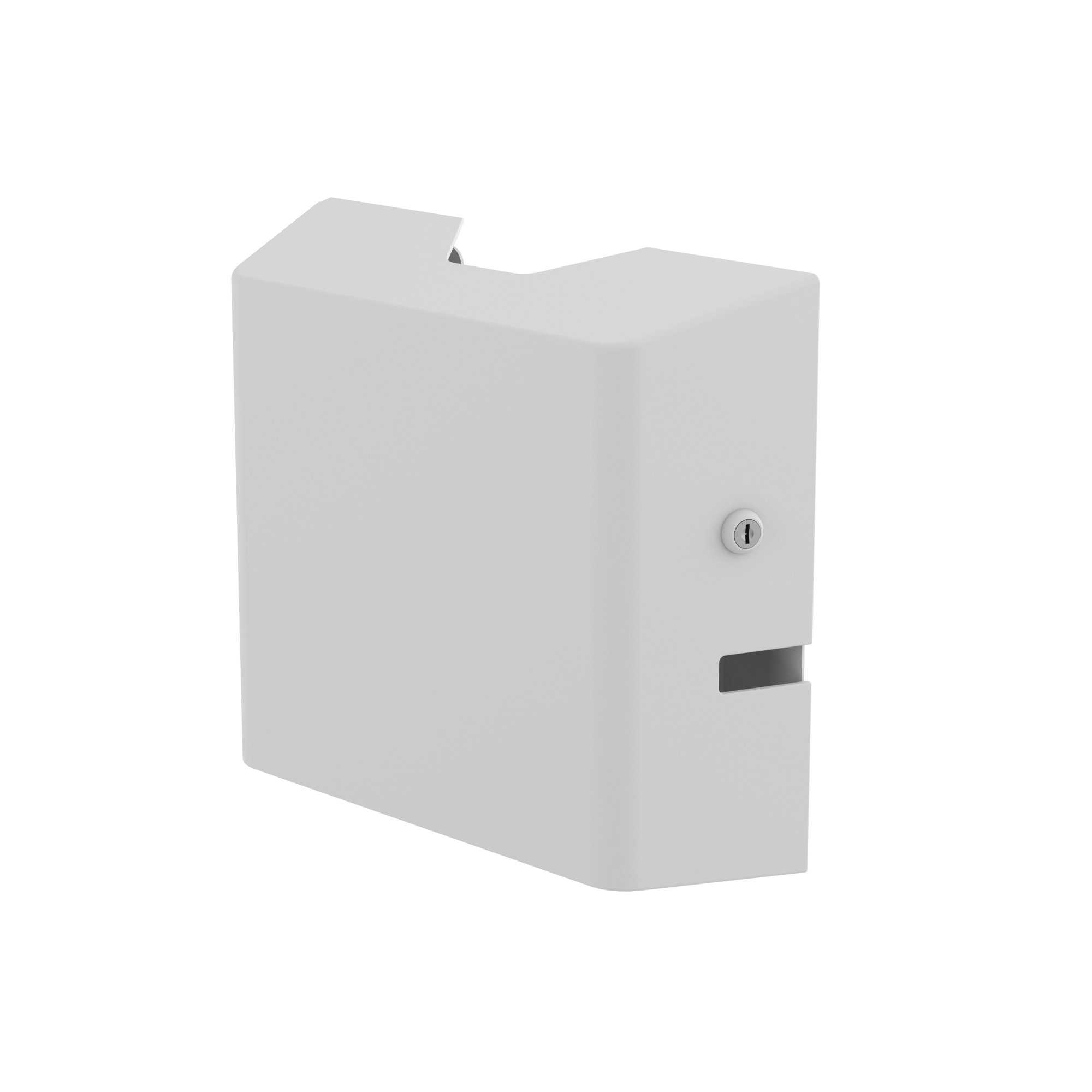

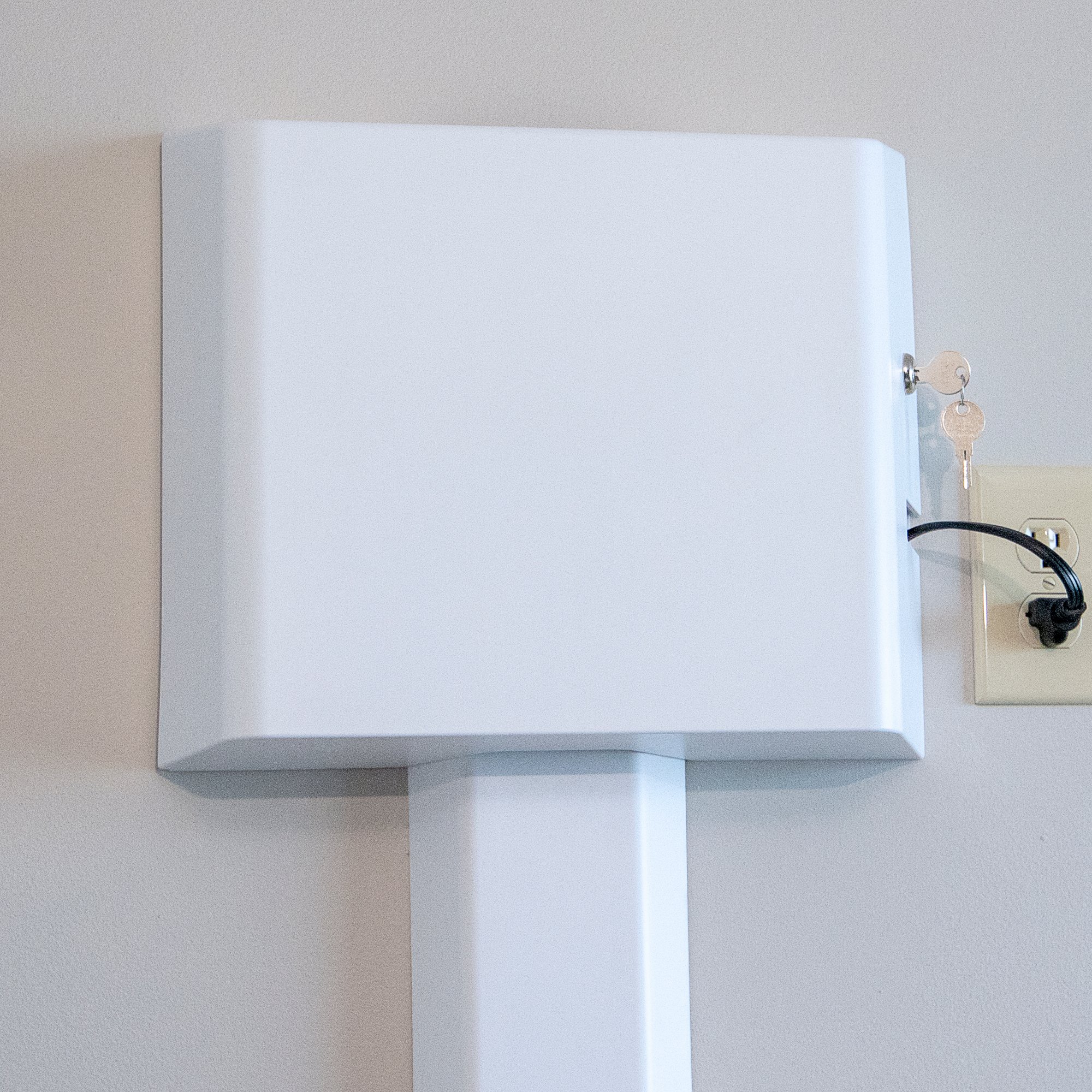

CPU Wall Cabinet 98-543-251 | |
Color | White |
Includes | Cabinet enclosure Wall track cover Strap 2 keys Attachment hardware |

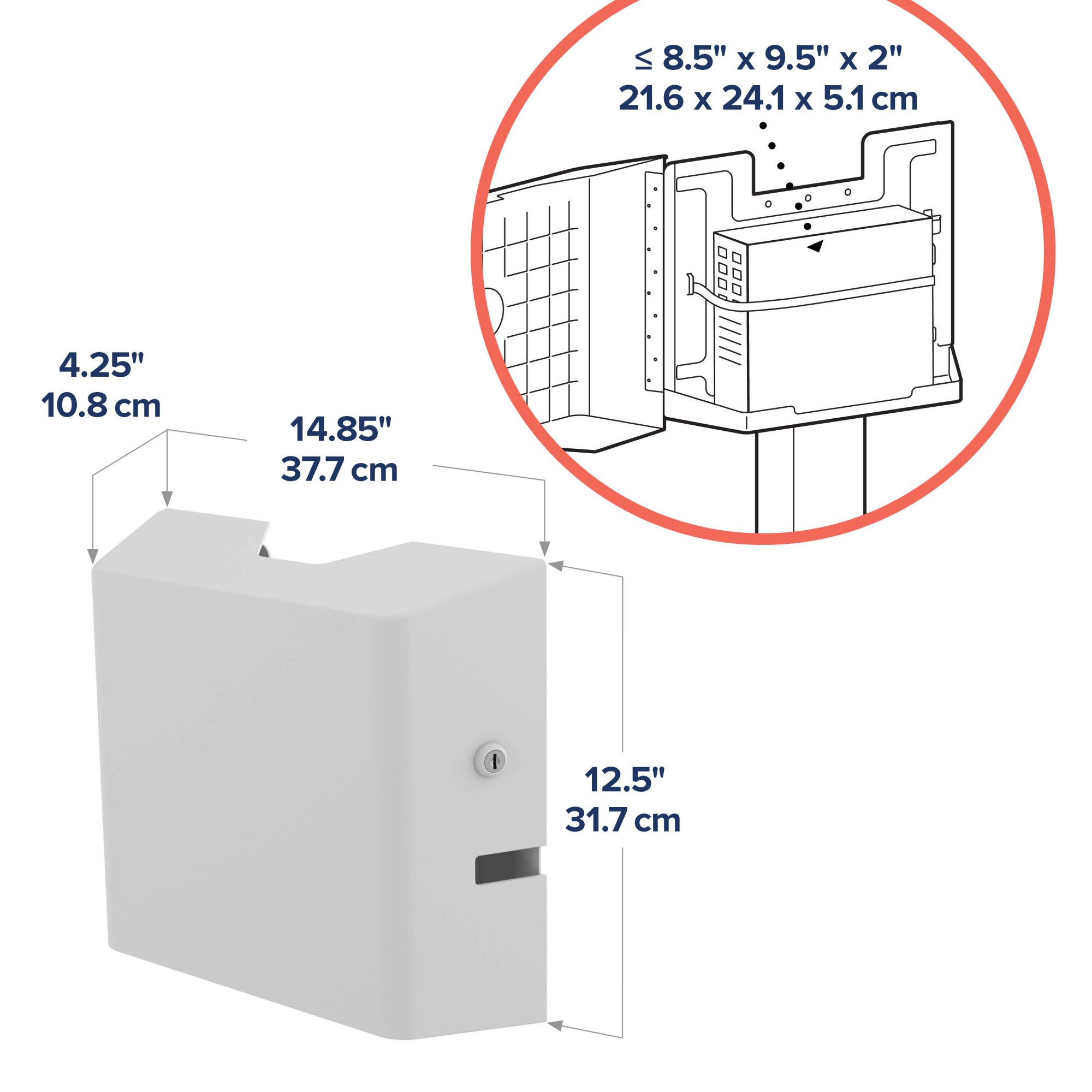

Maximum CPU Size | 8.5" x 9.5" x 2" (21.6 x 24.1 x 5.1 cm). Maximum power brick size = 6" x 3" x 1" (15.2 x 7.6 x 2.5 cm) |
Cabinet | May be installed above or below wall track |
Exterior | Durable, easy-to-clean exterior composed of high-grade plastic |
Product Weight | 7.8 lbs (3.5 kg) |
Shipping Weight | 11.4 lbs (5.2 kg) |
Warranty | Five years |
Benefits
Flexible workflows - Easy screen sharing and one-hand stowing enhances patient interactions.
Comfortable computing - Offers ergonomic height-adjustment and intuitive access to tools.
Neat workspace - Concealed cable management minimizes clutter and supports infection control.
Enhanced security - CPU cabinet locks to control access and protect technology.
Efficient documentation - Displays more information at once to eliminate extra clicks or steps.
Greater visibility - Moves two monitors in one easy motion for information sharing.
Product Options/Accessories
Model | 45-618-251, 98-650-251, 98-543-251 |
Manufacturer | Ergotron |
Part Number | 45-618-251, 98-650-251, 98-543-251 |
Monitor Size | Up to 24" |
Weight Capacity | Up to 18.5 lbs (8.4 kg). individual monitor ≤ 9 lbs (4.1 kg) each; monitors should be equal in weight; keyboard and mouse ≤ 1.5 lbs (0.7 kg). CPU weight ≤ 5 lbs (2.3 kg); CPU weight does not affect arm’s load capacity |
Lift | (63.5 cm) 25 in |
Tilt | 25 degree |
Pan | 360 degree |
Rotation | 360 degree |
Mounting Pattern | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
Warranty | 5 years |
