Kinesis KB830HMB-us Freestyle2 for Mac Pre-installed onto V3

Product ID 20021

Kinesis Freestyle2 ("FS2") Keyboard Features

Kinesis Freestyle2 V3 and Freestyle Pro V3 Pro Installation

Description

The Freestyle2 is an award-winning split keyboard designed to address the ergonomic risk factors related to typing by adjusting to your body. It features a familiar Mac layout, Mac shortcuts and hotkeys, and a 2-port USB Hub.

Features

Sleek, low-profile design: Most keyboards including ergonomic models have a 10 degree positive slope from front to back. These designs tend to bend your wrists. The Freestyle2 has a zero degree slope which minimizes the height, effectively creating negative slope and reducing wrist extension. The slim design provides a 2-in-1 office and travel keyboard.

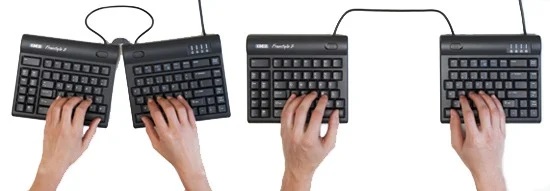

Accommodates a wide range of individuals: From small to tall and body types in between, the Freestyle2 allows for maximum flexibility catering to each individual’s unique needs. Out of the box both modules are connected together by a flexible pivot tether allowing an infinite range of splay. Disconnecting the pivot tether allows up to 9 or 20 inches of complete separation of both left and right keying modules. Perfect for individual needs ranging from a narrow footprint to complete separation. This design greatly reduces and or/eliminates ulnar deviation.

Low-force, tactile key switches: The Freestyle2 utilizes a quiet, low-force, tactile membrane key switch. The typical average maximum key force of a switch is 45 grams. This is at least 25% less than most traditional and many ergonomic keyboards such as the Microsoft 4000 with maximum key forces of over 60 grams.

2-Port 2.0 USB hub: The 2-port 2.0 USB hub enables you to easily connect other input devices such as mice without having to access USB ports on your computer.

Left side driverless hot keys: Driverless hot keys for commonly used mouse actions. (Internet Page Forward and Back, Beginning of Line, End of Line, Cut, Undo, Copy, Select All and Paste). A vertical rib is located on the inside row of hot keys to provide tactile notification to the user

Standard key layout: Familiar key layout provides for minimal adaptation time.

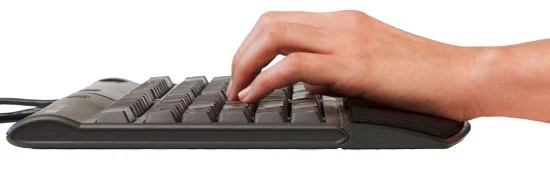

Optional palm supports: Optional padded palm supports reduce wrist extension by keeping wrists neutral.

Specifications

Compatible Operating Systems	Mac OS X 10.4 or newer
2-port USB 2.0 hub	Compatible with low-power peripherals like mice & flash drives. Devices such as iPhones and iPads are not compatible.
Key Switch	Operating force: 44 grams Activation force: 35 grams Travel distance: 3.9 mm Switch type: Rubber dome, membrane
Dimensions	Width of standard version (9 inches of separation): Min: 15.375 inches; Max: 23.50 inches. Distance between F & J Keys: Min: 3.50 inches; Max: 11.50 inches Width of 20 inch version: Min: 15.375 inches; Max: 37.75 inches. Distance between F & J Keys: Min: 3.50 inches; Max: 25.75 inches Depth: 7.125 inches; palm supports installed: 10 inches Max height: 0.875 inches Weight: 2 lbs Shipping weight: 3 lbs USB Type A cable length: 6 feet
Dimensions with VIP3 accessory installed	Width of standard version (9 inches of separation): Min: 15.375 inches; Max: 23.50 inches Depth: 10 inches Max height at 15 degrees slope: 2.875 inches Max height at 10 degrees slope: 2.125 inches Max height at 5 degrees slope: 1.50 inches Weight: 2.50 lbs Shipping weight: 4 lbs USB Type A cable length: 6 feet
Dimensions with V3 accessory installed	Width of standard version (9 inches of separation): Min: 15.375 inches; Max: 23.50 inches Depth: 7.125 inches Max height at 15 degrees slope: 2.875 inches Max height at 10 degrees slope: 2.125 inches Max height at 5 degrees slope: 1.50 inches Weight: 2.12 lbs Shipping weight: 4 lbs USB Type A cable length: 6 feet
Hot Keys	Hot keys on F5-F7 require the Apple keyboard update 1.1 or newer.

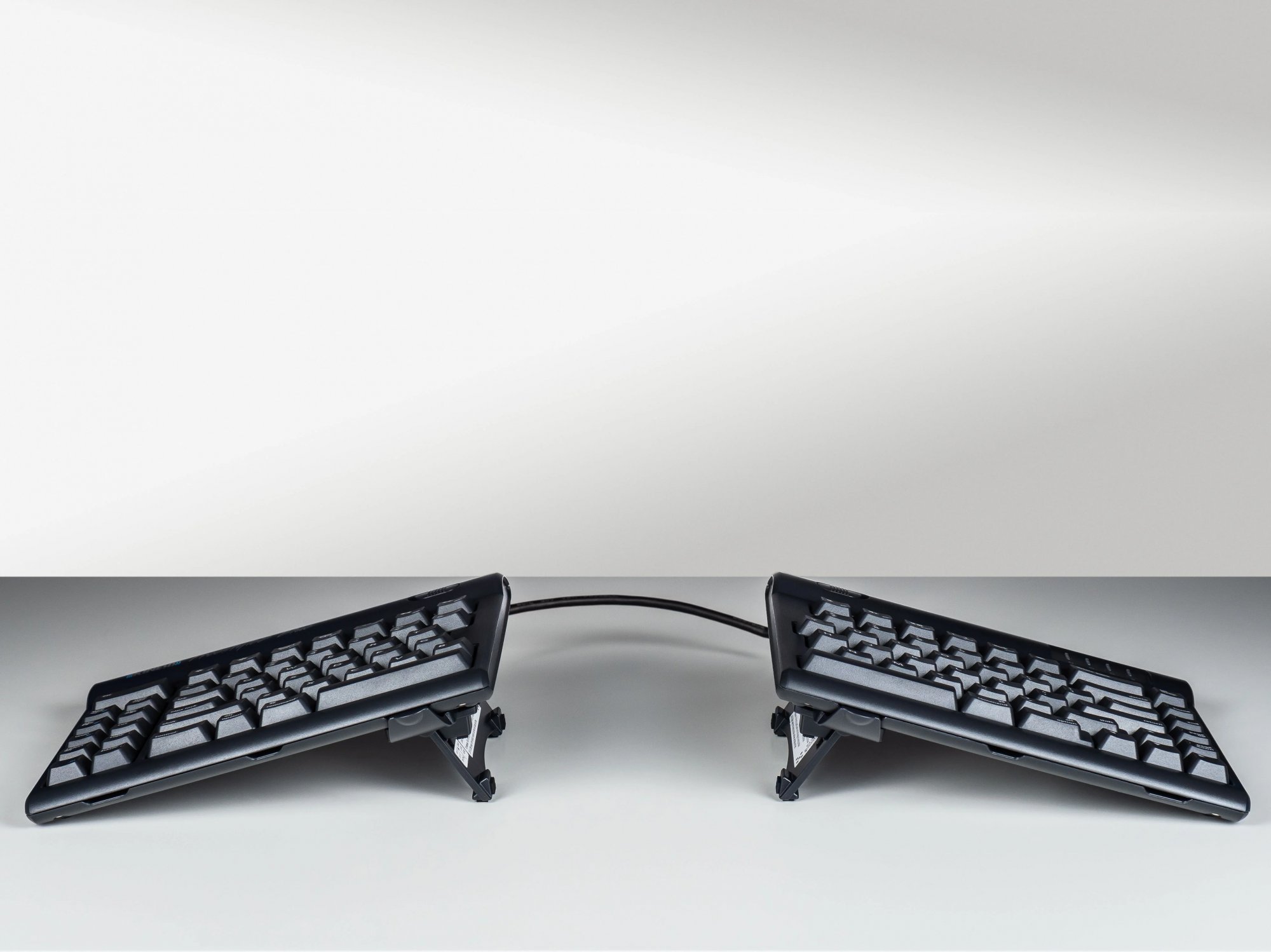

Pre-assembled Tenting: For the utmost in convenience, the Freestyle2 can be purchased with either of our most popular tenting accessories pre-installed onto the keyboard. Tenting accessories can also be purchased separately and self-installed.

VIP3 features integrated Palm Supports (KB820HMB-us)

V3 does not use Palm Supports (KB830HMB-us)

Product Options/Accessories

Model	KB830HMB-us
Manufacturer	Kinesis
Part Number	KB830HMB-us

Width	Of standard version (9 in of separation): Min: 15.375 in; Max: 23.50 in
Depth	7.125 in
Maximum height	At 15 degrees slope: 2.875 in, at 10 degrees slope: 2.125 in, at 5 degrees slope: 1.50 in in
Weight	2.12 lbs
Shipping Weight	4 lbs
USB Cable Length	Type A: 6 feet
