Peerless HPF675 Large Pull-Out Pivot Wall Mount
More shipping >
Description
Peerless HPF675 combines the best features of Peerless-AV’s popular HPF650 in an updated design that is truly suited for larger TVs. With 30° of built-in swivel, the HPF675 ensures your guests will always be able to find the perfect viewing angle. The pull-out feature also provides flexible access to the back of the TV when service is required, and the locking feature allows staff to secure the mount against the wall to minimize unwanted tampering. This mount is VESA compliant, and accommodates TVs up to 80lb. Equipped with functionality, maximum aesthetics, versatile installation, and endless display compatibility options, the HPF675 is the ideal solution for any hospitality or residential application.
Technical Drawing
Specifications
| Color | Black |
| Finish | Powder Coat |
| Dimensions (W x H x D) | 25.25" x 16.75" x 2.83"-12.95" (641 x 425 x 72 -329mm) |
| Product Weight | 17.60 lbs (8 kg) |
| Load Capacity | 80 lbs (36.0 kg) |
| Package Size (W x H x D) | 28.00" x 10.63" x 4.00" (711 x 270 x 102mm) |
| Package Ship weight | 21.20 lbs (10 kg) |
| Package UPC Code | 735029349808 |
| Package Contents | Wall Mount, Universal Adaptor and Mounting Hardware |
Features
Locking feature provides flexibility to lock the mounted TV against the wall to minimize guestroom tampering (to lock the arm, simply reposition the rod from the left side to the right side)
Contemporary design offers smooth in and out retraction built tougher for larger TVs
I-shaped adaptor plate helps avoid blocking connections on back of TV
Extended or retracted, the TV remains centered on the mount
Universal mount accommodates 200 x 200 to 400 x 400mm VESA mounting patterns

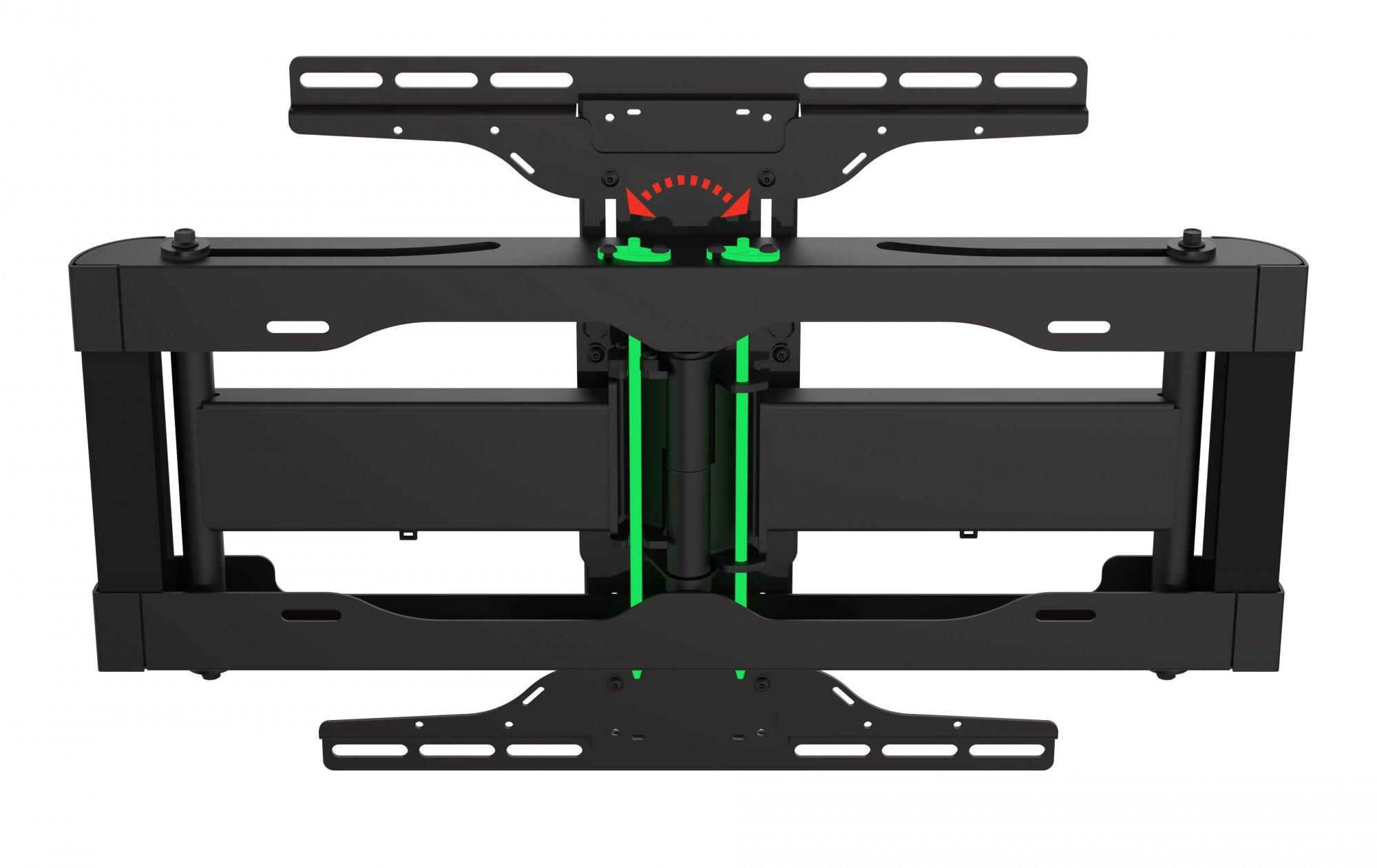

Built-in swivel feature provides adjustable viewing angles (degree angle varies by TV size: 55" TVs: Up to ±30° / 75" TVs: Up to ±22°)
Designed to mount to dual 16" studs (metal or wood), concrete, or cinder block with all attachment hardware included
Easy pull-out pivot provides quick maintenance access
Security screws prevent tampering and theft
Product Options/Accessories
Frequently Asked Questions
| Model | HPF675 |
| Manufacturer | Peerless Mounts |
| Part Number | HPF675 |
| UPC | 735029349808 |
| Color | Black |
| Finish | Powder Coat |
| Dimensions (W x H x D) | 25.25" x 16.75" x 2.83"-12.95" (641 x 425 x 72 -329mm) |
| Weight | 17.60 lbs (8 kg) |
| Weight Capacity | 80 lbs (36 kg) |
| Package Dimensions | 28.00" x 10.63" x 4.00" (711 x 270 x 102mm) |
| Package Weight | 21.20 lbs (10 kg) |
