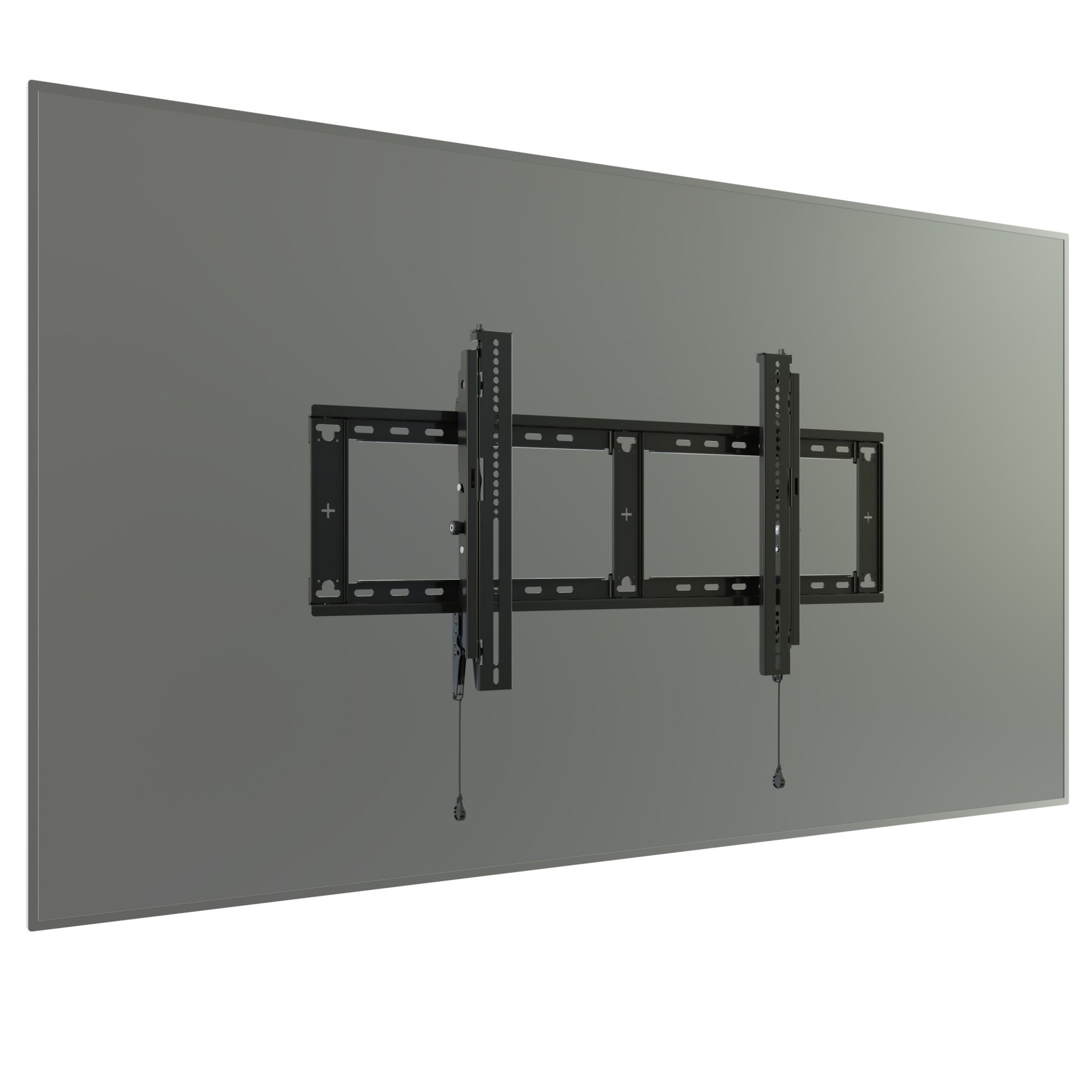

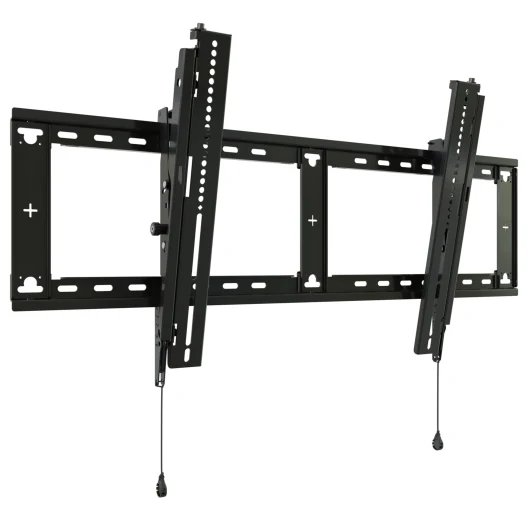

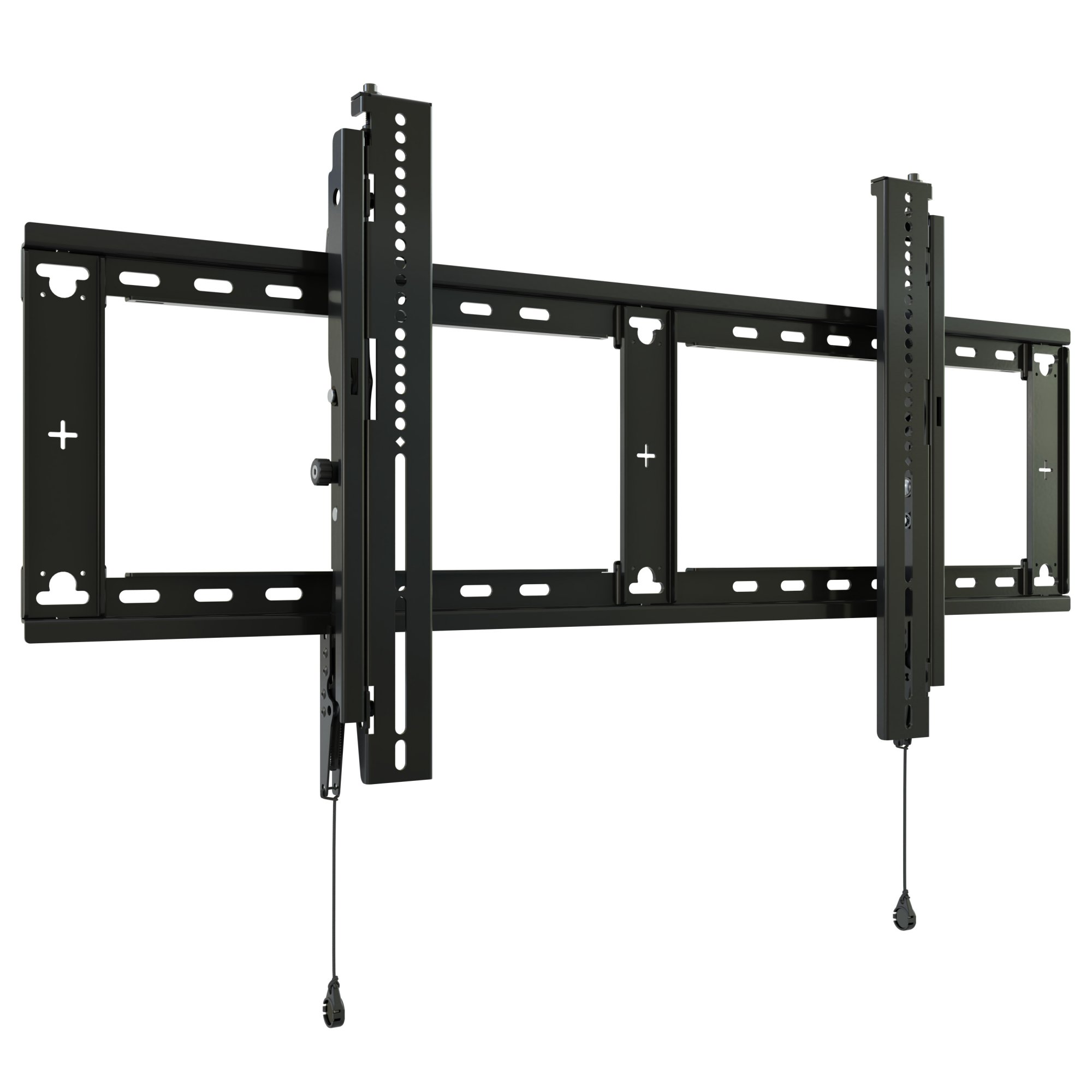

Chief RLT3 Large FIT Tilt Display Wall Mount (43-86")
Chief RLT3 is the replacement of RLT2
Description
Chief Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.

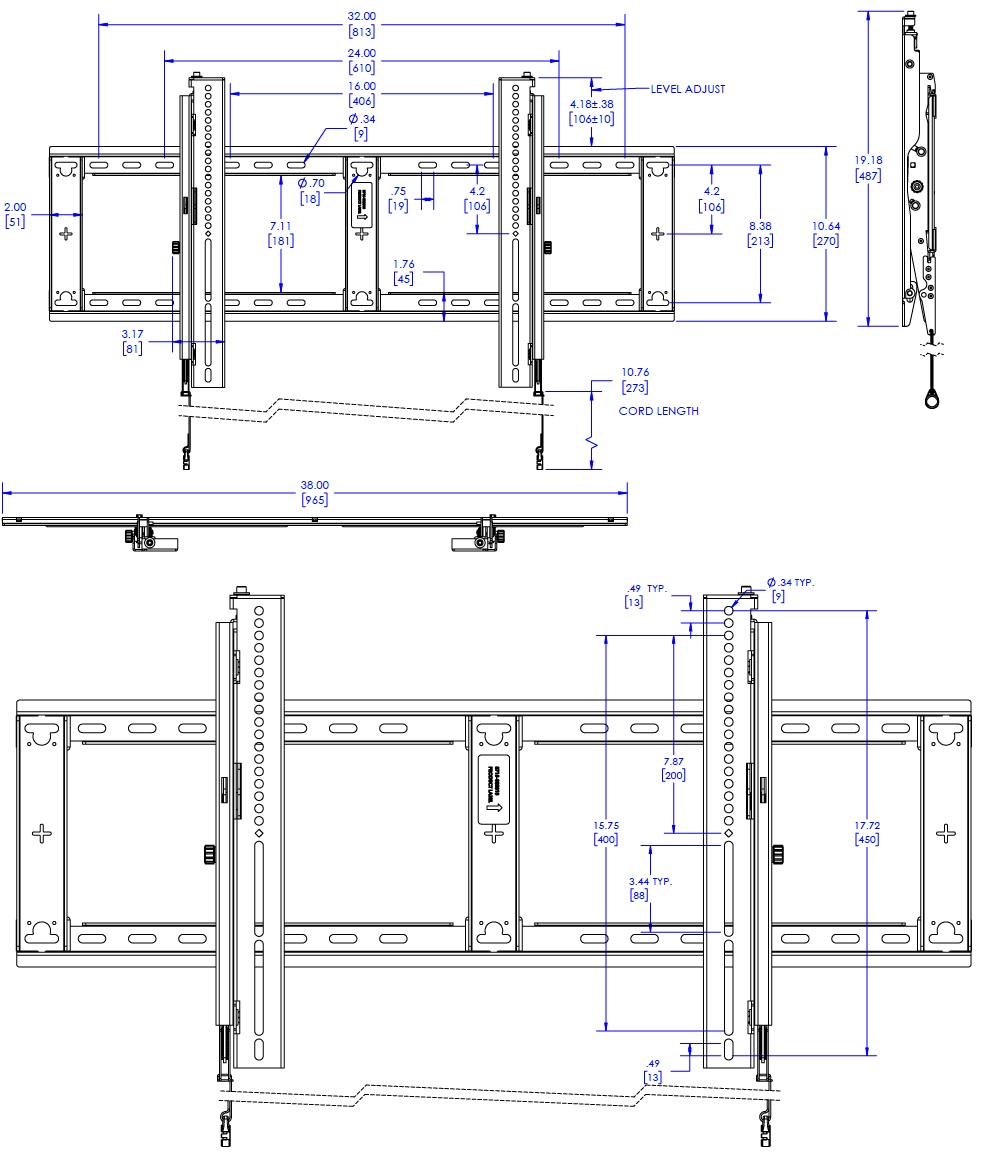

Technical Drawing
Specifications
| Dimensions & Measurements | |
| Depth | 5.1 cm (2 in) |
| Height | 48.7 cm (19.2 in) |
| Manual Height Adjustment | 19.1 mm (0.8 in) |
| Minimum Depth | 5.1 cm (2 in) |
| Overall Dimensions | 19.18" x 38" x 2" (487 x 965 x 51mm) |
| Shipping Weight | 8.2 kg (18 lbs) |
| Tilt | -12° |
| Typical Screen Size | 43"- 86" (1092mm - 2184mm) |
| Wall Stud Compatibility In | Dual Stud |
| Weight Capacity | 90.7 kg (200 lbs) |
| Width | 96.5 cm (38 in) |
| Characteristics & Features | |
| Adjustability | Tilt |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| VESA Mounting Pattern | Up to 915 x 450 mm |
| Certifications & Warranties | |
| Certifications | TUV UL Listed |
Features
Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
Display can be tilted up to 12° to set the optimal viewing angle
Open wall plate allows for flexible positioning around power and data wall boxes
Supports display mounting patterns up to 915 x 450 mm
Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
Easy access magnetic quick-store release pullcords
Kickstand for easy access to power and signal connections
Theft deterrent security options (not included)
UL and TUV safety standards approved
Product Options/Accessories
| Model | RLT3 |
| Manufacturer | Chief Mounts |
| Part Number | RLT3 |
| UPC | 841872176642 |
| Screen Size | (1092mm - 2184mm) 43 - 86 in |
| Weight Capacity | 90.7 kg (200 lbs) |
| Mounting Pattern | Up to 915 x 450 mm |
| Depth | 5.1 cm (2 in) |
| Height | 48.7 cm (19.2 in) |
| Manual Height Adjustment | 19.1 mm (0.8 in) |
| Minimum Depth | 5.1 cm (2 in) |
| Overall Dimensions | 19.18" x 38" x 2" (487 x 965 x 51mm) |
| Shipping Weight | 8.2 kg (18 lbs) |
| Tilt | -12 degree |
| Wall Stud | Dual Stud |
| Width | 96.5 cm (38 in) |
| Adjustability | Tilt |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Certifications | TUV, UL Listed |
