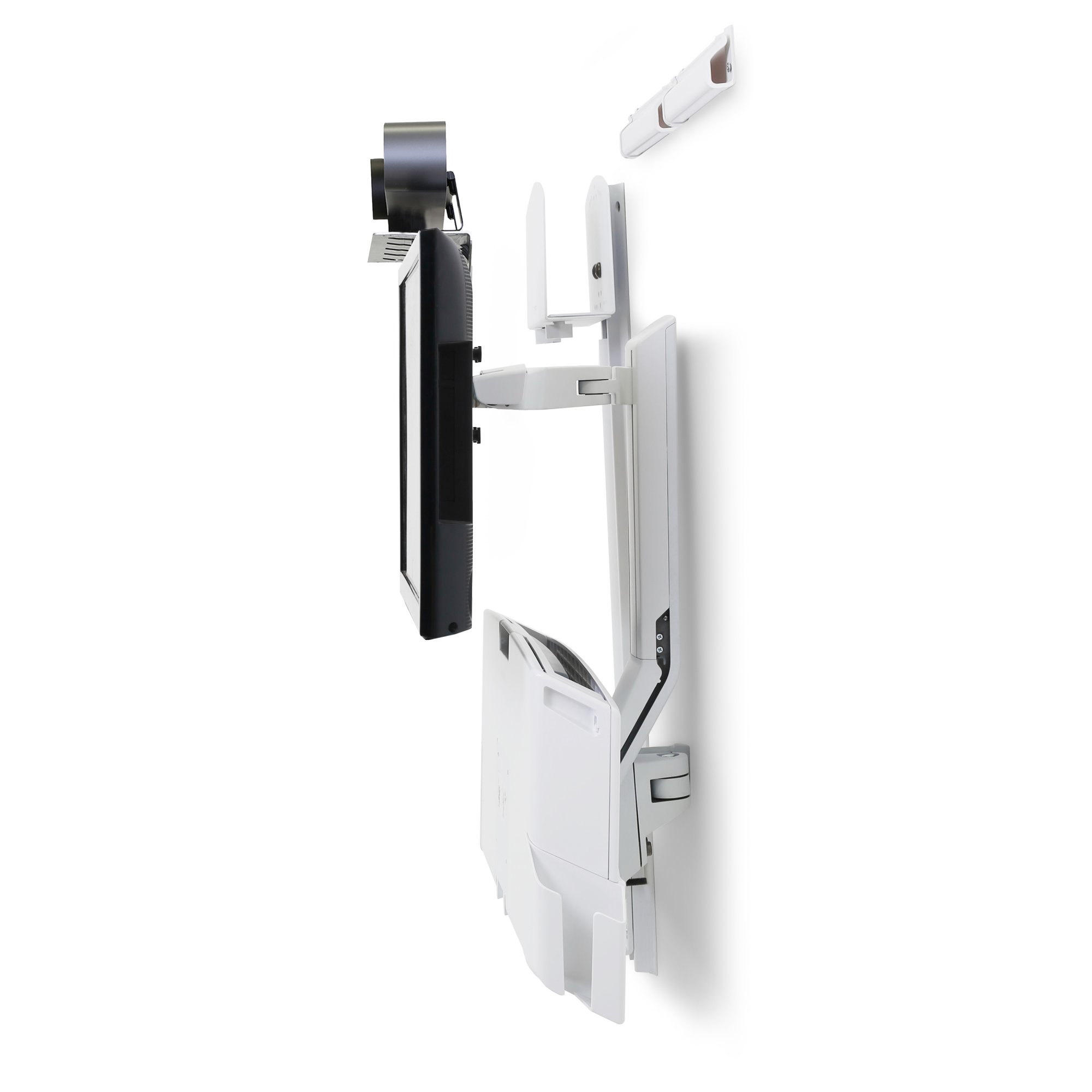

Ergotron Telepresence Combo Wall Mount System
Description
Bundle Components - 45-594-216 SV Combo System with Worksurface & Pan, Small CPU Holder (white). 97-776-194 SV Camera Shelf. 97-858-216 SV Sit-Stand Combo Extender, short (white).

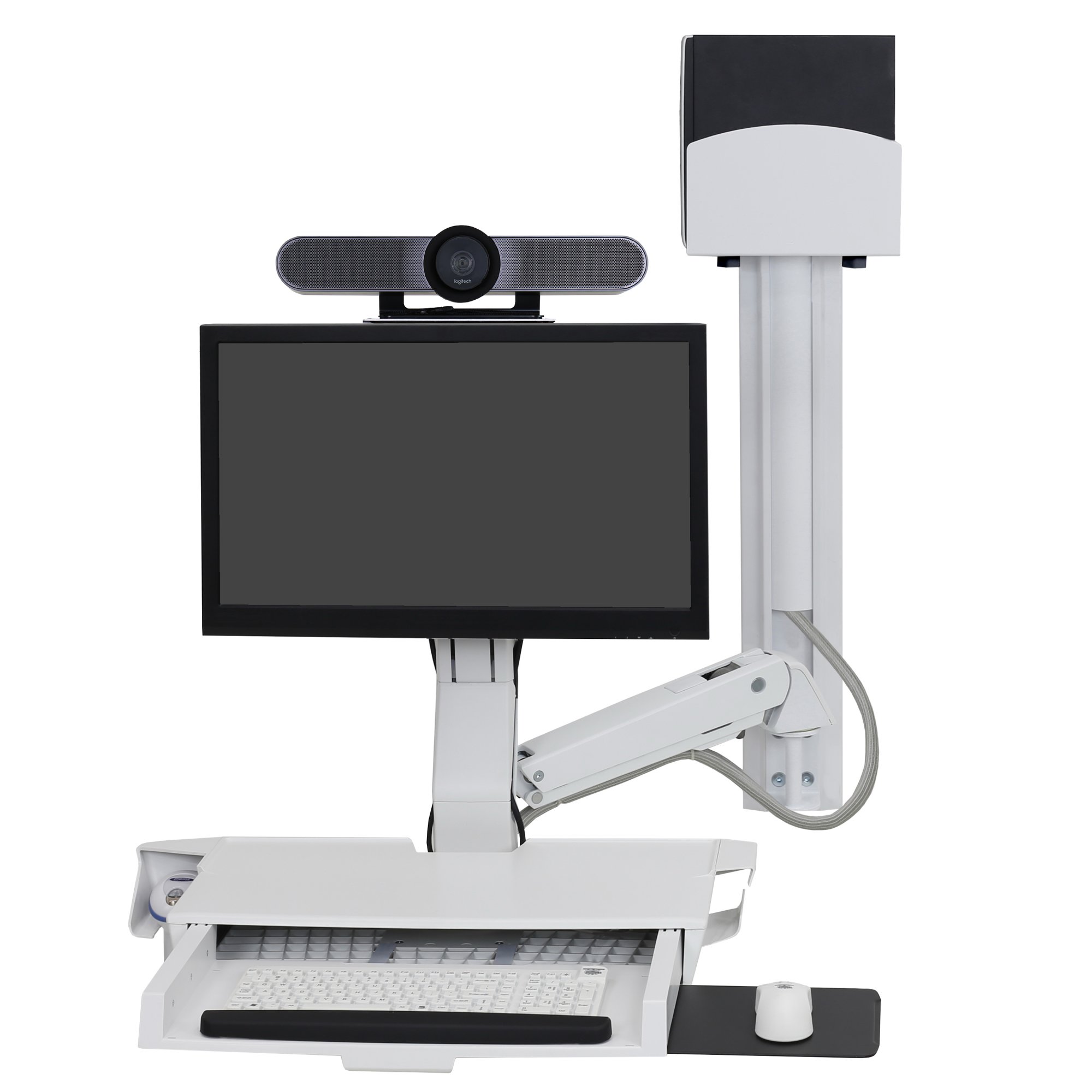

Expand your telepresence capabilities with convenient access to everything needed to consult with other providers. This ergonomic wall mount holds a monitor, barcode scanner, CPU, wrist rest and mouse, plus a sturdy worksurface and pull-out keyboard tray. Add a camera shelf for your preferred telepresence technology to lead virtual discussions with patients or caregivers.
Technical Specifications
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
Up to 24" |
Up to 32 lbs 14.5 kg |
25" 63.5 cm |
30° | 360° | 90° | MIS-D |
Product Information
Description | Telepresence Combo Wall Mount System |
Weight Capacity | Display = 6–18 lbs (2.7–8.2 kg) or 25 lbs (11.3 kg) with lock-out of pivot; camera shelf = 2 lbs (.9 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18.2 kg) |
Note | The addition of the camera shelf will reduce capacity of the display pivot. Lock-out of pivot’s 5"-lift and tilt may be required depending on display characteristics |
Lift Range | LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm) |
Pan Range | Arm can turn 360° side to side; LCD can turn 180° independently |
Components (Build this tailored solution with the following products) | |

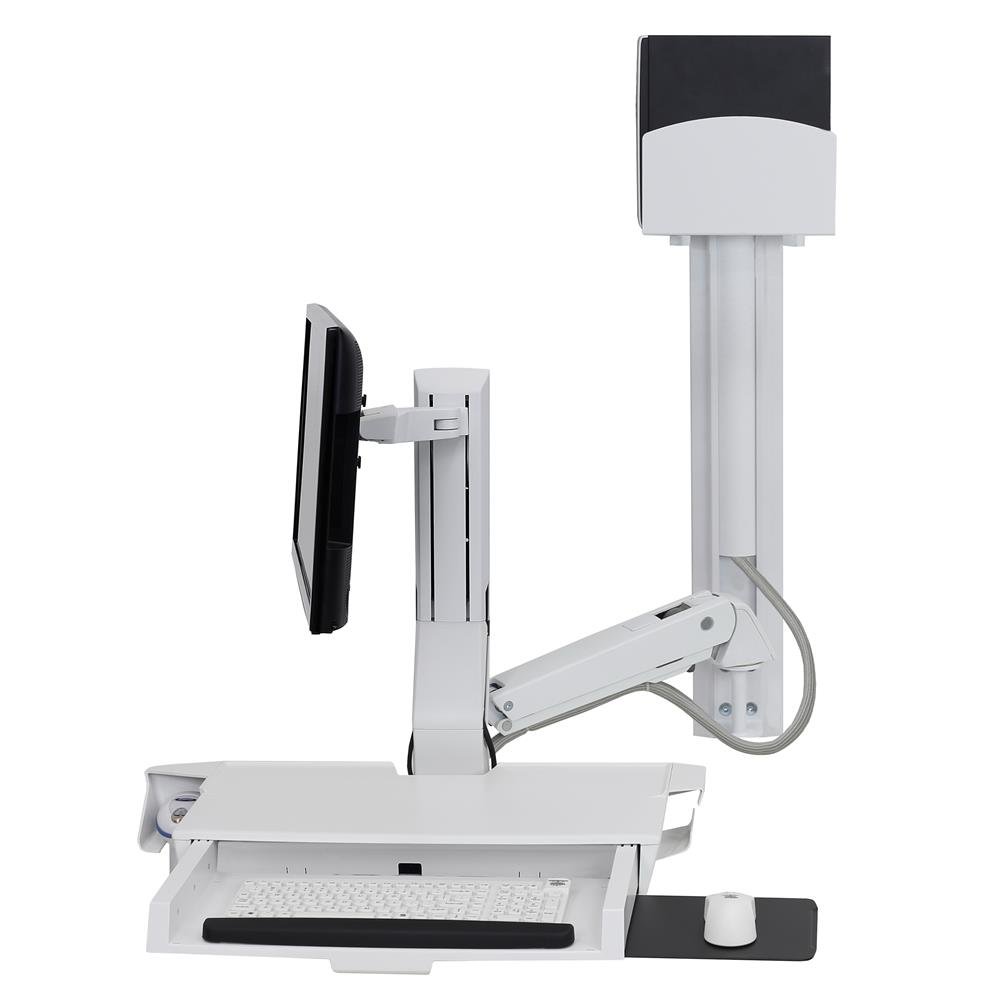

StyleView Combo Arm System with Worksurface and CPU Holder 45-594-216 | |
Color | White |
Includes |
|
CPU Size Range | 1-3/8" to 3-3/4" (3.5 to 9.5 cm) wide |
Worksurface | Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (3.4 cm) |
Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic |
Mounting Standard | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
Product Weight | 41 lbs (19 kg) |
Shipping Dimensions | 37.1" x 26.1" x 10" (94 x 66 x 25 cm) |
Shipping Weight | 51 lbs (23 kg) |
Warranty | Five (5) years |
SV Camera Shelf 97-776-194 | |
Includes |
|
Attaches | Via the monitor VESA plate |
Shelf Surface Area | 8" x 4" (20 x 10 cm) |
Shipping Dimensions | 9.5" x 5" x 6" (24 x 13 x 15 cm) |
Shipping Weight | 2 lbs (0.9 kg) |
Warranty | Five (5) years |
SV Sit-Stand Combo Extender 97-858-216 | |
Color | White |
Includes |
|

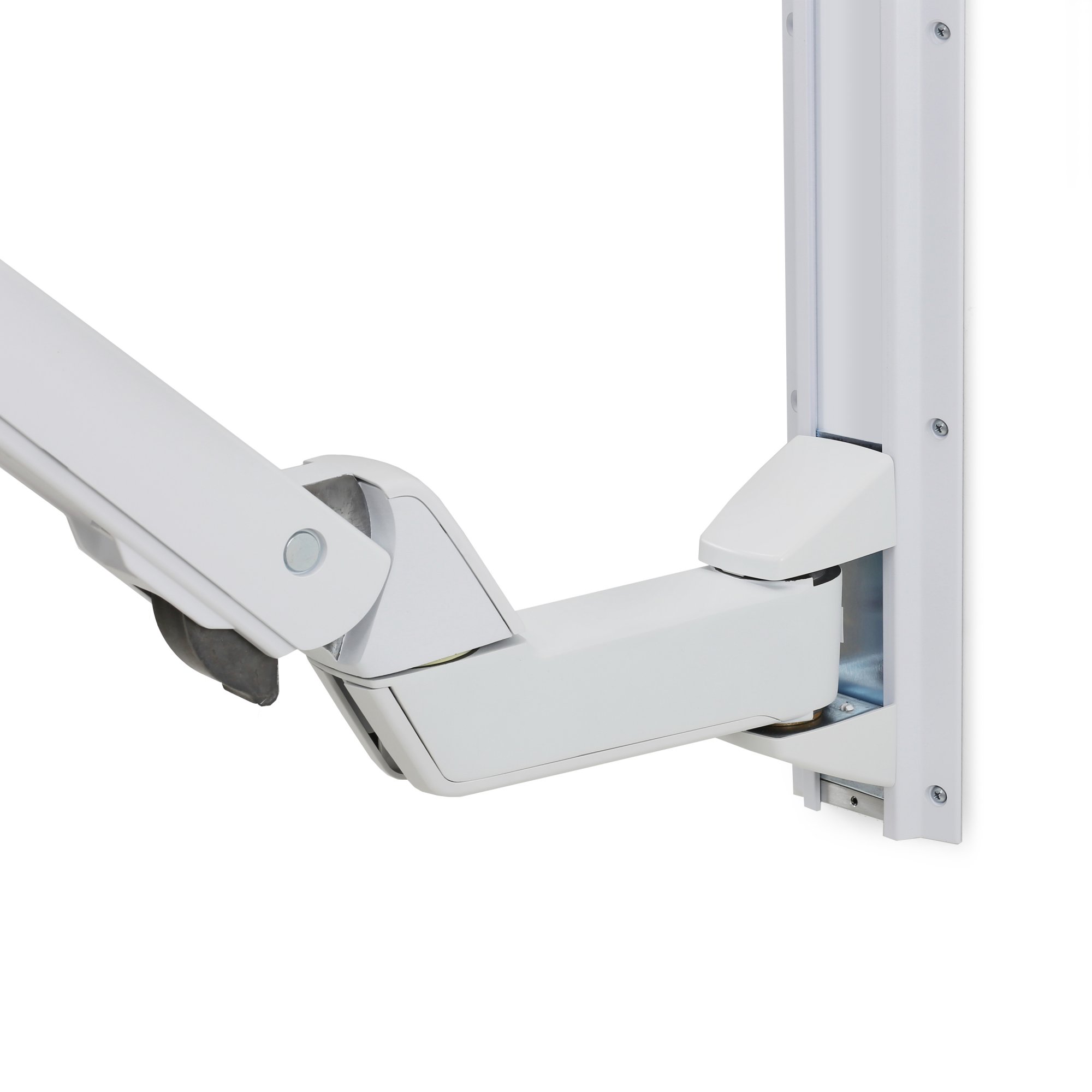

Adds | A third pivot-point for more adjustment flexibility |
Cable Management Channel | Snap-fits under arm |
Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic |
Product Weight | 7 lbs (3.2 kg) |
Shipping Dimensions | 18" x 11" x 6" (44 x 27 x 14.5 cm) |
Shipping Weight | 8.5 lbs (3.8 kg) |
Warranty | Five (5) years |
Benefits
Comfortable documentation - Work sitting or standing with 20" (51 cm) of height adjustment
Virtual discussions - Add a camera shelf to support your preferred telepresence technology
Convenient access - Keeps key tools like a barcode scanner and CPU within reach
Personalized fit - Includes 5" (13 cm) of LCD adjustment for clear camera or screen views
Space-saving - Folds out of the way when not in use to reclaim space
More flexibility - Optional extender offers additional 17" (43 cm) of reach
Product Options/Accessories
Model | 45-594-216, 97-776-194, 97-858-216 |
Manufacturer | Ergotron |
Part Number | 45-594-216, 97-776-194, 97-858-216 |
Color | White |
Monitor Size | Up to 24" |
Weight Capacity | Up to 32 lbs (14.5 kg) |
Lift | (63.5 cm) 25 in |
Tilt | 30 degree |
Pan | 360 degree |
Rotation | 90 degree |
Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
Warranty | 5 years |
