Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray

Product ID 19761
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Ergotron 98-548-251 CareFit Combo Mini PC Holder or CPU Tray
Shipping:
$12.75

More shipping >

Our Price:
Qty:

Description

Ergotron 98-548-251 enhances the healing environment and save valuable wall space by easily accessing a CPU or mini PC in a worksurface tray for the CareFit Combo System or Arm.

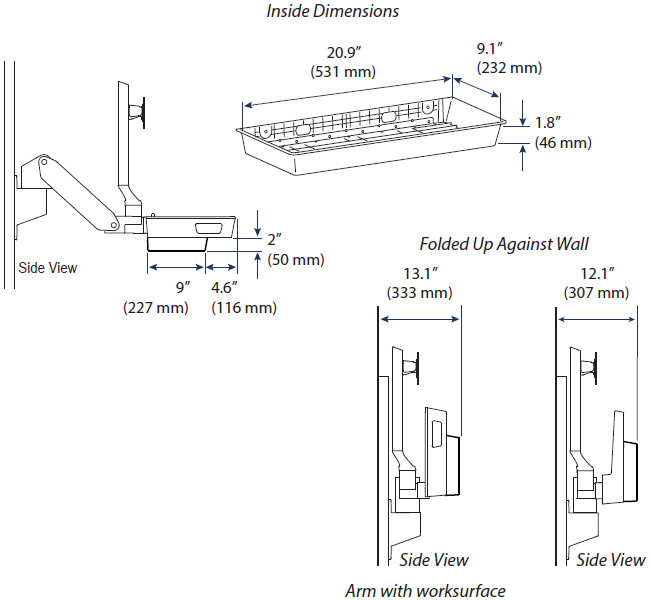

Technical Drawing

Technical Drawing for Ergotron 98-548-251 CareFit Combo CPU Tray

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
-

Up to 4 lbs

1.8 kg

- - - - -

Product Information

Part Number 98-548-251
UPC 00698833085877
Description CareFit Combo CPU Tray
Includes
  • Tray

  • Strap

  • Attachment hardware

Construction Durable, easy-to-clean exterior composed of high-grade plastic
Maximum CPU Weight 4 lbs (1.8 kg). The addition of this tray will reduce the arm’s or system’s maximum allowable monitor weight to 17 lbs (7.7 kg)

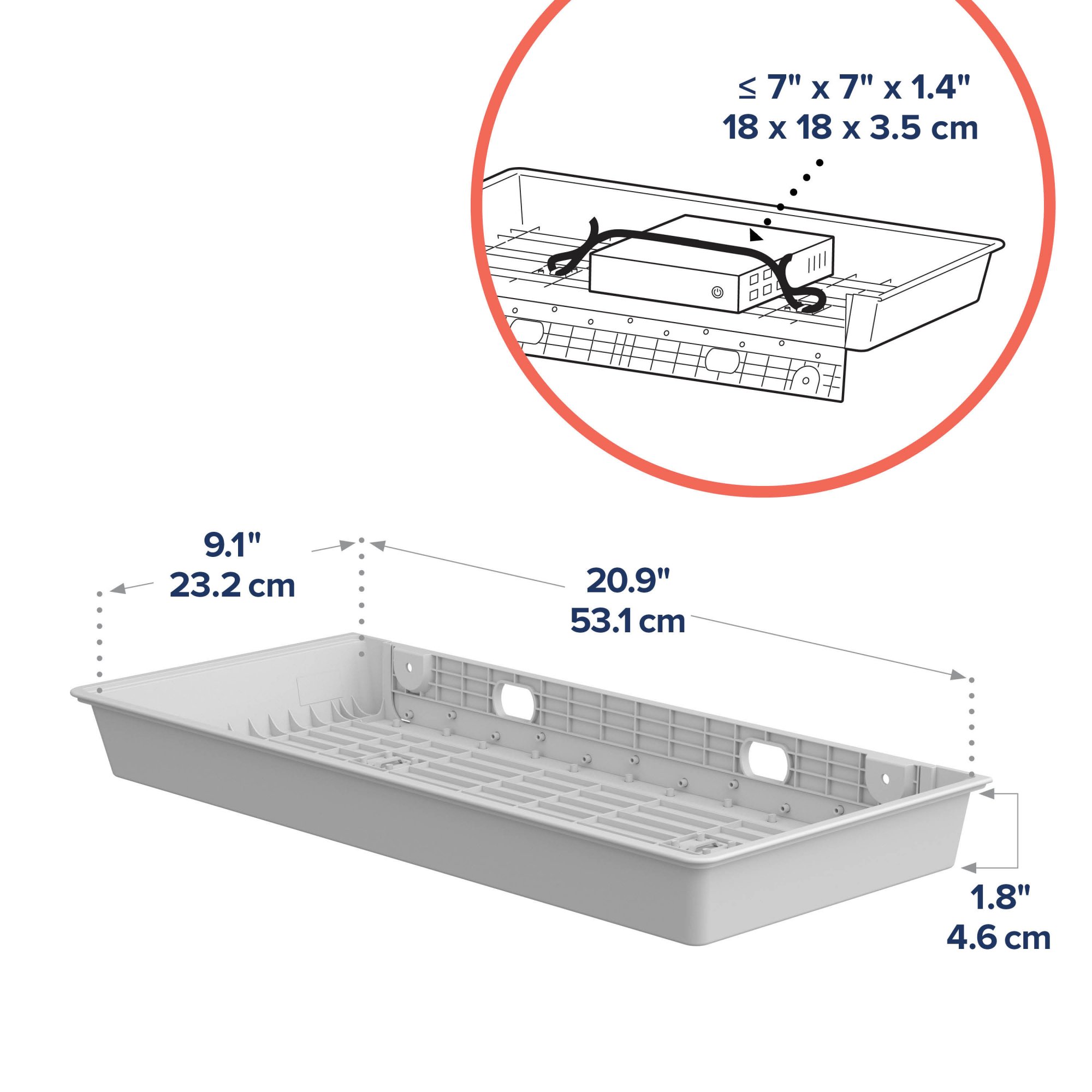

Accommodates Small form-factor CPUs. Maximum CPU dimensions = 7.0" x 7.0" x 1.8" (18 x 18 x 4.6 cm). Larger CPUs should be mounted to the wall using a CPU holder like the CPU Wall Cabinet (98-543-251) or the Vertical CPU Holder (80-063-216)
Product Weight 2.6 lbs (1.2 kg)
Shipping Weight 5.0 lbs
Warranty Five (5) years

Benefits

  • Space-saving - Installs under the worksurface to keep wall space open.

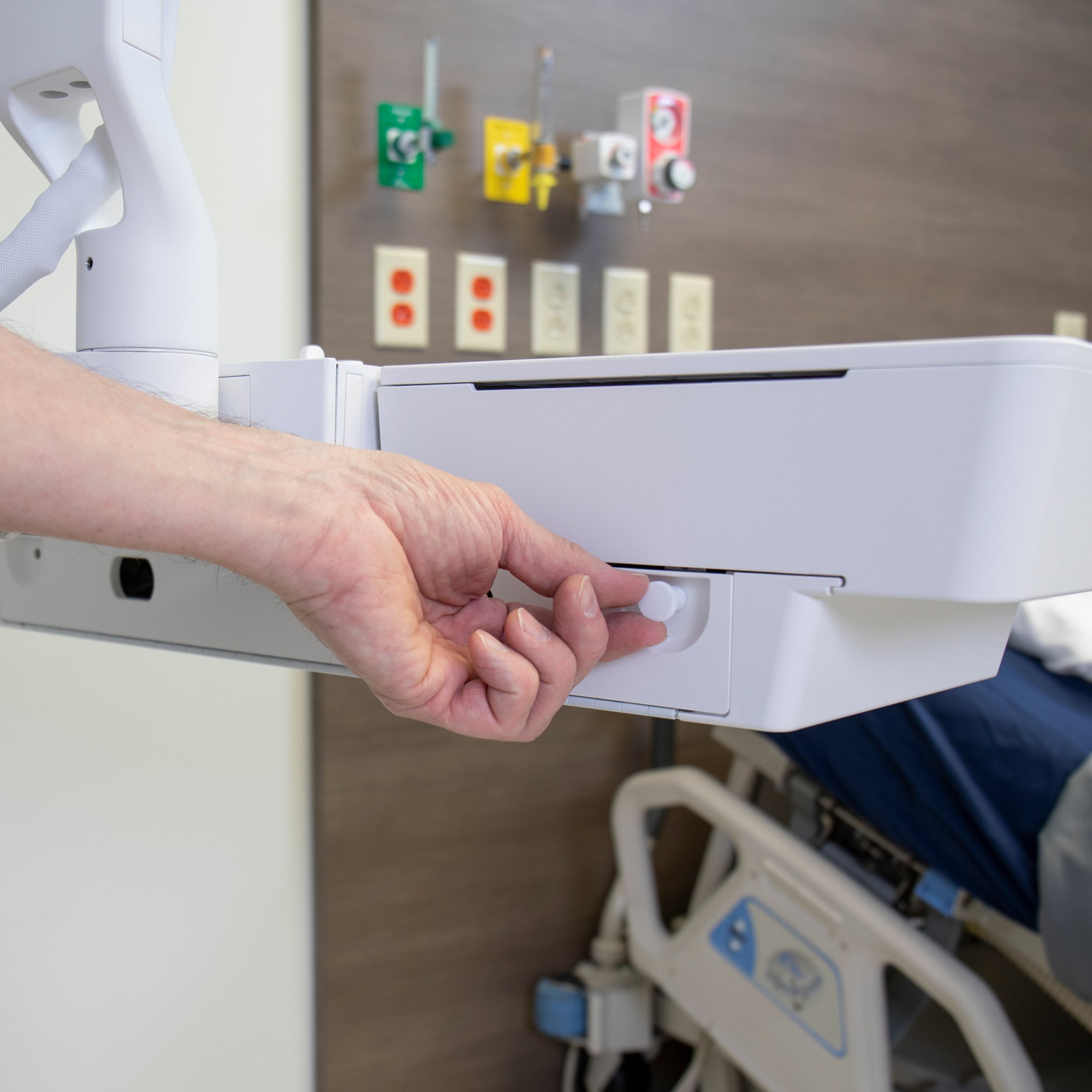

  • Easy access - If needed, reset the CPU with the push of a button or remove the panel with one screw.

  • Clean design - Seamlessly integrates with the product with no exposed cables.

Product Options/Accessories

Frequently Asked Questions

Model 98-548-251
Manufacturer Ergotron
Part Number 98-548-251
UPC 698833085877
Weight Capacity Up to 4 lbs (1.8 kg)
CPU Dimension 7.0" x 7.0" x 1.8" (18 x 18 x 4.6 cm)
Weight 2.6 lbs (1.2 kg)
Shipping Weight 5.0 lbs
Warranty Five years
