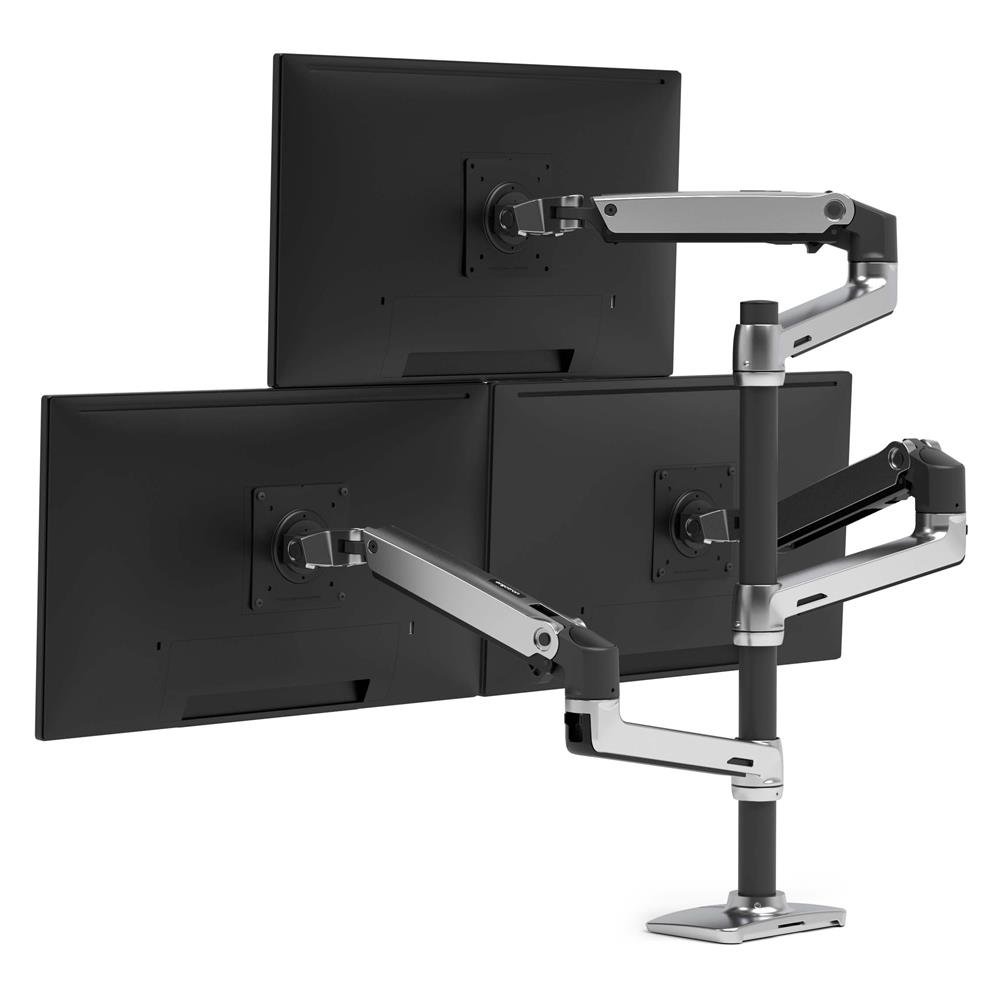

Ergotron LX Desk Mount Triple Monitor Arm

Product ID 19678
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm
Ergotron LX Desk Mount Triple Monitor Arm

Description

Bundled Workspace Solution - This three-monitor mount lets you position screens for a new level of flexible working while enhancing your workspace with a sleek design. Combine the LX Dual Stacking Arm, Tall Pole with the LX Arm, Extension and Collar Kit to easily position three screens up to 40" in size. Arrange large screens in a triangle or smaller screens side by side.

Bundle Components:

  • 45-549-026 LX Dual Stacking Arm, Tall Pole (polished aluminum)
  • 97-940-026 LX Arm, Extension and Collar Kit (polished aluminum)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 40"

21 - 44 lbs

9.5 - 20.0 kg

13"

33.0 cm

75° 360° 360° MIS-D

Product Information

Description LX Desk Mount Triple Monitor Arm
Screen Size To facilitate stacking of monitors, maximum outside height of display should be no more than 21" (53 cm). To align two monitors side by side, maximum outside width should be no more than 40" (102 cm); to align three monitors side by side, maximum outside width should be no more than 20.7" (52.5 cm)
Weight Capacity Individual LCD weight = 7–14.6 lbs (3.2–6.6 kg). Total LCD weight= 21–44 lbs (9.5–20 kg)
Tilt Range 70° backward, 5° forward
Extended Reach Up to 25.6" (65 cm)
Components - Build this tailored solution with the following products
LX Dual Stacking Arm, Tall Pole 45-549-026
ColorPolished aluminum
Includes
  • Two LX arms and extensions
  • 23" pole
  • Heavy-duty two-piece desk clamp base with dual screws
  • Two pole collars
  • Two caps
  • Grommet mount plate and hardware
  • Monitor mounting hardware
Desk Clamp Attaches to surface edge up to 2.6" (6.6 cm) thick
Grommet Mount Attaches through surface hole ≤ 3" (7.6 cm) thick and 0.31 to 2" (0.8 to 5 cm) wide
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Product Weight 19 lbs (8.6 kg)
Shipping Dimensions 17.1" x 17.7" x 29.9" (18 x 45 x 76 cm)
Shipping Weight24 lbs (10.9 kg)
Warranty Ten (10) years
LX Arm, Extension and Collar Kit 97-940-026
ColorPolished aluminum
Includes
  • LX arm
  • Extension
  • Pole collar
  • Cap
  • Attachment hardware
Arm Arm can be used with or without Extension; attaches directly to pole or at end of Extension
Mounting Standard VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Product Weight 4.3 lbs (2 kg)
Shipping Dimensions 17.5" x 7.75" x 6.5" (44 x 20 x 17 cm)
Shipping Weight 5 lbs (2.3 kg)
Warranty Ten (10) years

Benefits

  • Extra flexibility - Each arm lifts, extends and rotates for the best view

  • Sleek build - Streamlined look enhances your work area

  • Saves space - Get more desk space while benefiting from three times the screen space

  • Neat look - Cables stay hidden under the arm and through the extension

  • Easy motion - Effortlessly position screens with patented Constant Force Technology

  • Quality design - Built for thousands of movements by passing 10,000-cycle test

Model 45-549-026, 97-940-026
Manufacturer Ergotron
Part Number 45-549-026, 97-940-026
Color Polished aluminum
Monitor Size Up to 40"
Weight Capacity 21–44 lbs (9.5–20.0 kg)
Lift (33.0 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Maximum Extension Up to 25.6" (65 cm)
Weight 45-549-026: 19 lbs (8.6 kg), 97-940-026: 4.3 lbs (2 kg)
Shipping Dimensions 45-549-026: 17.1" x 17.7" x 29.9" (18 x 45 x 76 cm), 97-940-026: 17.5" x 7.75" x 6.5" (44 x 20 x 17 cm)
Shipping Weight 45-549-026: 24 lbs (10.9 kg), 97-940-026: 5 lbs (2.3 kg)
Warranty Ten years
