Innovative 9232-14-DC Light Duty Monitor Pole Mount with Desk Clamp
Description

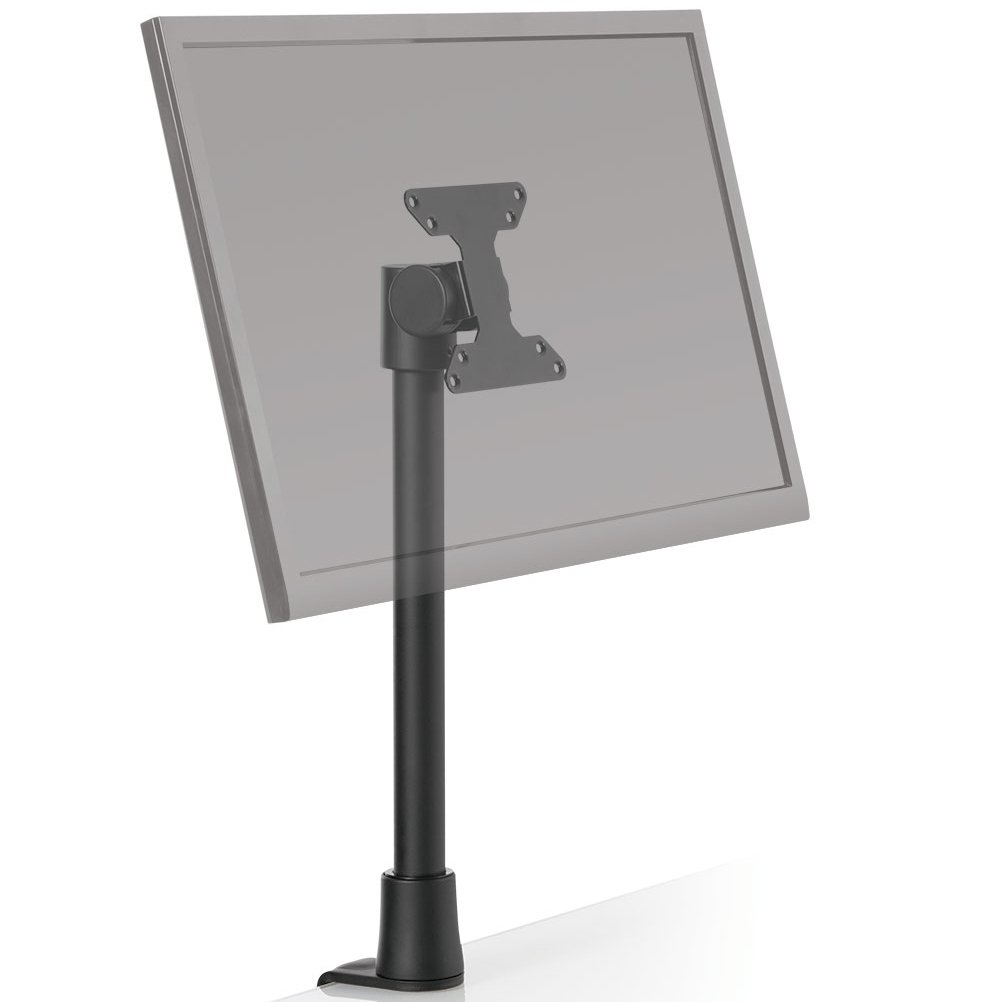

Suspend a flat panel monitor over the desk with the 9232-DC monitor mount. Desk clamp included.
Innovative 9232 monitor pole mount is an ideal light-duty monitor mounting solution for office spaces, POS and digital displays, kiosks, and retail environments looking to support monitors or tablets 10 lbs. and under. You can easily mount the 9232 on the desk or counter with a desk edge clamp mount or a thru-desk mount.

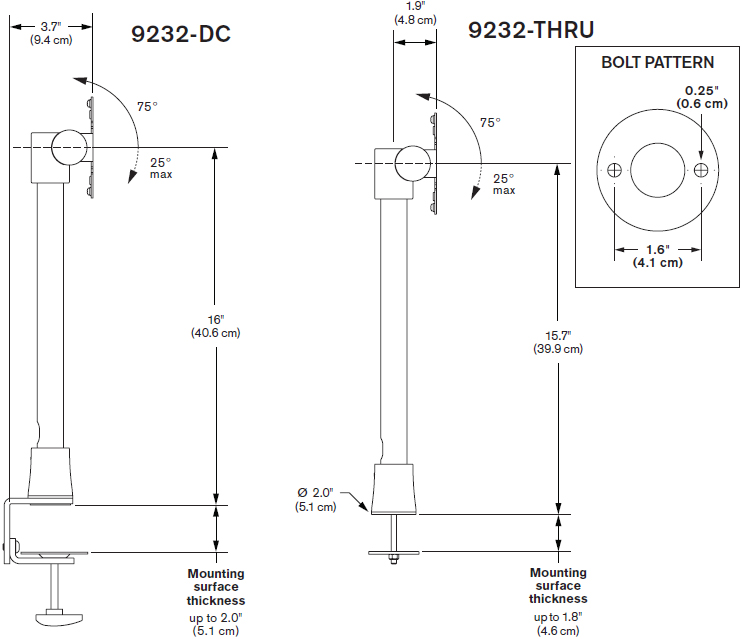

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black |
| Pole Length | 14" |
| Max Monitor Height | 16" |
| Monitor Tilt | Up to 100° - 75° up, 25° down (max) |
| Compatibility | Up to 2" desk thickness |
| VESA Compatibility | 75 & 100mm, adapter included |
| Mounting Options | Desk clamp |
| Cable Management | Cables clip to pole |
| Weight Capacity | Up to 10 lbs (4.5 kg) |
| Warranty | 10 Years |
Features

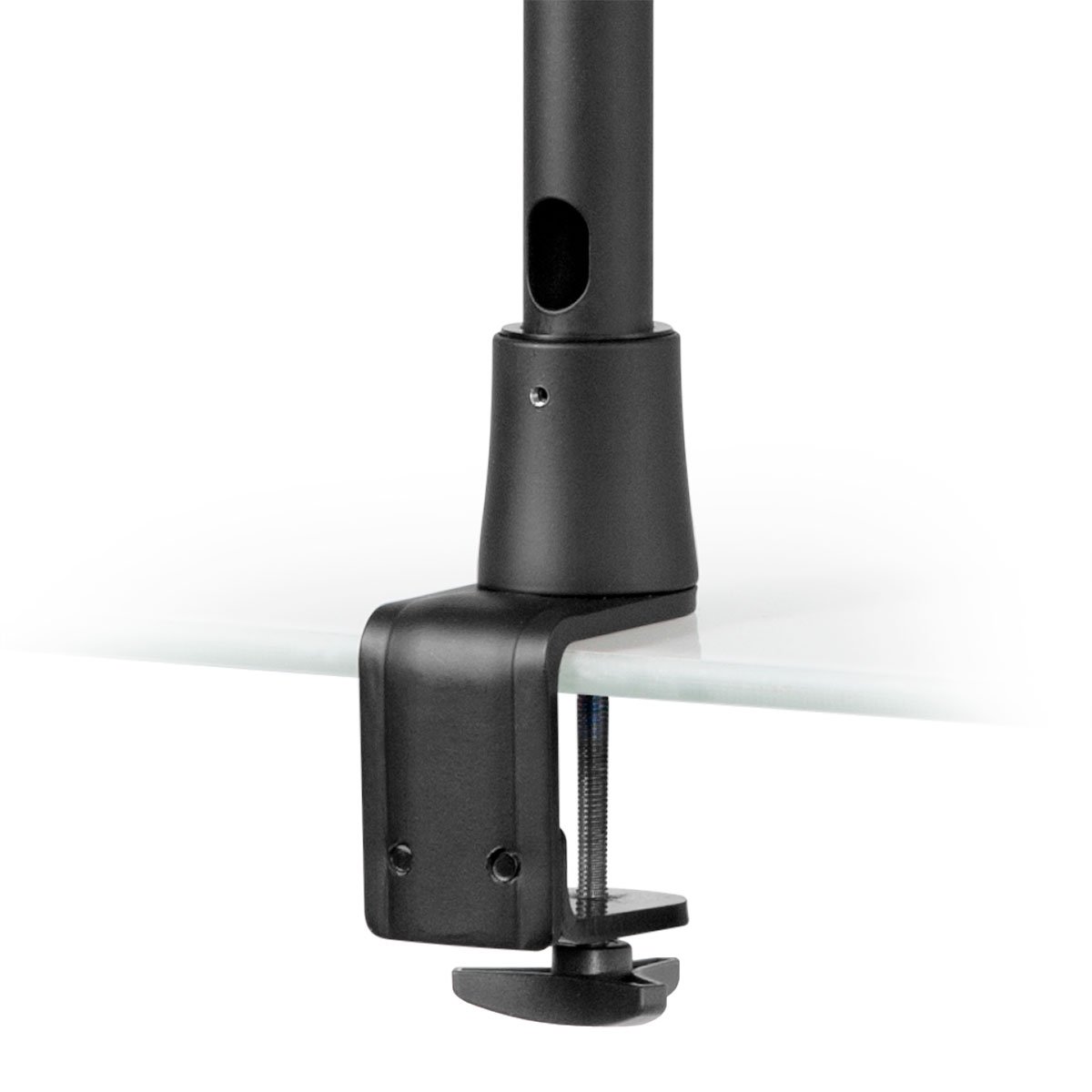

Easy - Monitor arm includes desk edge clamp mount with an integrated mount handle for easy set-up.

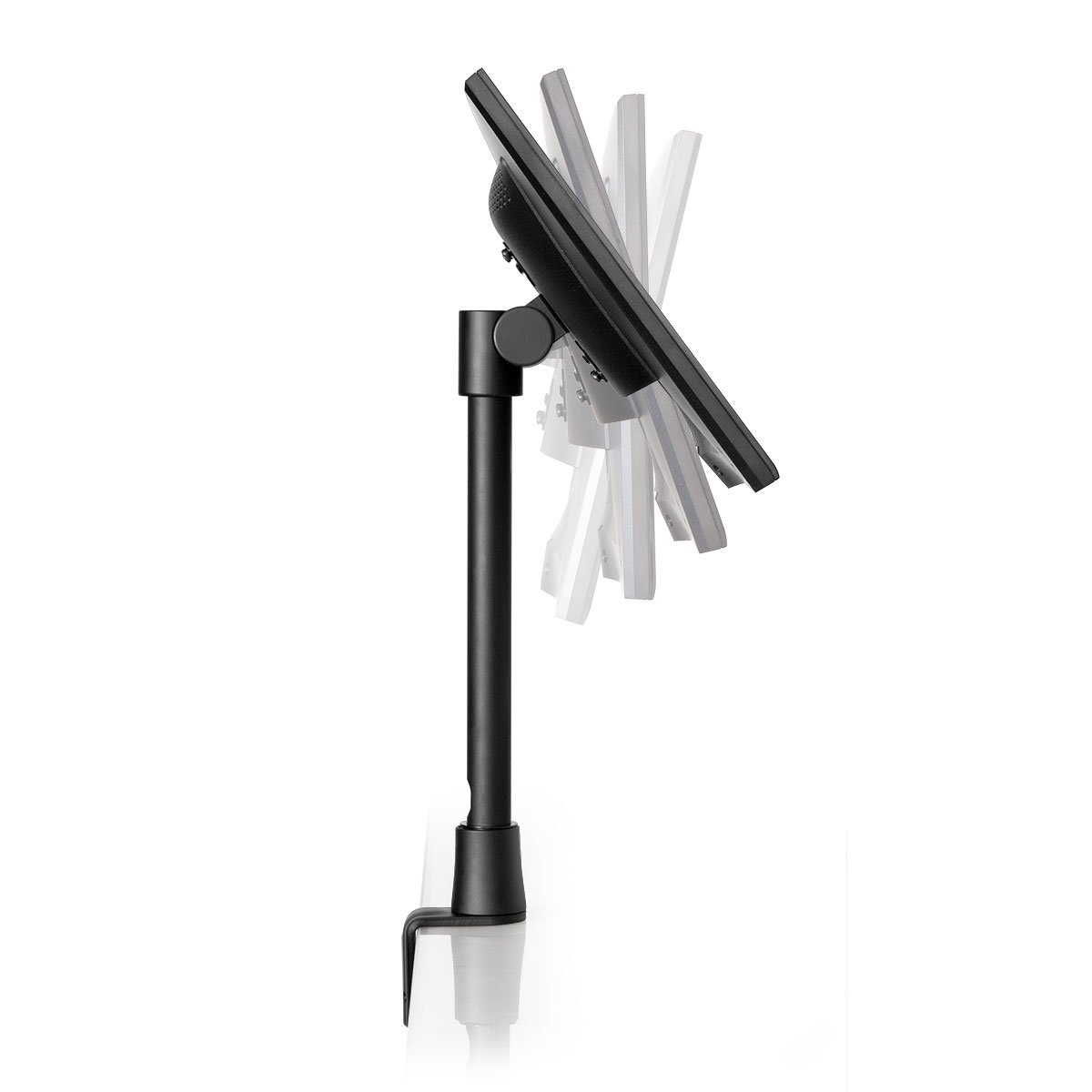

Flexible - Monitor pole mount offers up to 100 degrees of monitor tilt for adjustable visibility.

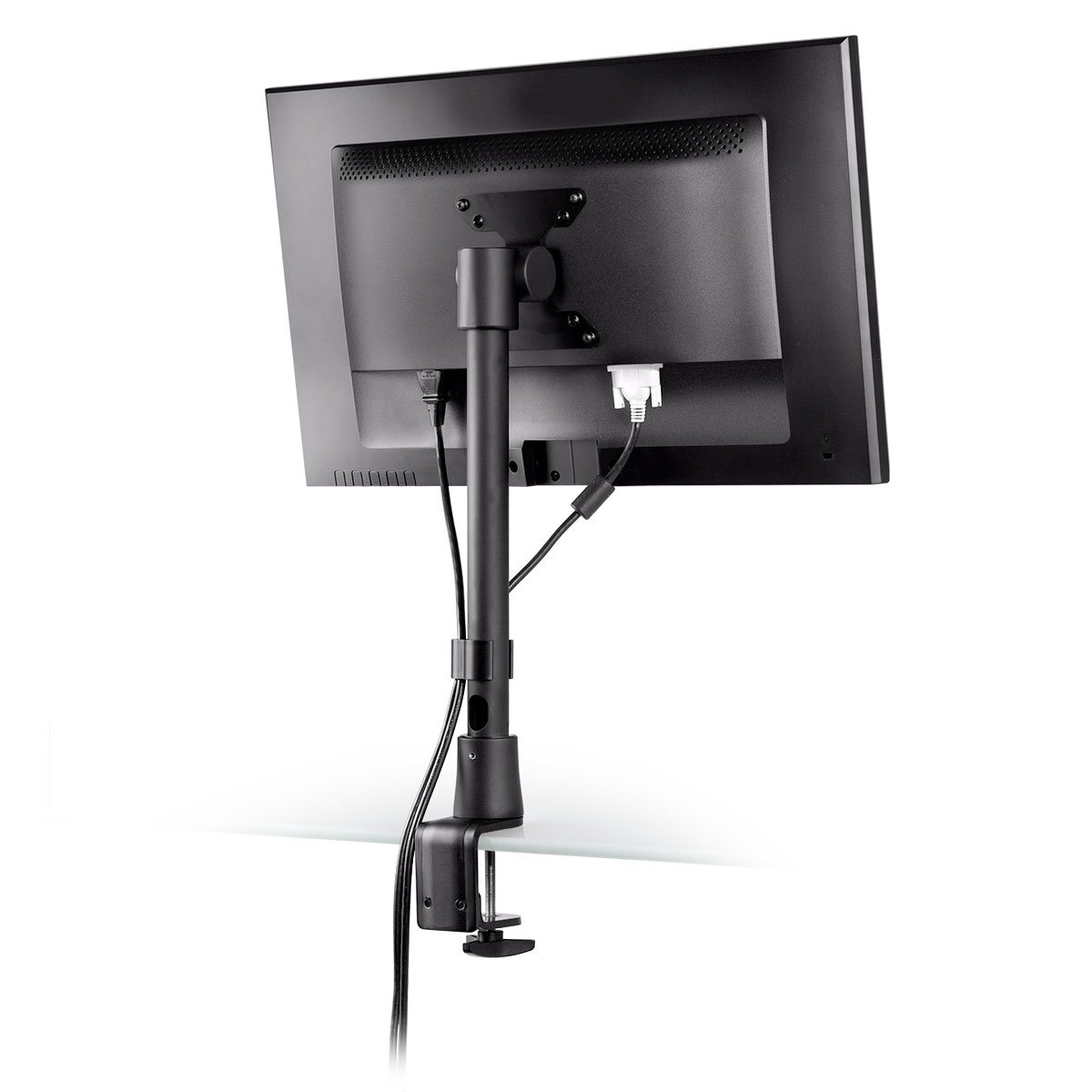

Integrated - Pole mount includes integrated cable management.
Monitor arm includes thru-desk mount (attach to surfaces up to 1.8" thick) for 9232-THRU
Monitor arm includes desk edge clamp mount (attaches to surfaces up to 2" thick) for 9232-DC
VESA-monitor compatible - 75mm & 100mm VESA adapter included
Monitor mount has an Integrated mount handle for easy set up
| Model | 9232-14-DC |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9232-14-DC |
| Color | 104 - Vista Black |
| Pole Length | 14 |
| Tilt | Up 75 degree, down 25 degree |
| Monitor Height | Max 16 |
| Desk Thickness | Up to 2 |
| VESA | 75 & 100mm, adapter included |
| Weight Capacity | Up to 10 lbs (4.5 kg) |
| Warranty | 10 Years |
