Description

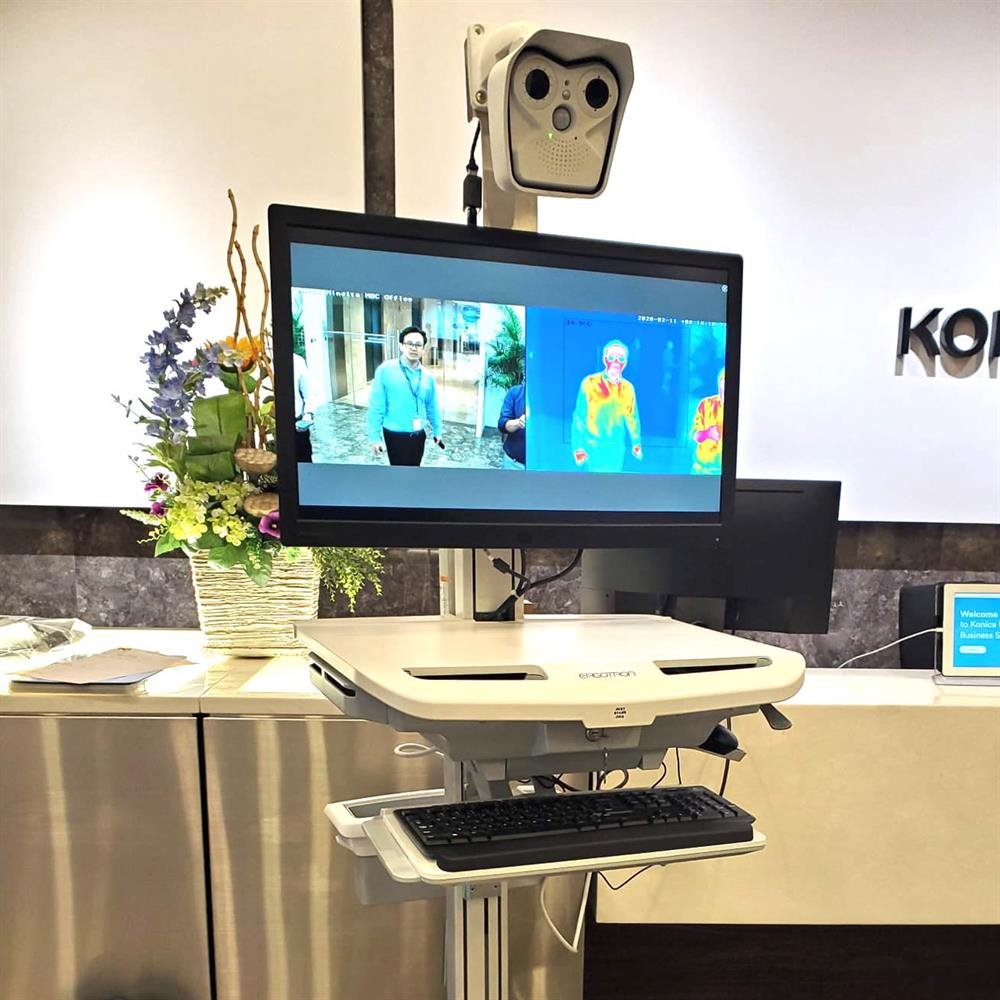

Quickly detect a temperature in high-traffic public areas, offices, manufacturing facilities, healthcare centers or other locations with our mobile thermal imaging cart. Mount your preferred thermal imaging camera - facing forward or backward or other telehealth equipment to bring quick temperature measurement wherever it’s needed. Our long-lasting and safe LiFe battery technology offers a quick recharge for reliable workflows.

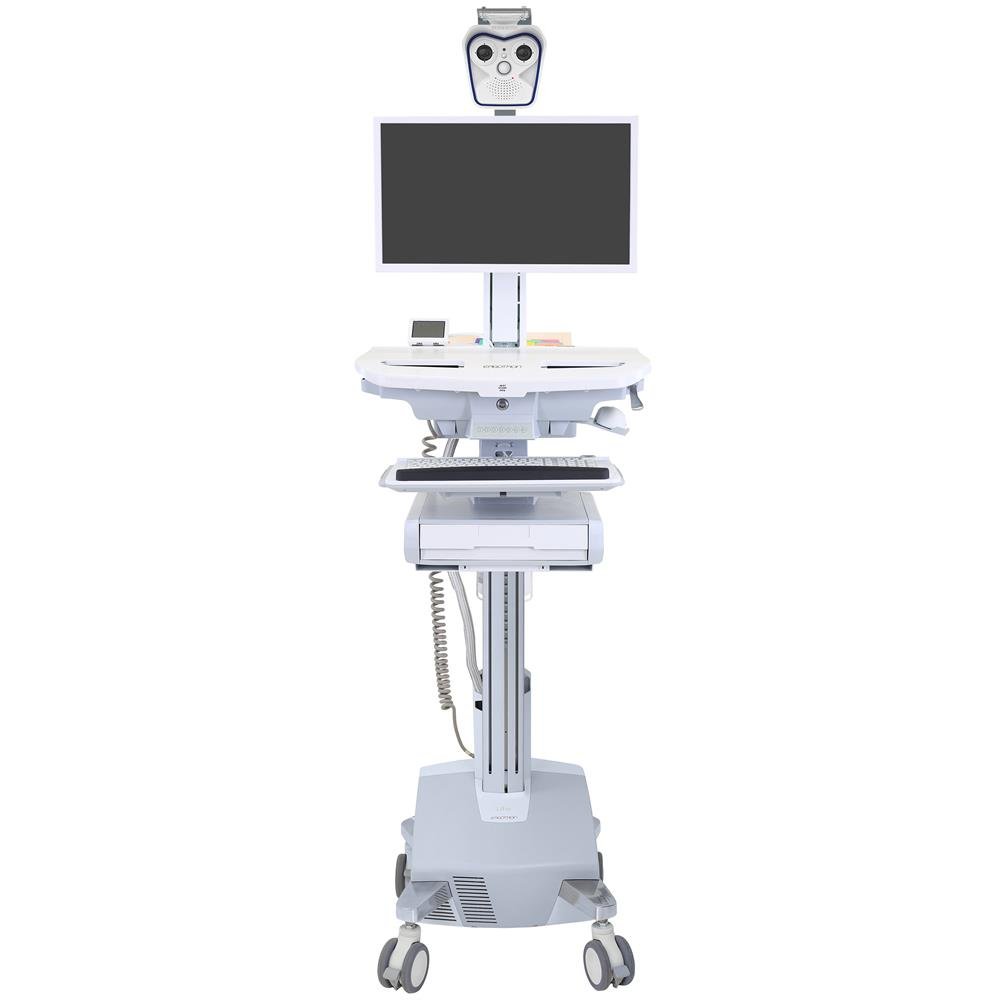

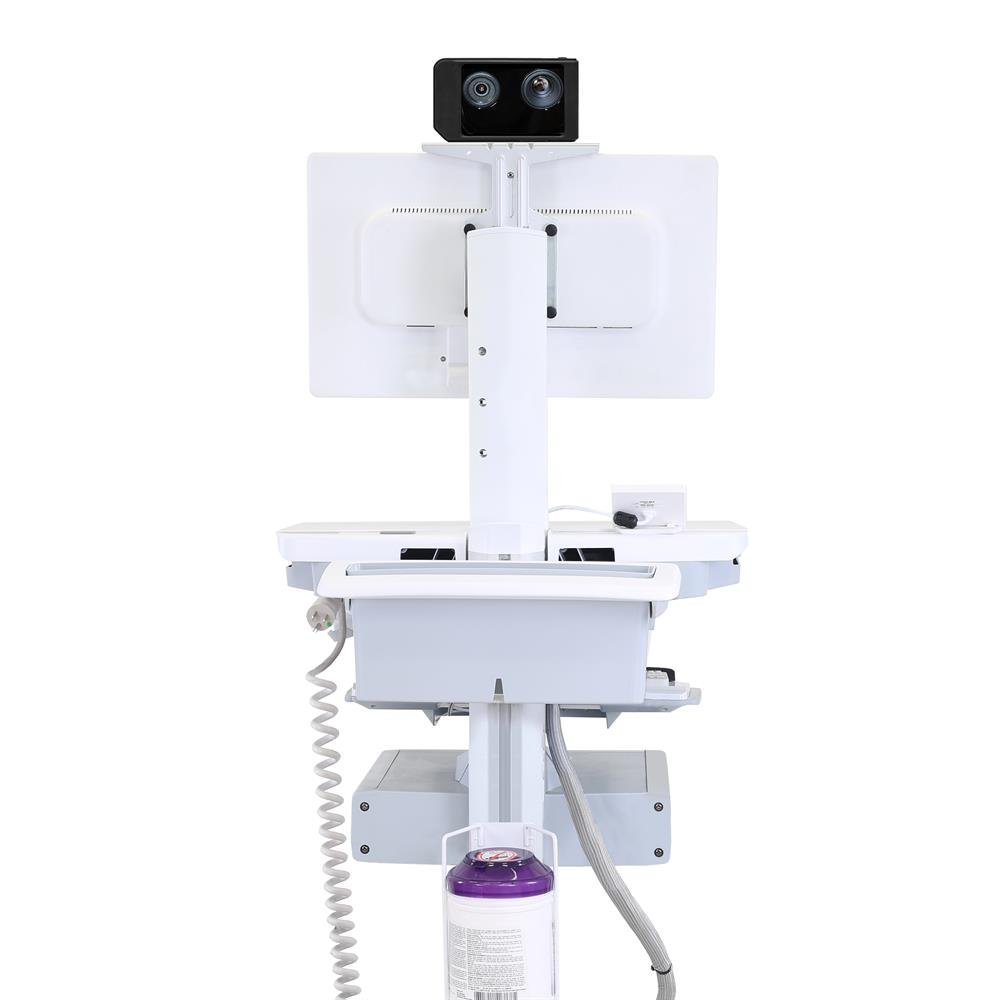

Ergotron Thermal Imaging Cart with Onboard LiFe Power System

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 31 lbs

14.1 kg

25"

63.5 cm

25° 24° 90° MIS-D

Product Information

Description Thermal Imaging Cart with Onboard LiFe Power
TAA (Trade Agreements Act) compliant
Not Included Camera, monitor and other equipment sold separately. Ergotron does not manufacture, sell or endorse any thermal camera
Total Maximum Load on Height-Adjustment Assembly 31 lbs (14.1 kg). This includes the sum of the following components: LCD pivot plus camera mount ≤ 20 lbs (9.1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg)
LCD and Worksurface Adjust 20" (51 cm) in tandem; LCD also adjusts 5" (13 cm) independently; maximum LCD adjustment = 25" (63 cm)

Components Build this tailored solution with the following products

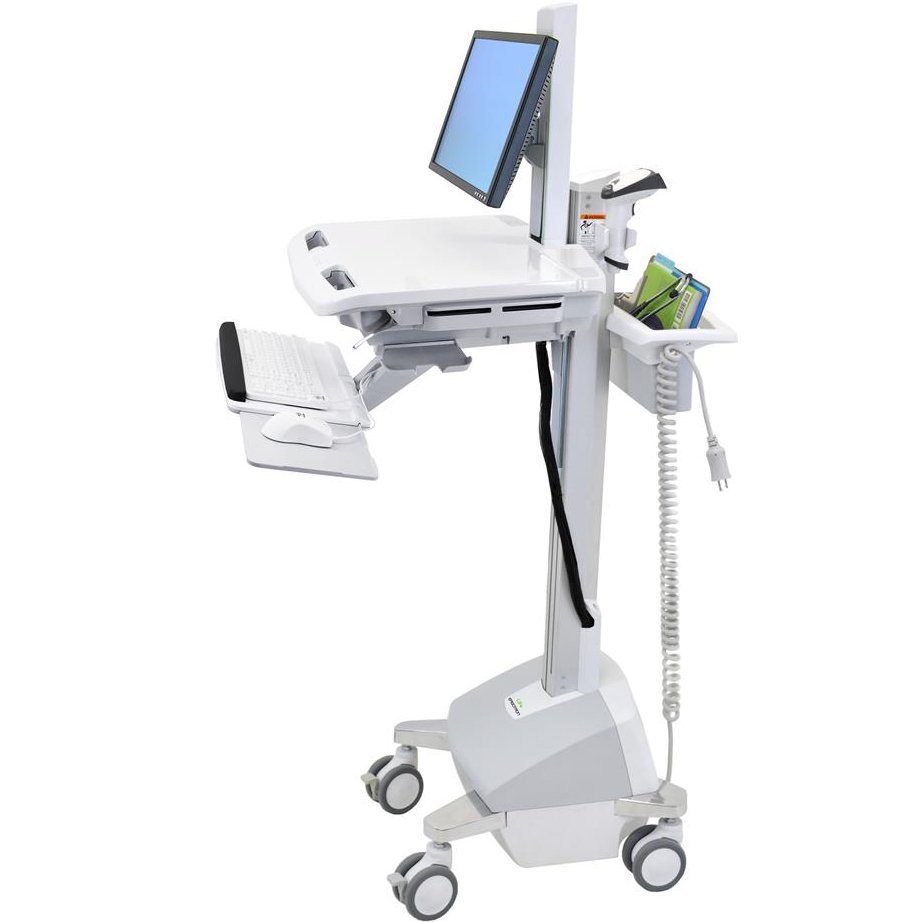

StyleView Cart with LCD Pivot, LiFe Powered, US/CA/MX SV42-6302-1
Includes LCD pivot, worksurface, CPU lock, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, left/right mouse tray, keyboard lights, rear handle, storage basket, cable storage, four casters (lockable, 1 tracking function), single-battery 40 Ah LiFe power system, 10-foot (3 m) coiled cord, three AC outlets, power system user interface
TAA (Trade Agreements Act) compliant
Storage Compartment For closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm)
Compact Wheel-to-Wheel Base Dimensions 15.5" x 17" (39 x 43 cm)
Worksurface Dimensions 22.4"W x 19.75"D (57 x 50 cm)
Entire Cart Is certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90. Also complies with EMI limits of FCC Part 15 Class A
VAC 120-230V, 50/60 Hz
Product Weight 97 lbs (44.1 kg)
Shipping Dimensions 56.5" x 34" x 24.5" (144 x 86 x 62 cm)
Shipping Weight 131 lbs (59.5 kg)
Warranty Five years for cart’s mechanical components, two years on power module; five years on LiFe battery, including three-year capacity guarantee

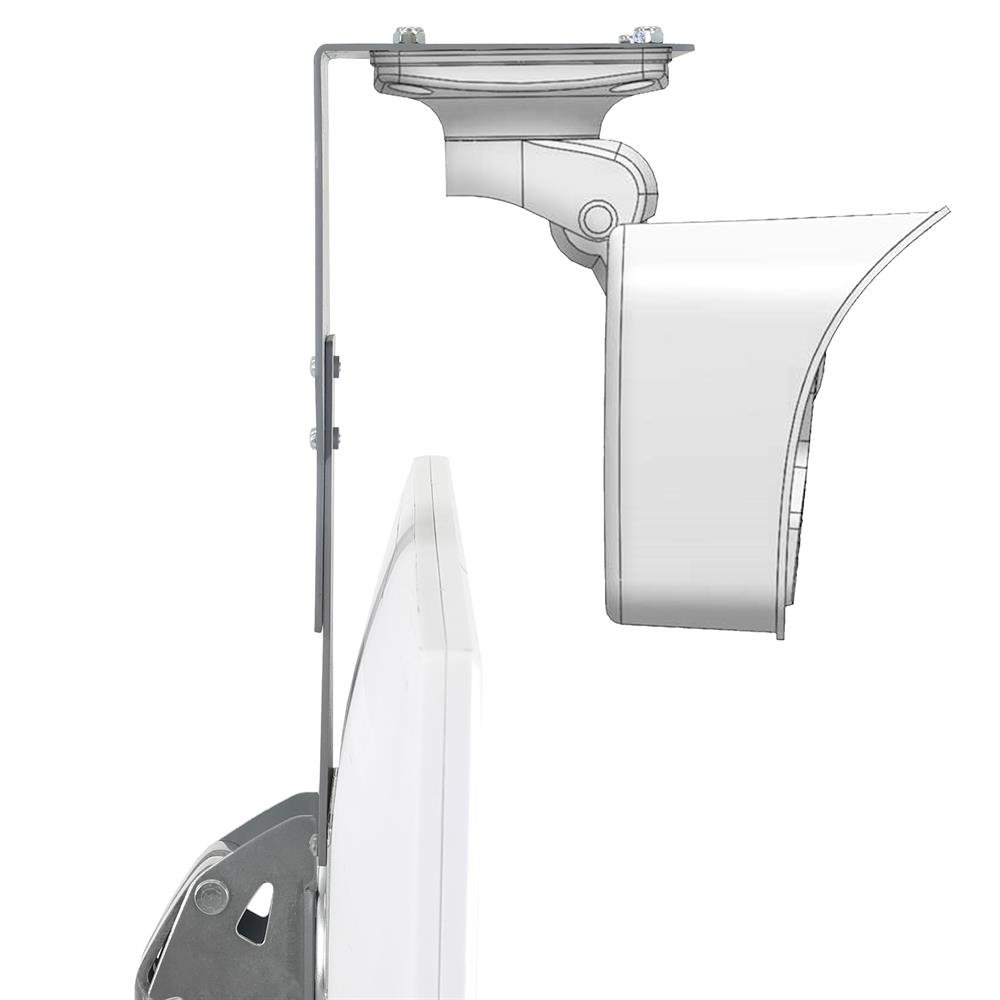

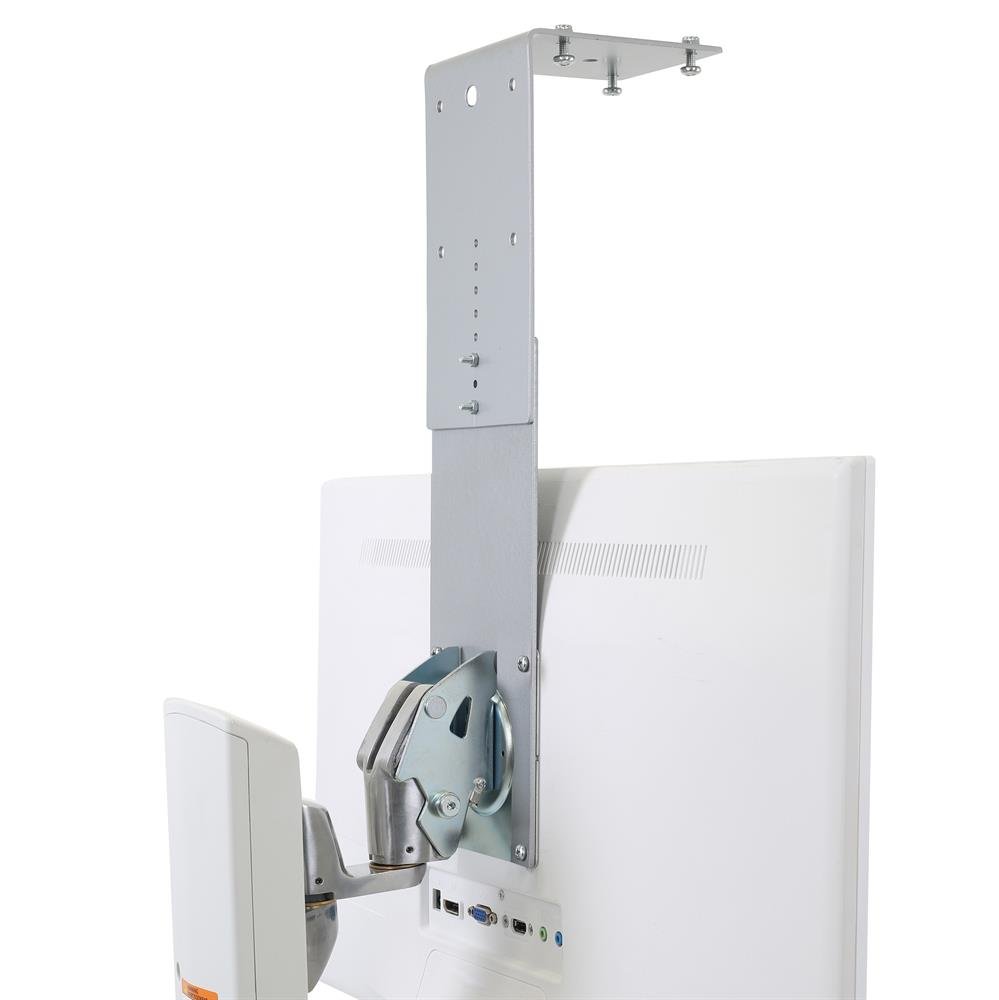

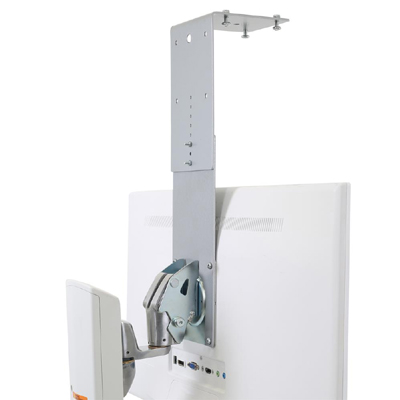

Universal Thermal Camera Mount 98-503
Includes Shelf, VESA bracket, mounting hardware
Shelf Attaches to cart via the monitor VESA plate
Camera Camera can be mounted either facing forward or backward
Features 2.5" (6.33 cm) installation height range for precise camera placement
SV HD Monitor Kit Addition of the SV HD Monitor Kit (98-029) is recommended when installing a Thermal Camera Mount to a StyleView cart. Without 98-029, lock-out of the cart’s standard LCD lift may be required
Weight Capacity 4 lbs (1.8 kg)
Product Weight 3 lbs (1.4 kg)
Shipping Dimensions 12.4" x 6.5" x 6" (31.5 x 16.5 x 15 cm)
Shipping Weight 3.1 lbs (1.4 kg)
Warranty Five years
Compatible Compatible with the MOBITIX M16 Camera, and cameras using a standard tripod-screw interface

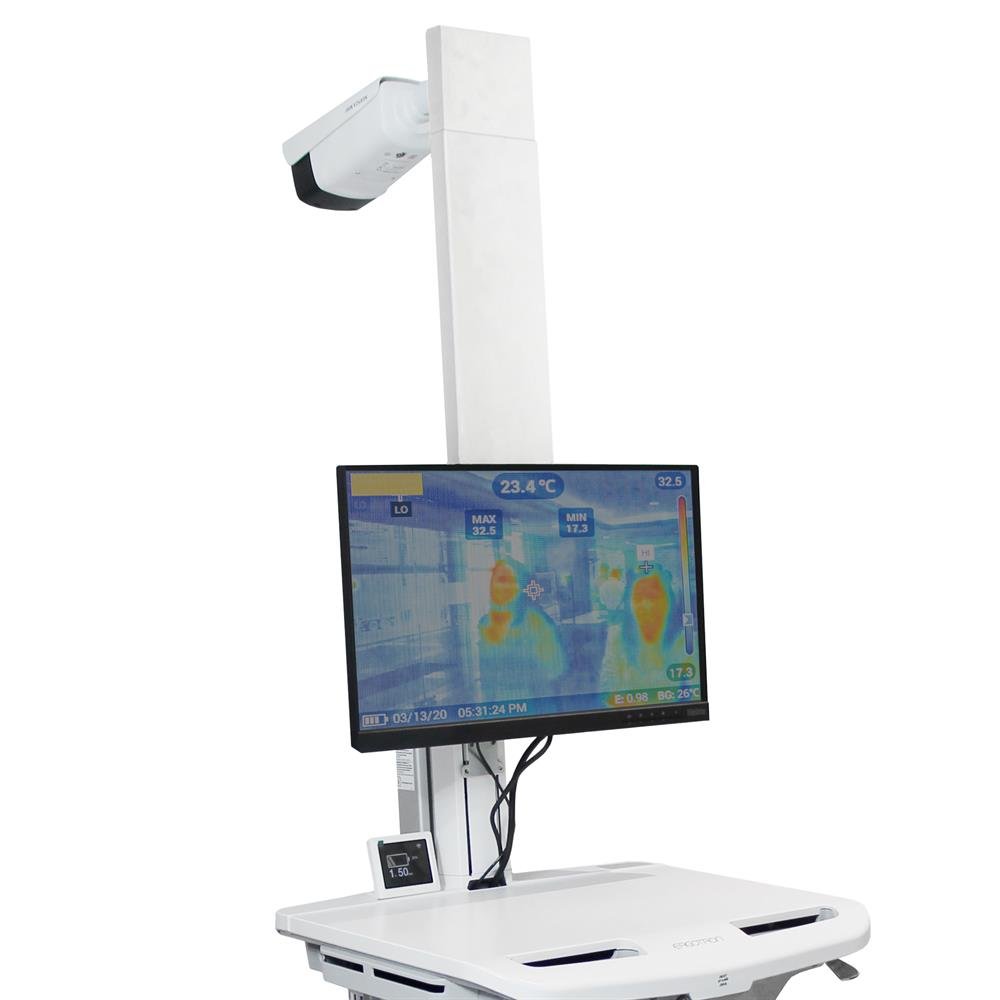

Hikvision Bullet Camera The Hikvision Bullet Camera can be installed using Ergotron’s Tall Thermal Camera Mount. Call for details
SV Camera Shelf Alternatively, the SV Camera Shelf (97-776-194) can be used with some cameras in place of the Universal Thermal Camera Mount

SV HD Monitor Kit 98-029
Includes HD lift engine, cable management, attachment hardware
Increases Capacity of the cart’s LCD lift
Pivot This kit uses the cart’s existing pivot
Shipping Dimensions 23" x 6.5" x 6.5" (56 x 15.5 x 15.5 cm)
Shipping Weight 8 lbs (3.7 kg)
Warranty Five years

SV Primary Storage Drawer, Single 97-863
Includes Drawer assembly, large drawer, dividers (configure up to 16 compartments)
Key-Lock This drawer is manually operated; key-lock only
Internal Dimensions 2.5"H x 12"W x 10.5"D (6.4 x 30.5 x 27 cm)
Weight Capacity 2 lbs (0.9 kg)
Shipping Dimensions 18" x 18" x 9.5" (46 x 46 x 24 cm)
Shipping Weight 12 lbs (5.4 kg)
Warranty Five years

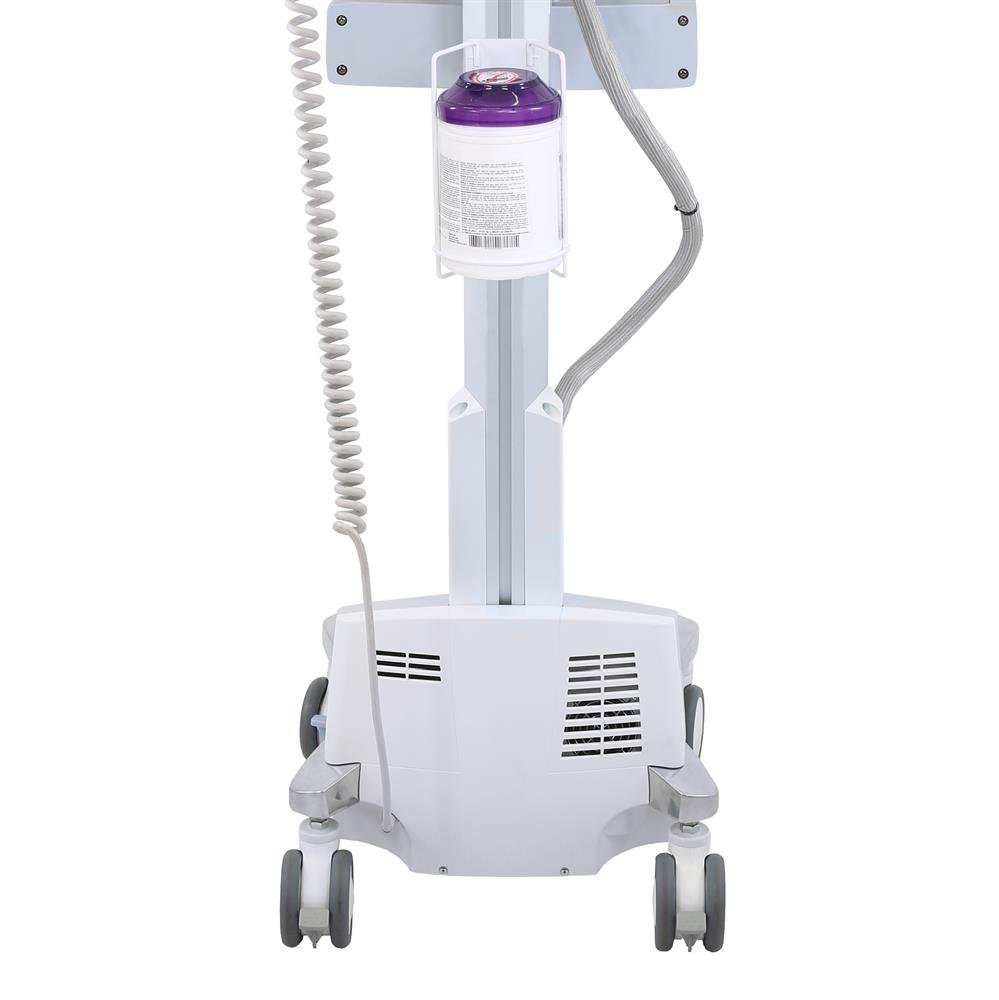

Sani-wipes Holder 98-450
Includes Container holder, t-slot bracket (wipes not included)
Holds Containers 5" (12.7 cm) in circumference and up to 10" (25.4 cm) tall
Weight Capacity 2.5 lbs (1.1 kg)
Shipping Dimensions 6.9" x 6.5" x 10.4" (17.5 x 16.5 x 26.5 cm)
Shipping Weight 1.2 lbs (0.5 kg)
Warranty Five years

Thermal imaging camera not included. Products referenced are not built and sold by Ergotron. They are purchased through third parties. Hikvision is a registered trademark of Hangzhou Hikvision Digital Technology Co., Ltd. Mobotix is a registered trademark of Mobotix AG Corporation.

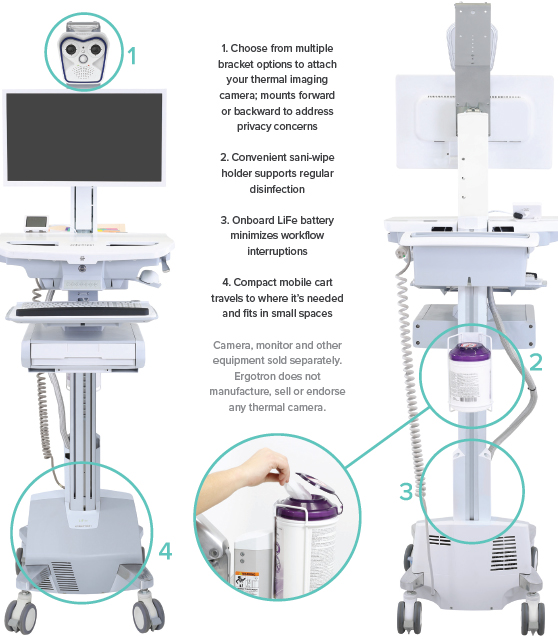

Benefits

  • Quick detection - Move a camera to any location to get a temperature reading

  • Comfortable fit - Ergonomic, height-adjustable design supports caregiver well-being

  • LiFe battery - Reliable power maintains effective monitoring without depending on outlets

  • Compact design - Maneuvers through tight corridors and fits in small spaces

  • Extra storage - Included drawer keeps supplies out of the way yet easily accessible

  • Wipes holder - Convenient access to sani-wipes supports regular disinfection

Model Thermal Imaging Cart with Onboard Power
Manufacturer Ergotron
Part Number Thermal Imaging Cart with Onboard Power
Monitor Size Up to 24"
Weight Capacity Up to 31 lbs (14.1 kg)
Lift (63.5 cm) 25 in
Tilt 25 degree
Pan 24 degree
Rotation 90 degree
VESA MIS-D
Warranty 5 years
Lift Technology Constant Force
Display Type 1 Monitor
Screen Size 24"-30" in
TAA Compliant Yes
