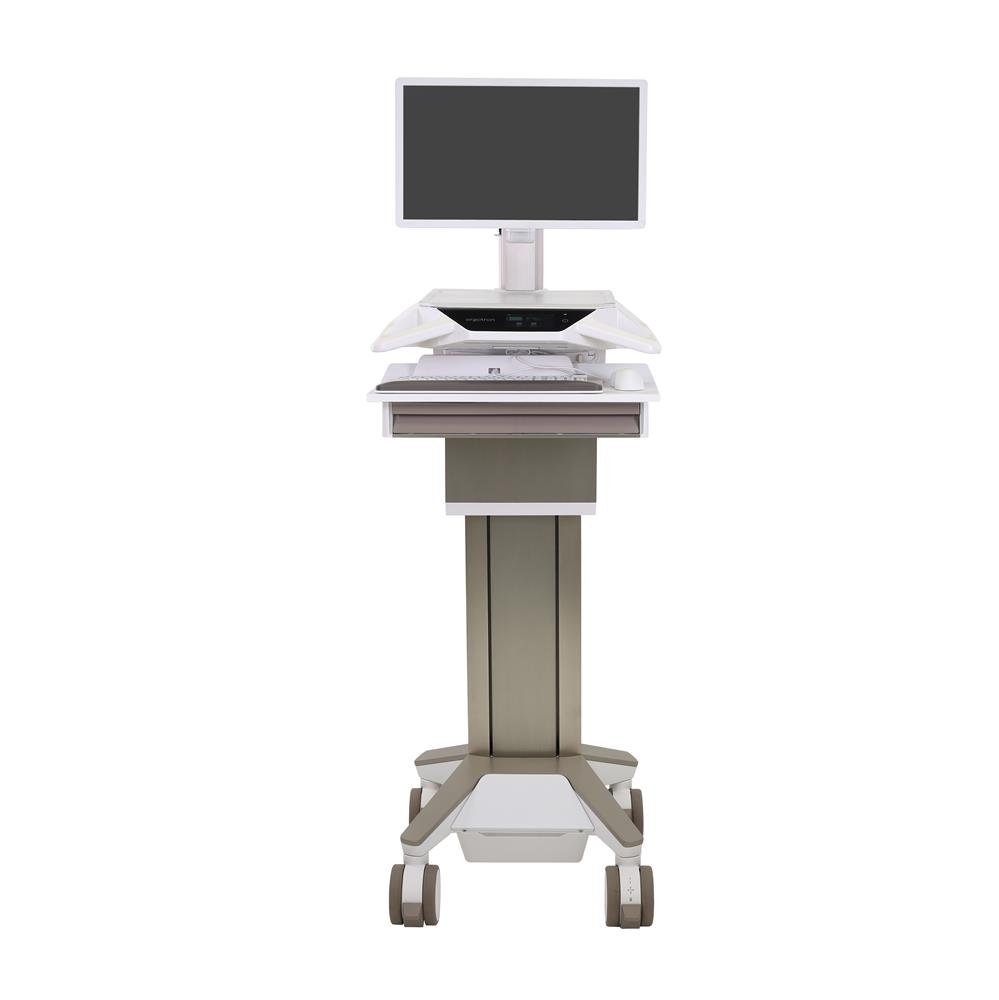

Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer

C52-2211-1 is non-returnable.

Product ID 19616
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer
Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer

Description

Ergotron C52-2211-1 CareFit Pro Medical Cart sets a new standard in resimercial design that supports calming, healing environments for caregivers and patients alike. A flexible open architecture system reliably adapts to future and current workflows with ease. Integrated, cloud-based software simplifies fleet management, helps improve uptime and alleviates power anxiety.

Technical Drawing

Technical Drawing for Ergotron C52-2211-1 CareFit Pro Electric Lift Cart, LiFe Powered with 1 Drawer

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 37.5 lbs

17.0 kg

27"

68.6 cm

65° 180° 360° MIS-D

Product Information

UPC 698833082692
Part Number
  • North America = C52-2211-1

  • Europe = C52-2211-2

  • United Kingdom/Ireland = C52-2211-3

  • Hong Kong/Malaysia/Singapore = C52-2211-3

  • Australia/New Zealand = C52-2211-4

  • China = C52-2211-5

  • Switzerland = C52-2211-C

Description CareFit Pro Electric-Lift Cart, LiFe Powered, 1 Drawer (1x1)
Color White/warm grey
TAA (Trade Agreements Act) compliant
Includes
  • Cart

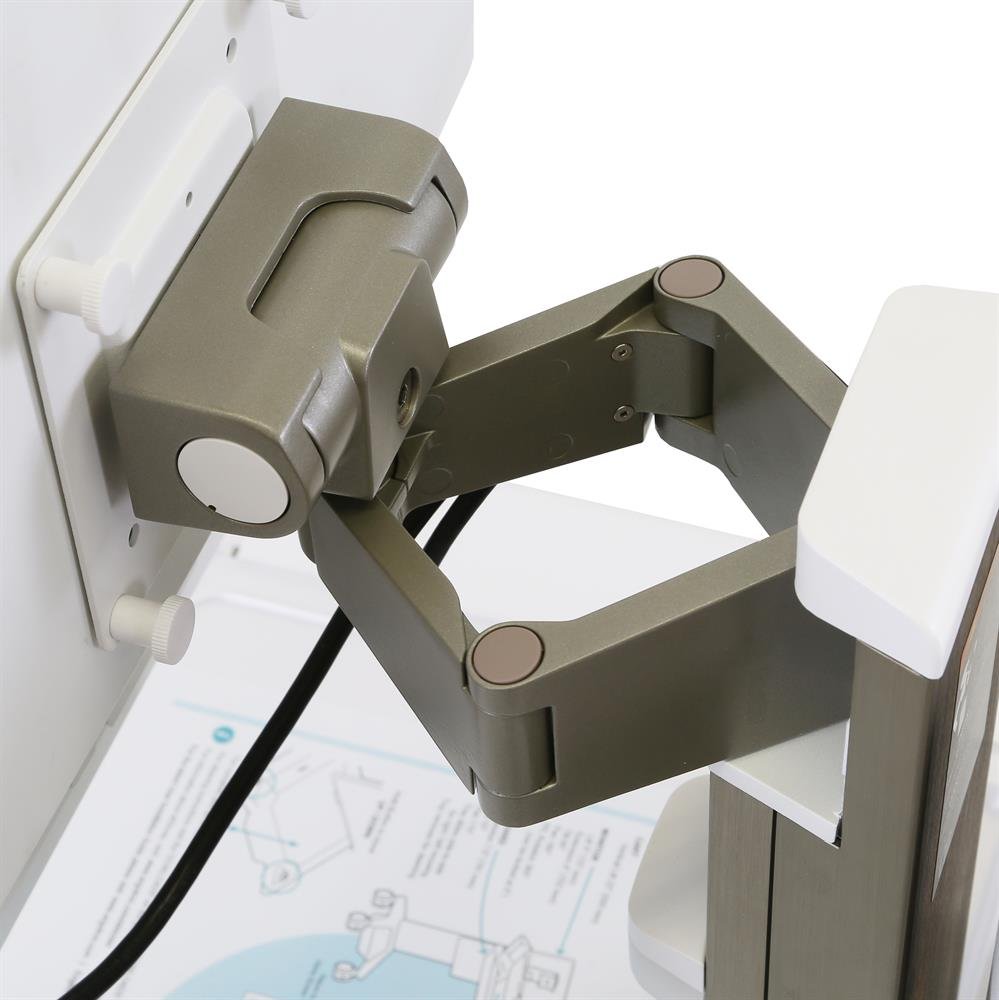

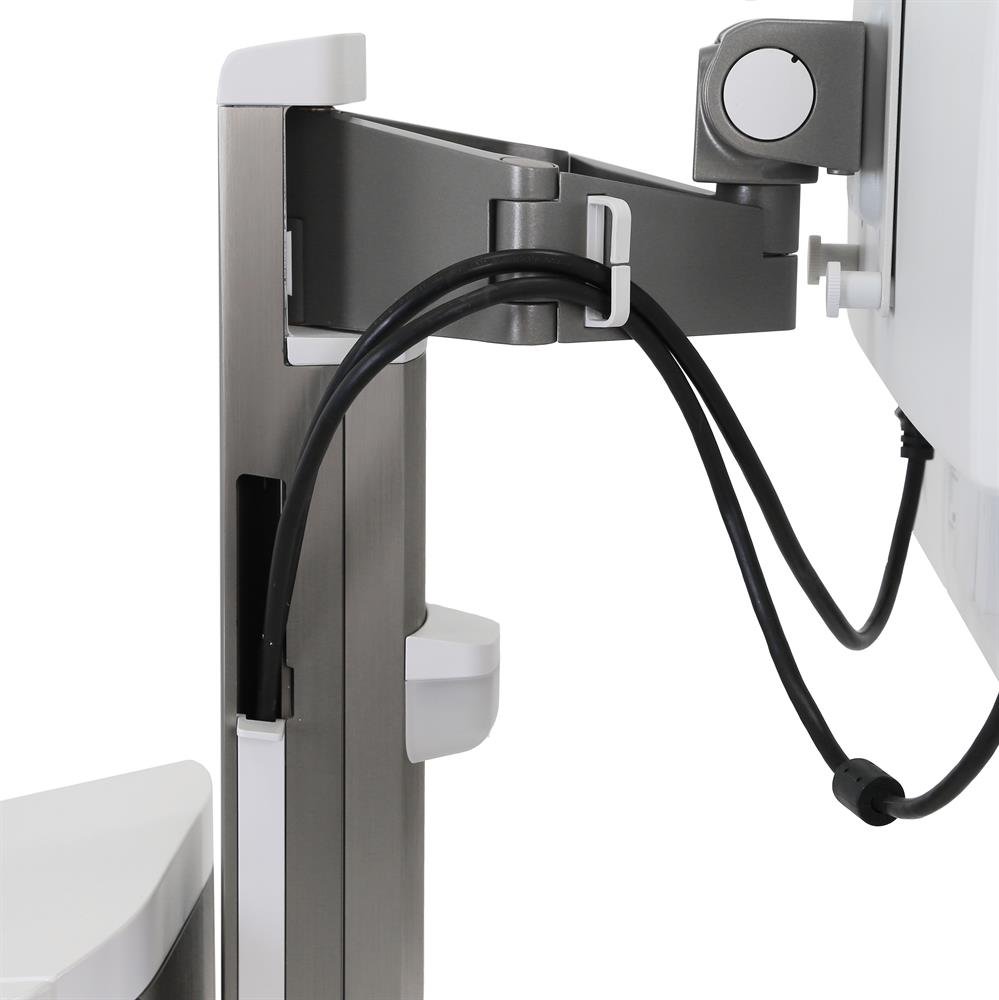

  • LCD mount

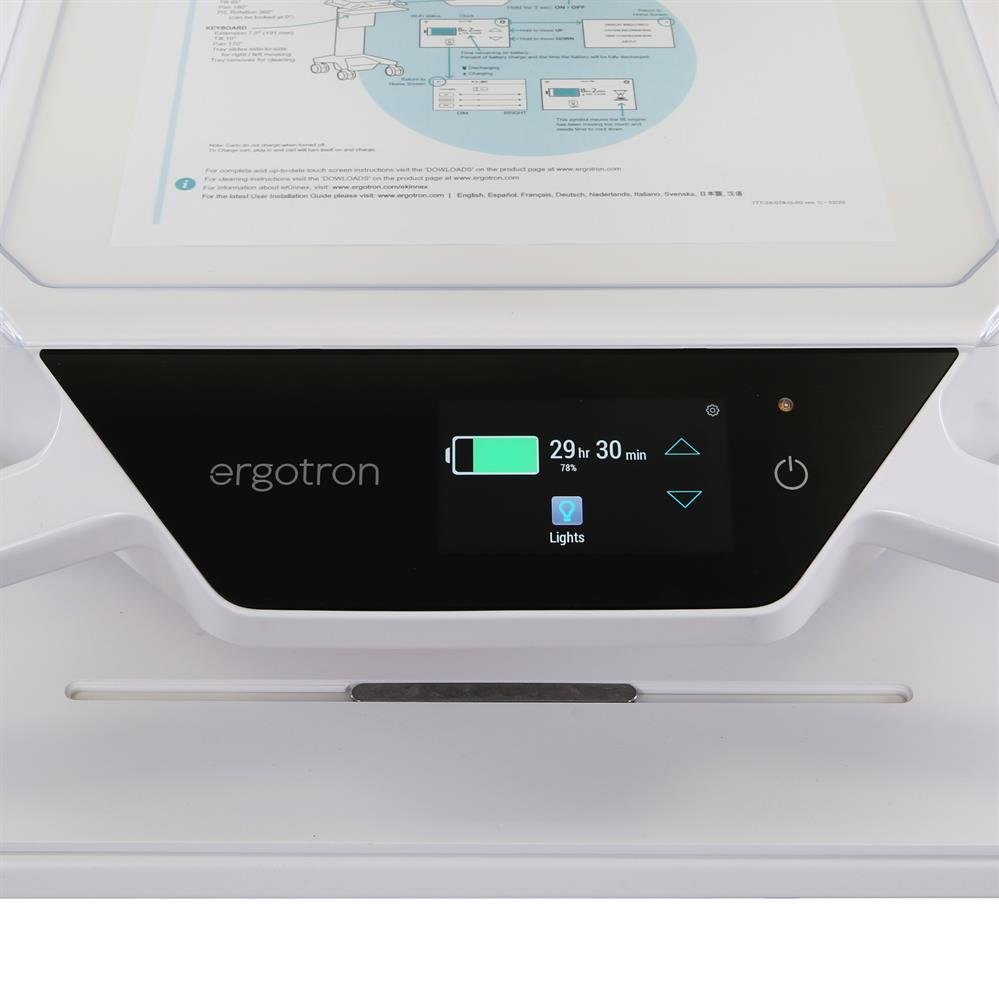

  • Touchscreen control panel

  • Technology enclosure (CPU storage compartment, cable storage compartment)

  • 7-port USB hub

  • Removable top worksurface

  • Worksurface document holder

  • Rear document holder

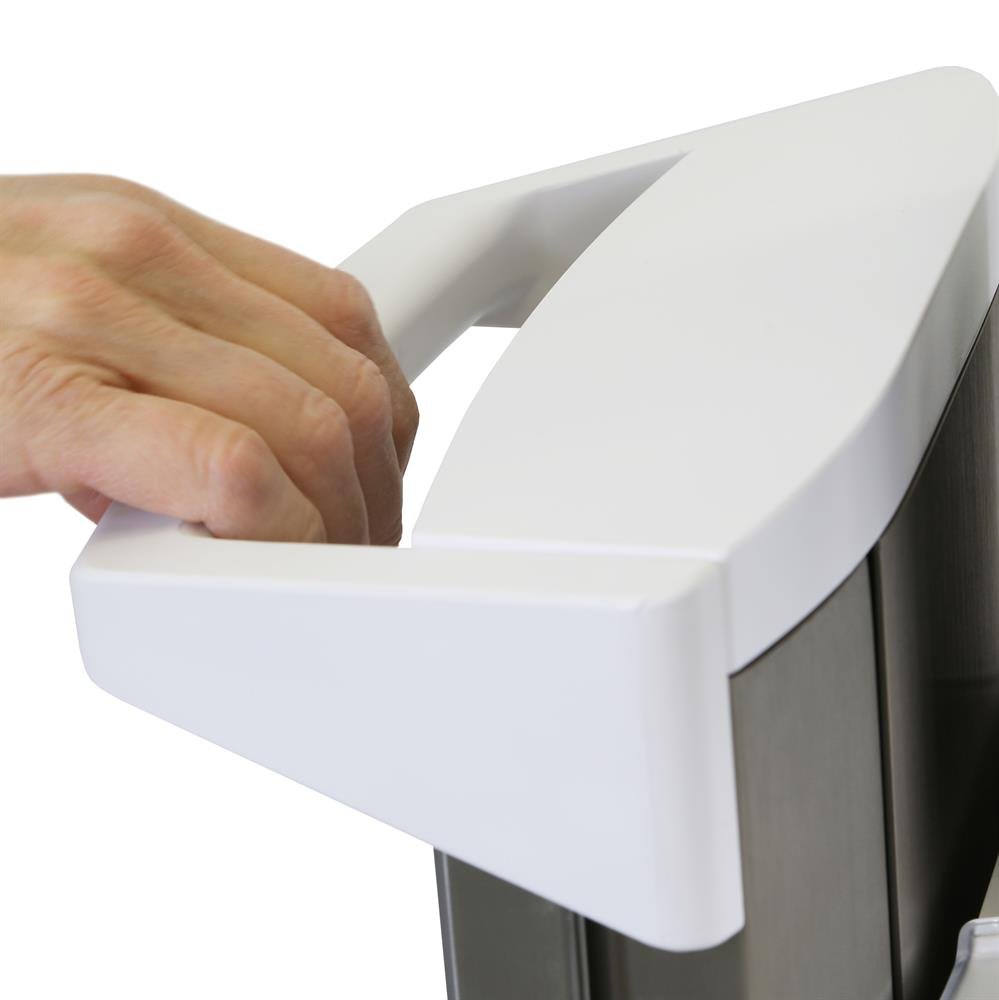

  • Front and rear handles

  • Keyboard tray with slide-out mouse area

  • Worksurface light

  • Keyboard lights

  • Floor lights

  • 4 locking casters (1 tracking caster)

  • Power cord and hook

  • AC power system with LiFe battery

  • Charger for external “hot swap” battery (sold separately)

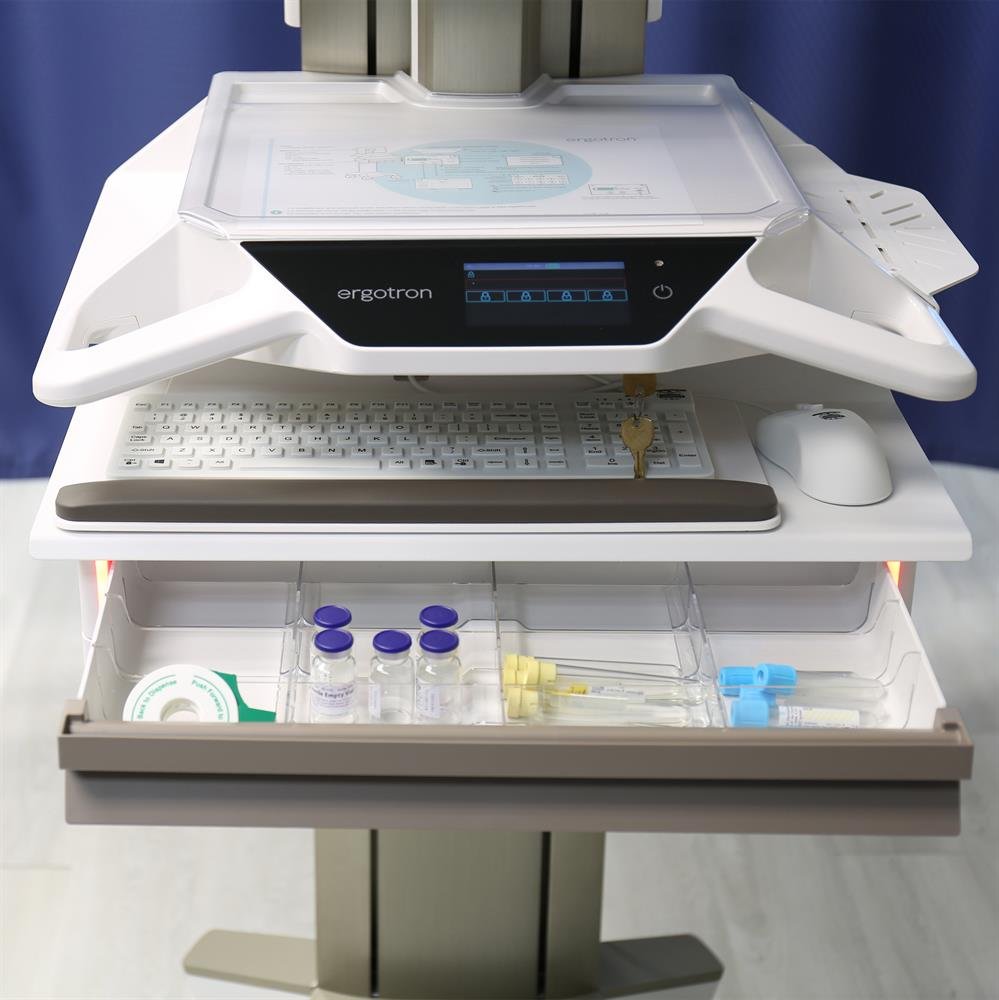

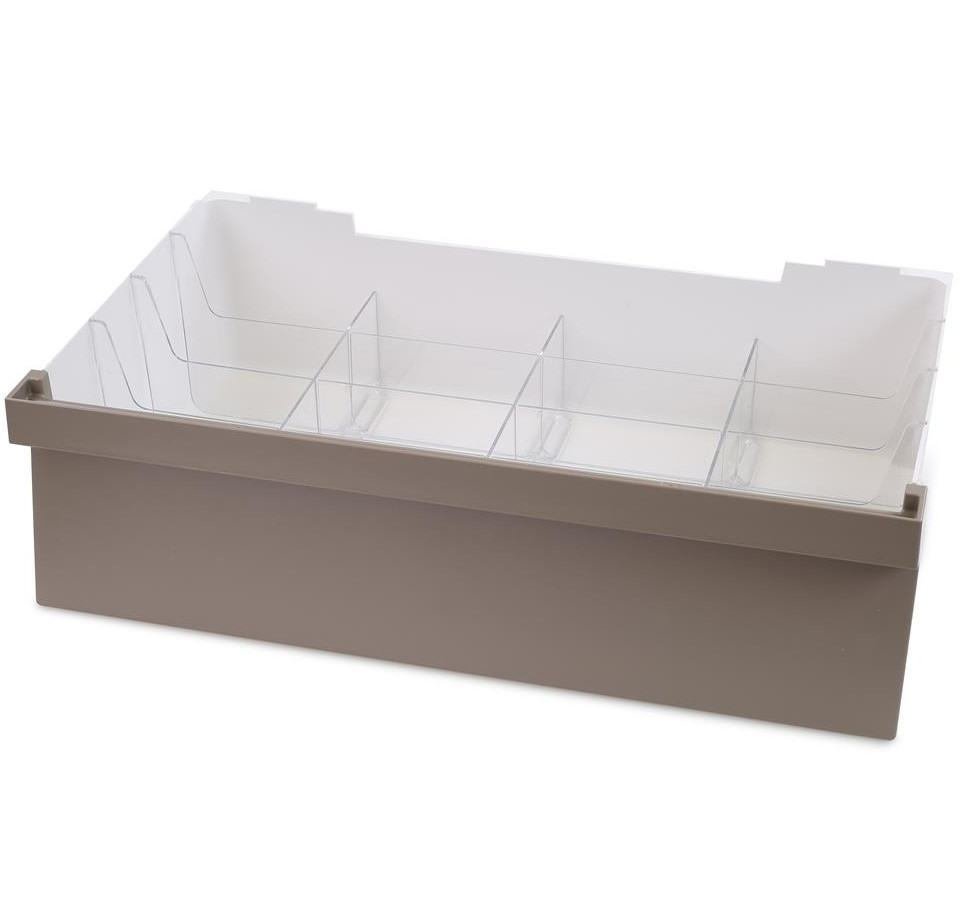

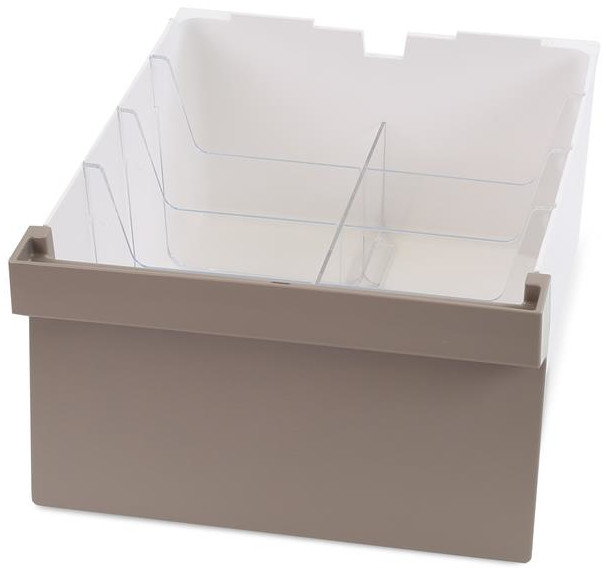

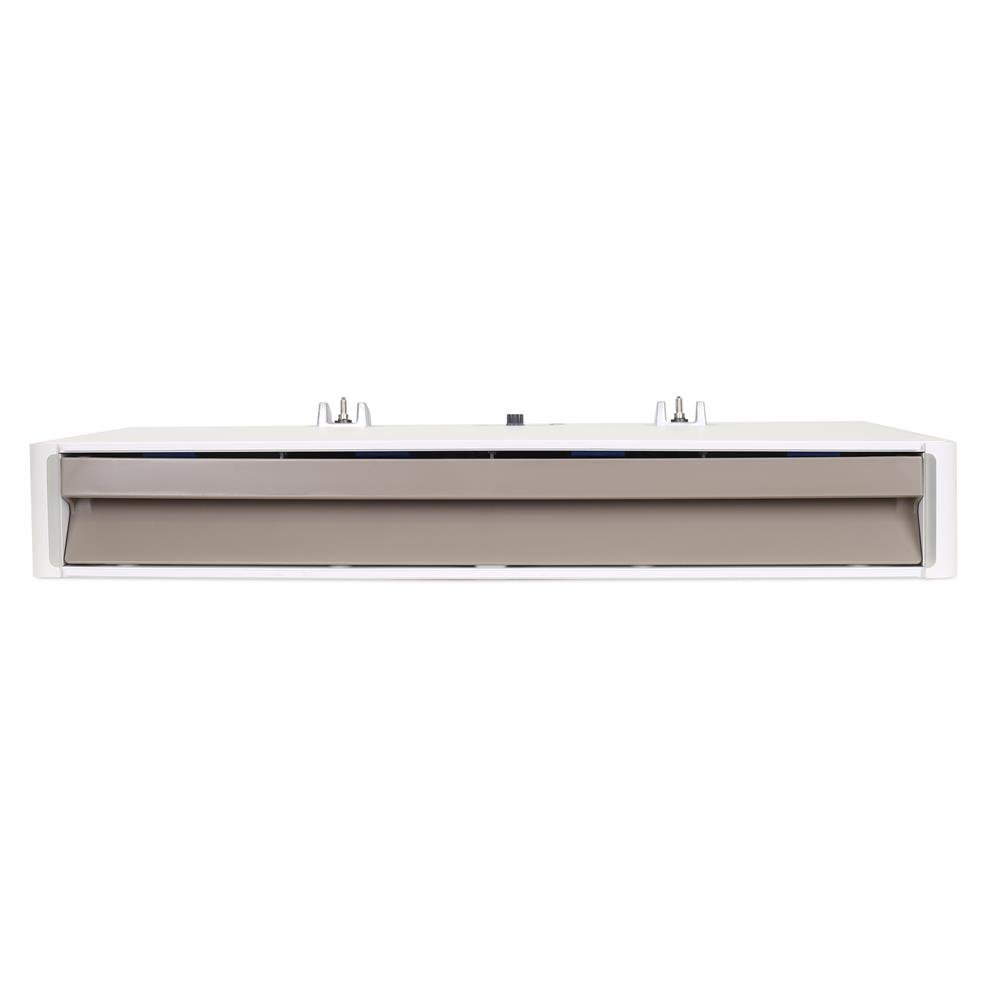

  • 1 Single Drawer

  • Drawer Dividers

Note Up to 3 additional rows of drawers may be added to this cart. The height of “Tall” drawers is equal to 2 drawer rows. See accessories
Weight Capacity Total maximum load on height-adjustment assembly = 37.5 lbs (17 kg), which includes combined weight of monitor, contents of drawer, keyboard tray and worksurface, technology enclosure, and added accessories. Maximum monitor weight = 20 lbs (9.1 kg)
Lift Range 27" (69 cm) total; 22" (56 cm) sit-to-stand adjustment + 5" (13 cm) independent monitor adjustment
Pan Range Monitor and keyboard both turn up to 180°
Monitor Extends/Retracts 3.75" (9.5 cm)
Key Features and Dimensions
  • Open-architecture design accommodates future hardware upgrades

  • eKinnex-enabled connectivity for proactive fleet management

  • Integrated 7-port USB hub for data and power

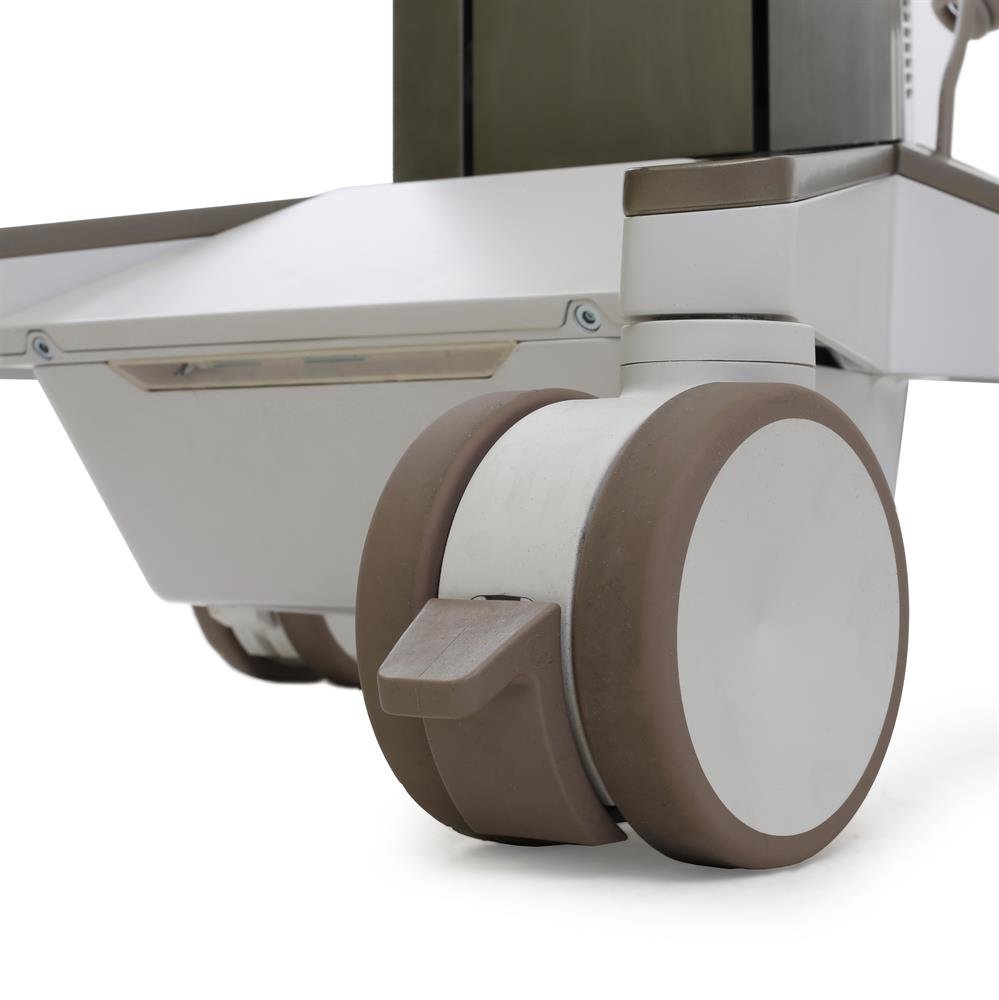

  • Dual-wheel 5" (13 cm) casters for extremely easy push/pull mobility (4 locking, 1 tracking)

  • Flex-platform accessory mounting system

  • Compact Footprint: 21.25" x 21.8" (54 x 55 cm)

  • Worksurface Dimensions: 14" x 16" (36 x 41 cm), expandable to 14" x 23" (36 x 58 cm) with accessory add-ons

  • Drawer Dimensions: internal = 2.25" x 9.25" x 18" (5.7 x 23.5 x 45.7 cm); can be divided into 4 or 16 compartments

Electrical System
  • VAC:
    US/CA/MX = 120V/60Hz
    EU = 230V/50Hz
    UK/SG/MY/HK = 230V/50Hz
    AU/NZ = 230V/50Hz
    CN = 220V/50Hz
    CHE = 230V/50Hz

  • Grounded Plug:
    US/CA/MX = NEMA 5-15P Hospital Grade
    EU = European CEE 7
    UK/SG/MY/HK = UK BS 1363
    AU/NZ = AS/NZS 3112
    CN = GB2009-1; GB1002-1
    CHE = SEV 1011

  • Integrated 320Wh LiFe battery

  • Temperature Range: operating 10° to 30°C (50° to 86°F); storage -20°C to 50°C (-4° to 122°F)

  • Relative Humidity Range: 5% to 95% (non-condensing)

Safety
  • The entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Cart Weight 134.5 lbs (61.1 kg)
Shipping Dimensions 25" x 33" x 51" (64 x 83 x 129 cm)
Shipping Weight 168.4 lbs (76.5 kg)
Warranty Five years for mechanical components, three years for electric lift motor, two years for power module and cord, one year for other electrical components (excluding consumables like AA batteries); for onboard LiFe batteries, 5 years warranty against manufacturer defects and 80% of rated capacity or 2,000 cycles within 3 years of purchase, as reported by device through eKinnex software

Benefits

  • Efficient workflows - Customizable drawers, lighting and more streamline daily tasks

  • Ergonomic working - Offers electric sit-to-stand adjustment for comfortable documentation

  • Promotes uptime - Oversee drawer access, track battery life and simplify maintenance with remote fleet management

  • Enhanced security - Imprivata Identity Access Management with locking drawers to help keep medications secure

  • Professional grade - Designed to last with industry-leading quality testing

  • Long-term investment - Adapts to future workflows by adding drawers and accessories

Model C52-2211-1
Manufacturer Ergotron
Part Number C52-2211-1
UPC 698833082692
Color White/warm grey
Monitor Size Up to 27"
Weight Capacity Up to 37.5 lbs (17.0 kg)
Lift (68.6 cm) 27 in
Tilt 65 degree
Pan 180 degree
Rotation 360 degree
VESA MIS-D
Extend/Retract Range 3.75" (9.5 cm)
Footprint 21.25" x 21.8" (54 x 55 cm)
Worksurface Dimensions 14" x 16" (36 x 41 cm), expandable to 14" x 23" (36 x 58 cm) with accessory add-ons
Dimensions Drawer (internal) = 2.25" x 9.25" x 18" (5.7 x 23.5 x 45.7 cm); can be divided into 4 or 16 compartments
Temperature Operating 10° to 30°C (50° to 86°F); storage -20°C to 50°C (-4° to 122°F)
Humidity 5% to 95% (non-condensing)
Cart Weight 134.5 lbs (61.1 kg)
Shipping Dimensions 25" x 33" x 51" (64 x 83 x 129 cm)
Shipping Weight 168.4 lbs (76.5 kg)
Warranty 5 years
Display Type 1 Monitor
Screen Size 24"-30" in
TAA Compliant Yes
