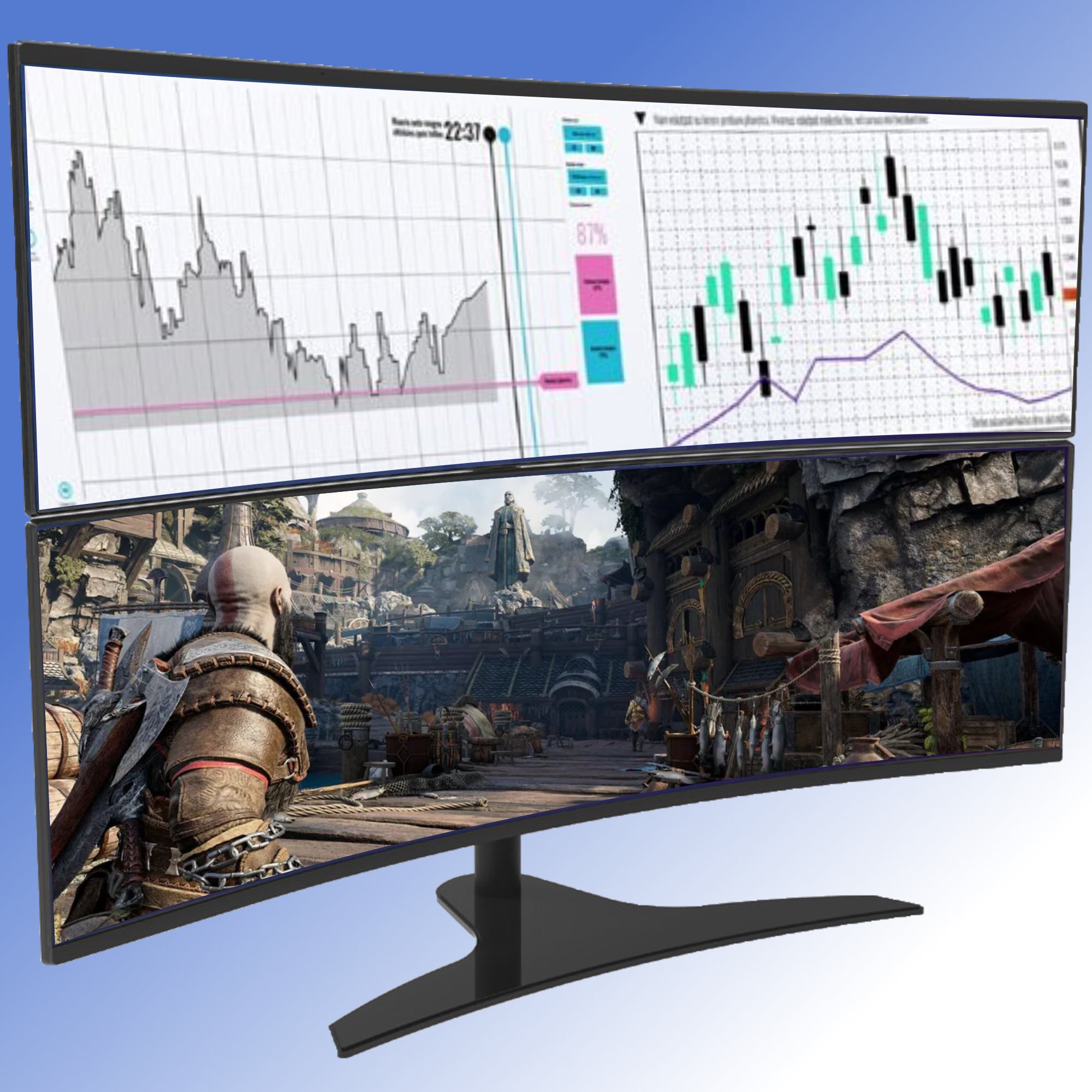

EDM-2x49 Freestanding Desktop Stand for Stacking two Samsung G9 Ultra-Wide Curved 49" Monitors
Description

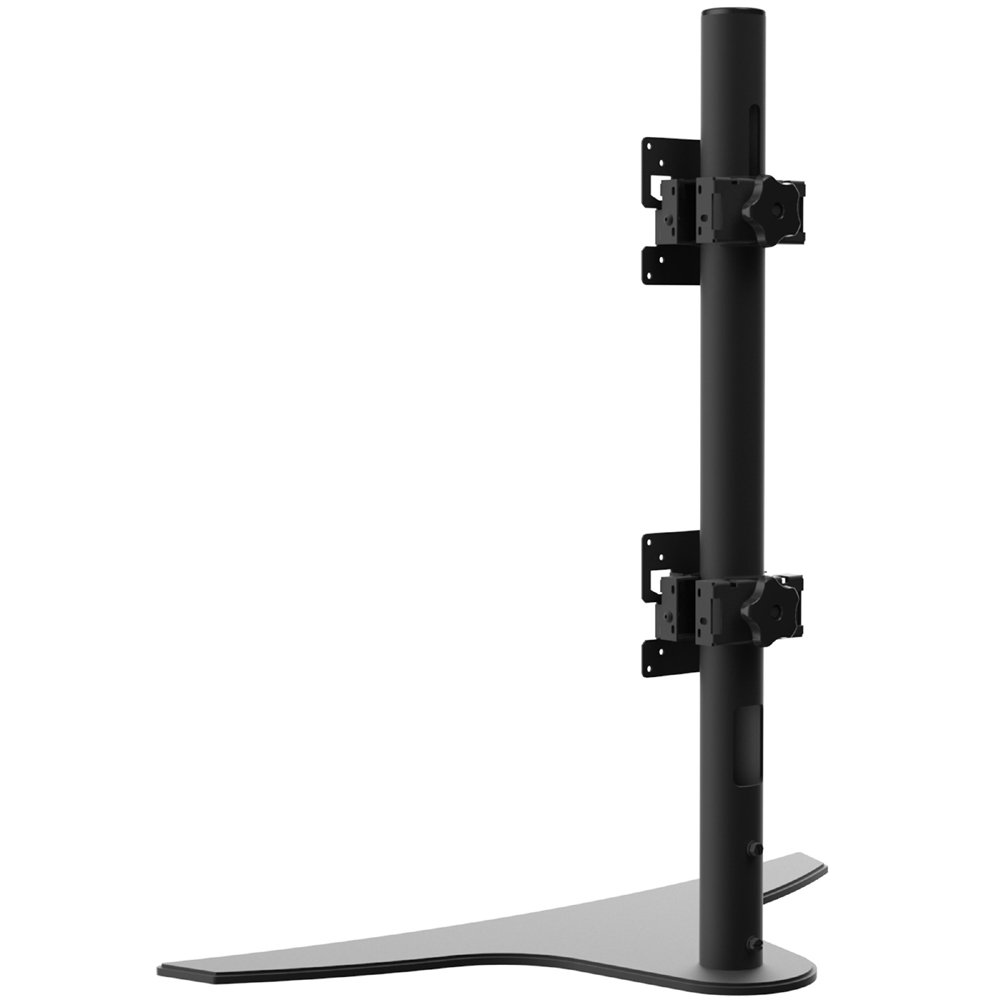

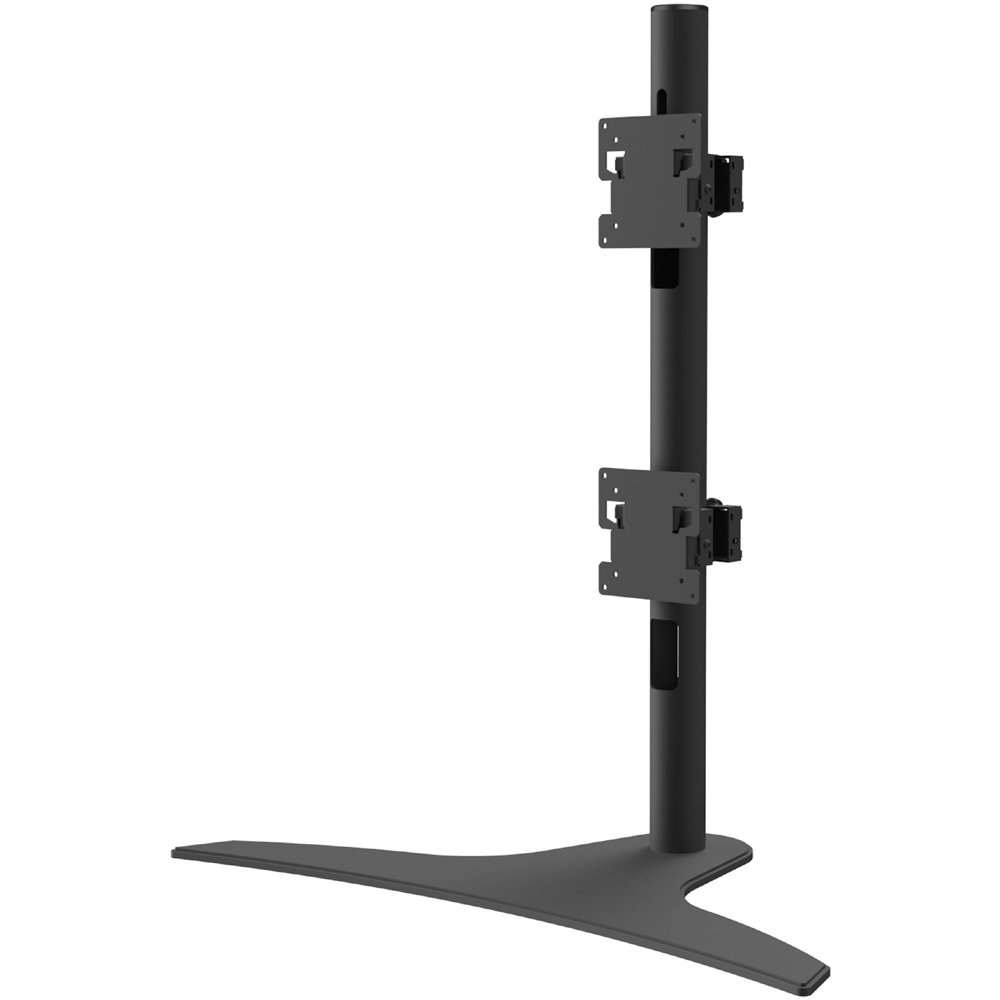

EDM-2x49 Freestanding Desktop Stand offers a secure, functional, and convenient mounting solution for 24" to 49" ultra-wide curved monitors, ideal for gaming and streaming, security, control rooms, and trade market applications. The unique design allows (2) monitors to be stacked in a 1x2 layout to maximize the ability to simultaneously view multiple sources. A built-in adjustment knob allows the user to precisely position the monitors to eliminate any gap between the bezels. The two bolt Hook-and-Hang design allows monitors to be quickly installed or removed when maintenance is required. The slim base provides a sturdy support for the mounted monitors and a clean look ideal for any workspace.

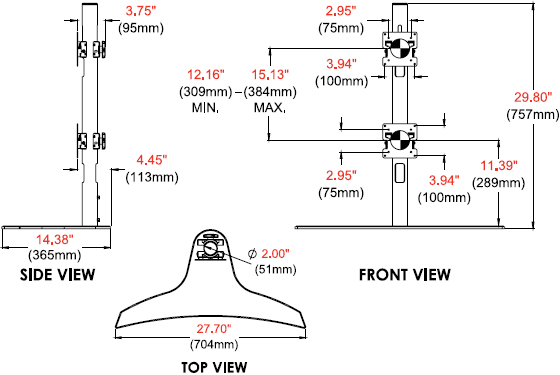

Technical Drawing
Technical Specifications
| UPC | 735029342557 |
| Color | Matte Black |
| Part Number | EDM-2x49 |
| Description | 1x2 Freestanding Desktop Stand for 24" to 49" Ultra-Wide Curved Monitors |
| Dimensions (W x H x D) | 27.70" x 29.80" x 14.38" (704 x 757 x 365 mm) |
| Weight | 23.1 lbs (10.5 kg) |
| Weight Capacity | 60 lbs (27.2 kg) |
| Finish | Scratch Resistant Fused Epoxy |
| Package Dimensions (W x H x D) | 16.38" x 5.50" x 28.38" (416 x 140 x 721 mm) |
| Package Shipping Weight | 25.2 lbs (11.4 kg) |
| Package Contents | Base, Pole, (2) Adaptor Brackets and Mounting Hardware |
Features
Universal design works with 24" to 49" ultra-wide curved or flat monitors with 75 x 75 or 100 x 100mm VESA patterns
Internal cable management conceals all cabling for a clean and clutter free installation
Low profile base is freestanding for convenient set up
Hook-and-Hang adaptors help reduce installation and maintenance time, and allow monitors to be swapped out quickly
Height Adjustable Design - The top monitor can be adjusted vertically along the column to provide the proper spacing for stacking two monitors
Product Options/Accessories
| Model | EDM-2x49 |
| Manufacturer | Peerless Mounts |
| Part Number | EDM-2x49 |
| UPC | 735029342557 |
| Color | Matte Black |
| Monitor Size | 24" to 49" |
| Dimensions (W x H x D) | 27.70" x 29.80" x 14.38" (704 x 757 x 365 mm) |
| Weight | 23.1 lbs (10.5 kg) |
| Weight Capacity | 60 lbs (27.2 kg) |
| Finish | Scratch Resistant Fused Epoxy |
| Package Dimensions | 16.38" x 5.50" x 28.38" (416 x 140 x 721 mm) |
| Package Weight | 25.2 lbs (11.4 kg) |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 1
- 5 stars 0
by Bob Starlin, Sep 24, 2023
4 stars because I have 3 slight issues.
1) There is no mechanism with this device as an option to secure it to the desk or table it sits on. Even as heavy as these 2 monitors and stand are, with the extensive height bumping into the top or even pressing on the top monitor (say for cleaning) can make you seriously wonder if it is going on over the back. Nice idea, but it needs an option to secure it to the table or something if you don't have a wall to back the stand-up and prevent it from going over backward.
2) There needs to be a couple of centimeters (inches) more room separation between the monitors. Either the lower monitor needs to be adjustable like the top (it's fixed in place which I don't care for, or the upper needs a little more upward movement) Particularly when in concert with item 1, and if you have no helper to mount these units. Putting the 2nd monitor in place while trying not to tip it over is nerve-wracking at best.
3) The plastic or vinyl inserts that the clamping mechanism "pinches" against the pipe are a little sketchy for my taste. If you are older like me, trying to tighten those devices down tight enough with that little knob you might not get them as tight as they need to be to hold securely these extra heavy monitors. I thought I had it set properly and as soon as I had the upper monitor placed, it started sliding down onto the lower monitor. Now, try and figure out by yourself how to lift a 49" curved monitor from chest height up off that clamping mechanism, from the front, where you can't see the clamp tilt angle to see if you are disengaged before pulling it out, and then trying to slide the clamp and tighten and replace all the while the stand slides back on the desk further and further every time you bump it?
Many exciting words were spoken.
At any rate, would I recommend this stand? absolutely, no question. Would I buy it again? absolutely.
I just think it needs some rethinking from an installation perspective. Once everything is set in place, it's fine.
