Workrite JIBE-2SDA-CCG Dual Articulating Monitor Arm
Description

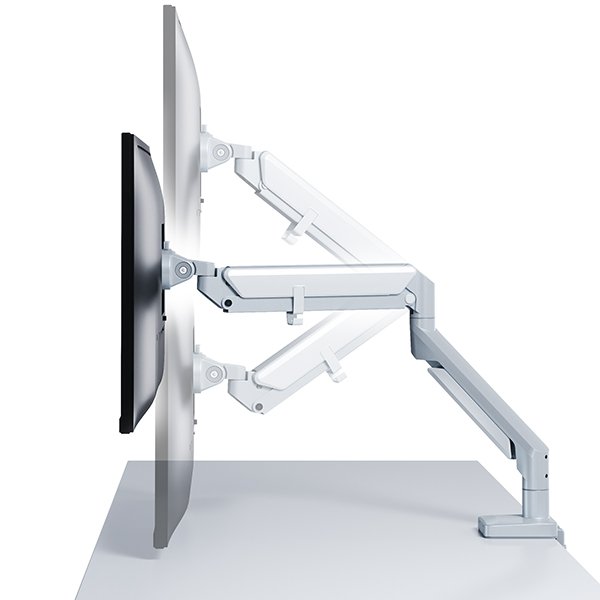

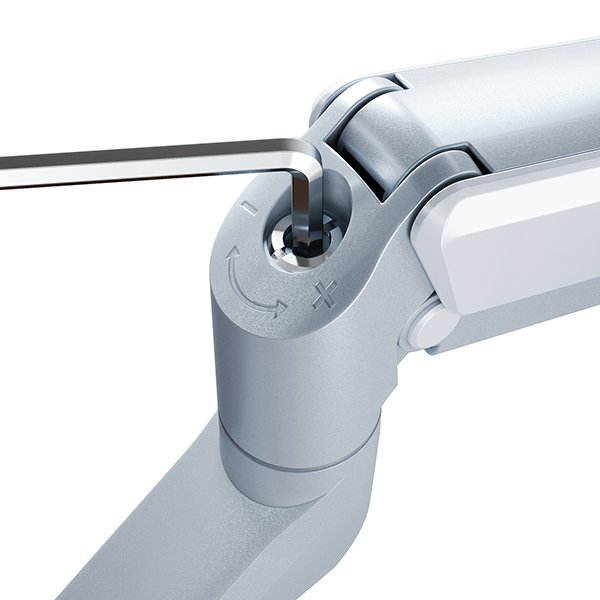

JIBE’s unique arm design allows arms to be fully pushed back in while keeping monitors seamlessly positioned side by side. A detachable VESA plate allows for quick and simple monitor installation and removal. Use an Allen wrench to fine tune the spring tension of JIBE monitor arm to perfectly counterbalance any monitor weighing between 5–20 lb. The 180 degree pivot limiter locks out the rotation of the arm preventing collisions with walls and panels. Bring power to your JIBE monitor arm base by integrating two USB 3.0 cables.
Technical Specifications
| Color | Black, Silver and White |
| Weight Capacity | Supports two monitors 5–20 lbs each |
| Maximum Monitor Height | 20.27" |
| Articulation Range | 12.60" |
| Forward Reach | 22.67" |
| Stowed Depth | 3.55" |
| Monitor Tilt | +/- 40 degrees |
| Monitor Pivot | +/- 90 degrees |
| Monitor Rotation | +/- 90 degrees |
| Standard VESA | 75 mm and 100 mm |
| Warranty | 10 years |
Product Options/Accessories
| Model | JIBE-2SDA-CCG |
| Manufacturer | Workrite Ergonomics |
| Part Number | JIBE-2SDA-CCG |
| Color | Black, Silver and White |
| Weight Capacity | 5–20 lbs each |
| Monitor Height | Maximum 20.27" |
| Articulation Range | 12.60" |
| Forward Reach | 22.67" |
| Stowed Depth | 3.55" |
| Tilt | +/- 40 degree |
| Pivot | +/- 90 degree |
| Rotation | +/- 90 degree |
| VESA | 75 mm and 100 mm |
| Mounting Options | C-clamp and Grommet |
| Warranty | 10 years |
| Monitor Placement | Side-by-Side |
