Description

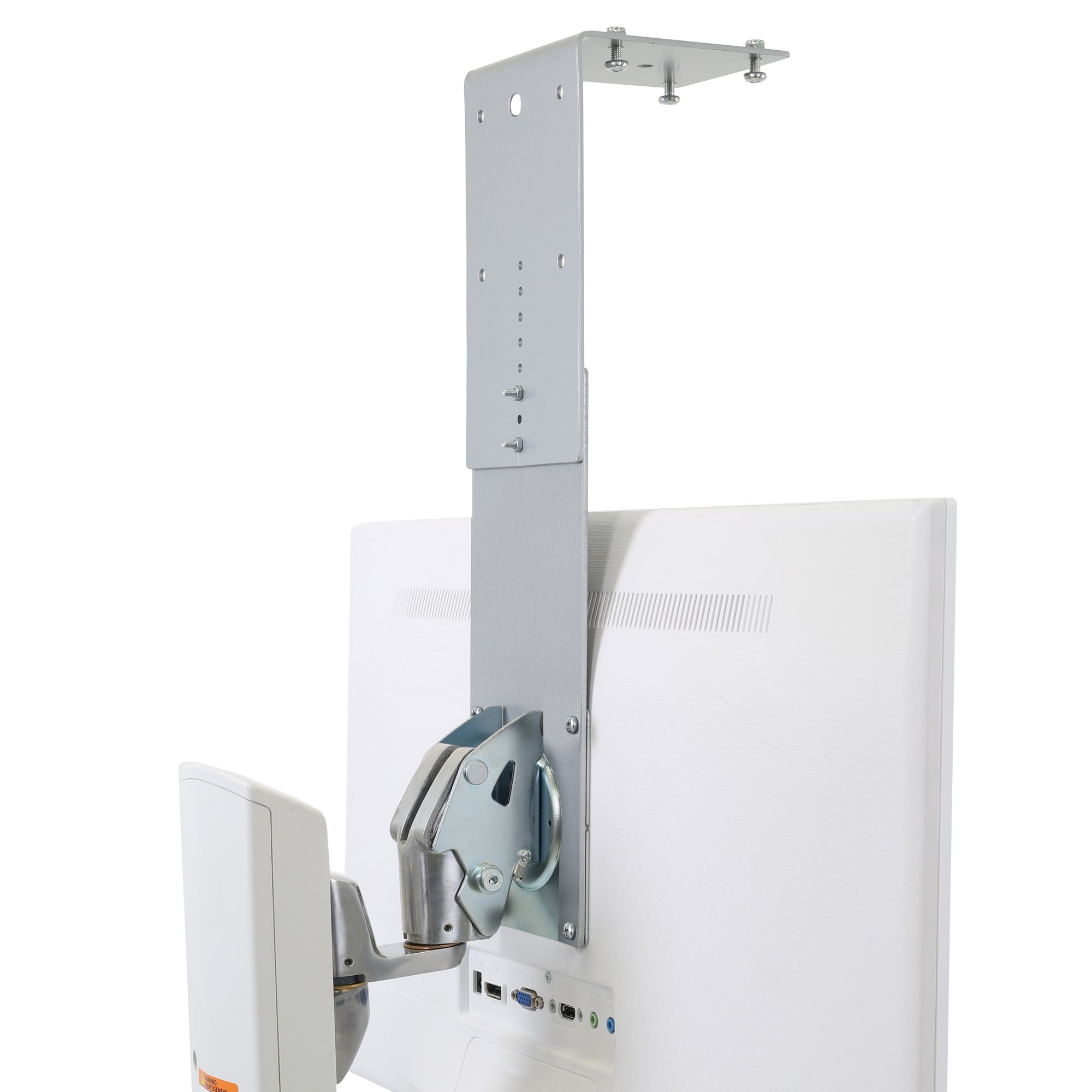

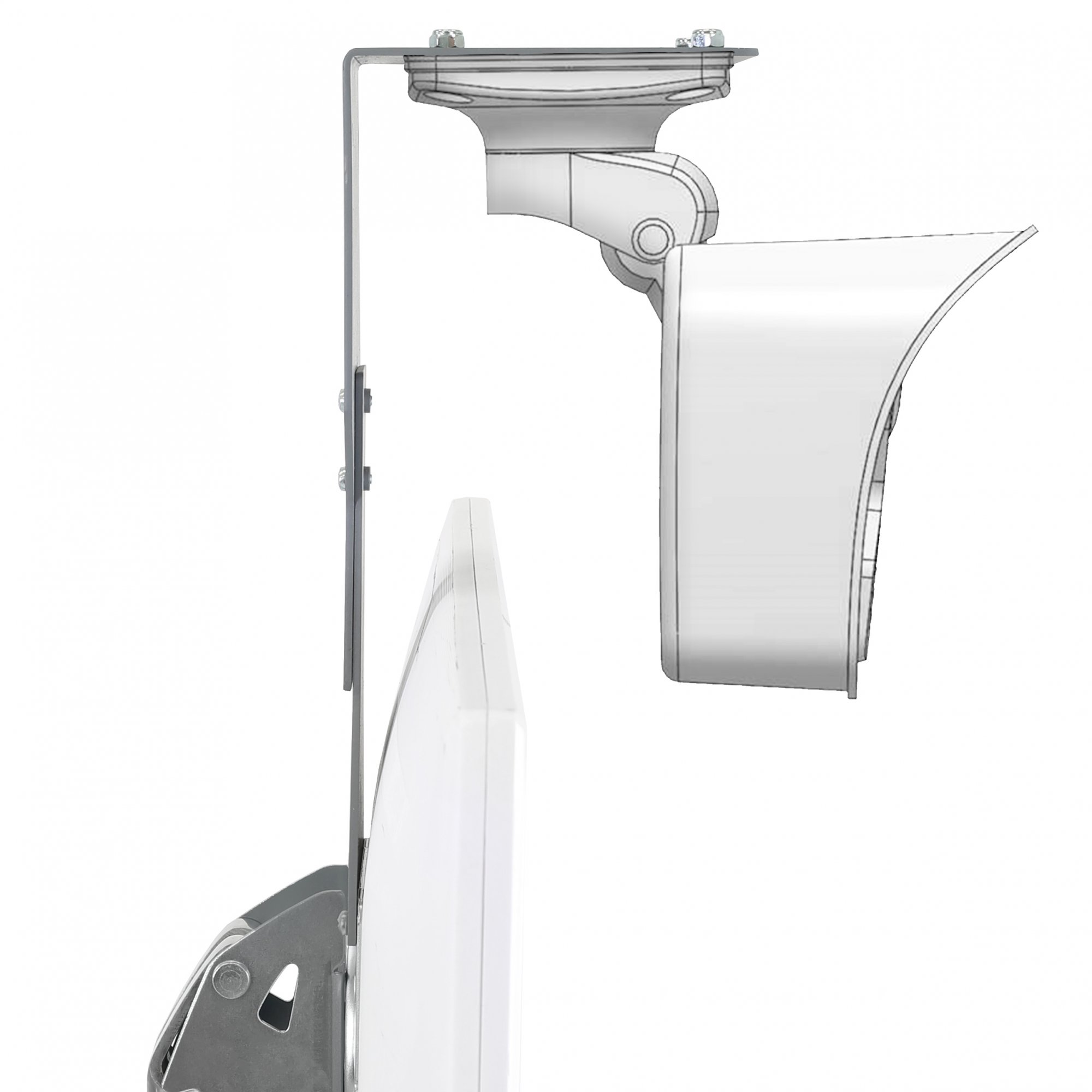

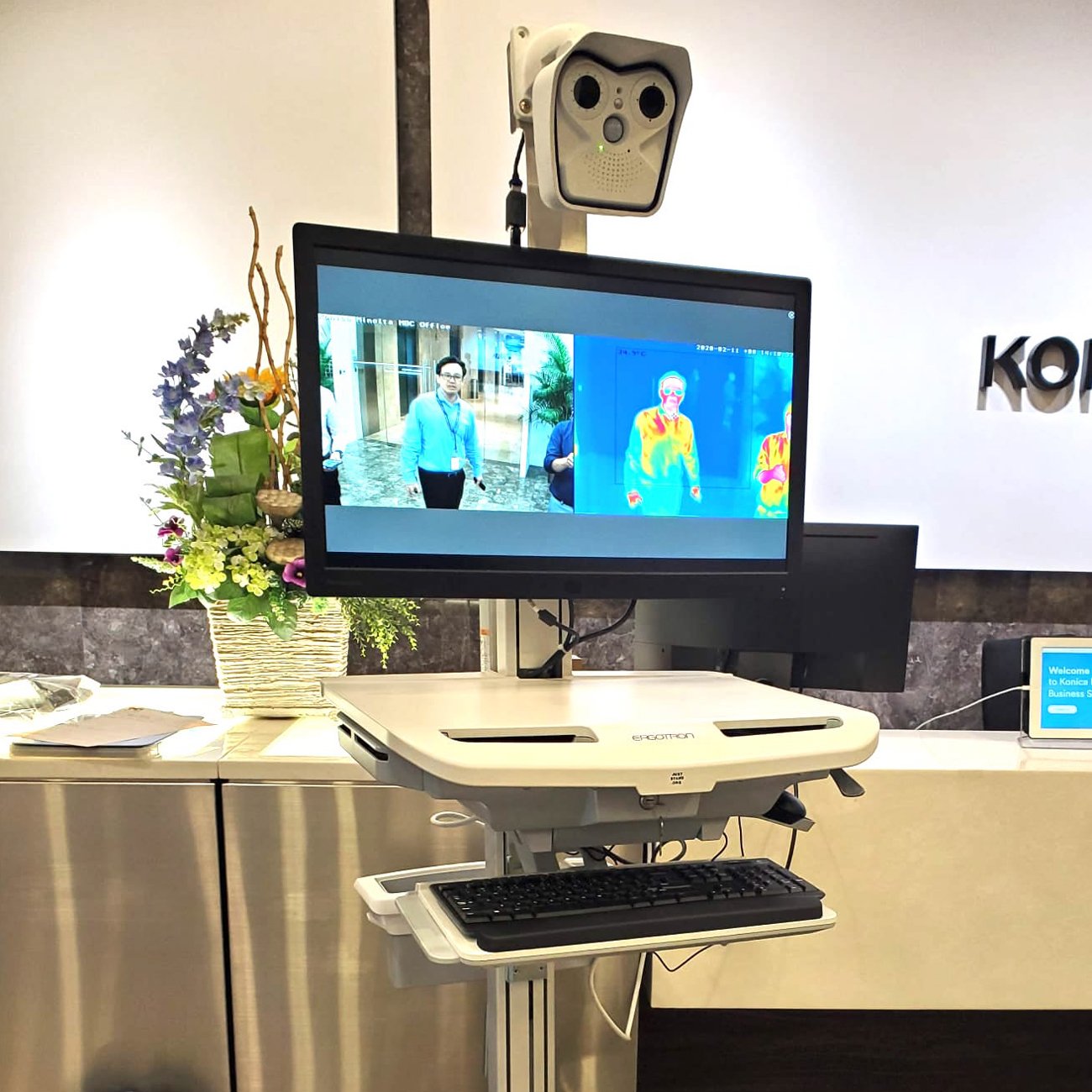

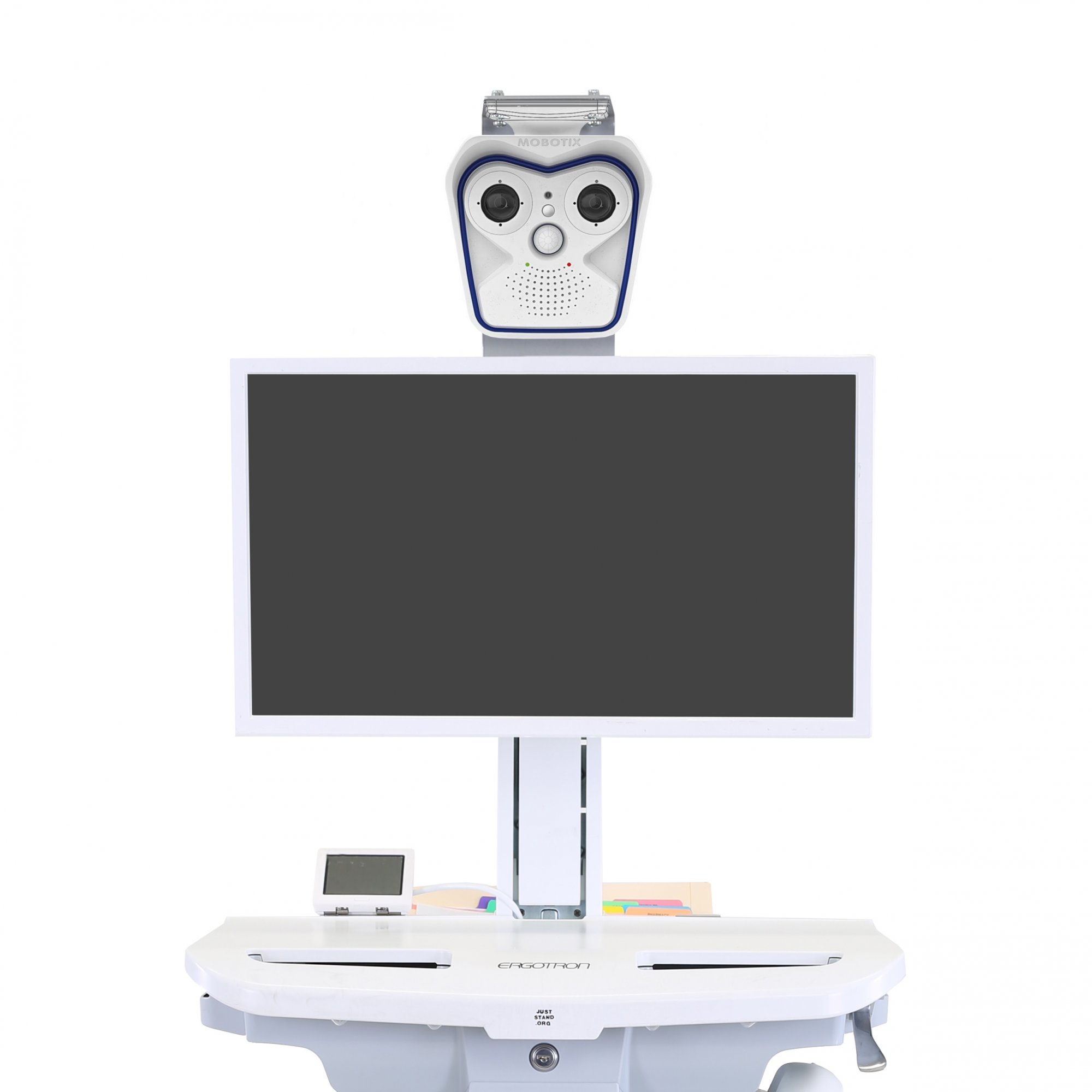

Ergotron 98-503 universal mount for thermal imaging cameras, like some MOBOTIX models, works with mobile carts to detect a temperature and help maintain healthy communities. The mount positions the thermal imaging camera slightly above the screen for a secure fit when moving a powered or non-powered mobile cart.

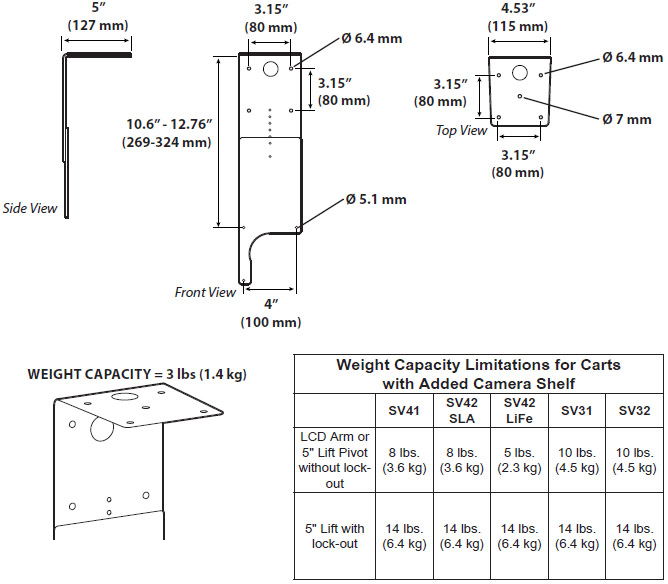

Technical Drawing

Technical Drawing for Ergotron 98-503 Universal Thermal Imaging Camera Mount

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
-

Up to 3 lbs

1.4 kg

- - - - MIS-D

Product Information

UPC 698833083774
Part Number (color) 98-503 (silver)
Description Universal Thermal Camera Mount

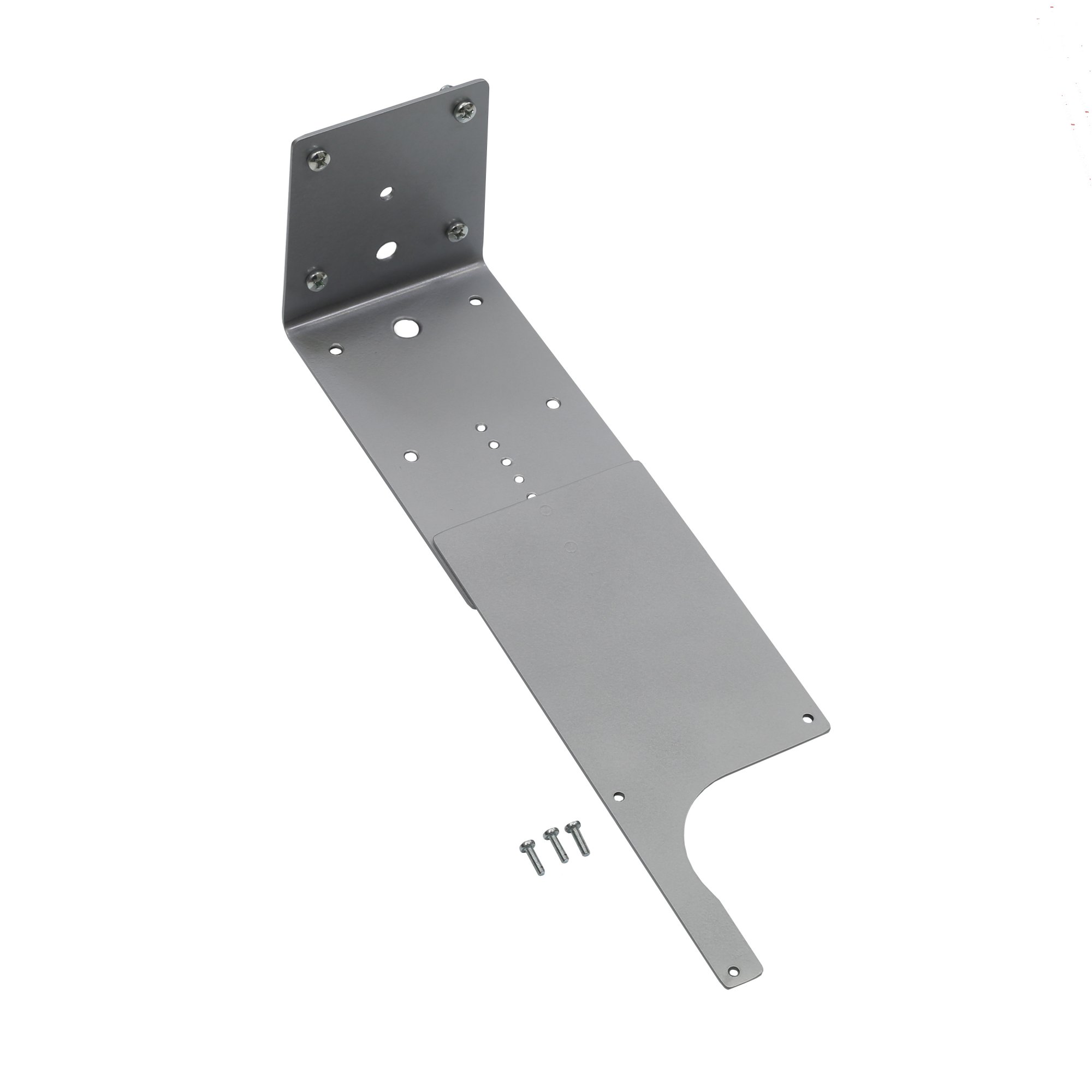

Includes
  • Shelf

  • VESA bracket

  • Mounting hardware

Compatible With the MOBITIX M16 Camera, and cameras using a standard tripod-screw interface

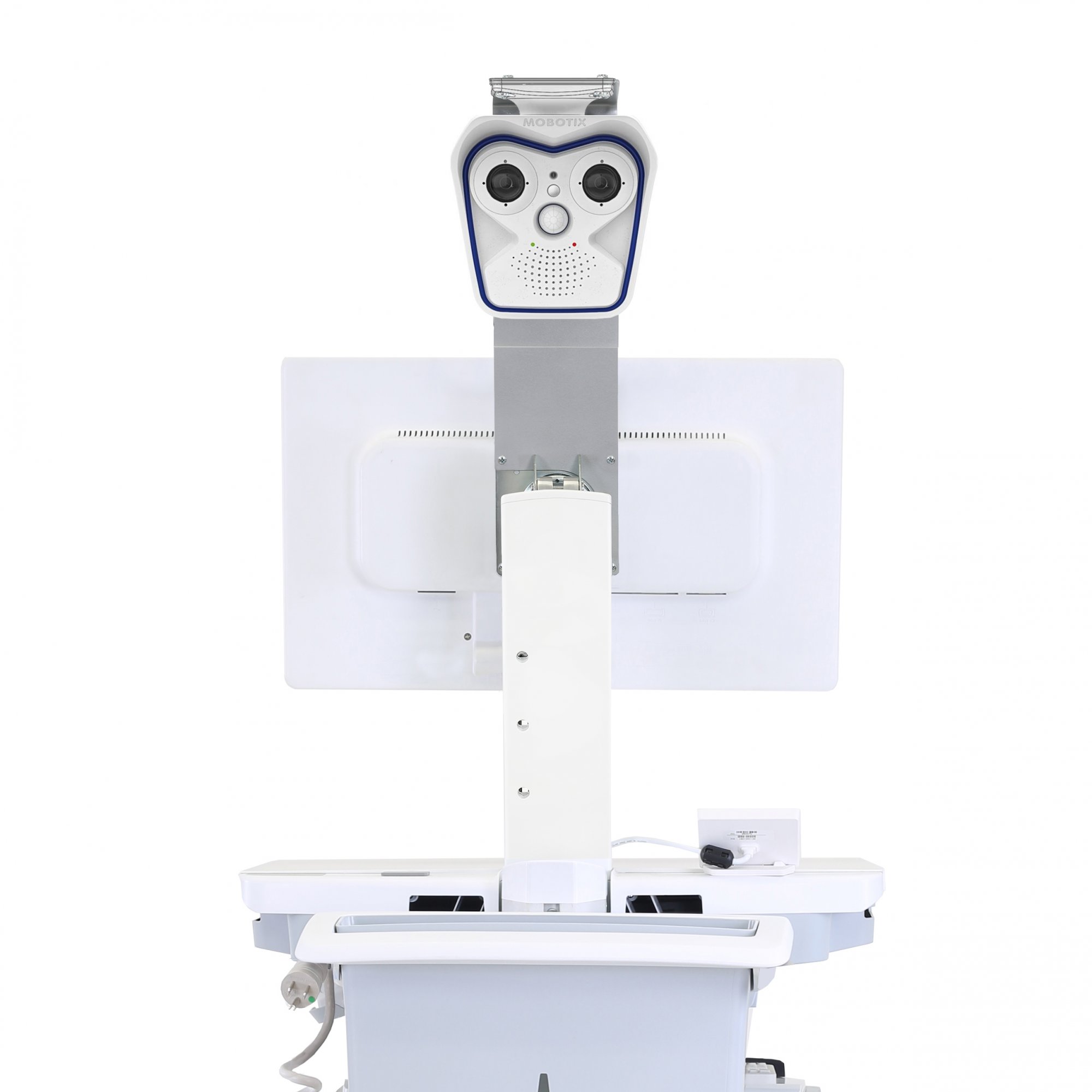

Camera Camera can be mounted either facing forward or backward
SV HD Monitor Kit Addition of the SV HD Monitor Kit (98-029) is recommended when installing a Thermal Camera Mount to a StyleView cart. Without 98-029, lock-out of the cart’s standard LCD lift may be required
MOBOTIX MOBOTIX is a registered trademark of MOBOTIX AG Corporation. Ergotron does not manufacture, sell or endorse any thermal camera
Weight Capacity 3 lbs (1.4 kg)
Shipping Weight 3.1 lbs
Shipping Dimensions 12.4" x 6.5" x 6" (31.5 x 16.5 x 15 cm)
Warranty Five years

Benefits

  • Adjustable positioning - Features 2.5" (6.3 cm) installation height range for precise camera placement

  • Flexible installation - Mounts horizontally or vertically to fit your needs

  • Secure attachment - Fits a standard VESA mount with a two-part mounting bracket

Product Options/Accessories

Frequently Asked Questions

Model 98-503
Manufacturer Ergotron
Part Number 98-503
UPC 698833083774
Color Silver
VESA MIS-D
Weight Capacity Up to 3 lbs (1.4 kg)
Shipping Dimensions 12.4" x 6.5" x 6" (31.5 x 16.5 x 15 cm)
Shipping Weight 3.1 lbs (1.4 kg)
Warranty Five years
