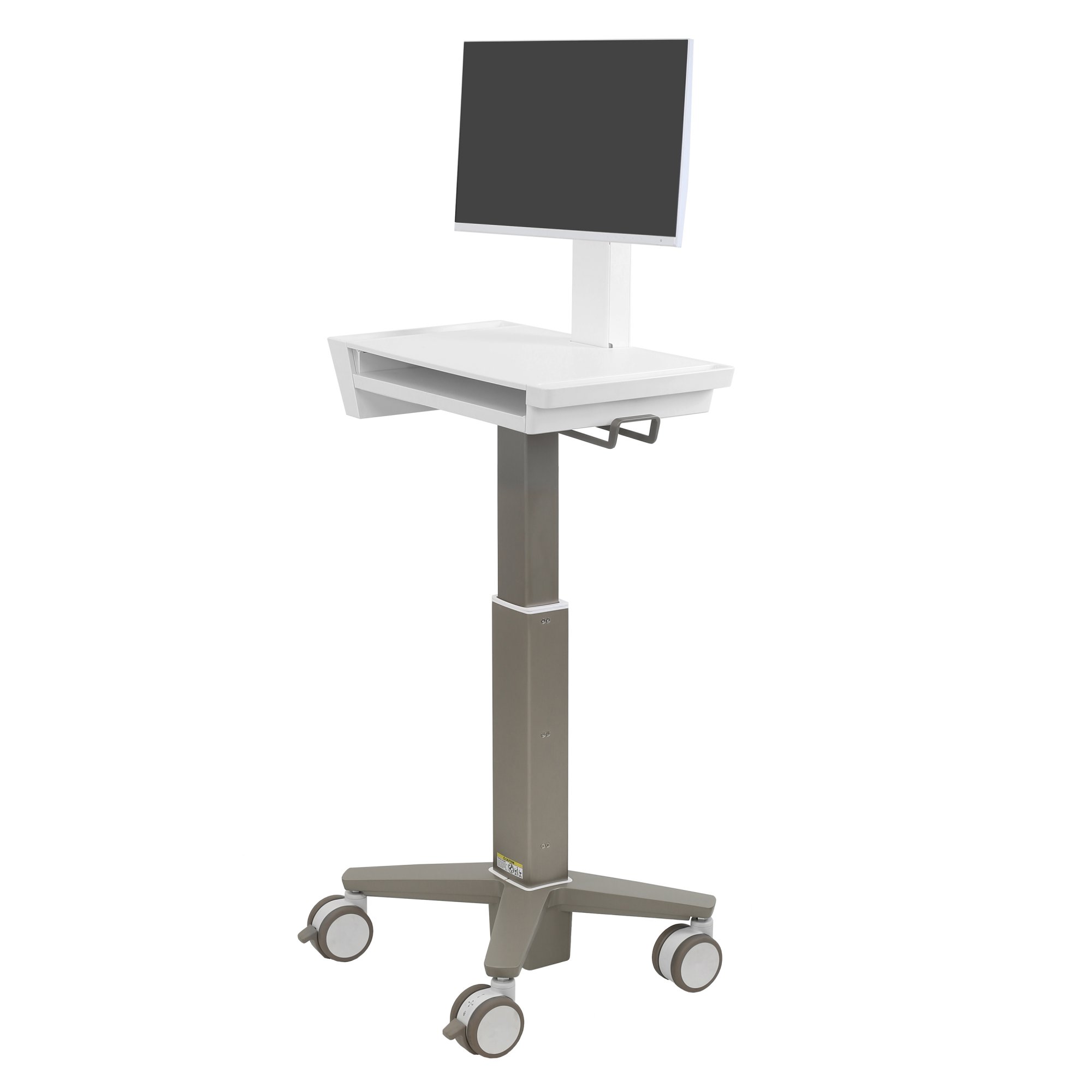

Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer

Product ID 19490

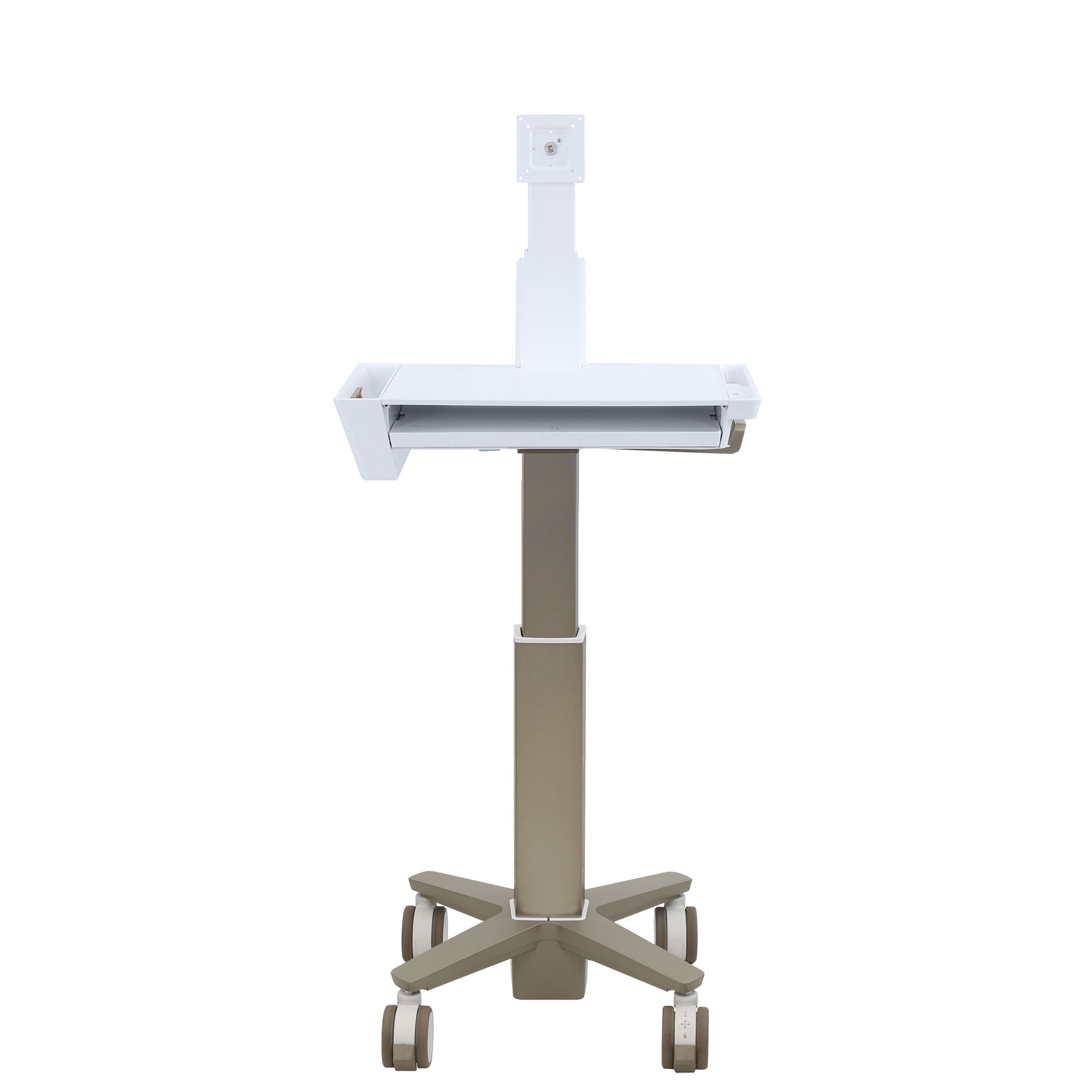

Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer

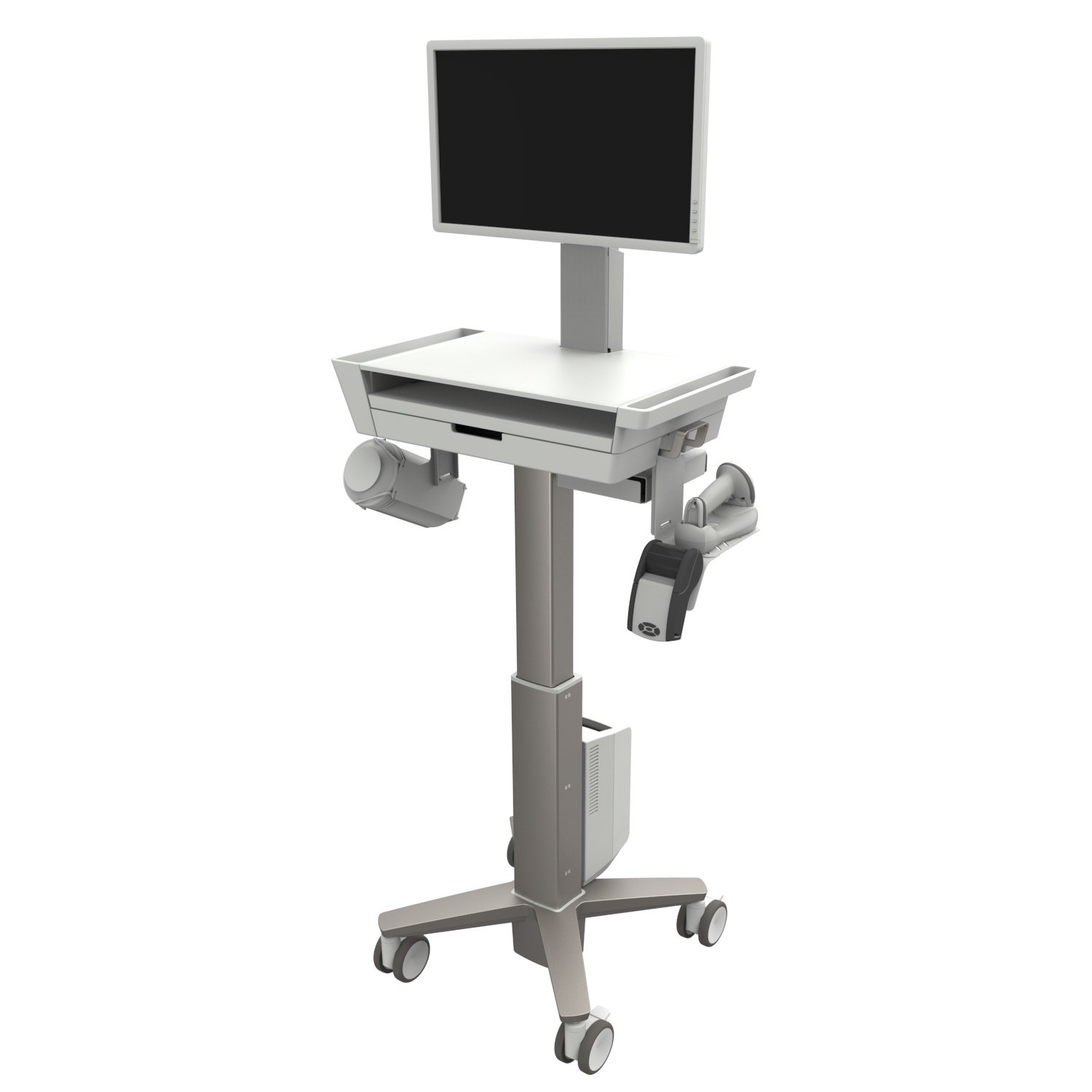

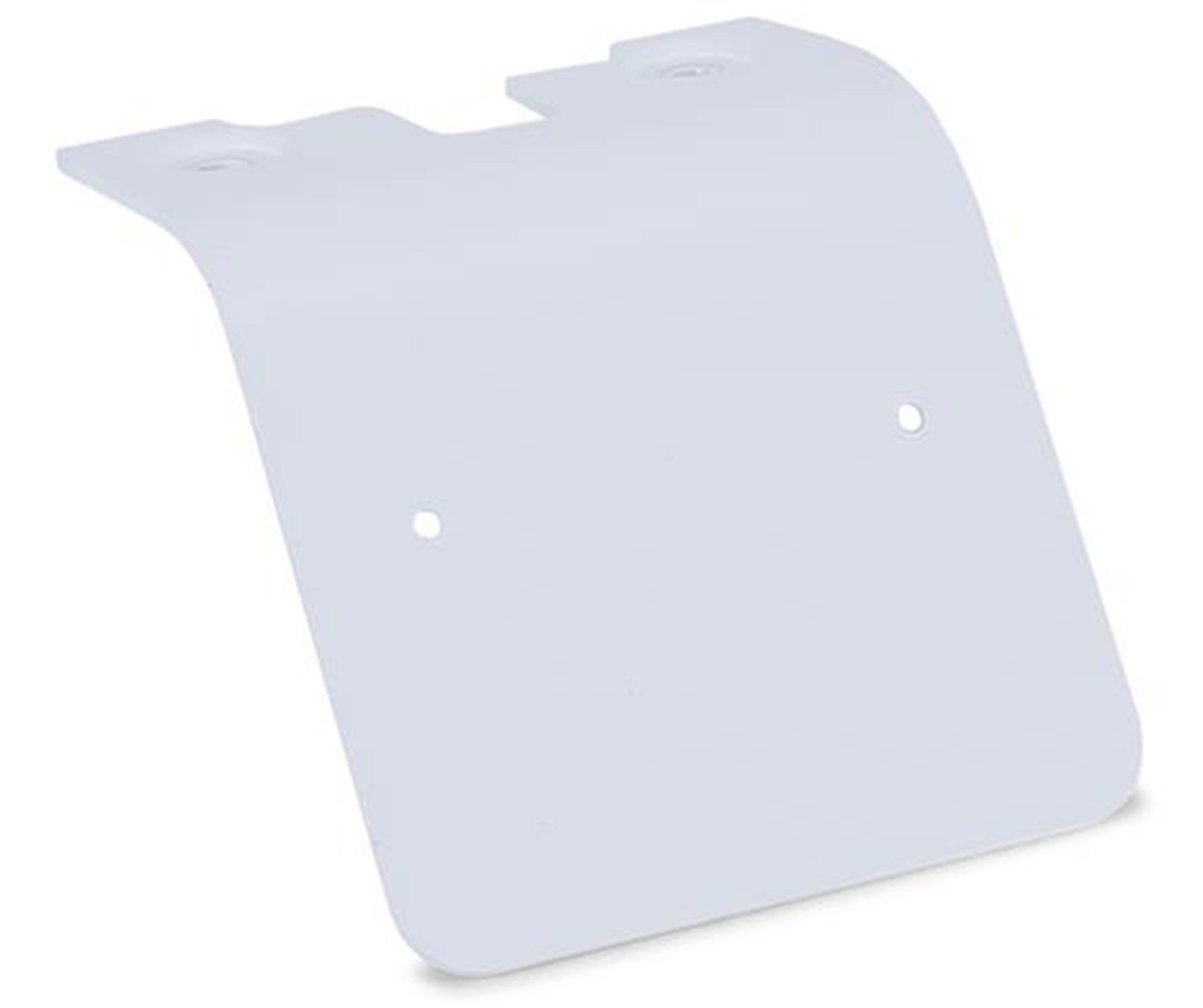

A large portfolio of accessories let you customize the cart for your needs.

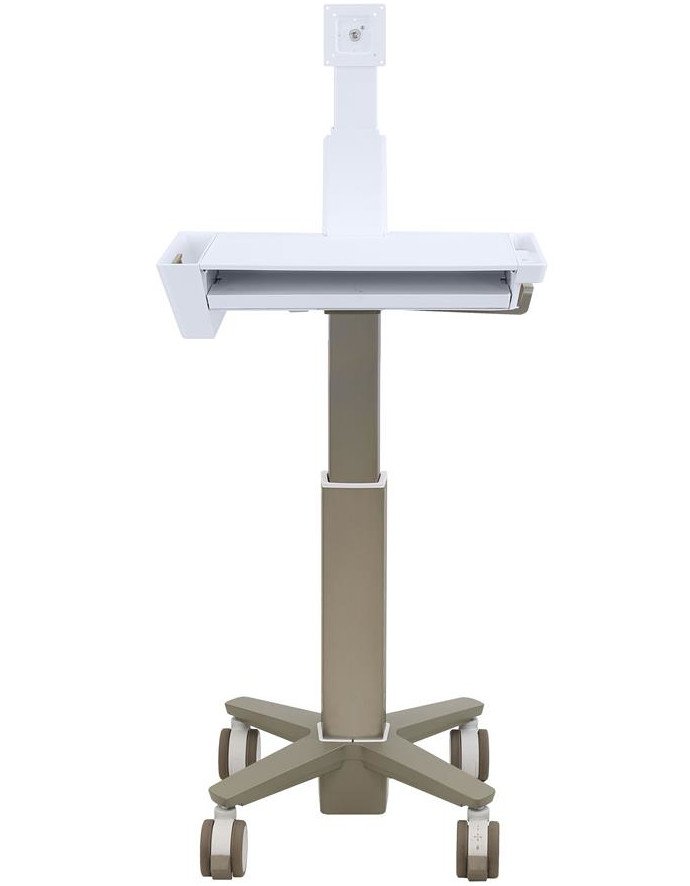

Back view of Ergotron C50-3500-0 CareFit Slim 2.0 LCD Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
CareFit Slim 2.0 LCD Medical Cart
Keep the Focus on Patients, Not Equipment with Ergotron's CareFit Slim 2.0 Medical Cart
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer

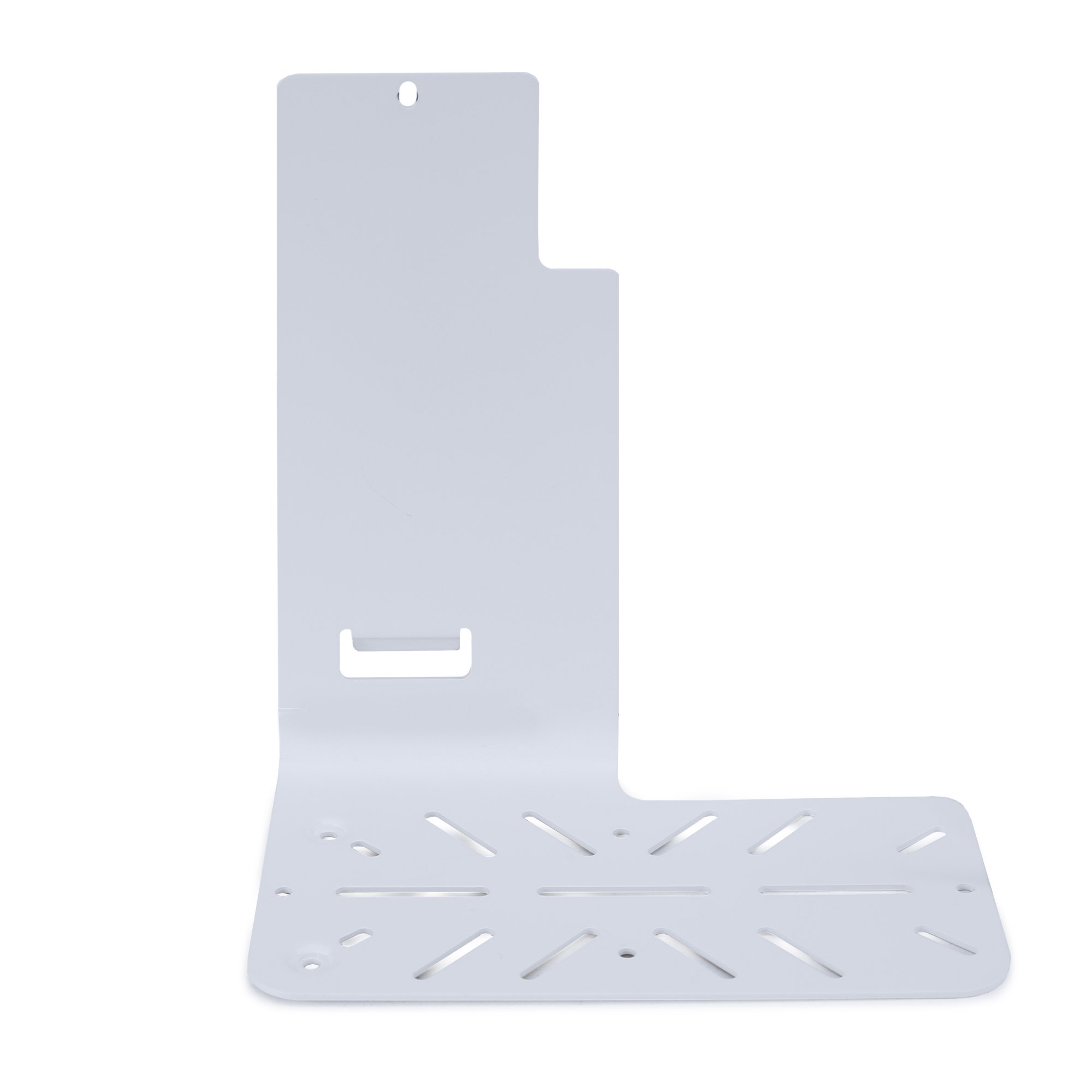

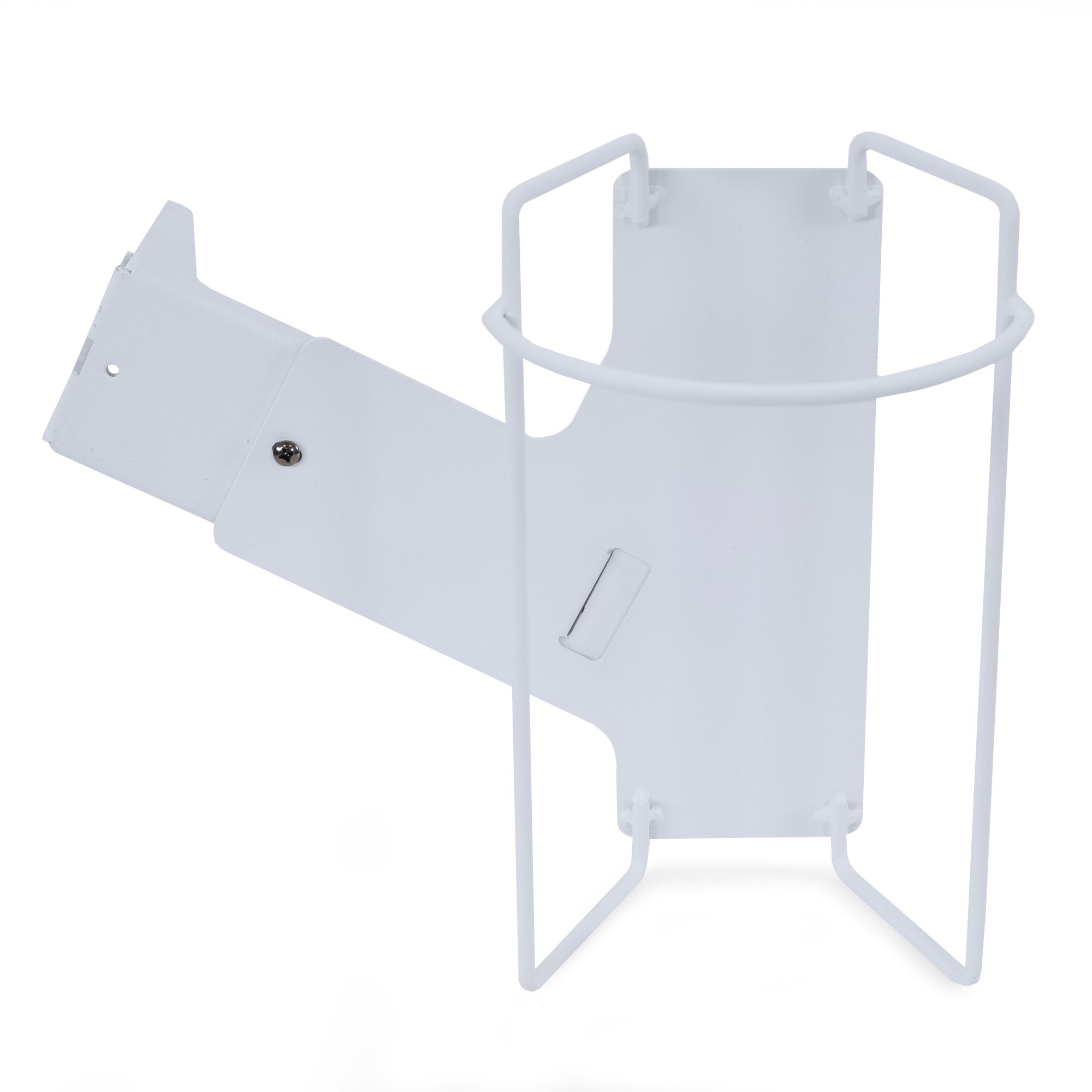

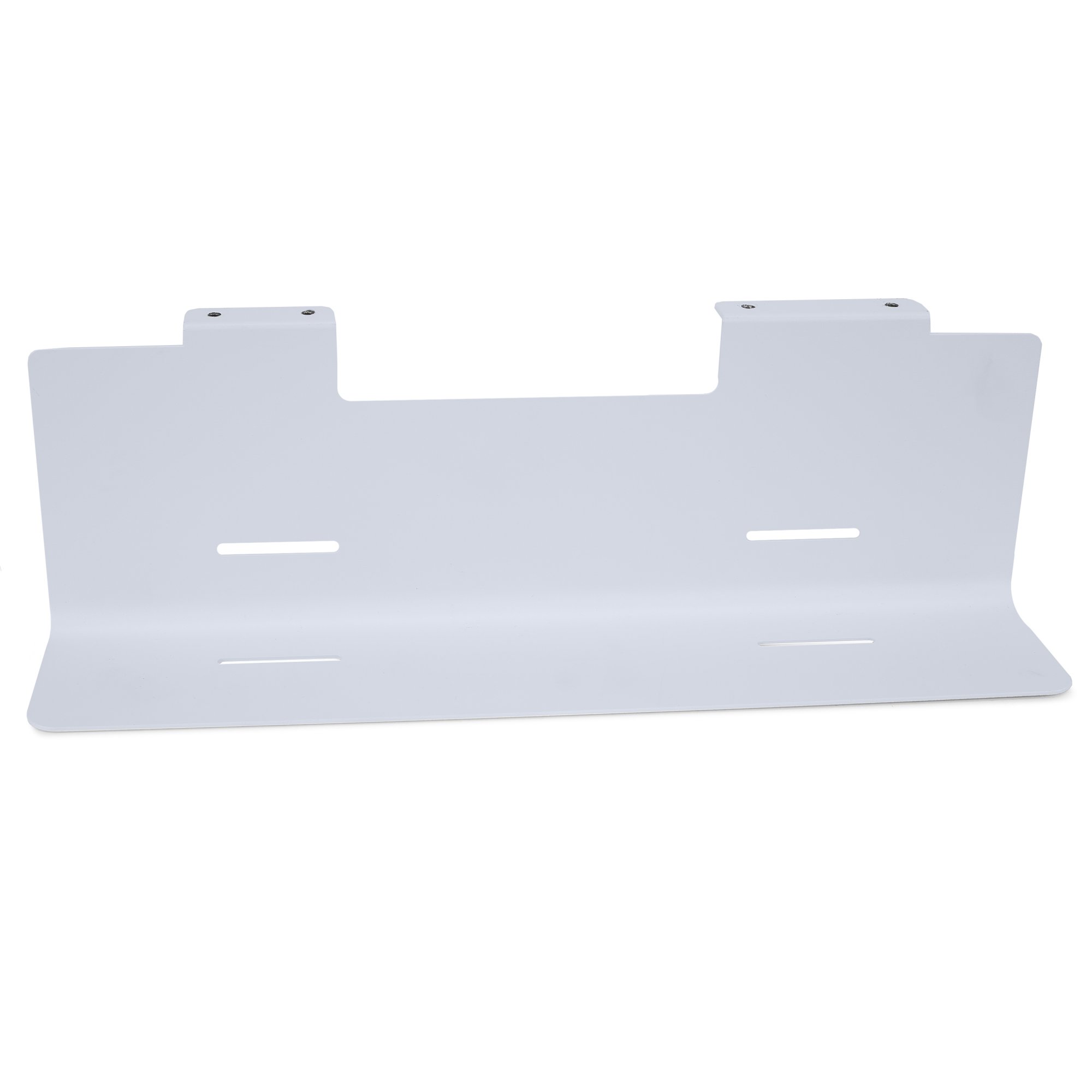

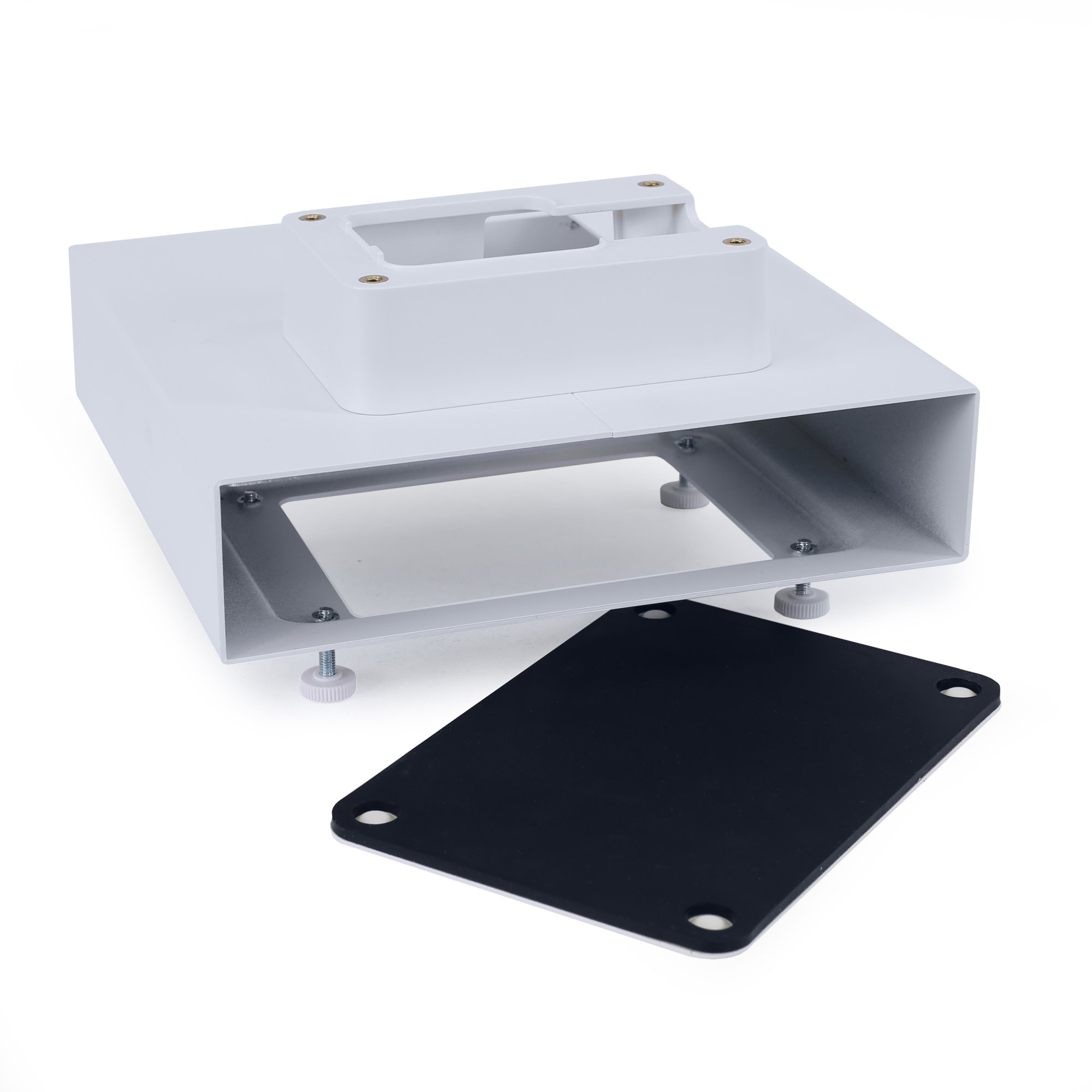

A large portfolio of accessories let you customize the cart for your needs.

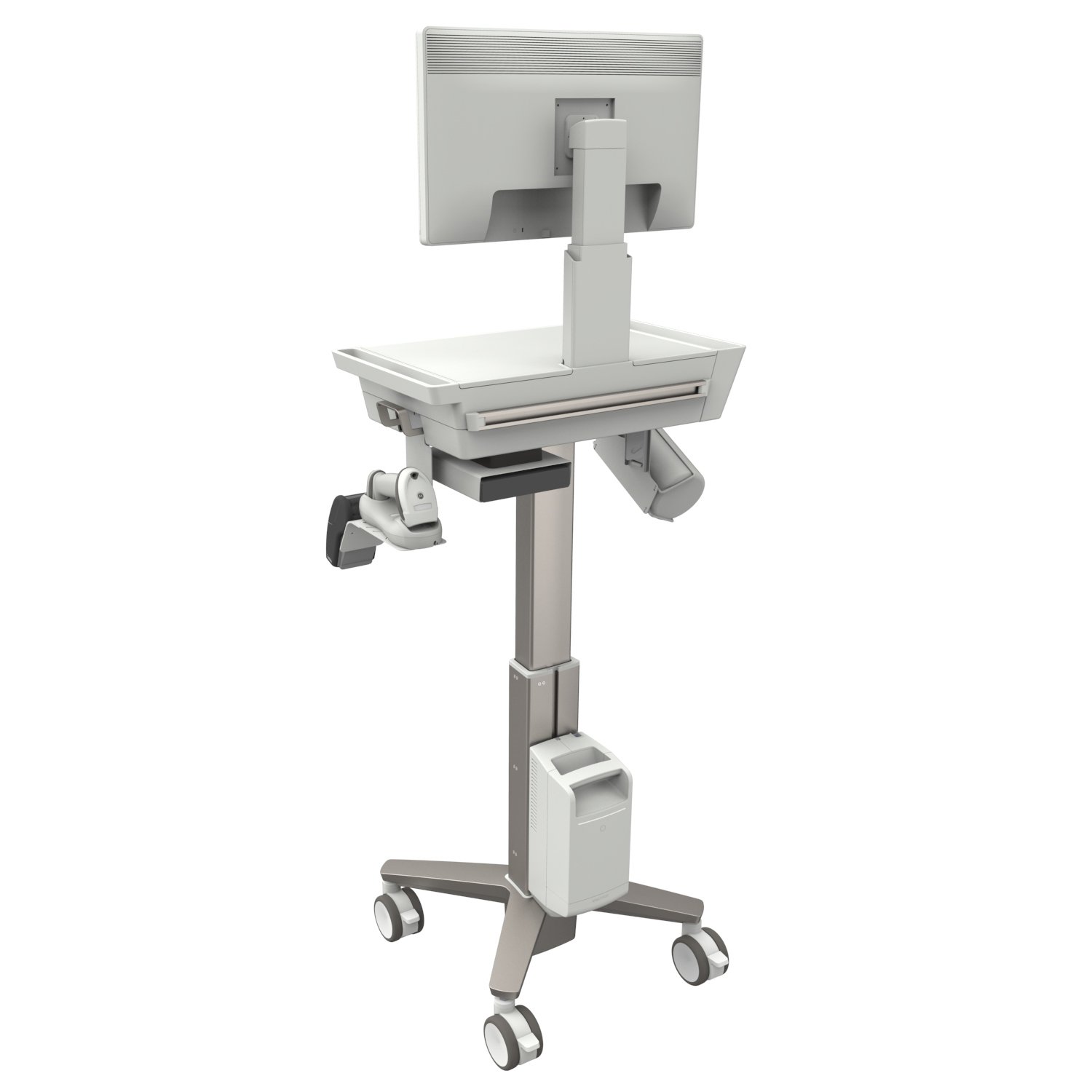

Back view of Ergotron C50-3500-0 CareFit Slim 2.0 LCD Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer
CareFit Slim 2.0 LCD Medical Cart
Keep the Focus on Patients, Not Equipment with Ergotron's CareFit Slim 2.0 Medical Cart

Description

The improved design of Ergotron C50-3500-0 lightweight CareFit computer cart fits your people, workflows and environments. The broadest range of caregivers can work comfortably with the expansive height range that adjusts to the ergonomic needs of each user. The leaner, compact frame makes it easy to move all-in-one computers and monitors weighing up to 20 lbs (9.1 kg). A large portfolio of accessories lets you customize the cart for your needs.

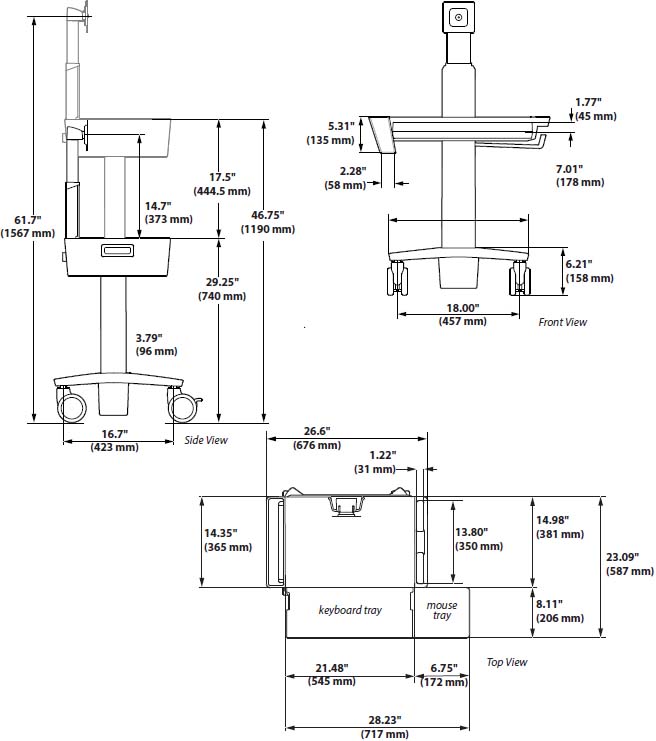

Technical Drawing

Technical Drawing for Ergotron C50-3500-0 Light-Duty CareFit Slim 2.0 LCD Medical Cart, No Drawer

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 32 lbs

14.5 kg

22.5"

57.2 cm

25° 90° 90° MIS-D

Product Information

UPC 698833082203
Part Number
  • C50-3500-0 (no drawer)

  • C50-3510-0 (one drawer)

Description StyleView Slim 2.0 LCD Cart, non-powered (white, warm grey)
Includes
  • Assembled cart

  • Four dual-casters

  • Monitor riser assembly

  • Storage bin

  • Hardware pack

Weight Capacity Maximum monitor weight = 20 lbs (9.1 kg). Total maximum load on cart = 32 lbs (14.5 kg).
Height Adjustment Monitor and keyboard move in tandem, where the keyboard tray can be positioned between 29.25"–46.75" (74–119 cm) above the floor, providing a sit-stand adjustment range of 17.5" (44 cm). The Monitor Riser also adjusts independently 5" (13 cm), increasing the monitor’s vertical adjustment range to 22.5" (57 cm)
True Ergonomics
  • Telescopic lift provides an additional 5" (13 cm) of monitor height adjustment for approximately 22.5" (57 cm) of total travel

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall in prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position

  • Cart weight is just 65.5 lbs (29.6 kg) or 66.9 lbs (30.4 kg) with drawer, making system relocation easy

Safe
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Tested to UL/EN/IEC specifications for enhanced patient safety

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • Large, smooth worksurface; easy-to-clean design promotes infection control

  • Four ultra-smooth 4" gliding casters for extremely easy push/pull mobility; four locking casters ensure lock-in-place stability; one tracking caster improves maneuverability

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service
  • Covered by Global Service Program - 24/7 coverage

All the Details Covered
  • Designed for lean IT configurations USFF+LCD or AIO 21–27″ weighing up to 20 lbs (9.1 kg)

  • Universal mounting slots for accessories and equipment

  • Quick, minimal assembly; easily accessible from container

Dimensions
  • Worksurface = 20.7"x 14.3" (52.5 x 36.3 cm)

  • Footprint = 18" x 16.7" (46 x 42 cm)

  • Interior Drawer Area = 18" x 4.5" x 2" (46 x 11 x 5 cm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Product Weight 65.5 lbs (29.6 kg) or 66.9 lbs (30.4 kg) with drawer
Shipping Dimensions 30.6" x 25" x 44.3" (77.8 x 63.5 x 112.7 cm)
Shipping Weight 103.4 lbs (47 kg) or 105.2 lbs (47.8 kg) with drawer
Warranty Five (5) years

Benefits

  • Small footprint - A point-of-care solution for at the bedside, in a hallway or any other confined area

  • Sturdy platform - Supports large all-in-one computers and monitors up to 27" and 20 lbs (9.1 kg)

  • Fits your users - Allows short to tall clinicians to work comfortably and effectively

  • Simple height adjustment - Offers full sit-to-stand functionality from 29.25"–46.75" (74–119 cm)

  • Leaner design - Fits tightly against a wall to free up valuable space when not in use

  • Easily customizable - Works with a broad range of accessories for specific workflows

Model C50-3500-0
Manufacturer Ergotron
Part Number C50-3500-0
UPC 698833082203
Color White, warm grey
Weight Capacity Up to 32 lbs (14.5 kg)
Lift (57.2 cm) 22.5 in
Tilt 25 degree
Pan 90 degree
Rotation 90 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Worksurface Dimensions 20.7"x 14.3" (52.5 x 36.3 cm)
Footprint 18" x 16.7" (46 x 42 cm)
Dimensions Interior Drawer Area = 18" x 4.5" x 2" (46 x 11 x 5 cm)
Cart Weight 65.5 lbs (29.6 kg)
Shipping Dimensions 30.6" x 25" x 44.3" (77.8 x 63.5 x 112.7 cm)
Shipping Weight 103.4 lbs (47 kg)
Warranty Five (5) years
Display Type 1 Monitor
Lift Technology Gas Spring
TAA Compliant No

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
