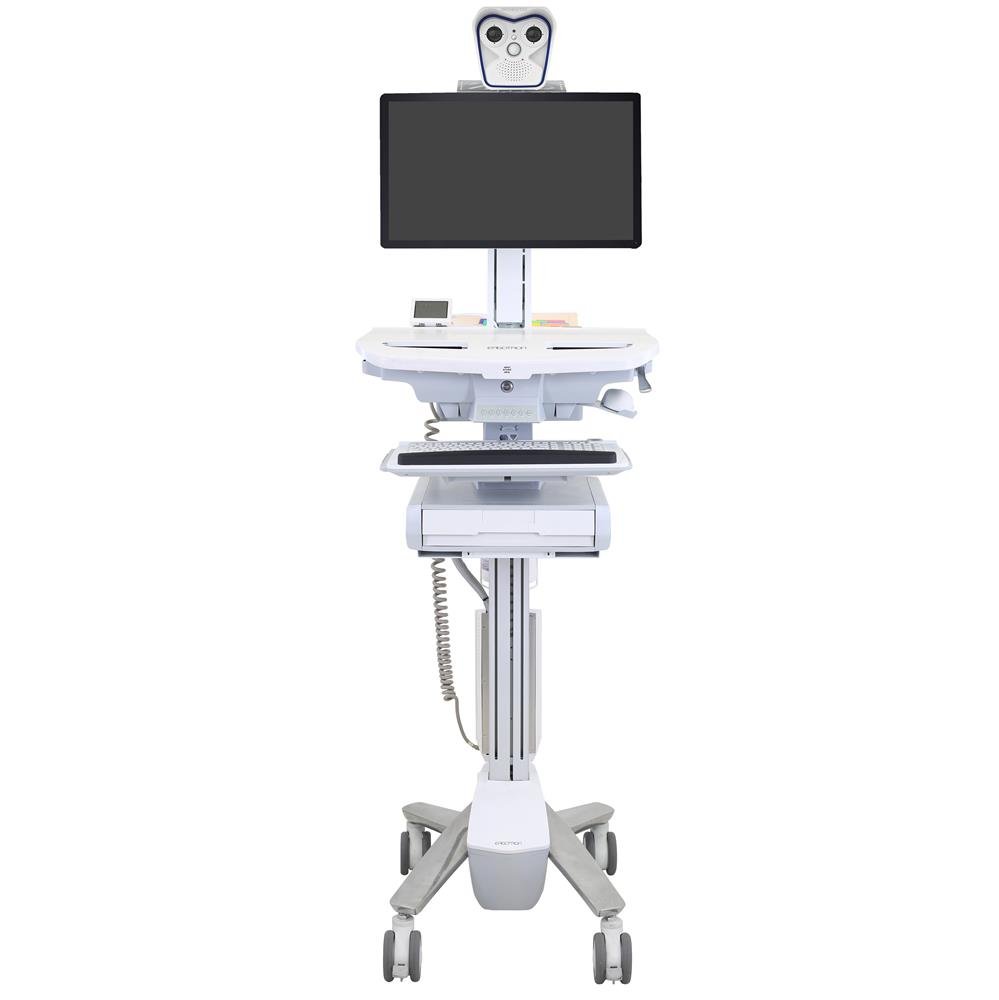

Ergotron Thermal Imaging Medical Cart with Hot Swap Power System
Description

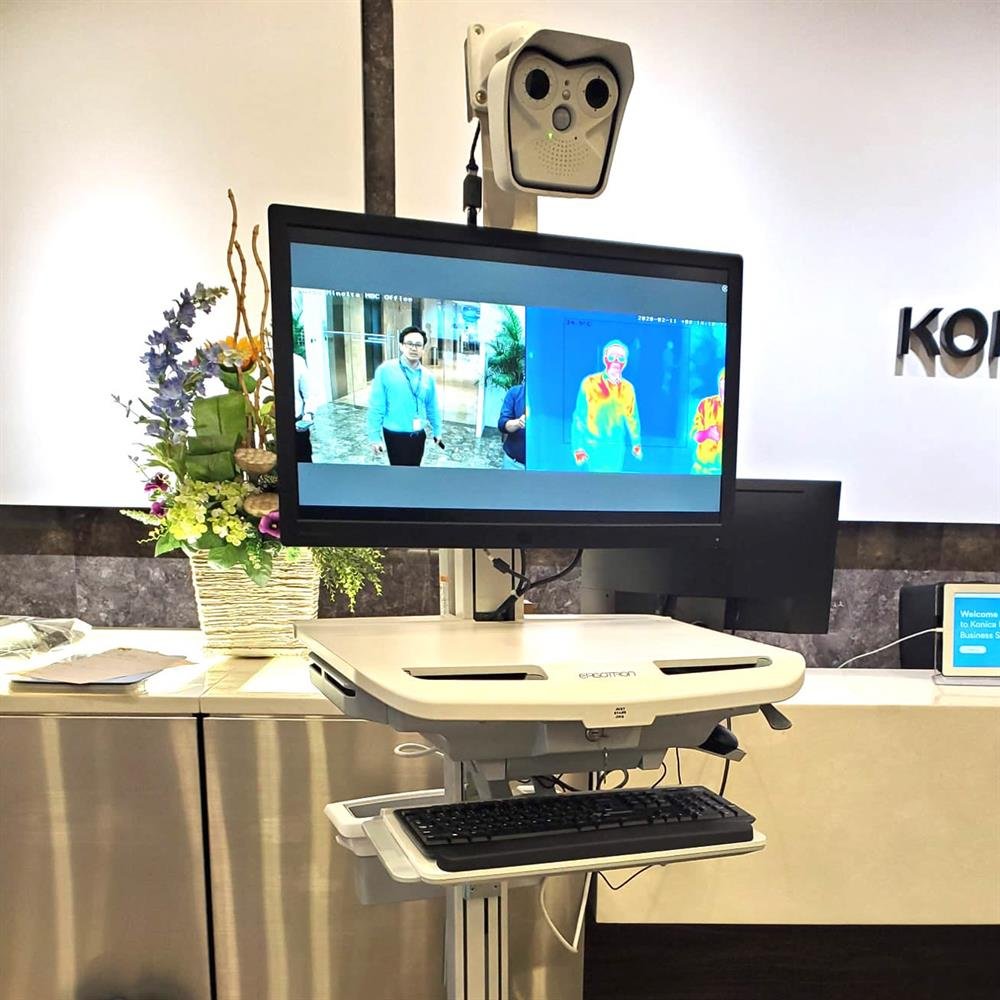

Tailored Telehealth Solution - Mobile temperature detection for any application. Quickly get a temperature reading in healthcare facilities, high-traffic public areas or other locations with our mobile thermal imaging cart. Our portfolio of shelves and accessories allow you to mount your preferred thermal imaging camera - facing forward or backward or other telehealth equipment to bring quick diagnostic testing wherever it’s needed. Our innovative hot-swap power LiFeKinnex Technology supports uninterrupted workflows.
Technical Specifications
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
Up to 24" |
Up to 35 lbs 15.9 kg |
25" 63.5 cm |
25° | 180° | 90° | MIS-D |
Product Information
Description | Thermal Imaging Cart with Hot Swap Power System |
Not Included | Thermal imaging camera not included |
Total Maximum Load on Height-Adjustment Assembly | 35 lbs (16.8 kg). This includes the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg) |
LCD and Worksurface | Adjust 20" (51 cm) in tandem; LCD also adjusts 5" (13 cm) independently; maximum LCD adjustment = 25" (63 cm) |
Pan Pivot Kit (97-650) | Addition of the Pan Pivot Kit (97-650) increases turning range to 180° (standard range without Pan Pivot is 24°). Portrait screen orientation may be incompatible with widescreen displays > 19" |
Components | Build this tailored solution with the following products |

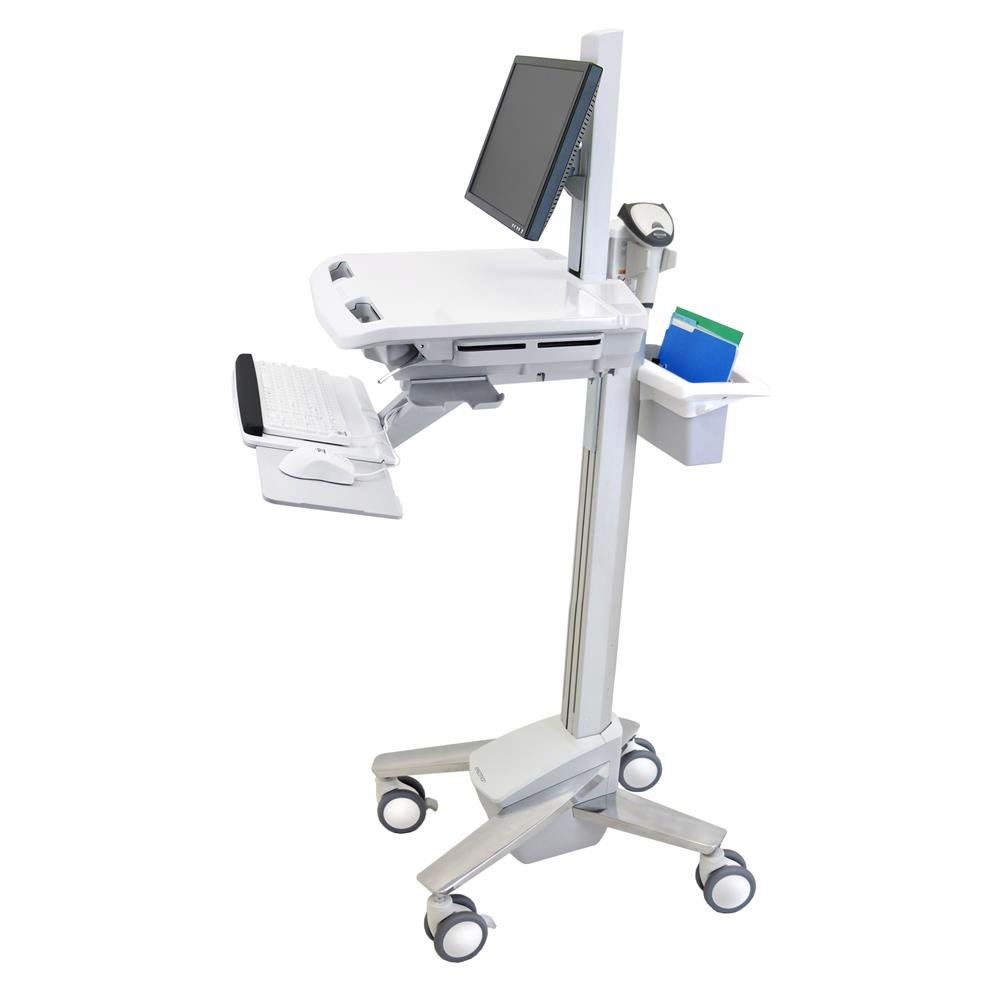

StyleView Cart with LCD Pivot SV41-6300-0 | |

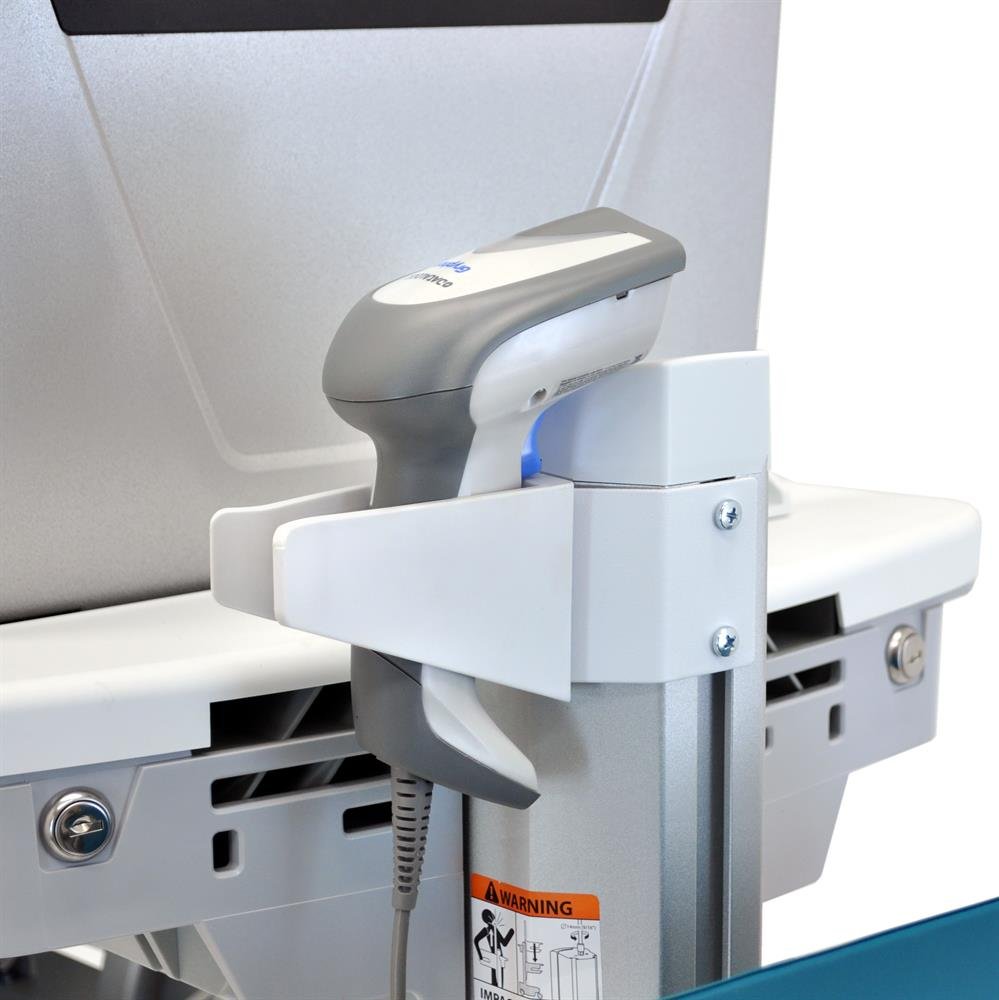

Includes | LCD pivot, worksurface, CPU lock, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, left/right mouse tray, rear handle, storage basket, cable storage, four casters (two locking) |
Storage Component | For closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm) |
Compact Wheel-to-Wheel Base Dimensions | 17" x 21" (43 x 53 cm) |
Worksurface Dimensions | 22.4"W x 19.75"D (57 x 50 cm) |
Product Weight | 59 lbs (26.8 kg) |
Shipping Dimensions | 13.8" x 7.9" x 6.5" (35.0 x 20.0 x 16.5 cm) |
Shipping Weight | 86 lbs (39.1 kg) |
Warranty | Five (5) years for mechanical components, one (1) year for electrical components |

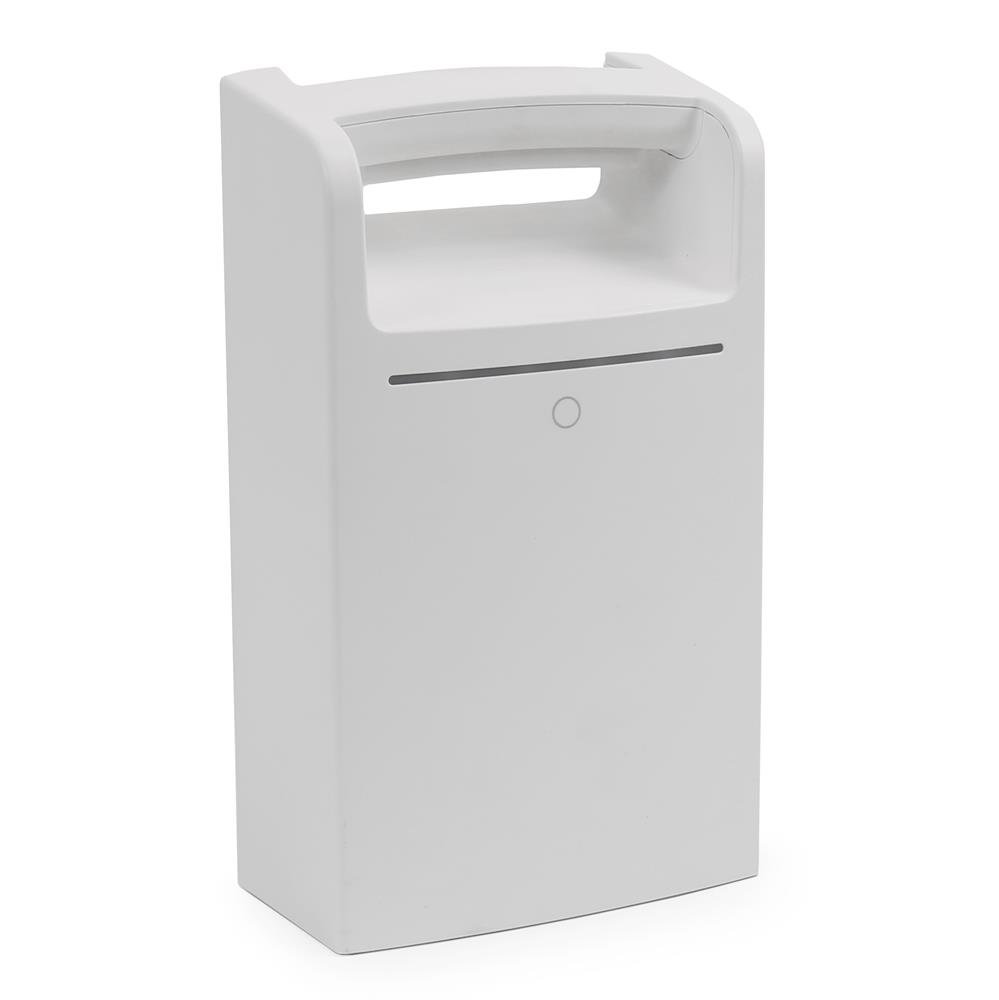

LiFeKinnex Battery 98-246 (order ≥ 2 per cart) | |
Includes | 245Wh Lithium Iron Phosphate (LiFePO4) Battery |
Certification & Compliance | UN/DOT 38.3, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS |
Product Dimensions | 6" x 10.2" x 3.1" (15.4 x 25.9 x 7.9 cm) |
Product Weight | 6.7 lbs (3 kg) |
Shipping Dimensions | 13.8" x 7.9" x 6.5" (35.0 x 20.0 x 16.5 cm) |
Shipping Weight | 9 lbs (4.1 kg) |
Warranty | 2,000 cycles or three years to 80% nominal capacity |

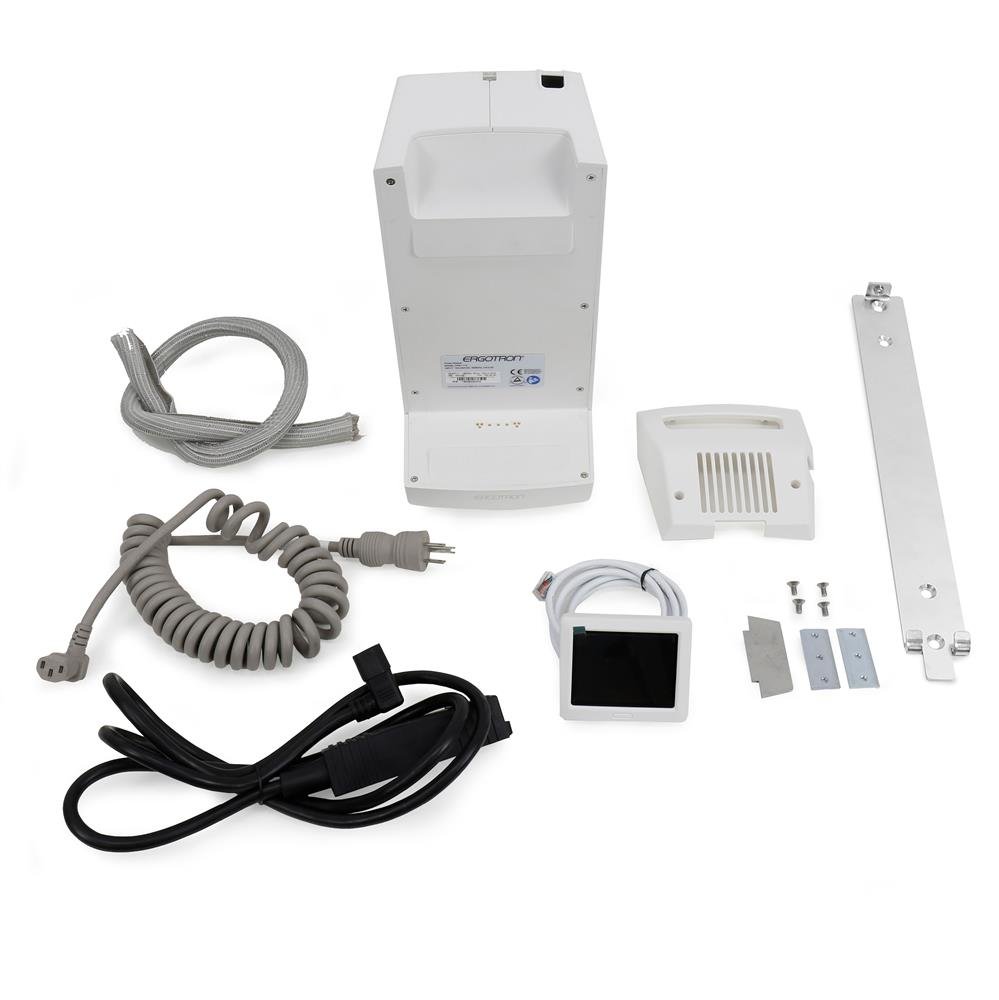

LiFeKinnex Smart Battery Dock, US/CA/MX 98-247 (order 1 per cart) | |
Includes | Charger and inverter, cable management cover, cable wrap and ties, mounting hardware, input power cord, output power cord, user-interface screen |
Internal Battery | Internal battery to maintain continuous power during battery swaps |
Certification & Compliance | UL/IEC 60601-1, CAN/CSA-22.2 No. 60601-1, FCC Part 15 Class A, ICES-003, EN55011/ EN55032, IEC 60601-1-2, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS |
Product Dimensions (module with battery) | 6" x 14" x 6.9" (15.3 x 35.6 x 17.4 cm) |
Product Weight (module only) | 9.9 lbs (4.5 kg) |
Shipping Dimensions | 16.9" x 9.1" x 10.2" (42.9 x 23.1 x 26 cm) |
Shipping Weight | 10.9 lbs (5 kg) |
Warranty | Two years |

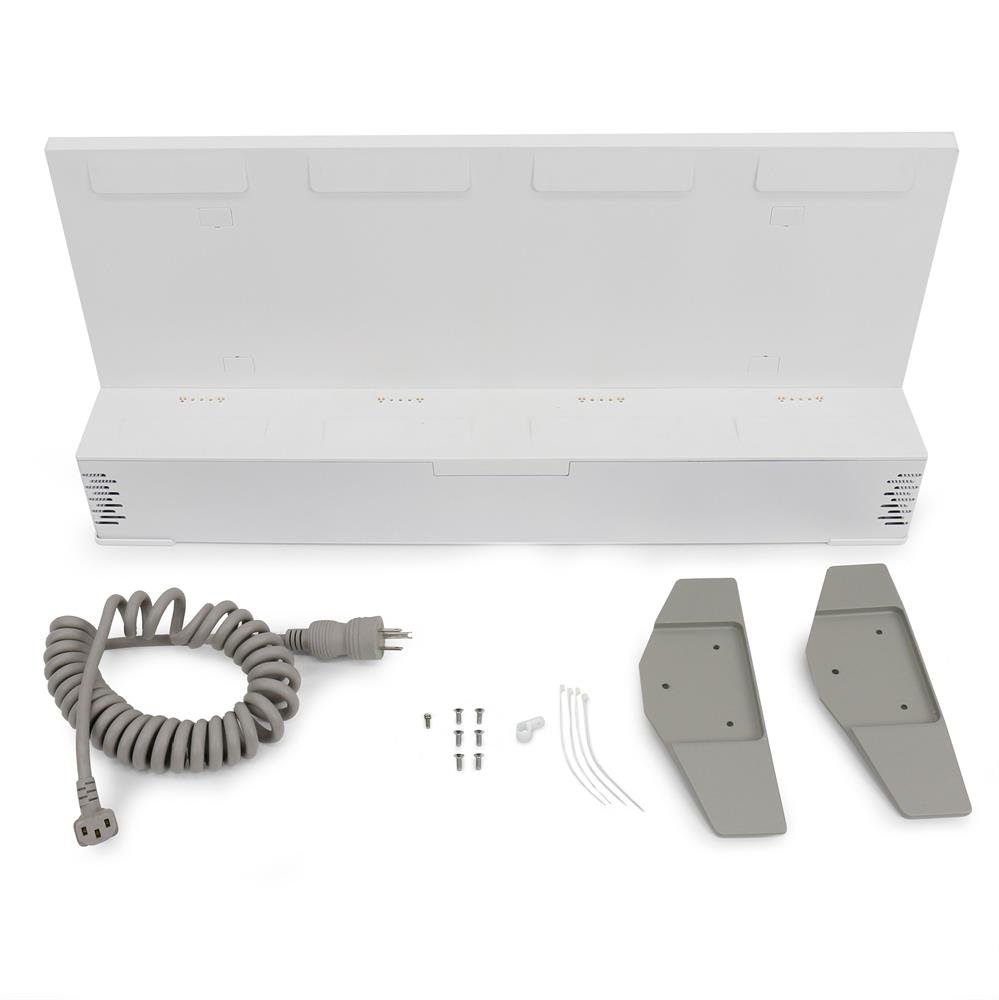

LiFeKinnex 4-Bay Charger, US/CA/MX 98-258 (order 1 for ≤ 4 carts) | |
Includes | Four-bay charger, input power cord, wall mounting hardware, deck-mount feet, cable restraint clip |
Installation | On-wall or on-desk installation |
Charges | Up to 4 batteries simultaneously |
Certification & Compliance | UL/IEC 60601-1, CAN/CSA-22.2 No. 60601-1, FCC Part 15 Class A, ICES-003, EN55011/ EN55032, IEC 60601-1-2, IEC 62133, WEEE, Conflict Minerals Act, REACH, RoHS |
Product Dimensions (wall mount) | 25" x 12" x 3.7" (63.5 x 30.5 x 9.6 cm) |
Product Dimensions (desk mount) | 25.7" x 12.7" x 8.5" (65.4 x 32.3 x 21.6 cm) |
Product Weight | 16.1 lbs (7.3 kg) |
Shipping Dimensions | 14.4" x 29.5" x 6.7" (36.5 x 75 x 17 cm) |
Shipping Weight | 19 lbs (8.6 kg) |
Warranty | Two years |

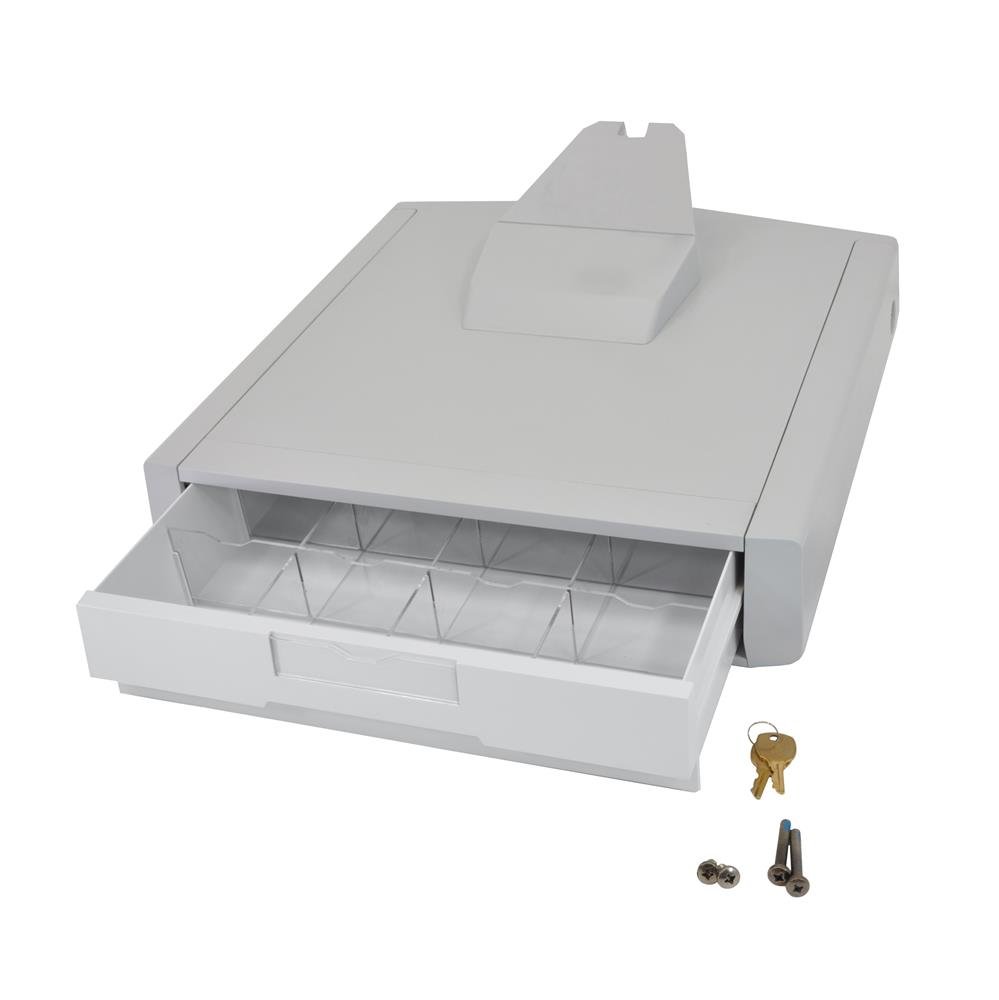

SV Primary Storage Drawer, Single 97-863 | |
Includes | Drawer assembly, large drawer, dividers (configure up to 16 compartments) |
Drawer | This drawer is manually operated; key-lock only |
Internal Dimensions | 2.5"H x 12"W x 10.5"D (6.4 x 30.5 x 27 cm) |
Weight Capacity | 2 lbs (0.9 kg) |
Shipping Dimensions | 18" x 18" x 9.5" (46 x 46 x 24 cm) |
Shipping Weight | 12 lbs (5.4 kg) |
Warranty | Five (5) years |

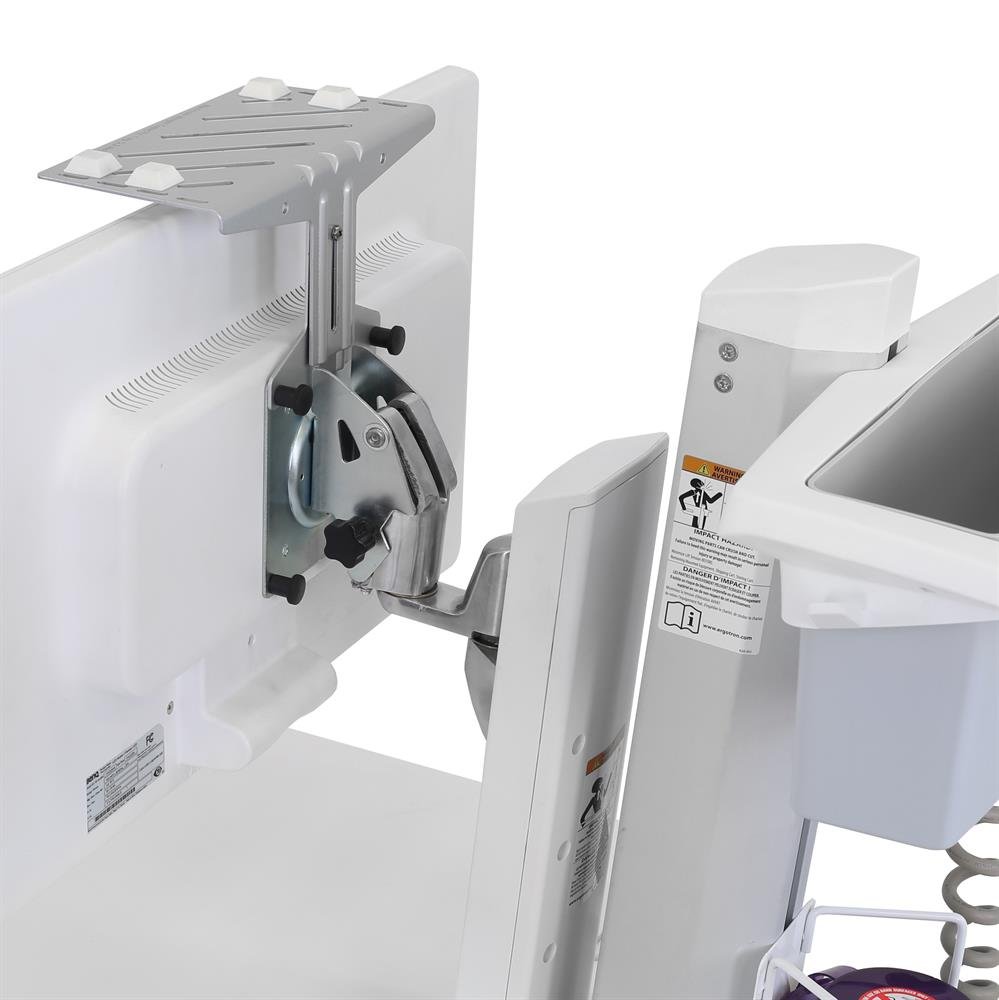

SV Camera Shelf 97-776-194 | |
Includes | Shelf, strap, bracket, mounting hardware, Velcro |
Shelf | Attaches via the monitor VESA plate |
Camera | Can be mounted either forward or backward facing |
Shelf Surface Area | 8" x 4" (20 x 10 cm) |
Weight Capacity | 2 lbs (0.9 kg) |
Shipping Dimensions | 9.5" x 5" x 6" (24 x 13 x 15 cm) |
Shipping Weight | 2 lbs (0.9 kg) |
Warranty | Five (5) years |

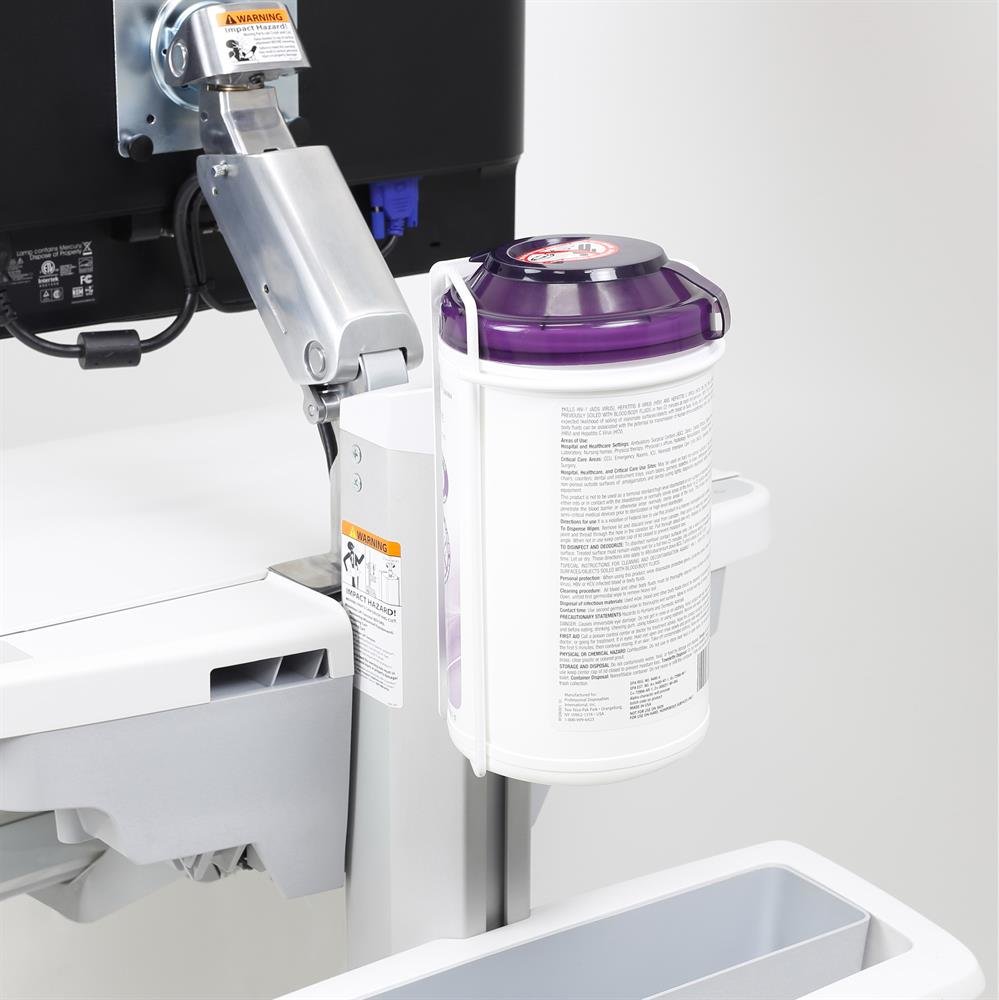

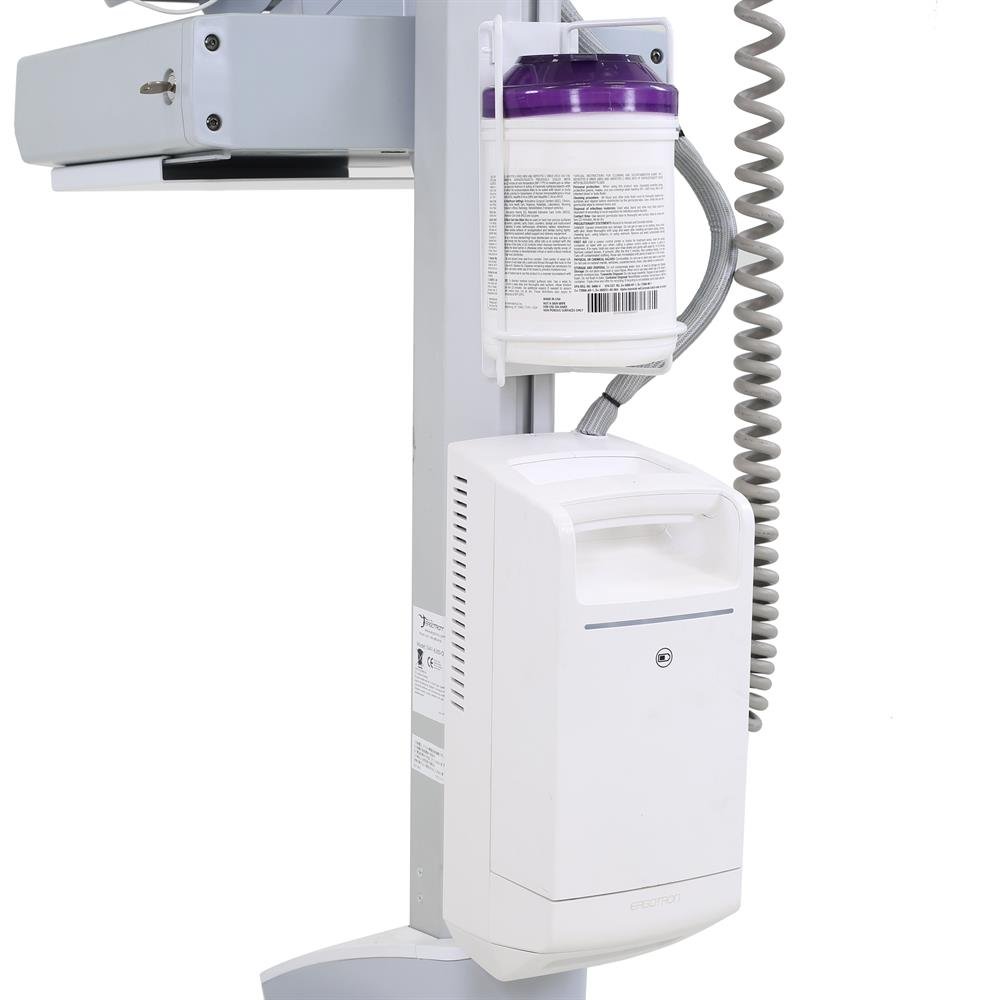

Sani-wipes Holder 97-828 | |
Includes | Container holder, t-slot bracket (wipes not included) |
Holds | Containers 16" (40.6 cm) in circumference and up to 10" (25.4 cm) tall (with cover included; up to 8.75"/ 22.2 cm without cover) |
Weight Capacity | 2.5 lbs (1.1 kg) |
Shipping Dimensions | 6" x 6" x 10" (15.2 x 15.2 x 25.4 cm) |
Shipping Weight | 1 lbs (.5 kg) |
Warranty | Five (5) years |

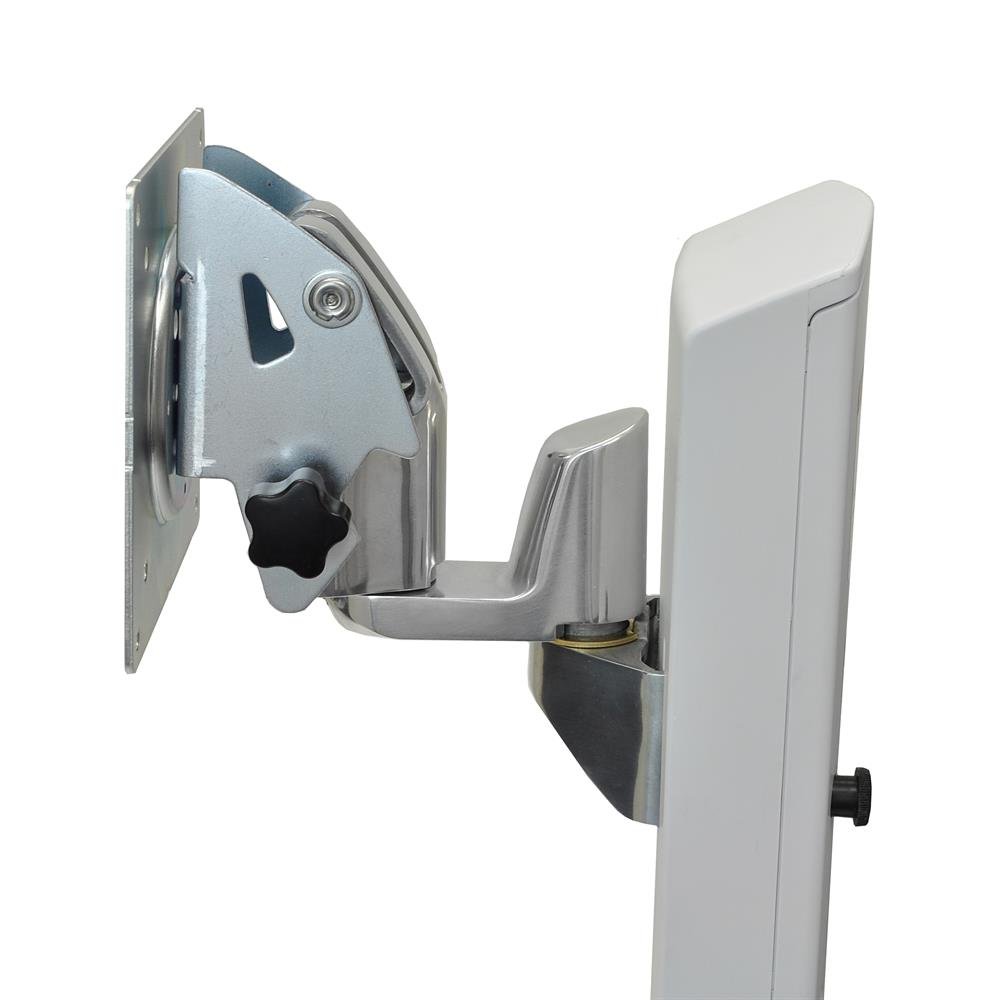

Pan Pivot Kit for SV LCD Cart 97-650 | |
Includes | Pan extension, mounting hardware |
This Kit | Uses the cart’s existing pivot and base |
Weight Capacity | 5–14 lbs (2.3–6.4 kg). Locking out the LCD’s 5" Lift increases capacity to 15 lbs (6.8 kg) |
Shipping Dimensions | 4" x 4" x 3.5" (1.6 x 1.6 x 1.4 cm) |
Shipping Weight | 1 lbs (0.5 kg) |
Warranty | Five (5) year |

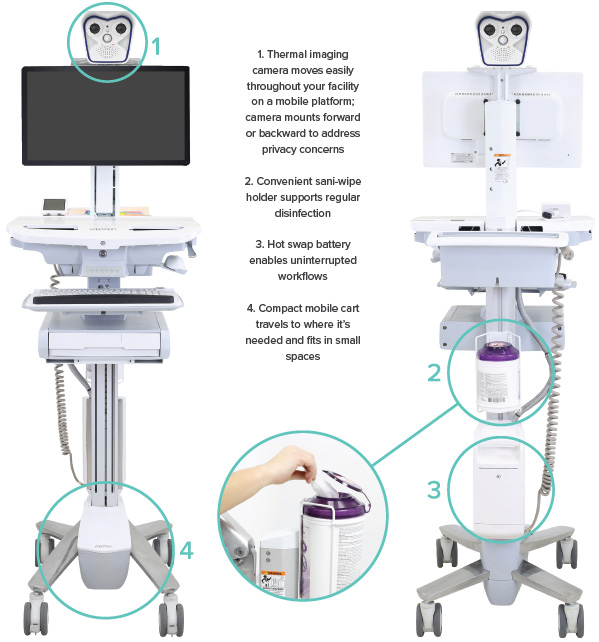

Benefits
Quick diagnostics - Move a camera throughout your facility to detect fevers or other conditions

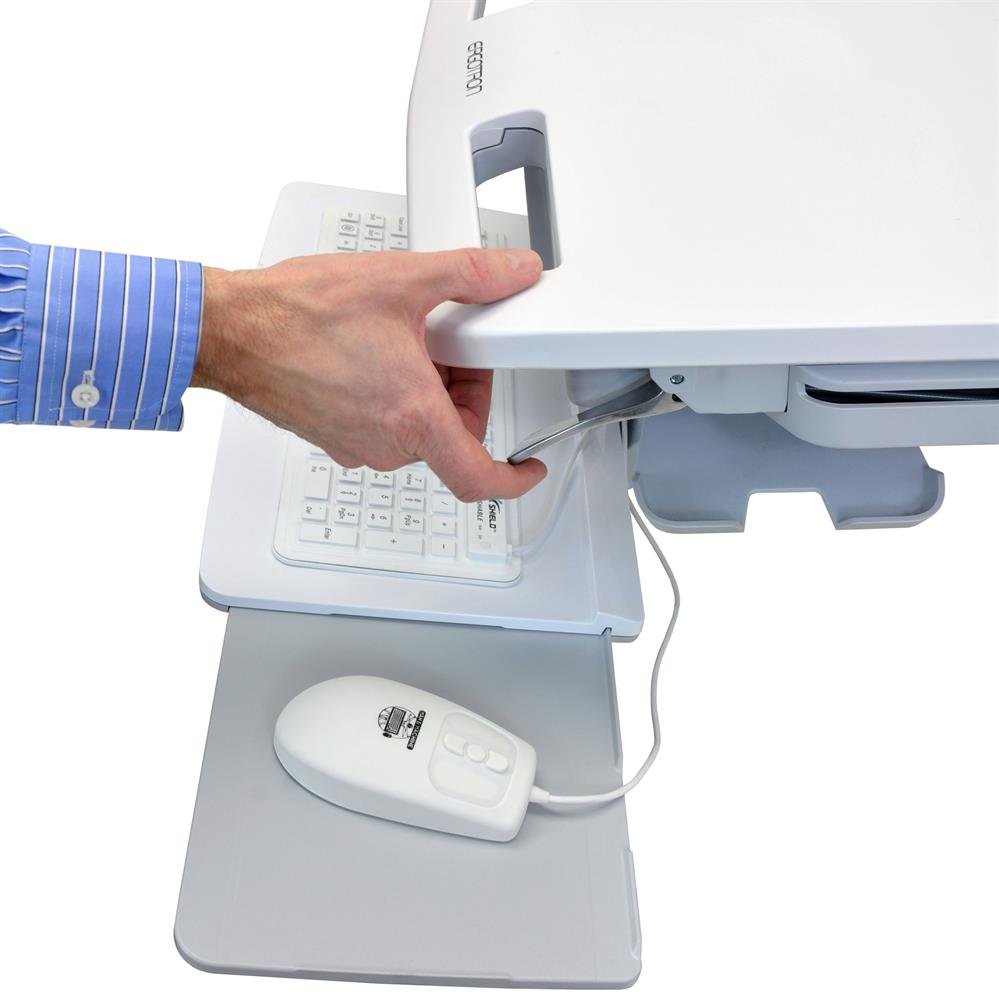

Comfortable fit - Ergonomic, height-adjustable design supports caregiver well-being
LiFe battery - Reliable power maintains effective monitoring without relying on outlets
Compact design - Maneuvers through tight corridors and fits in small spaces
Extra storage - Included drawer keeps supplies out of the way yet easily accessible
Wipes holder - Convenient access to sani-wipes supports regular disinfection
Product Options/Accessories
Model | Thermal Imaging Cart with Hot Swap Power |
Manufacturer | Ergotron |
Part Number | Thermal Imaging Cart with Hot Swap Power |
Monitor Size | Up to 24" |
Weight Capacity | Up to 35 lbs (15.9 kg) |
Lift | (63.5 cm) 25 in |
Tilt | 25 degree |
Pan | 180 degree |
Rotation | 90 degree |
VESA | MIS-D |
Warranty | 5 years |
Lift Technology | Constant Force |
Display Type | 1 Monitor |
Screen Size | 24"-30" in |
TAA Compliant | No |
