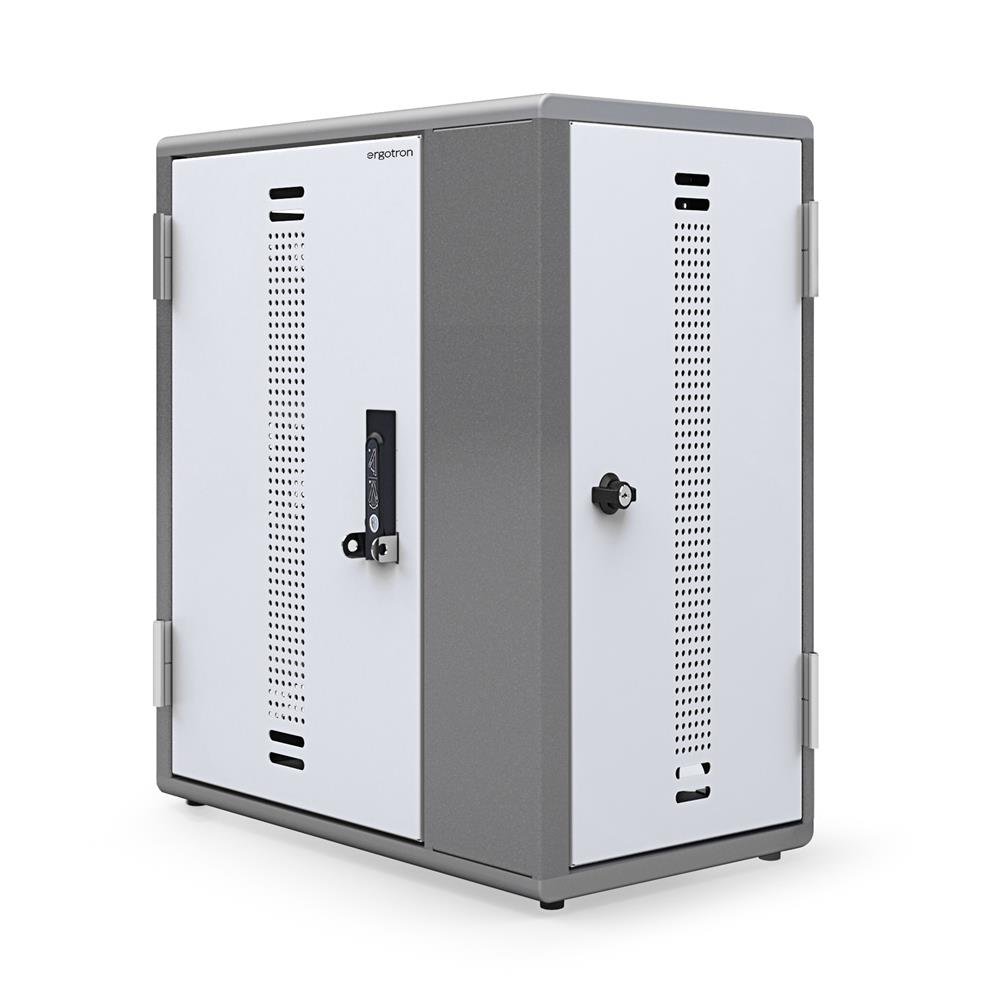

Ergotron YESCABGMPW YES20 Charging Cabinet for Tablets
Description
Keep your tablets, smartphones and e-readers charged without sacrificing valuable workspace. Ergotron YESCABGMPW space-saving cabinet fits 20 devices with adjustable rows and bays to customize how you store and charge your technology. YES20 includes keyed locks on each door and separate admin area to enhance security.
Technical Specifications
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
Up to 10" |
Up to 2.3 lbs 1.0 kg |
- | - | - | - | - |
Product Information
Part Number | YESCABGMPW |
Description | YES20 Charging Cabinet for Tablets (white/grey) |
Includes |
|
Total Capacity | Up to 20 devices with .87"-wide (2 cm) bays; up to 16 devices with 1.25"-wide (3 cm) bays. Adjustable bay dividers install at any width in 1/3" (.8 cm) increments along each shelf’s installation track, supporting devices of any thickness |
Before Charging | It is recommended that devices be powered off |
Maximum Device Width/Height | 10.5" x 8.5" (27 x 22 cm) |
Weight Capacity | 45 lbs (20.5 kg) total for cabinet. Per device maximum weight of 2.3 lbs (1 kg) assumes 20 devices housed in unit |
Compatible | With Apple’s eighth-generation iPad |
Ships | Fully assembled |
Two Adjustable Shelves | Two adjustable shelves install at any height in 2/3" increments along the 21" high installation track. Store devices on their long side, in landscape orientation, or on their short side, in portrait orientation, as dictated by device size and the position of the power inlet and on/off button. Cabinet ships with shelves arranged for landscape storage |
Adjustable Bay | Adjustable bay dividers install at any width in 1/3" increments along the shelf’s 12"-long installation track. Supports devices of any thickness, with and without cases |
Numbered Bays | Numbered bays organize devices. Open the door and see at a glance which devices are checked out |

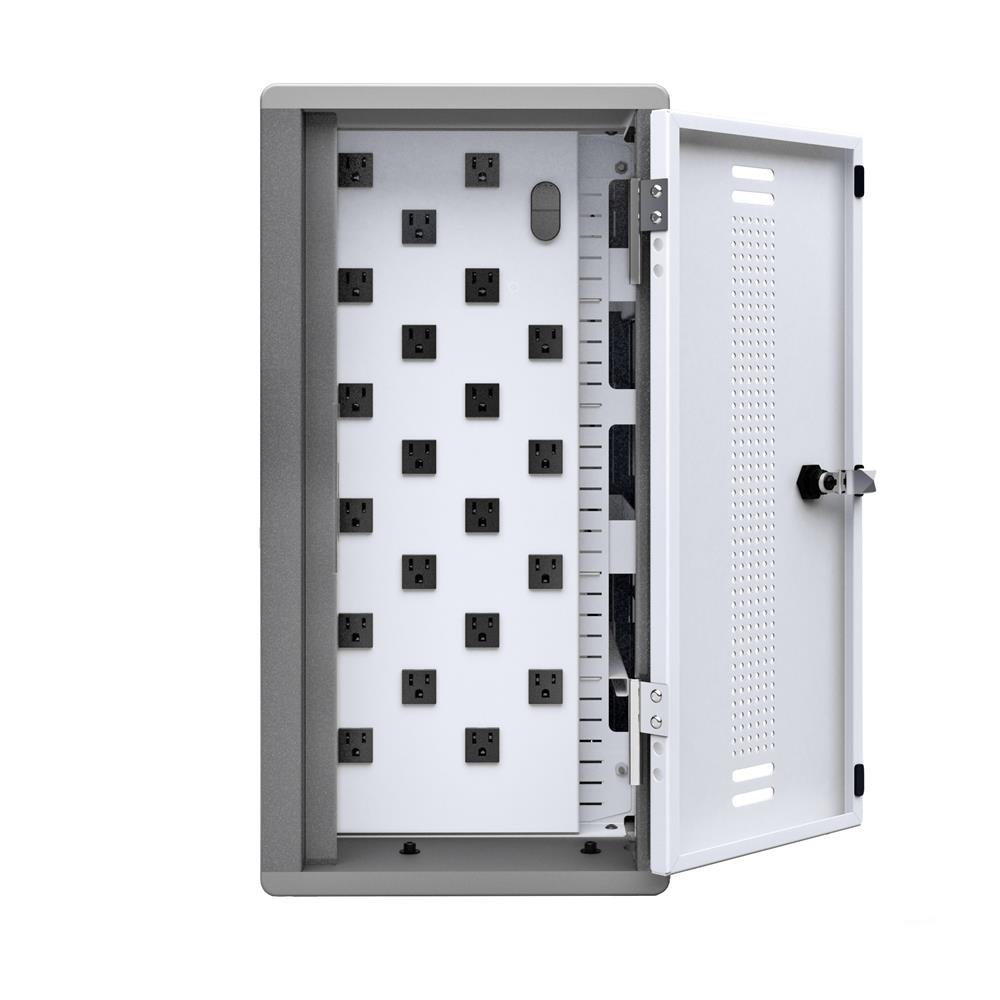

Separate Locking IT Area | Separate locking IT area on the side provides 15 power outlets and two roomy bins to hold power adapters, cords, and outlets away from users |
Power Cord | Power cord stores in the IT area. Feed it out of the IT area through a notch in the base of the unit to plug into a wall outlet, or through a pass-through in the back panel to hard wire into your electrical |
Keyed Locks | Keyed locks on front and side doors for security. Low-profile handles are easy to grip. Padlock bracket on the front door positions your padlock to block access to the handle |
Top Surface | Top surface is made of contoured wood with strong vinyl thermoplastic laminate for smooth corners and soft edges |
Made | Made with 14- and 16-guage steel with durable baked-on powder coat finish |
Certified and Listed | Certified and listed to UL 62368-1 and CSA C22 2 No. 62368-1 for Safety of Information Technology Equipment |
Product Dimensions | 21.75" x 24" x 13" (55 x 61 x 33 cm) |
Product Weight | 58.3 lbs |
Shipping Dimensions | 29" x 26" x 17.5" (74 x 66 x 44.5 cm) |
Shipping Weight | 86.0 lbs |
Warranty | Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables |
Benefits
Adjustable rows & dividers - Fit up to 20 tablets, smartphones and e-readers with or without cases
Save space - Securely mounts to the wall or sits on a desktop
Enhance security - Bolt the cabinet into place via mounting holes in the base
Cable management - Cable comb feeds cords into the IT area for neat organization
Locking IT area - Separate admin area protects power adapters
Strong ROI - Fits evolving technology and includes lifetime mechanical warranty
Product Options/Accessories
Model | YESCABGMPW |
Manufacturer | Ergotron |
Part Number | YESCABGMPW |
UPC | 766212223995 |
Color | White/grey |
Screen Size | Up to 10 in |
Maximum Device Dimensions | Width/Height: 10.5" x 8.5" (27 x 22 cm) |
Weight Capacity | 45 lbs (20.5 kg) total for cabinet. Per device maximum weight of 2.3 lbs (1 kg) assumes 20 devices housed in unit |
Dimensions | 21.75" x 24" x 13" (55 x 61 x 33 cm) |
Weight | 65 lbs (29.5 kg) |
Shipping Dimensions | 29" x 26" x 17.5" (74 x 66 x 44.5 cm) |
Shipping Weight | 70 lbs (31.8 kg) |
Warranty | Lifetime for mechanical components; three (3) years for electrical system; one (1) year for cables |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and
limitations as set forth below.
Exceptions
Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014
Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)
Ten-year warranty on LearnFit Sit-Stand Desks
Three-year warranty on all Neo-Flex Ergotron Products
Two-year warranty on WorkFit-Z Mini
Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted
The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder
One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)
Two-year warranty on Power Modules by Ergotron
Sealed Lead-Acid (SLA) Power Systems, SLA Batteries
Two-year warranty on all SLA power system components by Ergotron
Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)
Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law
Lithium Iron (LiFe) Power Systems, LiFe Batteries
LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)
Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)
Service Programs - 30-day warranty
Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies
Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer
- StyleView Electric Lift motor: Three (3) years on motor and switch
Further Exclusions and Limitations
SLA Batteries
In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void
Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void
Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law
- The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations
SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history
SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history
LiFe Batteries
LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)
The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.
These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.
Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.
Exclusive Remedy
Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.
Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.
For products that are not covered under warranty, Ergotron offers you the following options:
You may upgrade to a newer, functionally equivalent product at a normal MSR list price
Ergotron will return the product to you
You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law
Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.
Warranty Disclaimer
Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.
Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.
Warranty Transferability
This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
