Workrite LEADER8 Standard or LSS8 Sit-Stand Keyboard Tray System

Product ID 19320
  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
Write your review

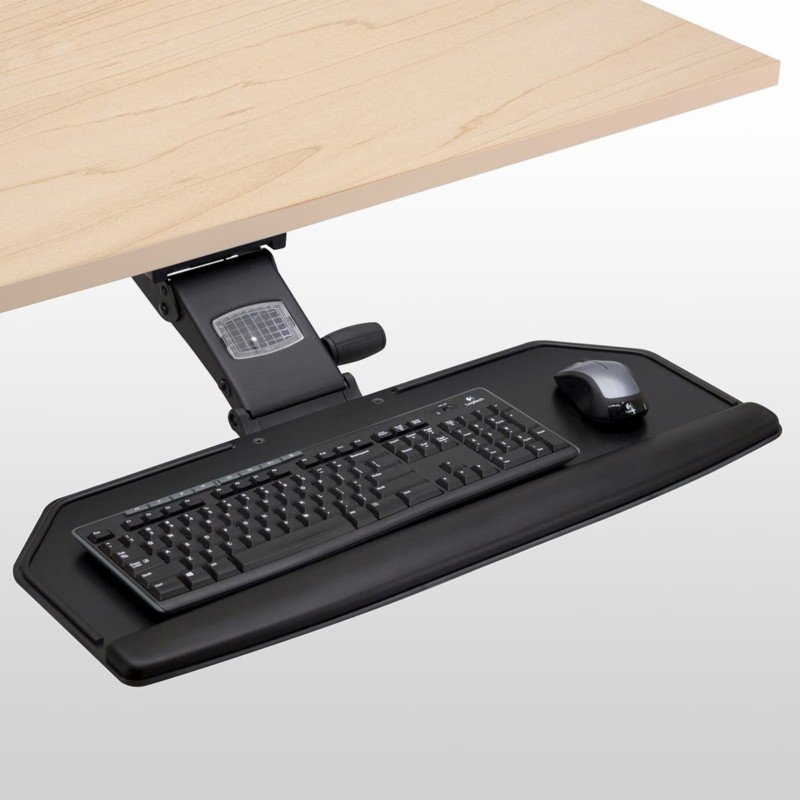

Workrite LEADER8 Standard or LSS8 Sit-Stand Keyboard Tray System
Workrite LEADER8 Standard or LSS8 Sit-Stand Keyboard Tray System

Keyboard and Mouse Tray

  • System includes Diagonal Keyboard Tray

  • 0.25" phenolic laminate, radius self edge, black finish

  • Removable wrist rest made from molded medium density foam

  • In-Line Mouse design

  • Wire mouse guards

  • Available in black


Keyboard Arm

  • System includes Leader Standard or Sit-Stand arm:

  •  Standard Arm adjusts from 2.38" above to 6.5" below track

  •  Sit-Stand Arm adjusts from 8.25" above to 6" below worksurface

  • No knob, no lever Lift-n-Lock height adjustment with Dial-a-Tilt knob

  • Standard Arm 30° tilt range: -20° +10°

  • Sit-Stand Arm 25° tilt range: -15° +10°

  • Height & tilt readout panel

  • 17" or 22" nylon glide track

  • 360° arm swivel at track

  • Meets ANSI/BIFMA X5.5 standards

  • Smooth black powder-coat finish

Select an attribute...

  • Model *
  • Positive Tilt Lock
  • Bench Mount Kit
  • Delivery method *
  • Model*
    Click to select This option is mandatory
  • Positive Tilt Lock
    Click to select - $0.00
  • Bench Mount Kit
    Click to select - $0.00
  • Delivery method*
    Click to select This option is mandatory

Description

Designed for diagonal corner worksurfaces, workrite advanced LEADER8 keyboard system features a single surface tray that allows for continuous same plane mouse usage. The in-line mouse design is made specifically for corner installations and allows instant change from a right to left handed mouse setup.

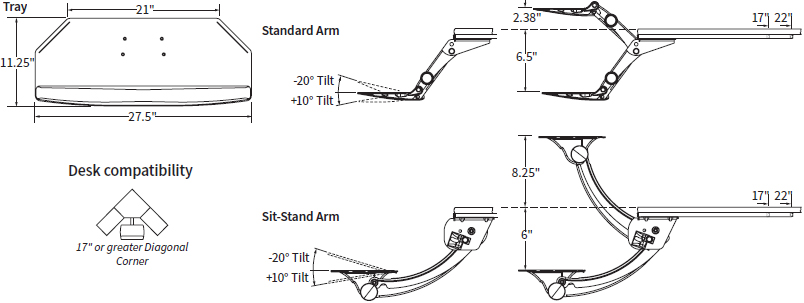

Technical Drawing

Technical Drawing for Workrite LEADER8 Standard or LSS8 Sit-Stand Keyboard Tray System

Specifications

Color

Black

Track Length

17" or 22"

Arm Range

  • Standard Arm -6.5" to +2.38"

  • Sit-Stand Arm -6" to +8.25"

Tilt Range

  • Standard Arm 30°: -20° to +10°

  • Sit-Stand Arm 25°: -15° to +10°

Swivel

360°

Product Options/Accessories

Workrite BMK-1-B or BMK-2-B Bench Mount Kit
Workrite BMK-1-B or BMK-2-B Bench Mount Kit $65.80
Workrite TP-PAD Keyboard Palm Pads
Keyboard Wrist Rest - Workrite TP-PAD $16.80
Model LEADER8, LEADER8-S, LSS8, LSS8-S
Manufacturer Workrite Ergonomics
Part Number LEADER8, LEADER8-S, LSS8, LSS8-S
Color Black
Adjustments Standard from 2.38" above to 6.5" below track. Sit-Stand from 8.25" above to 6" below worksurface
Tilt Standard 30 degree: -20 +10 degree. Sit-Stand 25 degree: -15 +10 degree
Track Length 17" or 22"
Swivel 360 degree

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year
