Workrite LEADER5 Standard or LSS5 Sit-Stand Keyboard Tray System

Product ID 19318
  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
Write your review

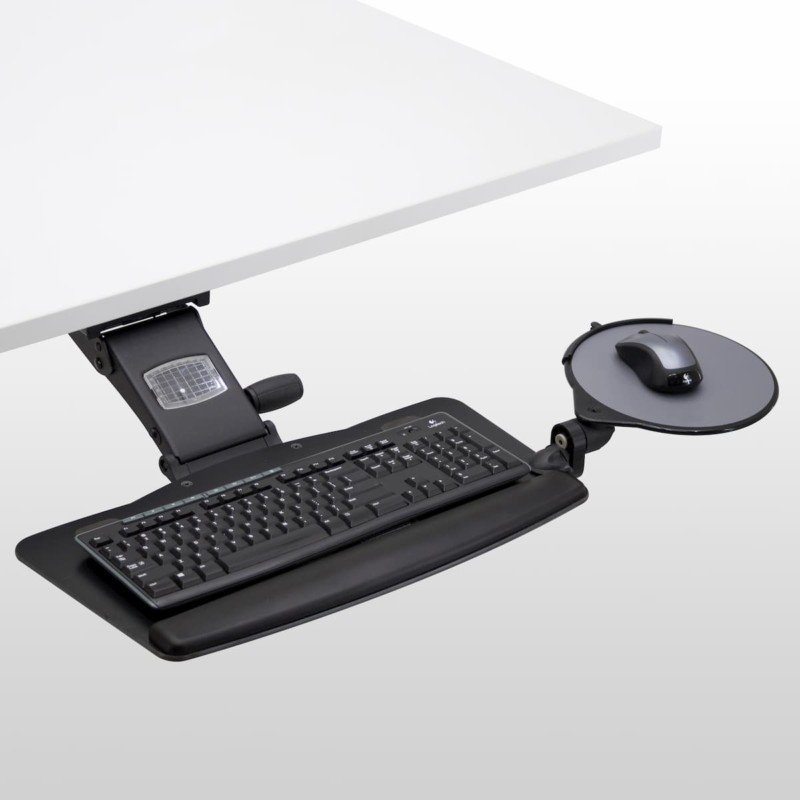

Workrite LEADER5 Standard or LSS5 Sit-Stand Keyboard Tray System
Workrite LEADER5 Standard or LSS5 Sit-Stand Keyboard Tray System

Keyboard and Mouse Tray

  • System includes Swap Keyboard Tray

  • 0.25" phenolic laminate, radius self edge, black finish

  • Removable wrist rest made from molded medium density foam

  • Available in black


Mouse Surface

  • Mouse platform features six height positions

  • Simple hand tools required right/left reversible

  • Independent mouse surface tilt & swivel for Mouse-Over positioning


Keyboard Arm

  • System includes Leader Standard or Sit-Stand arm:

  • Standard Arm adjusts from 2.38" above to 6.5" below track

  • Sit-Stand Arm adjusts from 8.25" above to 6" below worksurface

  • No knob, no lever Lift-n-Lock height adjustment with Dial-a-Tilt knob

  • Standard Arm 30° tilt range: -20° +10°

  • Sit-Stand Arm 25° tilt range: -15° +10°

  • Height & tilt readout panel

  • 17" or 22" nylon glide track

  • 360° arm swivel at track

  • Meets ANSI/BIFMA X5.5 standards

  • Smooth black powder-coat finish

Select an attribute...

  • Model *
  • Positive Tilt Lock
  • Bench Mount Kit
  • Delivery method *
  • Model*
    Click to select This option is mandatory
  • Positive Tilt Lock
    Click to select - $0.00
  • Bench Mount Kit
    Click to select - $0.00
  • Delivery method*
    Click to select This option is mandatory

Description

Workrite advanced LEADER5 keyboard system features a single Swap Keyboard Tray that installs on the right or left side of the tray without tools that allows 6 height positions including swivel, tilt, and over.

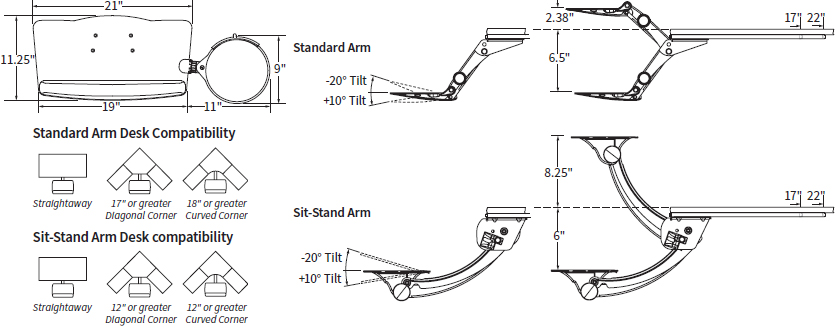

Technical Drawing

Technical Drawing for Workrite LEADER5 Standard or LSS5 Sit-Stand Keyboard Tray System

Specifications

Color

Black

Track Length

17" or 22"

Arm Range

  • Standard Arm -6.5" to +2.38"

  • Sit-Stand Arm -6" to +8.25"

Tilt Range

  • Standard Arm 30°: -20° to +10°

  • Sit-Stand Arm 25°: -15° to +10°

Swivel

360°

Product Options/Accessories

Workrite BMK-1-B or BMK-2-B Bench Mount Kit
Workrite BMK-1-B or BMK-2-B Bench Mount Kit $65.80
Workrite MT-ULTRA Swap Mouse Platform
Swap Mouse Tray - Workrite MT-ULTRA $63.60
Workrite MTP5-C-55 Mouse Tray Clip on Pad
Mouse Tray Clip on Pad - Workrite MTP5-C-55 $13.20
Workrite TP-PAD Keyboard Palm Pads
Keyboard Wrist Rest - Workrite TP-PAD $16.80
Model LEADER5, LEADER5-S, LSS5, LSS5-S
Manufacturer Workrite Ergonomics
Part Number LEADER5, LEADER5-S, LSS5, LSS5-S
Color Black
Track Length 17" or 22"
Adjustments Standard from 2.38" above to 6.5" below track. Sit-Stand from 8.25" above to 6" below worksurface
Tilt Standard 30 degree: -20 +10 degree. Sit-Stand 25 degree: -15 +10 degree
Swivel 360 degree
