Ergotron 24-804-S894 or 24-804-S893 WorkFit Elevate Sit-Stand Wall Desk

Product ID 19260
Ergotron 24-804-S894 or 24-804-S893 WorkFit Elevate Sit-Stand Wall Desk

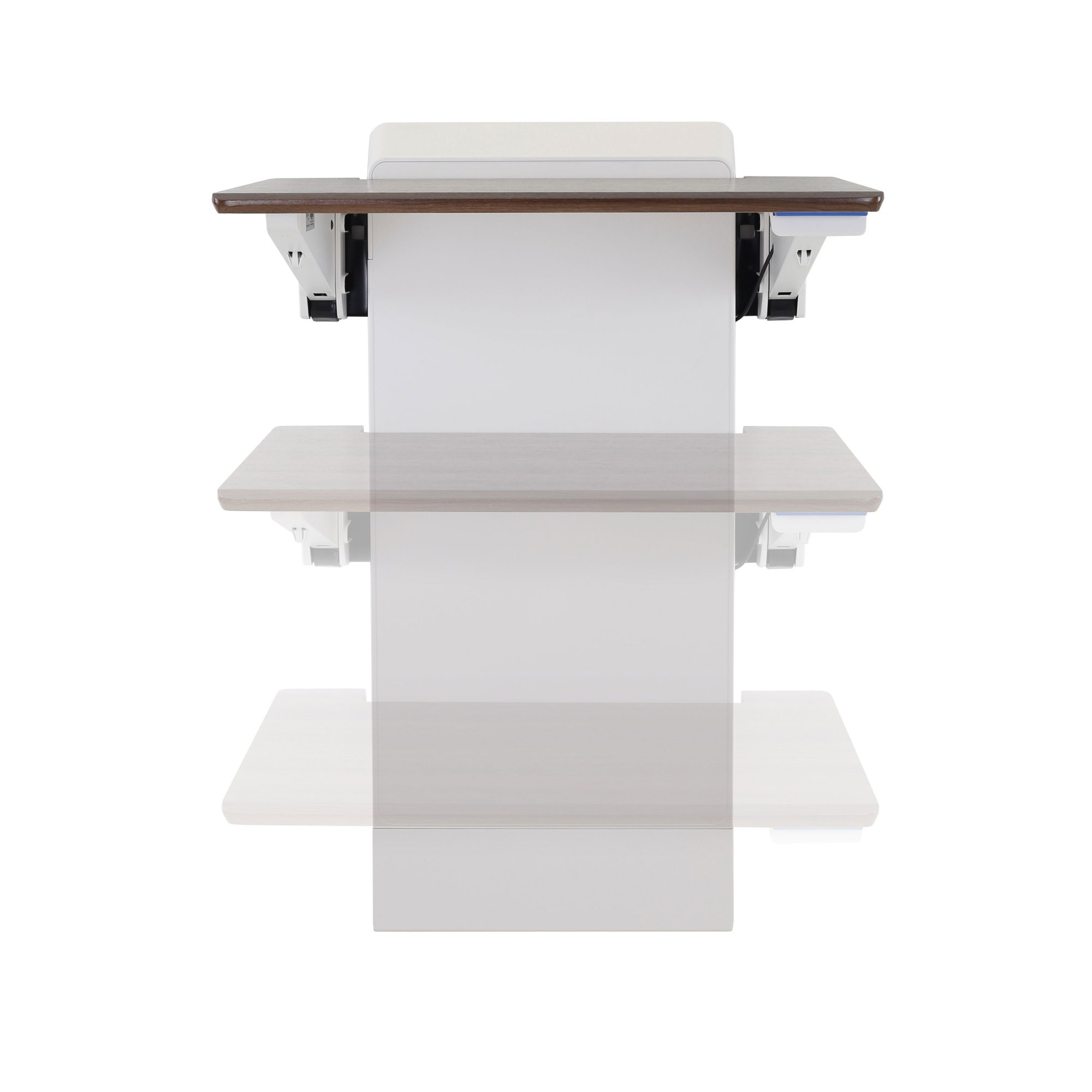

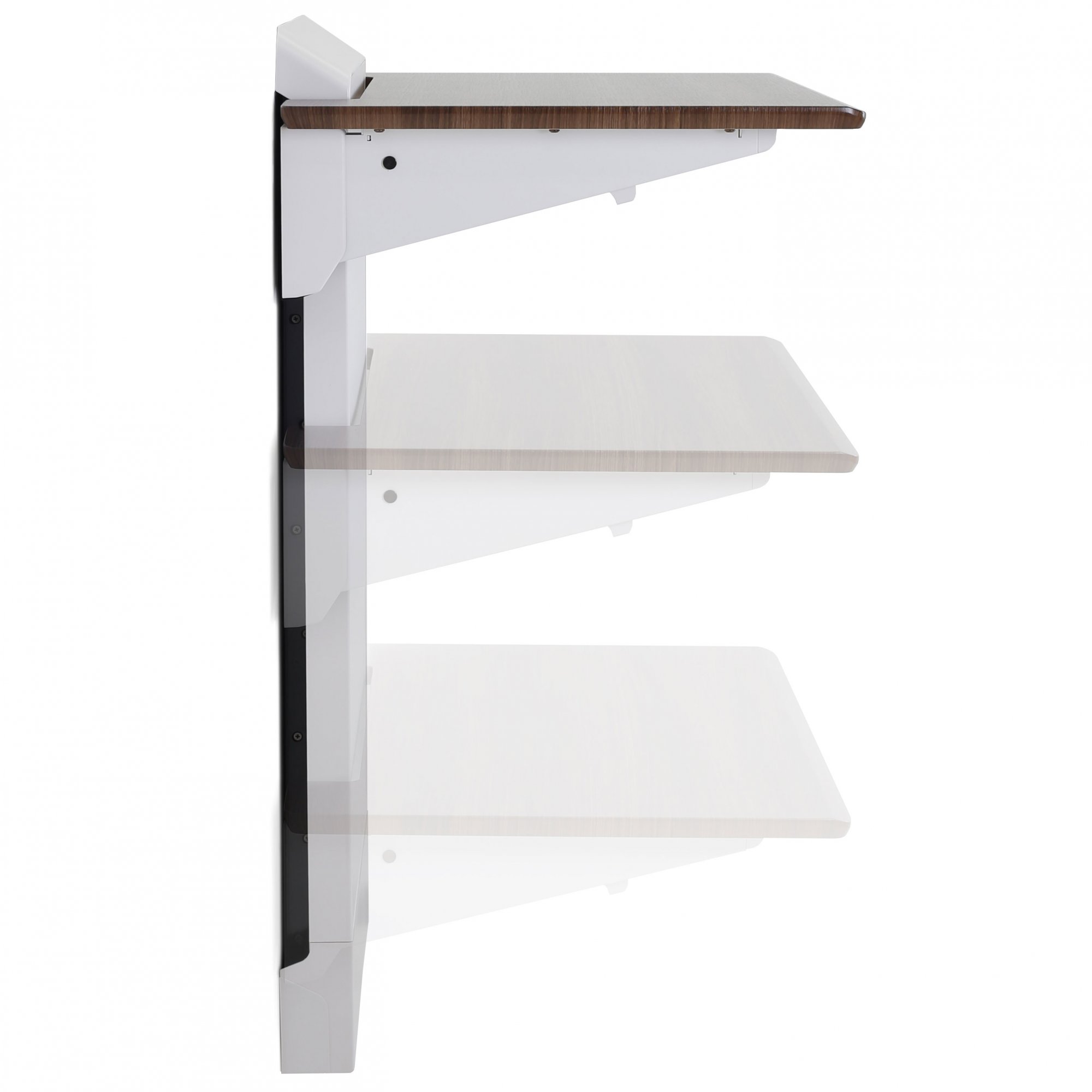

Provides the full BIFMA ergonomic height range of 22.6"-48.7" (57-124 cm)
Provides the full ergonomic height range of 22.6"-48.7" (57-124 cm)

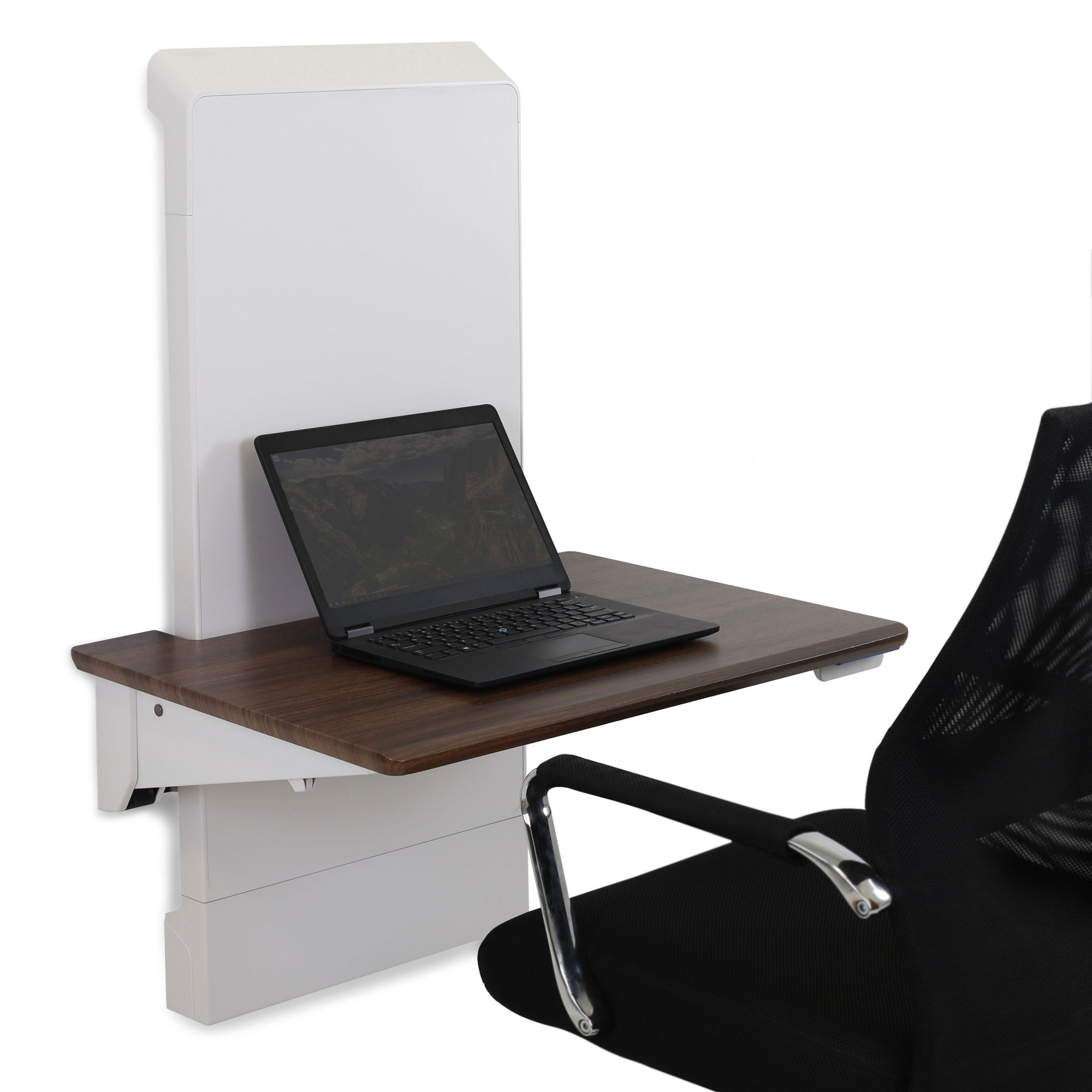

Worksurface at height of 22.6" (57 cm) in its lowest position

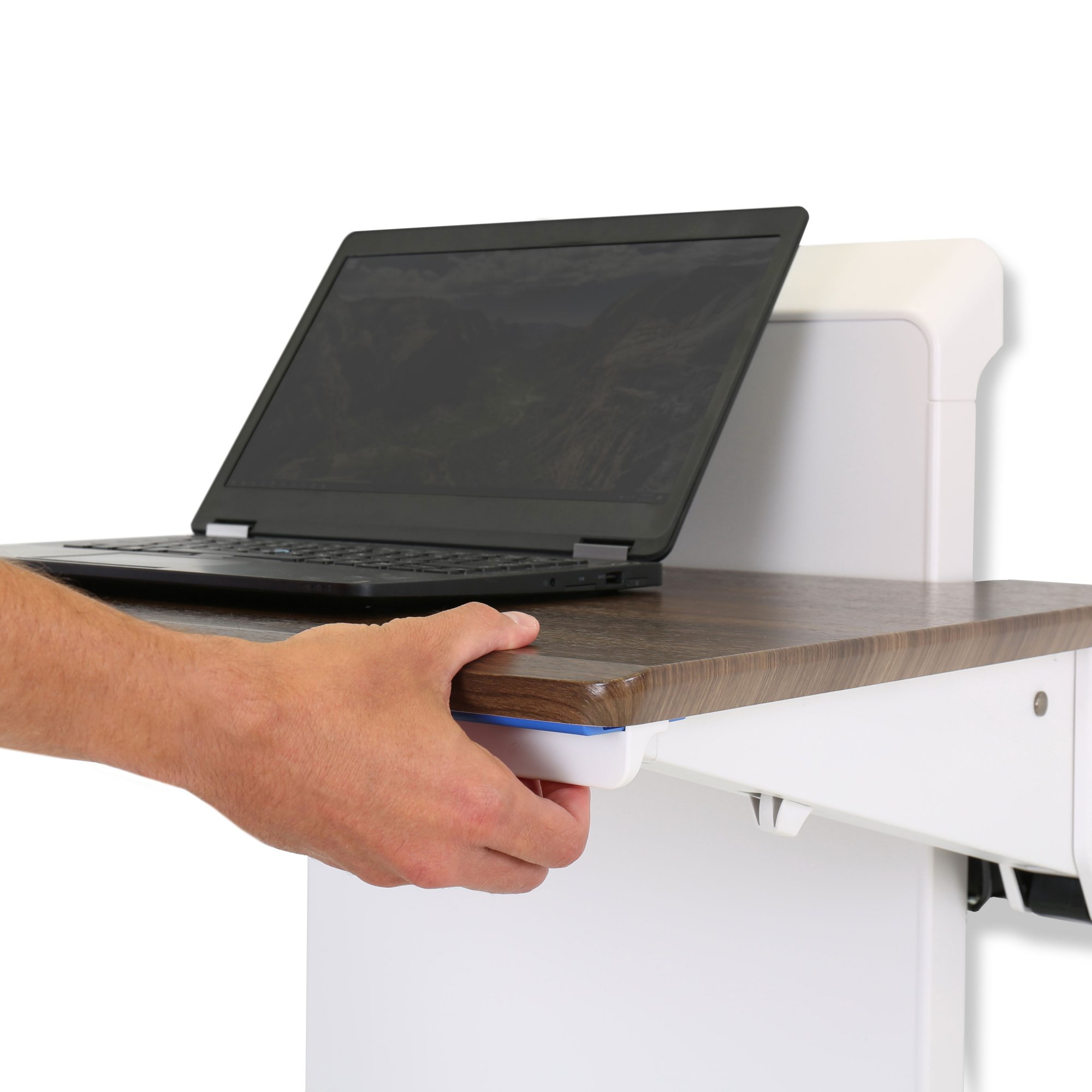

Non-electric WorkFit has Patented Constant Force motion technology that provides premium ease-of-use height adjustment

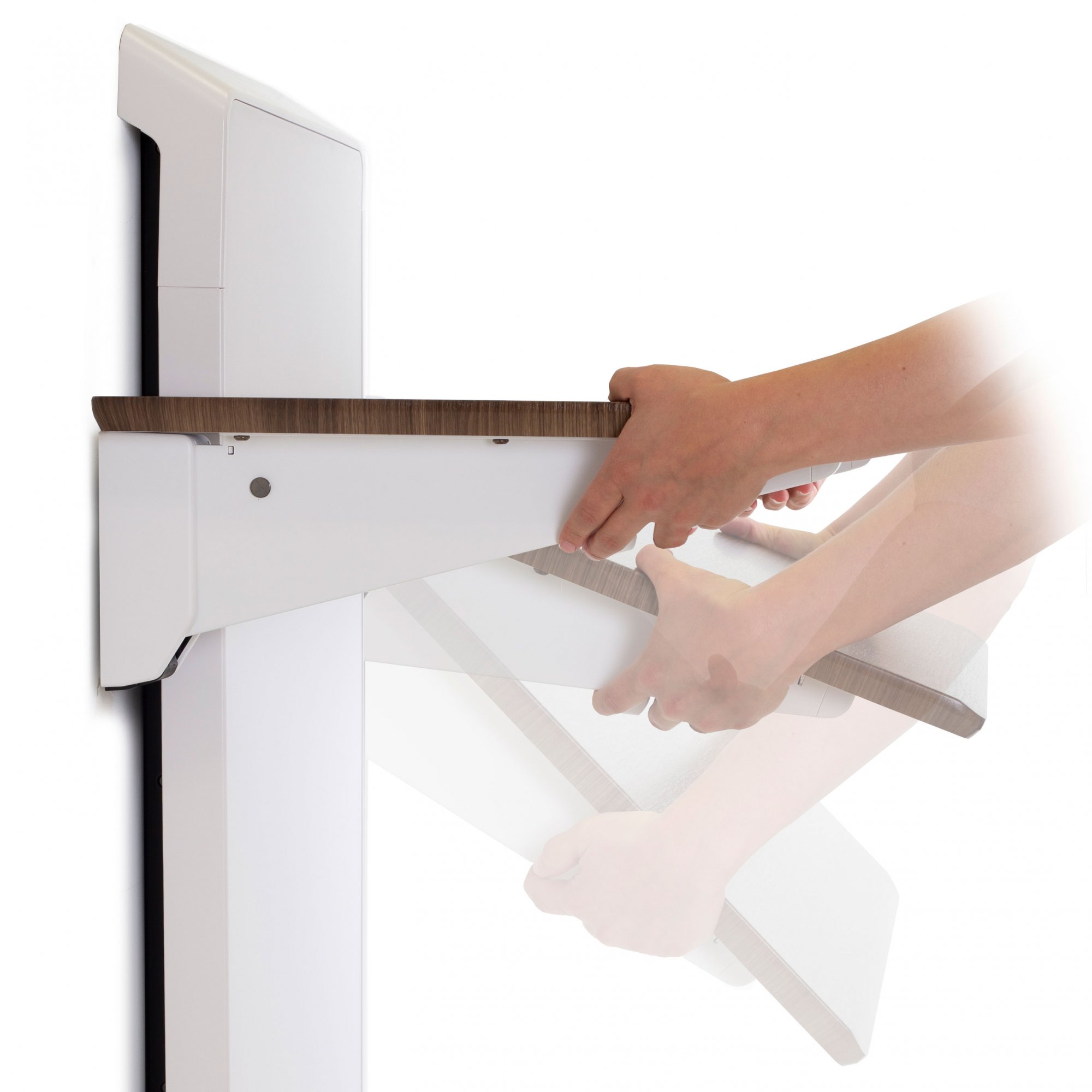

Worksurface folds down to within 7.3" (19 cm) of wall
Worksurface at height of 48.7" (124 cm) in its highest position

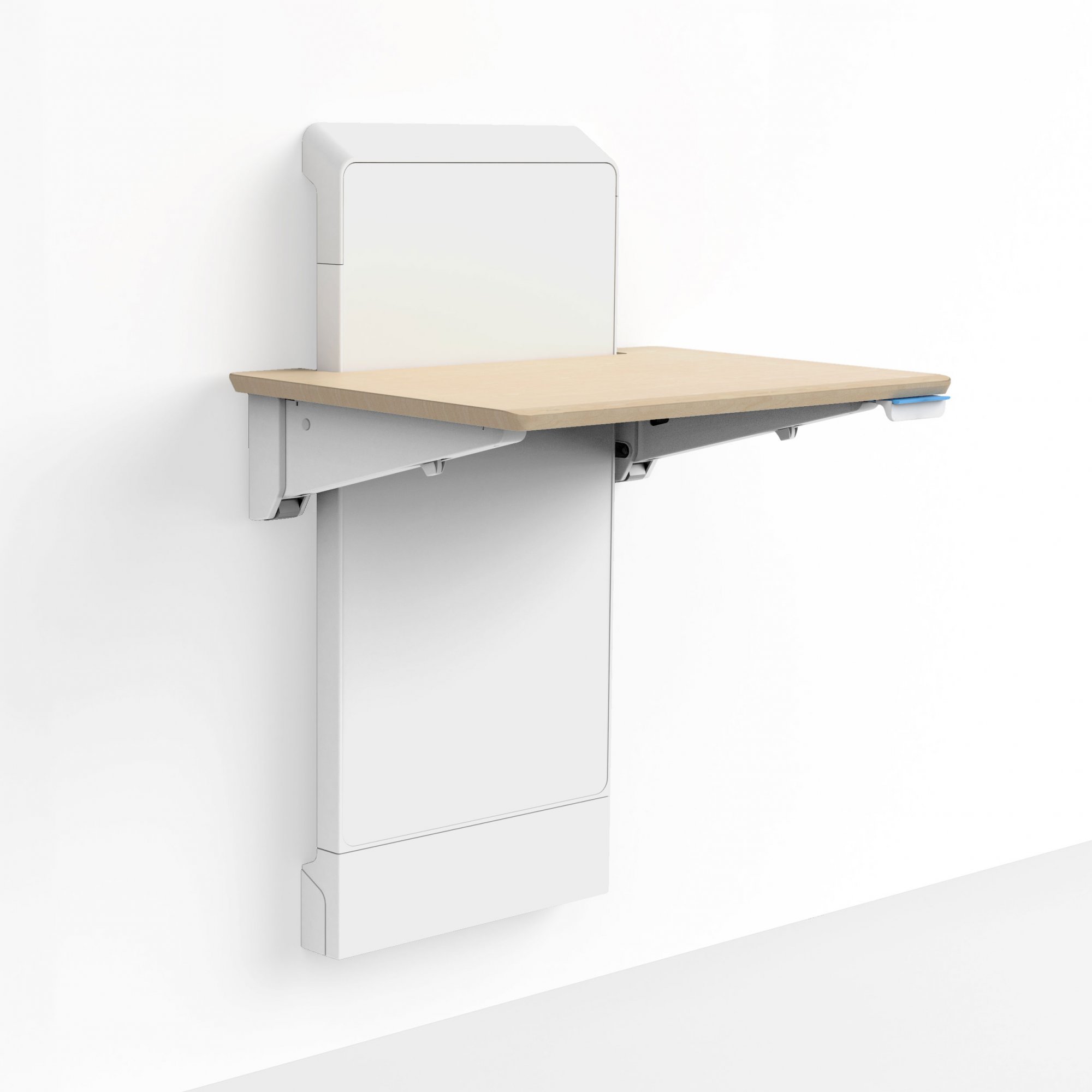

24-804-S893 in snow white and mendota maple
Ergotron 24-804-S894 or 24-804-S893 WorkFit Elevate Sit-Stand Wall Desk
Provides the full BIFMA ergonomic height range of 22.6"-48.7" (57-124 cm)
Provides the full ergonomic height range of 22.6"-48.7" (57-124 cm)
Worksurface at height of 22.6" (57 cm) in its lowest position
Non-electric WorkFit has Patented Constant Force motion technology that provides premium ease-of-use height adjustment
Worksurface folds down to within 7.3" (19 cm) of wall
Worksurface at height of 48.7" (124 cm) in its highest position
24-804-S893 in snow white and mendota maple

Description

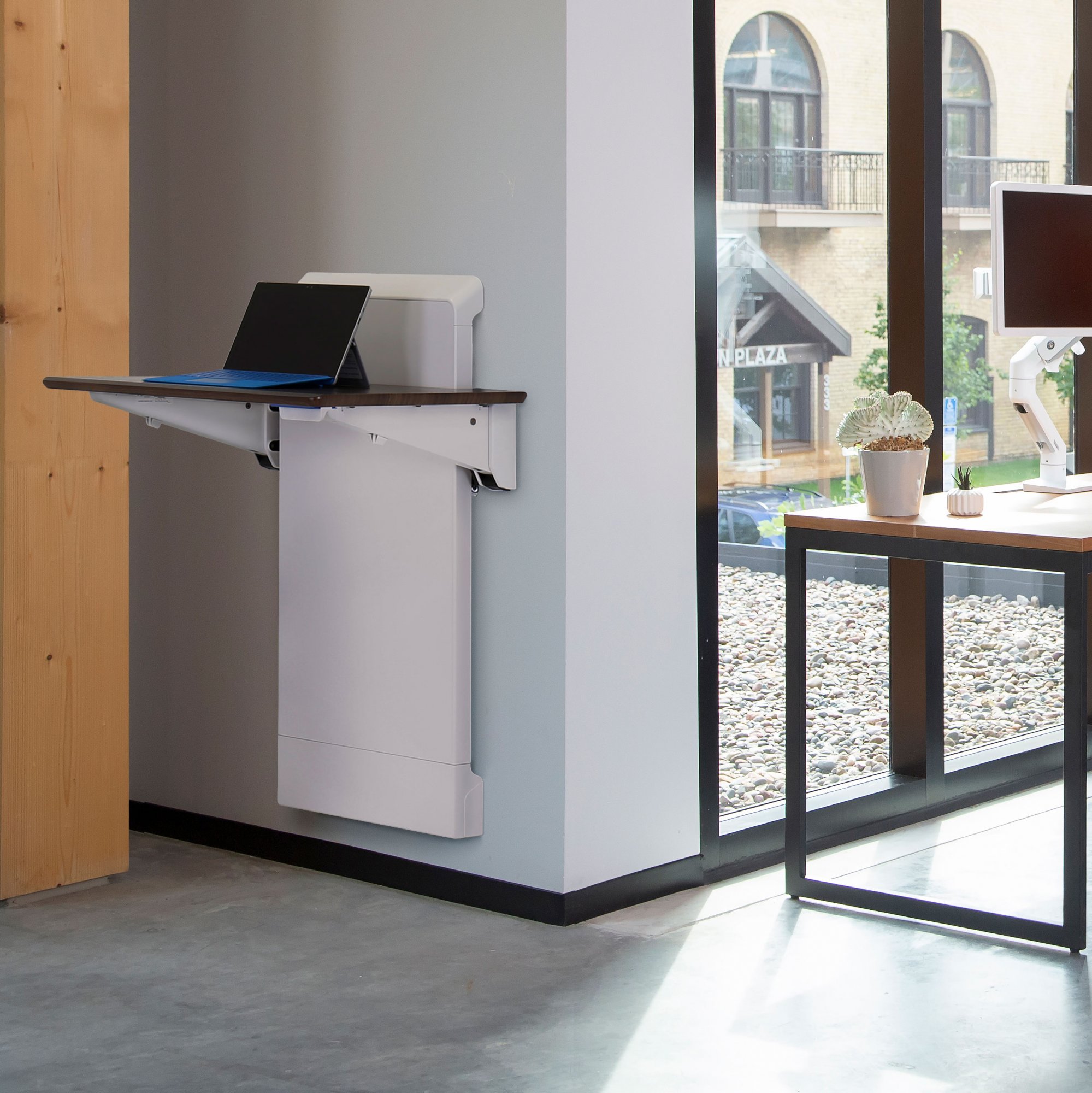

Elevate your work experience with this ergonomic wall-mount desk. Ergotron 24-804-S894 works as a collaborative space for caregivers in crowded healthcare environments, including clinic exam rooms, urgent care spaces and waiting rooms. It can also serve as a "touch-down" space for laptop users in corporate office hallways and common areas.

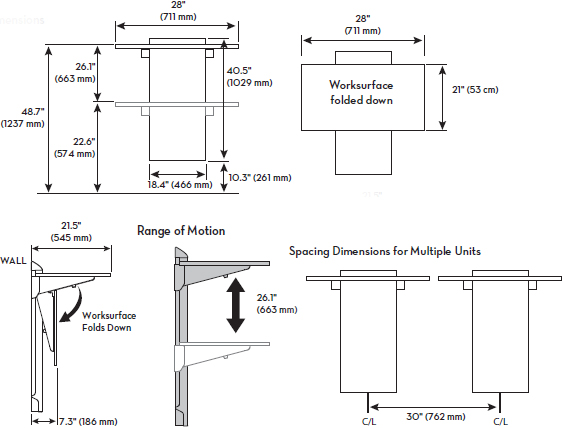

Technical Drawing

Technical Drawing for Ergotron 24-804-S894 or 24-804-S893 WorkFit Elevate Sit-Stand Wall Desk

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 19"

Up to 40 lbs

18.1 kg

26.1"

66.3 cm

- - - -

Product Information

Part Number (color)
  • 24-804-S893 (snow white and Mendota maple)

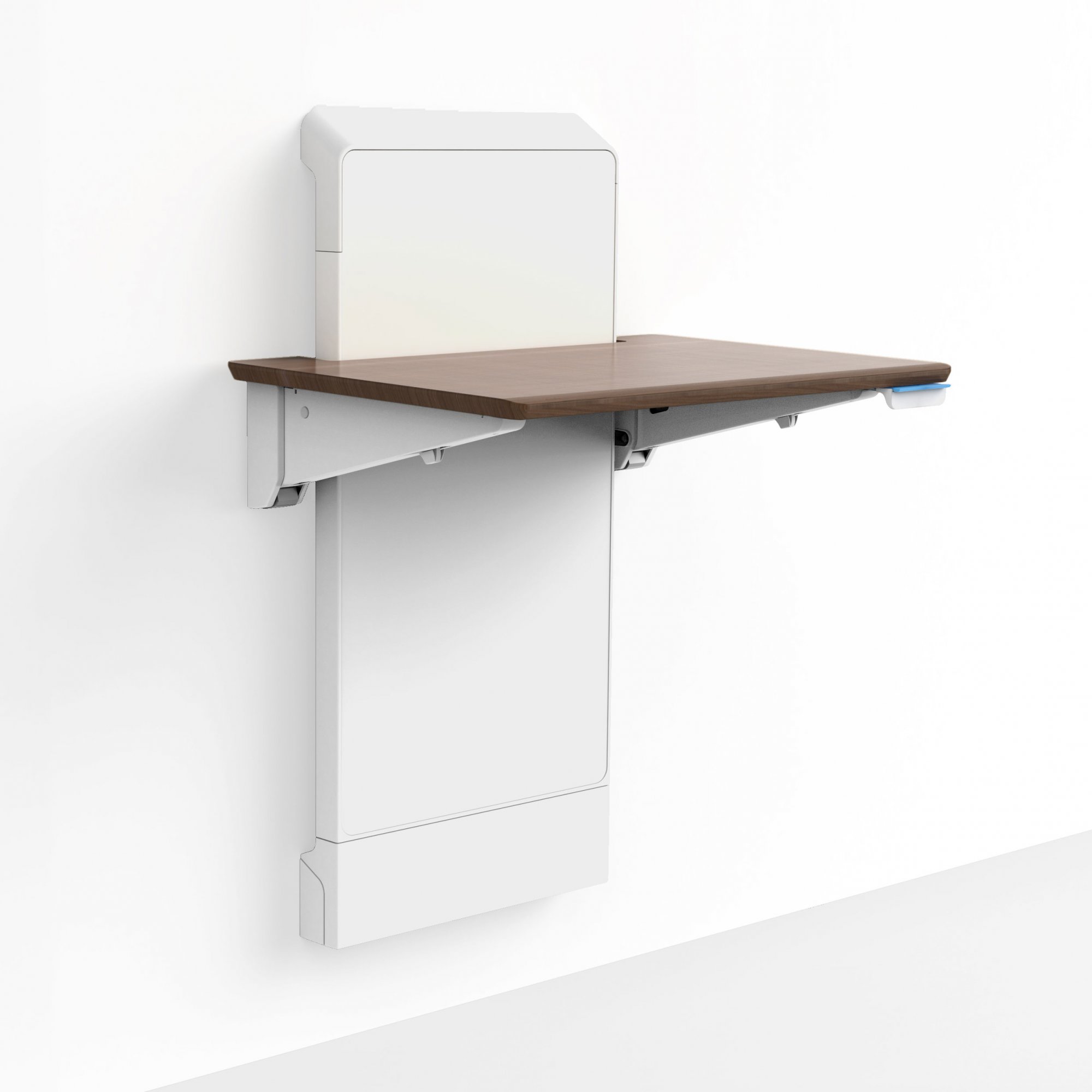

  • 24-804-S894 (snow white and walnut hills)

Description WorkFit Elevate Sit-Stand Wall Desk
Color Body = snow white; worksurface = Mendota maple or walnut hills
Ships Fully assembled
CF Technology Patented Constant Force motion technology provides premium ease-of-use height adjustment
Product Dimensions Width = 28" (71 cm); height = 40.5" (103 cm); depth = 24.5" (62 cm) or 21.5" (55 cm) with surface raised
Worksurface Worksurface folds down to within 7.3" (19 cm) of wall
Recommendation This WorkFit Elevate model is recommended for use with laptop computers. If using an external monitor, consider the WorkFit Elevate with Power Access
Height Range 26.1" (66 cm). To accommodate BIFMA recommendations placing worksurface at height of 22.6" (57 cm) in its lowest position and 48.7" (124 cm) in its highest position, unit should be installed 10.3" (26 cm) above the floor
Weight Capacity 40 lbs (18.2 kg)
Product Weight 80 lbs (36.4 kg)
Shipping Dimensions 45.75" x 31.2" x 10.5" (116 x 79 x 27 cm)
Shipping Weight 90 lbs (40.9 kg)
Warranty Five (5) years

Benefits

  • Vertical movement - Provides the full BIFMA ergonomic height range of 22.6"-48.7" (57-124 cm)

  • Integration - Transforms underutilized spaces into active and flexible work environments

  • Quick collaboration - Quietly adjusts from sit to stand 8–10 times faster than other desks

  • Versatile design - Fits corporate offices and healthcare spaces like exam rooms or nurse stations

  • Reclaim space - Flip-down worksurface opens up floor space when needed

  • Simple wall install - Arrives fully assembled in one box

Model 24-804-S894, 24-804-S893
Manufacturer Ergotron
Part Number 24-804-S894, 24-804-S893
Color Snow white and Mendota maple, Snow white and walnut hills
Monitor Size Up to 19"
Weight Capacity Up to 40 lbs (18.1 kg)
Lift (66.3 cm) 26.1 in
Dimensions Width = 28" (71 cm); height = 40.5" (103 cm); depth = 24.5" (62 cm) or 21.5" (55 cm) with surface raised
Height Range 26.1" (66 cm)
Weight Capacity 40 lbs (18.2 kg)
Weight 80 lbs (36.4 kg)
Shipping Dimensions 45.75" x 31.2" x 10.5" (116 x 79 x 27 cm)
Shipping Weight 90 lbs (40.9 kg)
Warranty Five (5) years
