$2,793.00

Ergotron Zip40 Charging Cart - DM40-2009-1

Product ID 19170

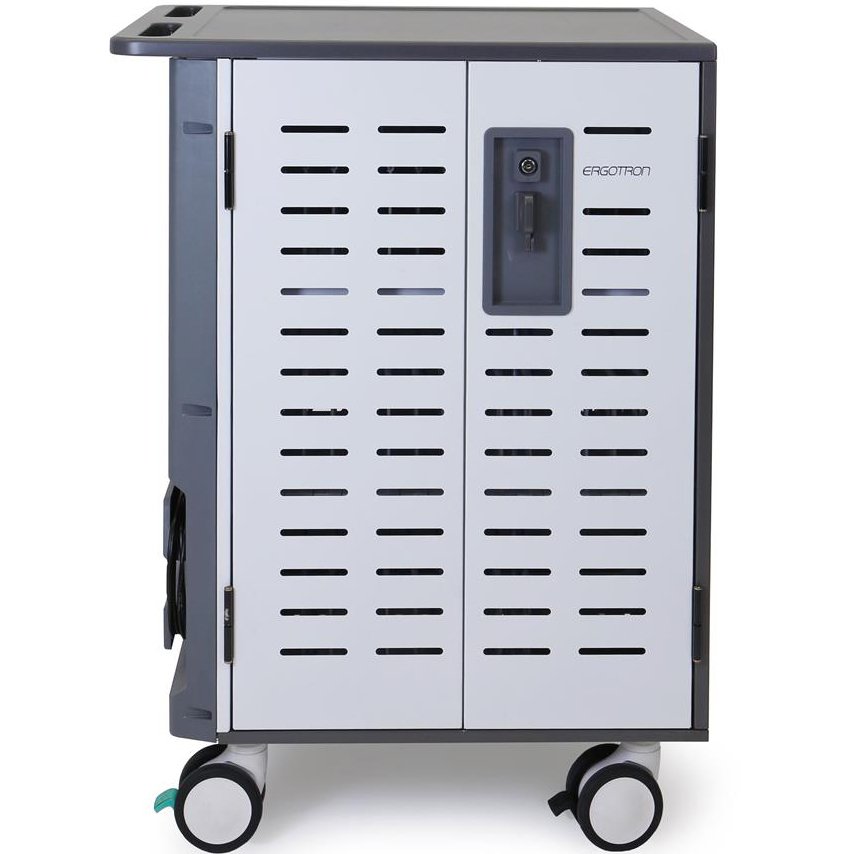

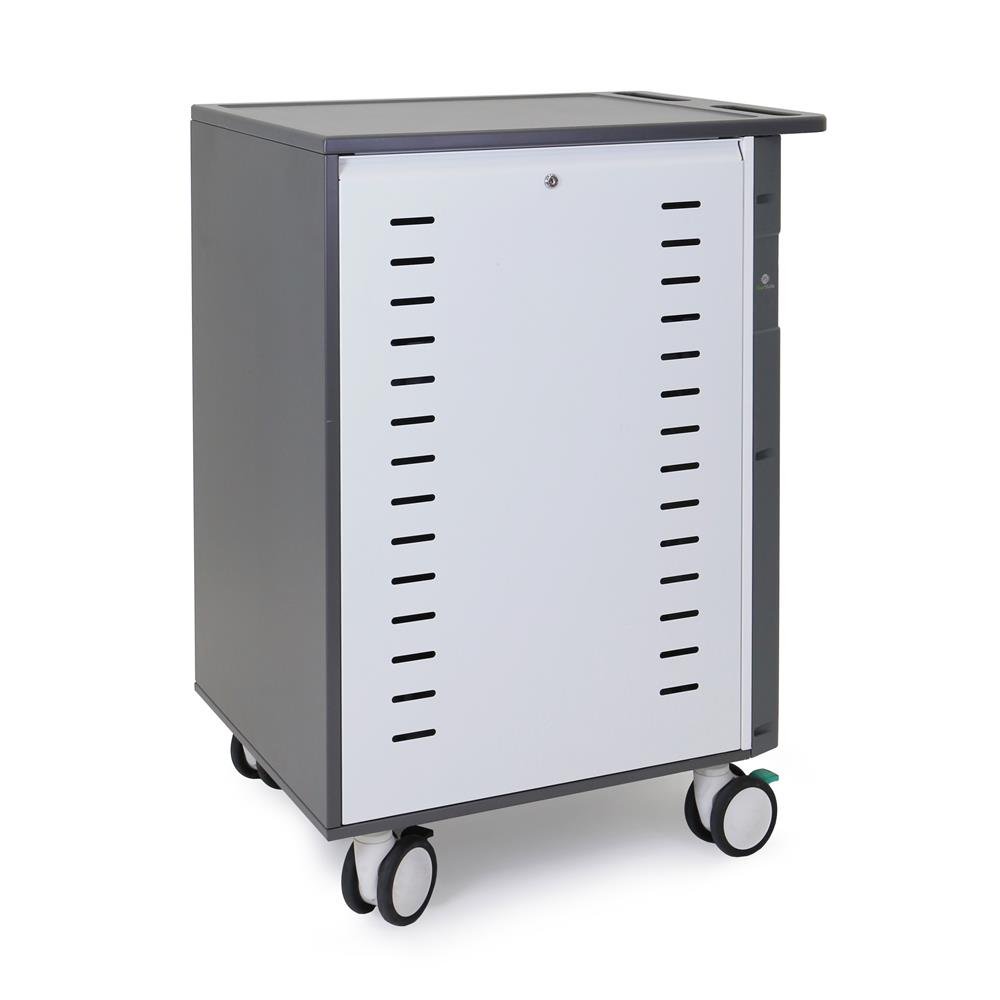

Ergotron Zip40 Charging Cart - DM40-2009-1

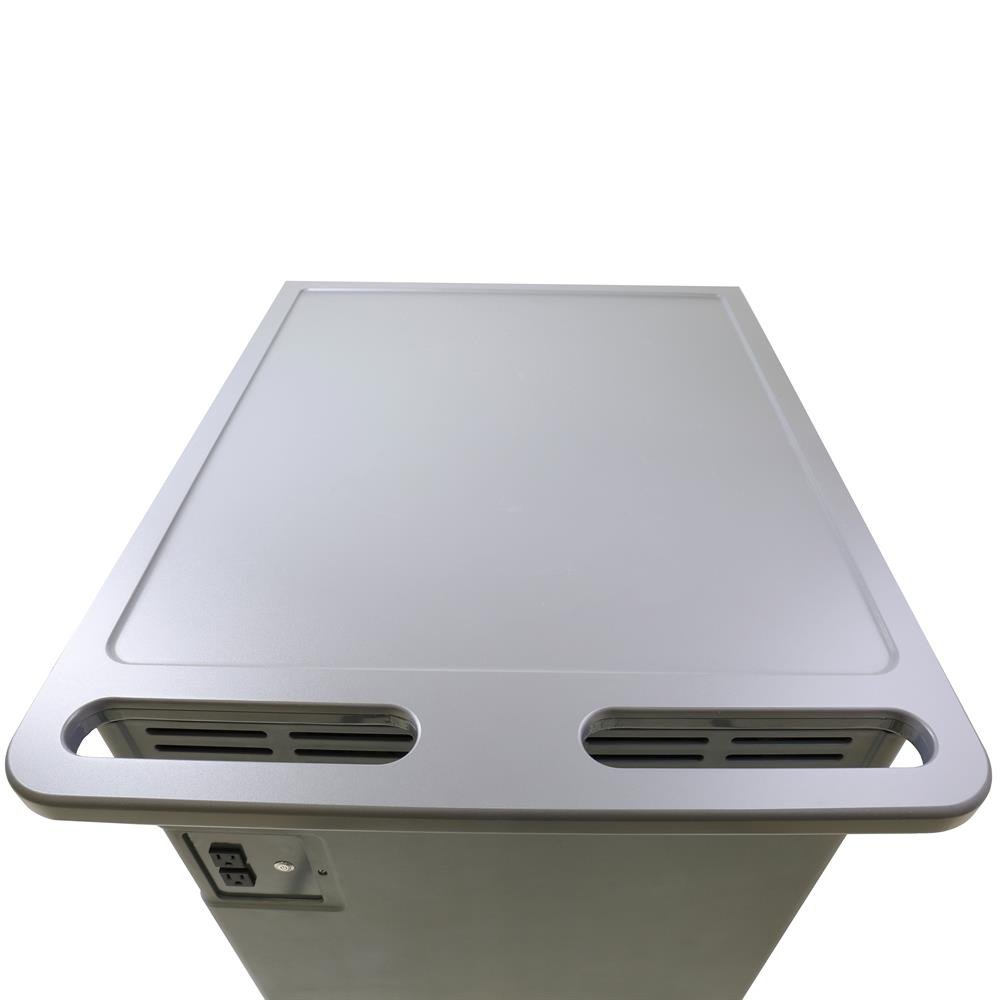

Back View - Ergotron Zip40 Charging Cart
Ergotron Zip40 Charging Cart - DM40-2009-1

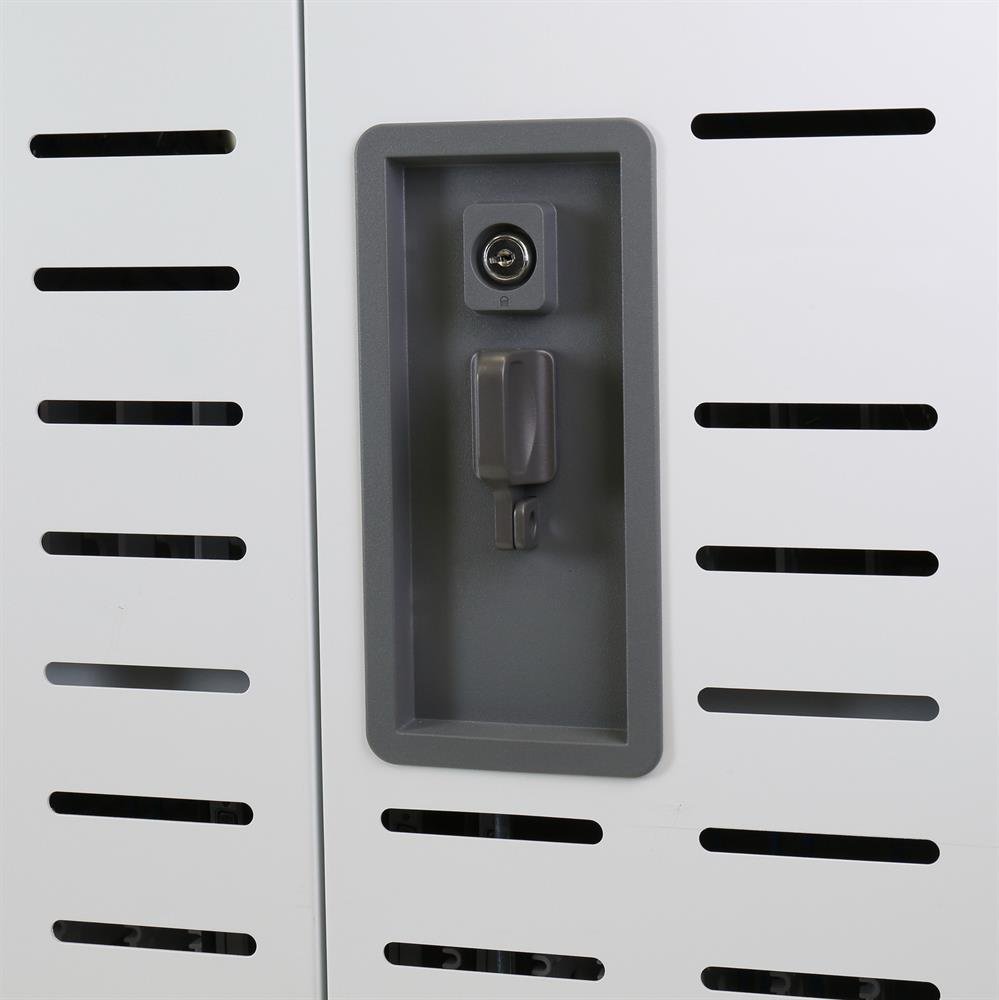

Quick-release doors protect devices with optional bracket to lock the cart in place
Ergotron Zip40 Charging Cart - DM40-2009-1
Back View - Ergotron Zip40 Charging Cart
Ergotron Zip40 Charging Cart - DM40-2009-1
Quick-release doors protect devices with optional bracket to lock the cart in place

Description

Transport, secure and charge up to 40 devices in one place with Ergotron DM40-2009-1  Zip40 Charging Cart. The adjustable dividers in this easy-to-move cart fit tablets, Chromebooks, Ultrabooks, MacBooks and laptops, keeping your devices ready for any lesson plan. PowerShuttle Technology quickly charges devices while helping prevent electrical circuit overload. With no assembly required, this charging cart moves to the head of the class.

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 15.6"

Up to 7.6 lbs

3.4 kg

- - - - -

Product Information

Part Number
  • North America = DM40-2009-1

  • Europe = DM40-2009-2

  • United Kindom/Ireland = DM40-2009-3

  • Hong Kong/Malaysia/Singapore = DM40-2009-3

  • Australia/New Zealand = DM40-2009-4

  • China = DM40-2009-5

  • Japan = DM40-2009-6

Description Zip40 Charging Cart (grey/white)
Includes
  • 40 dividers

  • 9 small device divider stoppers

  • 9.8' (3 m) country-specific power cord

  • 4 country-specific 10-outlet power strips

  • Two 20-unit brick storage trays

  • Four 5ʺ dual-wheel locking casters

  • External auxiliary outlet (2 receptacles in US, JP or 1 receptacle in EU, UK, AU, CN)

  • 2 mounting brackets for Ethernet switch

  • 2 internal auxiliary outlets for Ethernet switch and WAP installation

  • power on/off switch

  • 2 keys

Ships Fully assembled
Total Capacity Up to 40 devices with 1.1"-wide (28 mm) slot; up to 30 devices with 1.9"-wide (48 mm) slot
Maximum Device Dimensions 17.1"W x 11.2"H (43.4 x 28.4 cm) including case and cord. Screen size may exceed 15.6" if the device’s outside dimensions fit within these measurements
Divider Bumpers Shorten the slot size to provide easy plug-in access for smaller tablet devices
Maximum Adapter Dimensions Brick-style AC adapter = 7"H x 3"W x 2.2"D (17.8 x 7.6 x 5.6 cm). Wall-plug-style AC adapter = 2.2"W x 4.7"L x 3.9"D (5.5 x 12 x 10 cm) including cable strain relief. Cable diameter = 2.6–4.6 mm
Compatible With Apple’s eighth-generation iPad
Weight Capacity Total = 255 lbs (116 kg); 76.5 lbs (34.7 kg) per shelf (3 shelves total in cart); 25 lbs (11.3 kg) top worksurface. Per device maximum weight of 7.6 lbs (3.4 kg) assumes 10 devices per shelf in a cart configured to hold 30 devices in total
Outlet Strip Country-specific 10-receptacle outlet strip is designed to work with oversized wall-style and brick-style AC adapters
Uses Uses the AC adapters that come with each device. AC adapters are not included
Cooling/VentilationFour 12V DC continuous operation fans and ventilated doors keep equipment cool
External Auxiliary Outlet(s)Give you an always-on outlet to plug in extra peripherals like printers or document cameras. No need to choose between using the auxiliary outlets and charging devices - do both at the same time!
Location included for Installation
  • Location included for installation of a Wireless Access Point (WAP not included). Maximum dimensions of the WAP = 10"W x 10"D x 2.2"H (25.4 x 25.4 x 5.6 cm)

  • Location included for installation of a standard 1U rack mountable Ethernet Switch (switch not included). Maximum dimensions of the switch = 17.5"W x 12.4"D x 1.8"H (44 x 26 x 4.4 cm). Maximum weight of the switch = 12 lbs (5.4 kg)

Country-Specific Power Cord 12.5' (3.8 m) long; stored on a recessed cord wrap
Environmentally Clean RoHS, REACH, WEEE and EU (94/620EC) packaging compliant
Power System Input/output = 100-240V~, 12-10A, 50/60 Hz
Temperature Range operating 0° to 30°C (32° to 86°F); storage -40°C to 60°C (-40° to 140°F)
Relative Humidity (maximum) Operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing)
Altitude (maximum) 2000 m (6,562')
Certification
  • UL/IEC 62368-1 and CSA C22 2 No. 62368-1 for Safety of Information Technology Equipment; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands, and Entertainment Centers for Use with Audio and/or Video Equipment

  • ICES-003 Issue 4, Class A

  • FCC Part 15 Class

  • RoHS and Reach compliant material used

Product Dimensions 32.4" x 26.2" x 44.3" (82.2 x 66.4 x 112.5 cm)
Product Weight182.1 lbs
Shipping Dimensions 37"W x 30"D x 52"H (94 x 75 x 132 cm)
Shipping Weight223.3 lbs
Warranty Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables

Benefits

  • Adjustable dividers - Fit up to 40 tablets and Chromebooks or 30 full-size laptops

  • Lightweight design - Zip between classrooms with dual-wheel locking casters that take less effort

  • Fast charging - Uses patented PowerShuttle Technology to support safe and fast charging

  • Extend battery life - Built-in fans keep batteries cool so they last longer

  • Secure storage - Quick-release doors protect devices with optional bracket to lock the cart in place

  • Fully assembled - Just plug it in to start charging - saving you time and hassle

Product Options/Accessories

Model DM40-2009-1
Manufacturer Ergotron
Part Number DM40-2009-1
Color Grey/white
Screen Size Up to 15.6 in
Weight Capacity Total = 255 lbs (116 kg); 76.5 lbs (34.7 kg) per shelf (3 shelves total in cart); 25 lbs (11.3 kg) top worksurface. Per device maximum weight of 7.6 lbs (3.4 kg) assumes 10 devices per shelf in a cart configured to hold 30 devices in total
Maximum Device Dimensions 17.1" W x 11.2" H (43.4 x 28.4 cm) including case and cord
Maximum Adapter Dimensions Brick-style AC adapter = 7" H x 3" W x 2.2" D (17.8 x 7.6 x 5.6 cm). Wall-plug-style AC adapter = 2.2" W x 4.7" L x 3.9" D (5.5 x 12 x 10 cm) including cable strain relief. Cable diameter = 2.6–4.6 mm
Power Input/output = 100-240V~, 12-10A, 50/60 Hz
Temperature Operating 0° to 30°C (32° to 86°F); storage -40°C to -60°C (-40° to 140°F)
Humidity Relative Humidity (maximum): operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing)
Altitude (maximum): 2000 m (6,562')
Dimensions 32.4" x 26.2" x 44.3" (82.2 x 66.4 x 112.5 cm)
Weight 182.1 lbs
Shipping Dimensions 37"W x 30"D x 52"H (94 x 75 x 132 cm)
Shipping Weight 223.3 lbs
Warranty Limited lifetime for the frame; five years for other mechanical components; three years for electrical components; one year for cables
