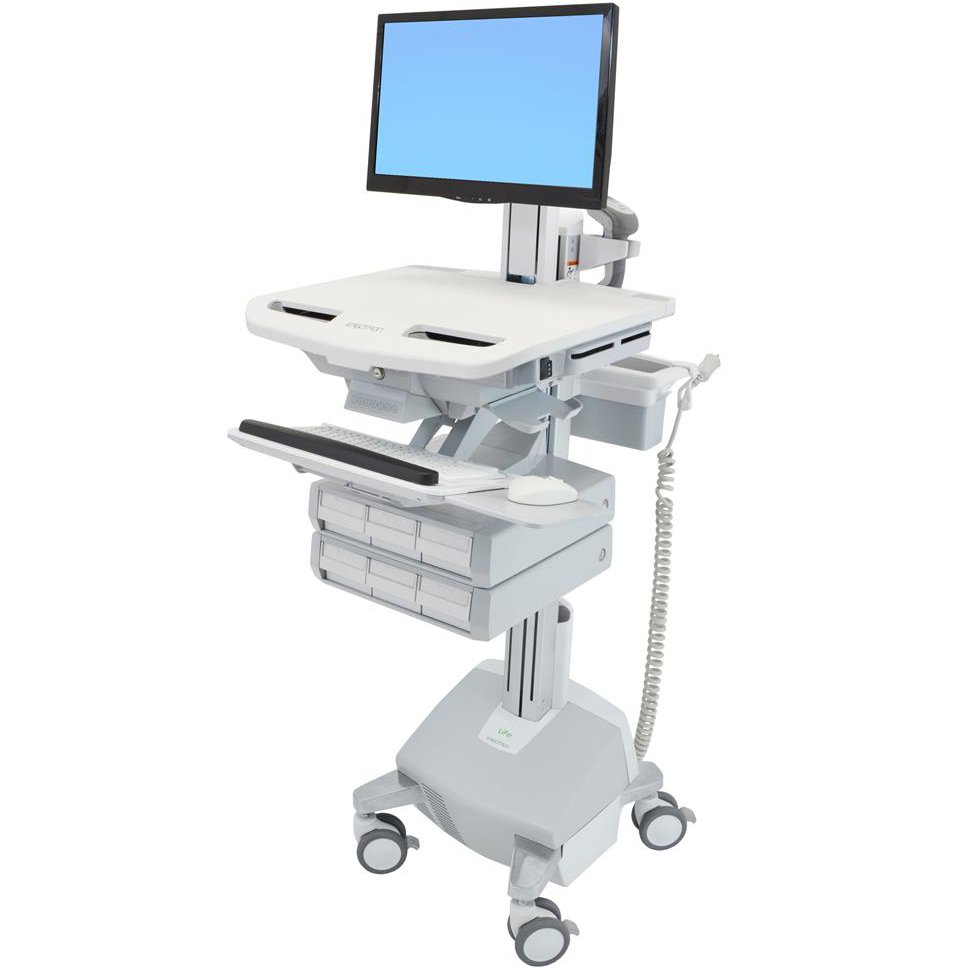

Ergotron SV44-2362-1 SV Electric Lift Cart with Pivot, LiFe Powered, 6 Drawers
SV44-2362-1 is non-returnable/non-cancelable.
Description
Ergotron SV44-2362-1 versatile and compact StyleView medical cart with electric lift provides 20 inches (51 cm) of adjustment to simultaneously move the worksurface and keyboard to match changing workflows. Designed for any caregiver, the electric lift removes user effort and supports multiple drawers and heavier loads. At the push of a button, caregivers can go from sitting to standing for a comfortable, ergonomic fit that adjusts farther and faster than our competitors’ electric carts.
Technical Drawing
Technical Specifications
Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
Up to 24" |
Up to 33 lbs 15.0 kg |
25" 63.5 cm |
25° | 24° | 90° | MIS-D |
Product Information
Part Number | SV44-2362-1 |
Description | StyleView Electric-Lift Cart with Pivot, LiFe Powered, 6 Drawer (3 small drawers x 2 rows) |
TAA | (Trade Agreements Act) compliant |
Includes |
|
Total Maximum Load on Height-Adjustment Assembly | 33 lbs (15 kg). This is the sum of the following components: LCD pivot = 5–11 lbs (2.3–5 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); small drawer ≤ .25 lbs (.1 kg) |
Note |
|
LCD and Worksurface | Adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm) |
Portrait Screen Orientation | May be incompatible with widescreen displays > 19" |
Cart |
|
True Ergonomics |
|
Safe |
|
Service |
|
All the Details Covered |
|
Compatibility and Dimensions |
|
Shipping Dimensions | 24.5"W x 34"D x 56"H (62 x 87 x 142 cm) |
Shipping Weight | 164 lbs (74.4 kg); actual cart weight = 130 lbs (59 kg) |
Warranty | Five years for cart’s mechanical components; three years on electric lift; two years on power module; five years on LiFe battery, including two-year capacity guarantee. See complete warranty for details |
Benefits
Electric lift reduces the user force to zero for effortless adjustment between sitting and standing
Meets the needs of an expanding demographic of healthcare users by providing accessibility for all - older, shorter or taller caregivers or those with physical limitations

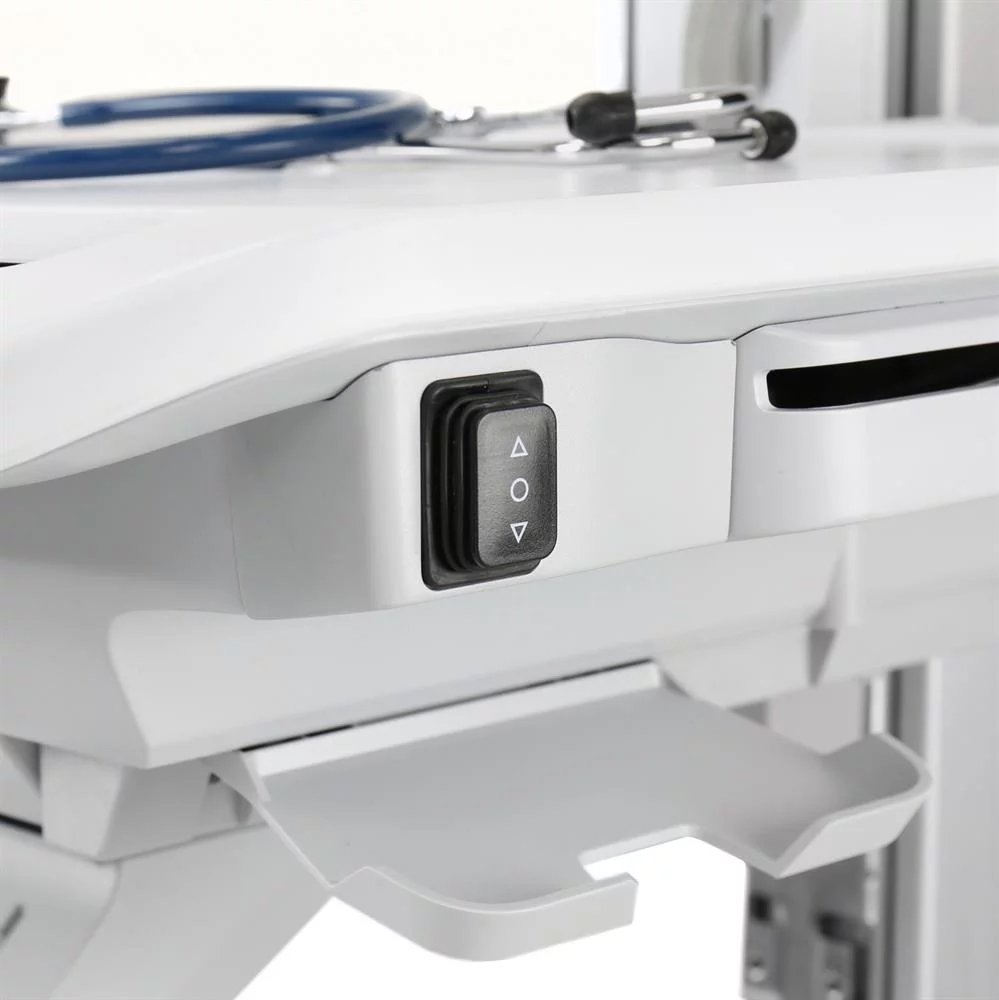

Adjusts the full 16" (41 cm) range in less than 15 seconds with a simple up and down switch

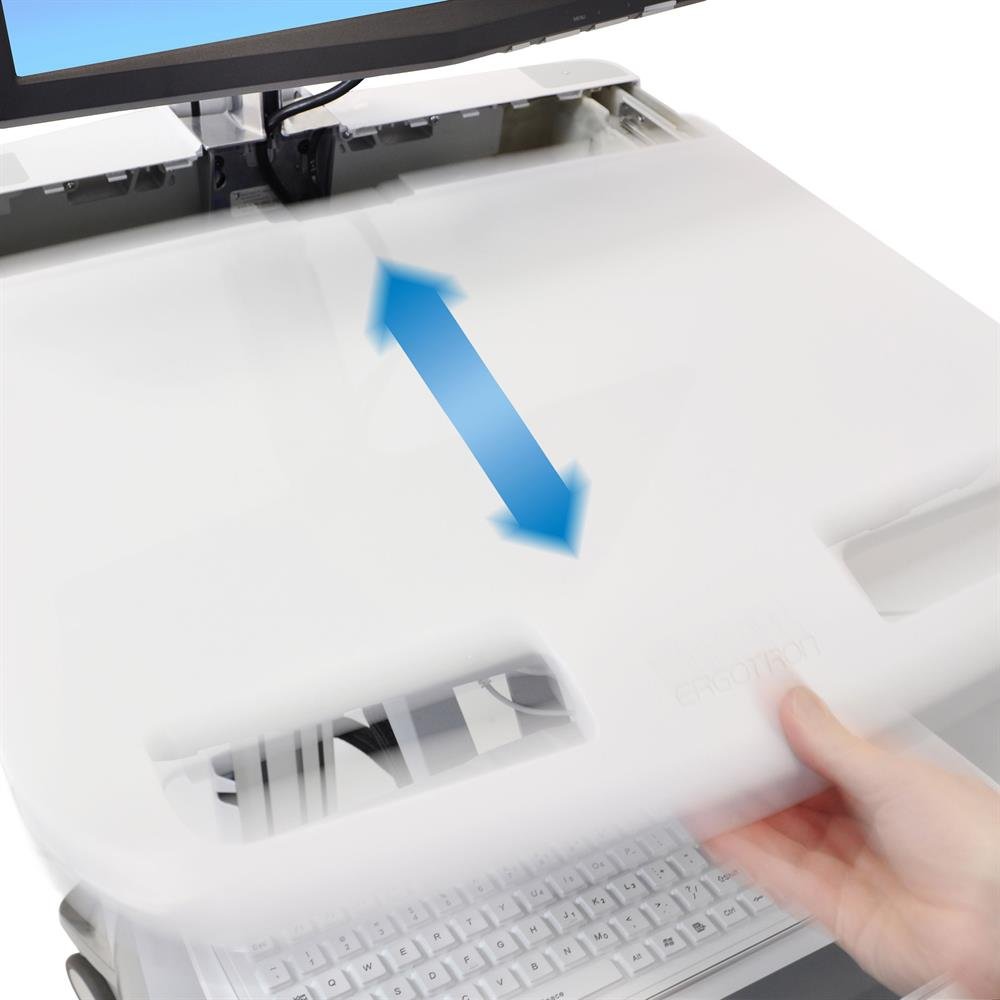

Allows users to raise or lower the keyboard and display in one simple motion for an easy, ergonomic fit
Auto-stop sensor prevents the lift engine from lowering too far
Electric lift comes with a three-year warranty
LiFe makes the cart extremely lightweight and easy to move
Ultrafast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours
Long battery ‘LiFe’ minimizes time and cost for maintenance and replacement
For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
Auto-locking drawer system provides simple and efficient medication management at the point-of-care to reduce opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)
Drawer system supports “pharmacy mode,” allowing all drawers to be unlocked simultaneously to facilitate efficient medication stocking
Extra rows of drawers may be added for a maximum of 5 rows
Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing to promote caregiver wellness and productivity
Surfaces are treated with antimicrobial for product protection
Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Product Options/Accessories
Model | SV44-2362-1 |
Manufacturer | Ergotron |
Part Number | SV44-2362-1 |
Monitor Size | Up to 24" |
Weight Capacity | Up to 33 lbs (15.0 kg) |
Lift | (63.5 cm) 25 in |
Tilt | 25 degree |
Pan | 24 degree |
Rotation | 90 degree |
Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
Dimensions | Internal: individual small drawer = 2.5"H x 3.75"W x 10.5"D (63.5 x 95 x 267 mm) - includes dividers to configure up to 4 compartments |
Compact Wheel to Wheel Base Dimensions | 15.5" x 17" (394 x 432 mm) |
Worksurface Dimensions | 22.4"W x 19.75"D (567 x 502 mm) |
VAC | 120V/60Hz |
Shipping Dimensions | 24.5"W x 34"D x 56"H (62 x 87 x 142 cm) |
Shipping Weight | 164 lbs (74.4 kg) |
Cart Weight | 130 lbs (59 kg) |
Warranty | Five years for cart’s mechanical components; three years on electric lift; two years on power module; five years on LiFe battery, including two-year capacity guarantee. See complete warranty for details |
Power Type | LiFe |
Display Type | 1 Monitor |
Lift Technology | Electric |
Screen Size | 24"-30" in |
TAA Compliant | Yes |
