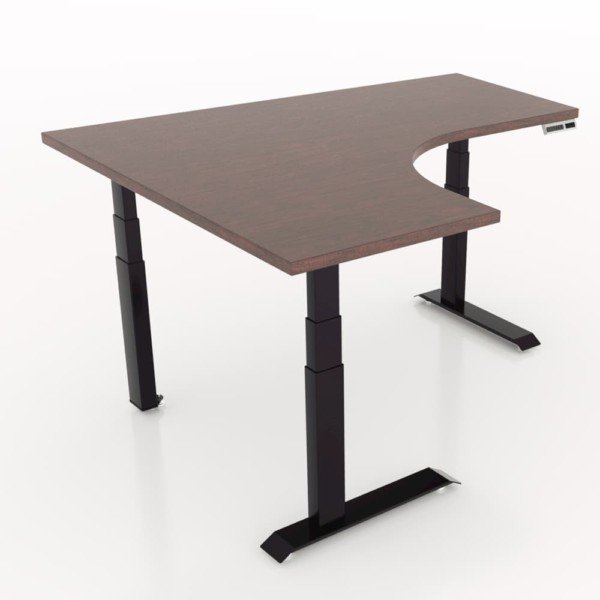

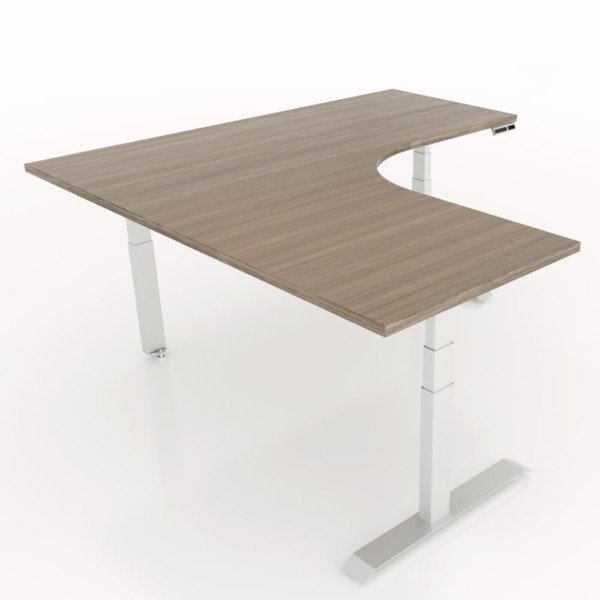

WorkRite Fundamentals EX Electric Large Equal Corner Workcenter

Description

Fundamentals EX/LX Electric Base Sets - All Fundamentals EX and LX Base Sets include a Frame Set (legs, brackets, motor(s) and cables), a Flat Foot Kit and Programmable Switch. Fundamentals EX/LX are designed to provide exceptional quality at an affordable price. Fundamentals EX/LX feature integrated computerized control and are two of the most energy efficient tables in the industry, using less than one dollar of electricity per year on average. The Frame Sets are designed to easily accommodate both 24" and 30" deep worksurfaces with equipment payloads up to 125 pounds.

10 Year Warranty - The Price Fighters. European engineering and exceptional pricing make the Fundamentals series the right choice for anyone looking for limited budget sit-stand reliability. Two stage (LX) and three stage (EX) options provide additional pricing flexibility depending on your height range requirements.

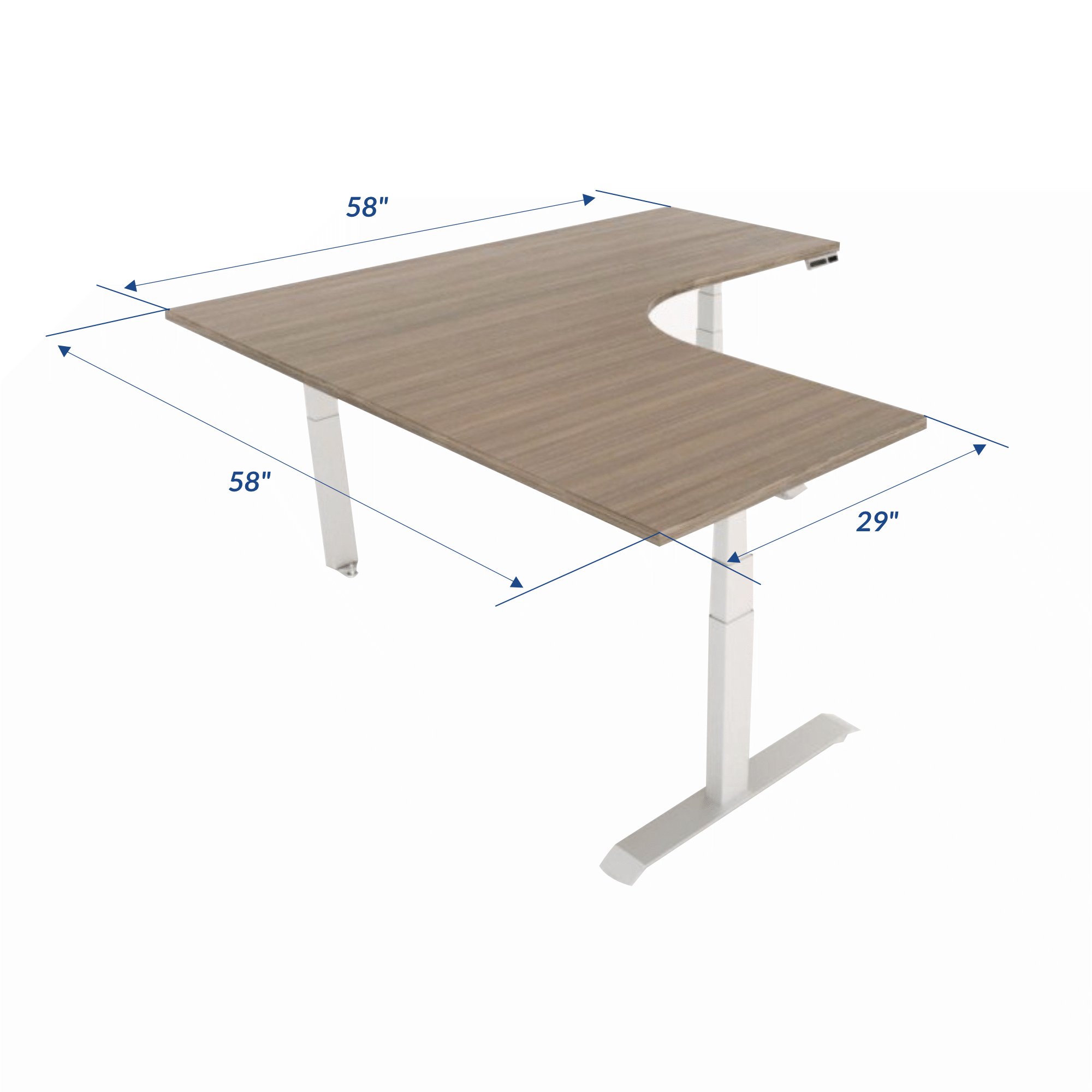

Dimensions

Frame Set Features

• Available for 24" and 30" deep worksurfaces

• Finish options: silver, black, white

• Optional MEMS Anti-Collision technology

• Adjustment speed: 1.6 inches per second

• Standby power: 0.1 W

• Meets BIFMA X5.5 standards for performance and durability

• Workrite Fundamentals EX/LX has achieved GREENGUARD GOLD Certification

• UL962 certified

2-Leg Frame Set Features

• Widths range from 30" to 90" wide

• Height range of 22.5" to 48.7" meets BIFMA G1-2013 requirements

• Payload carry capacity: 125 lbs (after top)

• Gross load capacity: 220 lbs (not including top and safety factor)

• Maximum current draw: 2.5 A at 120 V, 60 Hz

• Meets Chicago code requirements

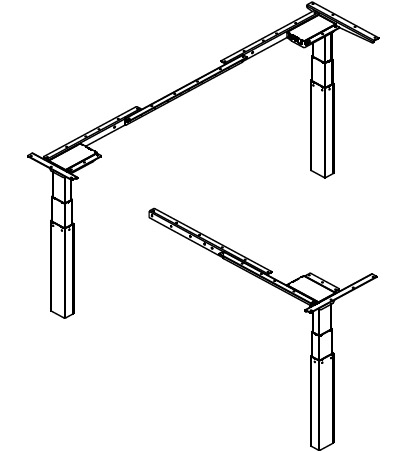

3-Leg Frame Set Features

• Widths range from 42" to 90" wide

• Payload carry capacity: 200 lbs (after top)

• Gross load capacity: 330 lbs (not including top and safety factor)

• Maximum current draw: 4 A at 120 V, 60 Hz

• 10′ power cord

Option 1: Surface Dimensions

Option 2: Laminate Top Colors

Option 3: Base Frame Color

Option 4: Control Switch

Option 5: Foot Type

Option 6: Casters - Wheels

Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.

Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.

Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.

Important Notes:

• Workcenters ship unassembled and require simple hand tools to install.

• If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

• If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

• All workcenters have adjustable glides providing 0.5" of adjustment.

• Mobile pedestals may limit lower height range.
