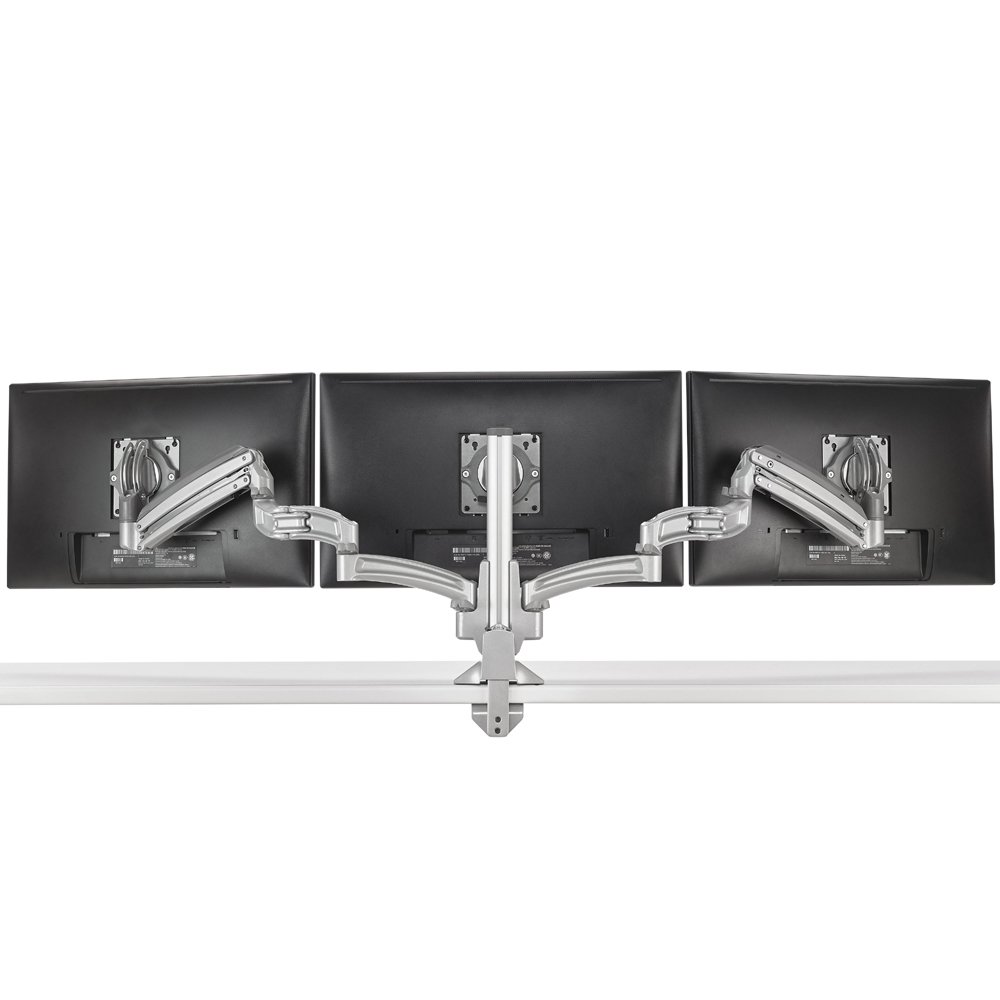

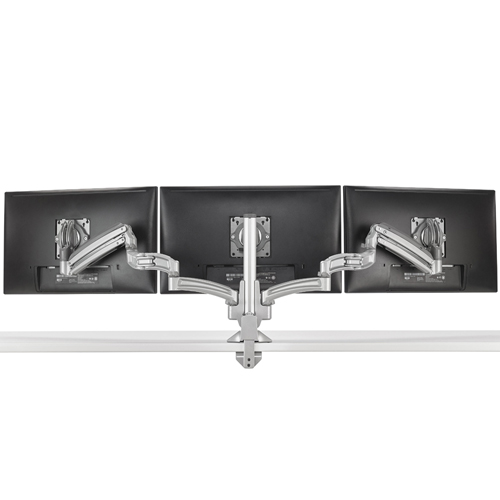

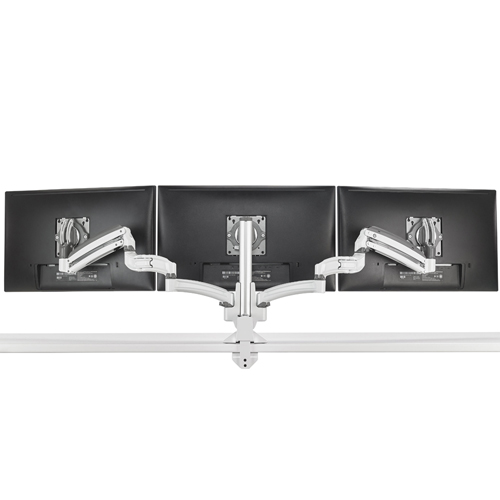

Chief Kontour Height-Adjustable Triple Monitor Desk Mount - KXC330
Description
Chief’s premium Kontour KXC330 KX Series Monitor Arms provide the
most complete range of motion available, due to our exclusive FleXlink
design. KX Series mounts with FleXlink optimize the depth of dual-,
triple- and quad-monitor installs for shallow depth desktops while still
providing full range of motion for screen sharing with colleagues.
This series includes Chief's patented Centris Extreme Tilt technology
for effortless fingertip monitor positioning. Kontour monitor mounts
float your displays in the optimal ergonomic position above your work
surface to create a more productive and comfortable work environment.

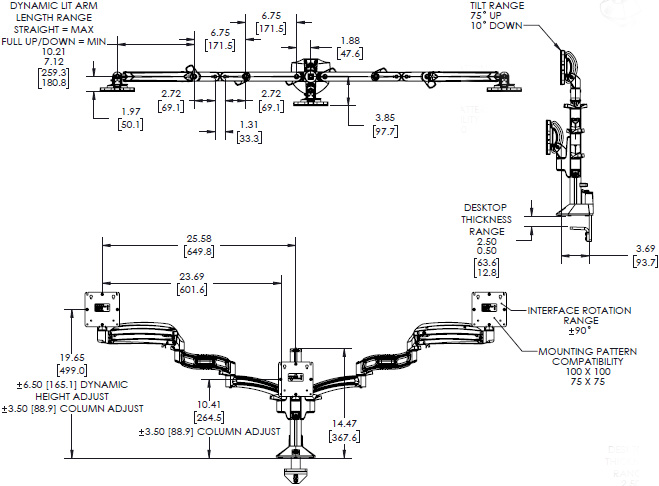

Technical Drawing
Specifications
| Color | Black, Silver and White |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Manual Height Adjustment | 7.0" (177.8 mm) |
| Maximum Extension | 22.5" (571.0 mm) |
| Minimum Depth | 2.45" (62.2 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 3 |
| Solution Type | Universal |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
Features
FleXlink provides full range of motion while optimizing depth of dual-, triple- and quad-monitor mounts for shallow-depth desktops
Best-in-class weight capacity range of 5 to 25 lbs. (2.3 – 11.3 kg) makes specification simple
No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One

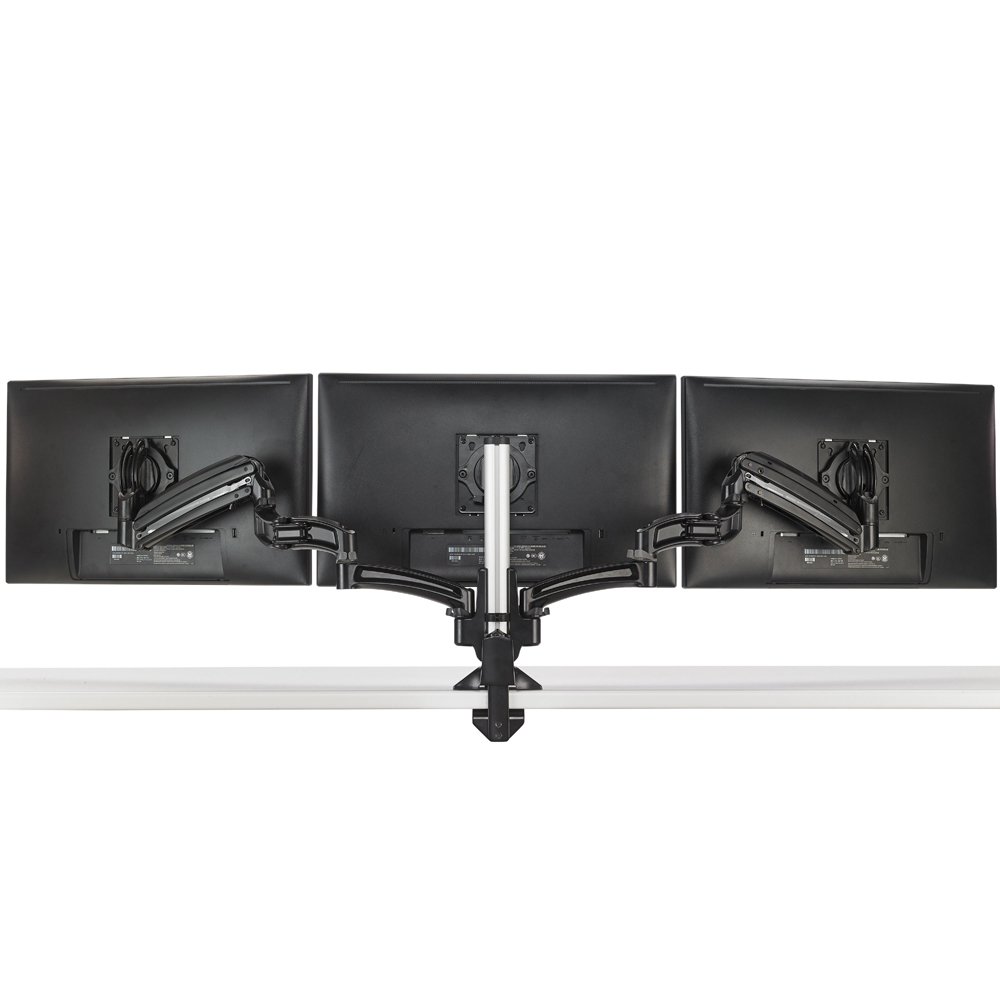

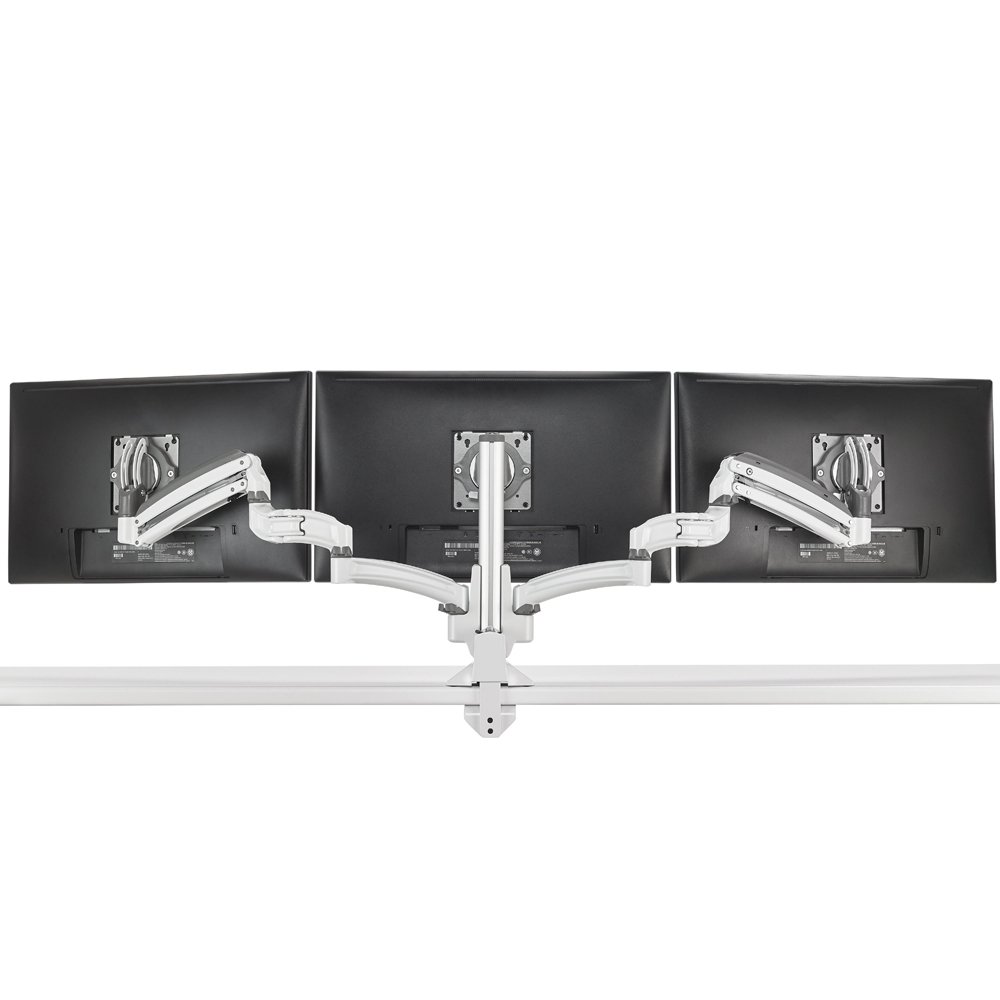

Sleek, solidly-constructed forged aluminum arms in subtle silver, black and white finishes
Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
20" (508 mm) of total height adjustment range
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Additional 7" (178 mm) of manual height adjustment on the column
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
| Model | KXC330B, KXC330S, KXC330W |
| Manufacturer | Chief Mounts |
| Part Number | KXC330B, KXC330S, KXC330W |
| Color | Black, Silver and White |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Manual Height Adjustment | 7.0" (177.8 mm) |
| Maximum Extension | 22.5" (571.0 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern | 75 x 75 mm, 100 x 100 mm |
| Tilt | +75 degree, -10 degree |
| Monitor Size | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
| Number of Monitors | 3 Monitors |
| Mounting Options | Desk |
