$475.00

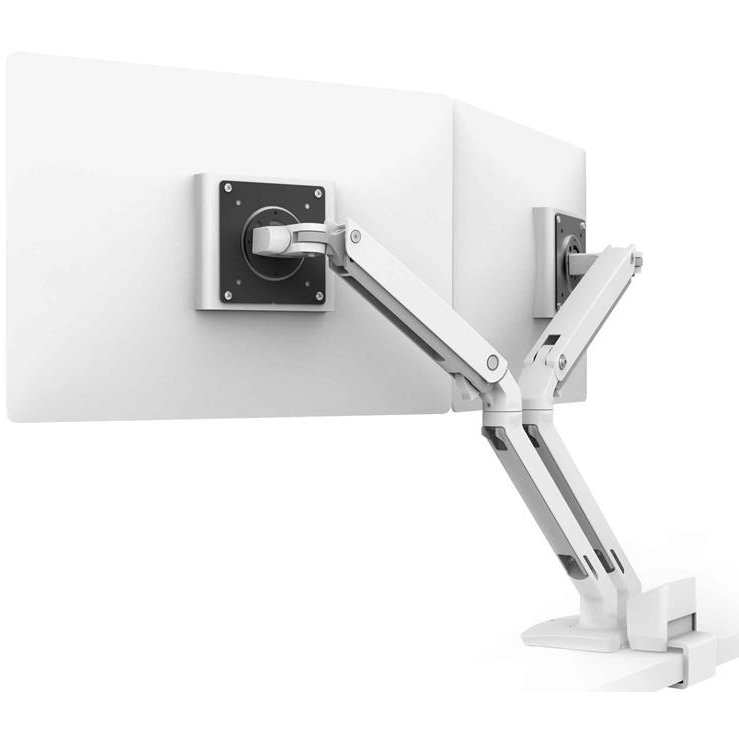

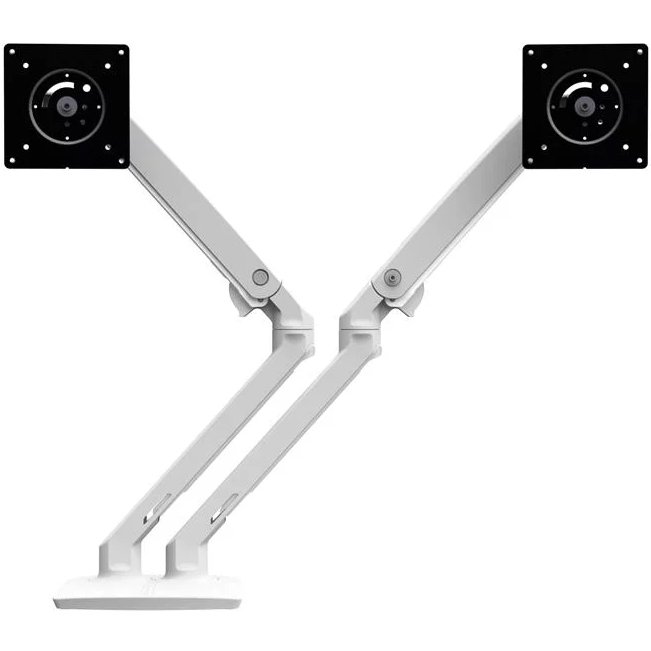

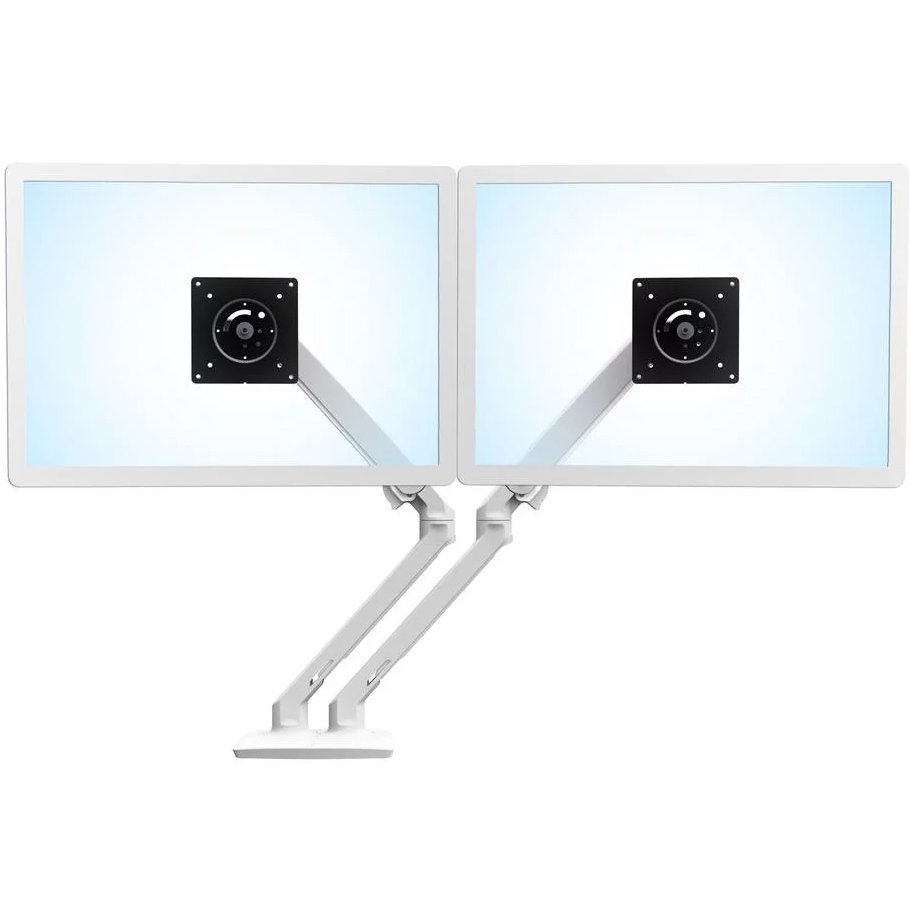

Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp

Product ID 19006
Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp
Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp
Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp
Top Mount C-Clamp
Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp
Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp
Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp
Top Mount C-Clamp

Description

Add style to your dual monitor desk without sacrificing functionality. Ergotron 45-530-216 sleek and lightweight MXV incorporates a modern V-shaped design with proven engineering to create a stable yet flexible platform for your side-by-side screens. This model includes a top mount c-clamp attachment, which attaches above the desk surface for a more ergonomic and easier installation.

With a slim profile, MXV offers 13" (33 cm) of integrated height adjustment, integrated tilt and more - all on a convenient swivel base. The arm’s adjustability helps increase viewing comfort, while its upscale finish leaves a stylish impression.

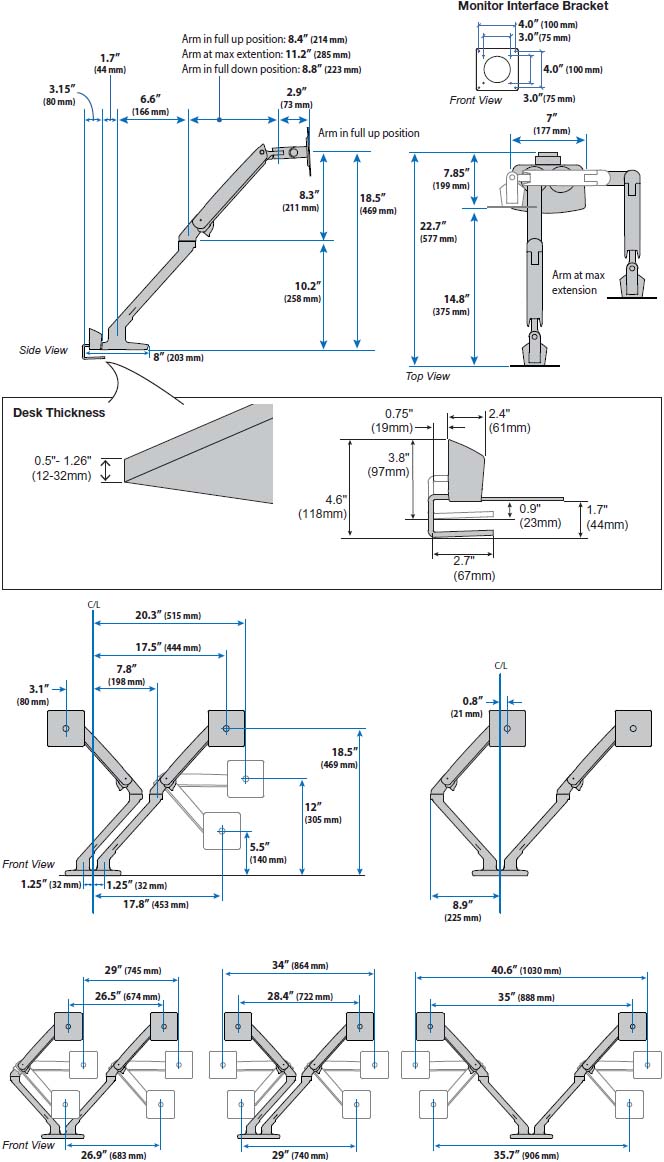

Technical Drawing

Technical Drawing for Ergotron 45-530-216 MXV Desk Dual Monitor Arm with Top Mount C-Clamp

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 40 lbs

18.1 kg

13"

33.0 cm

180° 360° 360° MIS-D

Product Information

Part Number 45-530-216 (white)
Description MXV Desk Mount LCD Monitor Arm with Top Mount C-Clamp
Includes
  • Fully assembled arm

  • Top mount c-clamp

  • Monitor attachment hardware

Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Arm Folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

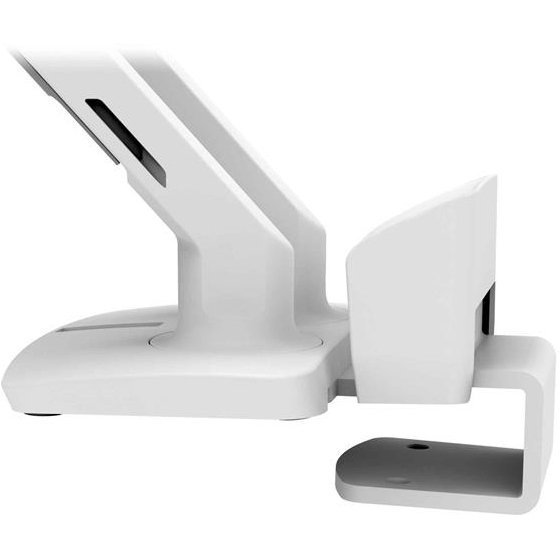

Top Mount C-Clamp Benefits
  • Set back 0.8" (2 cm) to allow panel dividers to nest behind arm base

  • Made for tight installations: Protrudes only 0.24" (6 mm) from bottom of worksurface when installed

  • Installation requires 2.7" (6.7 cm) from edge of desktop to back wall in order to slide clamp on from rear; alternatively, clamp can slide on from the side if open

Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Monitor Size Screens sizes up to 24" can be accommodated though there will be a reduction in adjustment capability
Weight Capacity Individual monitor weight = 7 to 20 lbs (3.2 to 9.1 kg); maximum combined weight of displays = 40 lbs (18.1 kg)
Tilt Range 90° backward, 90° forward
Pan Range 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to a full 360°
Extension Range 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
Product Weight 11.6 lbs (5.3 kg)
Shipping Dimensions 37.2" x 15.7" x 7.6" (94.5 x 39.8 x 19.5 cm)
Shipping Weight 16.6 lbs (7.5 kg)
Warranty Ten (10) years

Benefits

  • Top mount c-clamp mount offers a quicker and more ergonomic install from the top of the desk and requires minimal space under the desk’s edge for attachment

  • Enhance productivity by positioning your work across two screens. Easily turn one or both screens from landscape to portrait mode to view full pages and additional applications without scrolling

  • Saves valuable desk space with the cable management system and narrower profile - 25% slimmer than the LX arm

  • Allows you to easily adjust your display with a light touch thanks to patented Constant Force technology

  • Creates additional flexibility with a friction pivot that offers a 180-degree tilt

  • Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)

  • Monitor can extend out up to 22.2" (56 cm)

  • Keeps your monitors within your desk space with a solid rotation-stop, perfect for call centers and back-to-back desks

  • Prevents your arm from making contact with the wall with the base’s rotation-stop, which limits its range to 180 degrees

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  • Arrives fully assembled for you to easily attach to your desk, add your monitor and adjust the tension

Model 45-530-216
Manufacturer Ergotron
Part Number 45-530-216
UPC 698833063752
Color White
Monitor Size Up to 24"
Weight Capacity Up to 40 lbs (18.1 kg)
Lift (33.0 cm) 13 in
Tilt 180 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Extension 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
Weight 11.6 lbs (5.3 kg)
Shipping Dimensions 37.2" x 15.7" x 7.6" (94.5 x 39.8 x 19.5 cm)
Shipping Weight 16.6 lbs (7.5 kg)
Warranty Ten (10) years
Maximum Monitor Size 24"
Monitor Placement Side-by-Side
