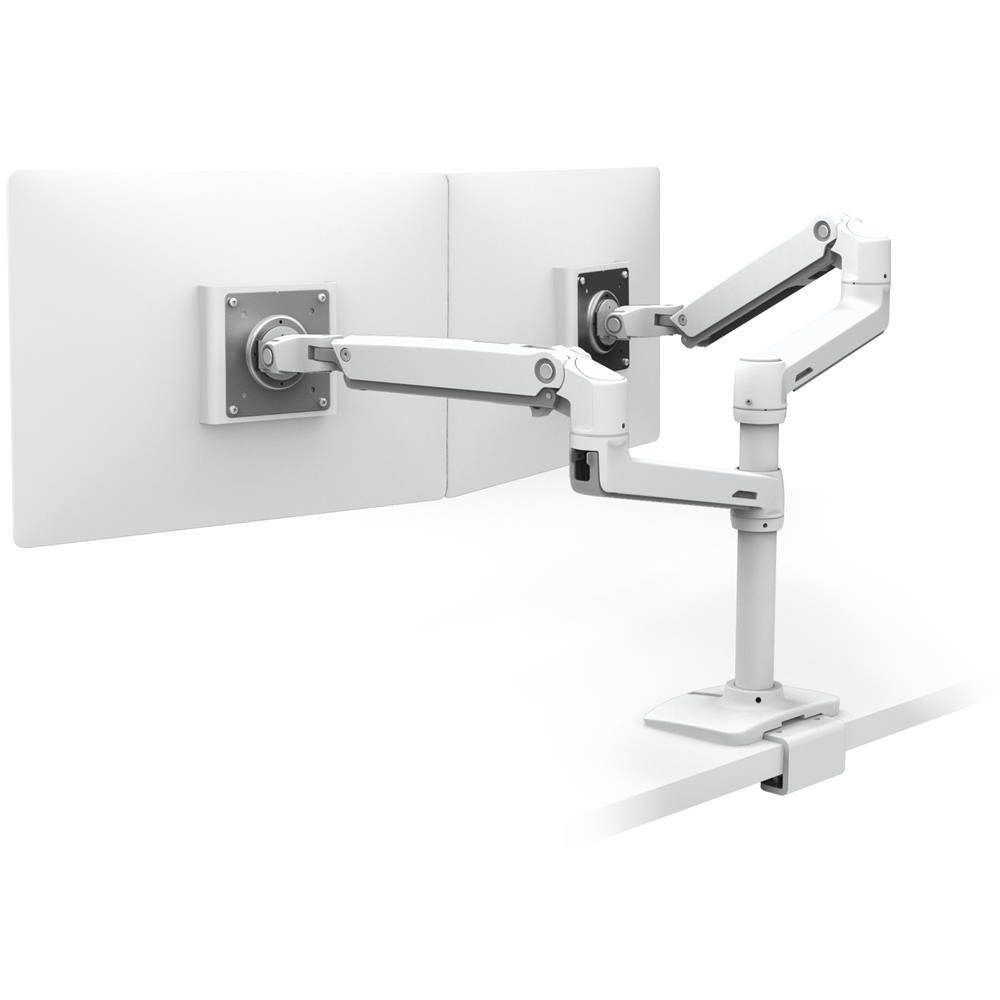

Ergotron 45-502-216 LX Dual Stacking Arm with Under Mount C-Clamp
Description
Durable steel and aluminum construction. Ergotron 45-502-216 creates
a productive multi-display configuration that lifts screens up to where
they’re easier to see while reclaiming valuable worksurface. This model
includes a c-clamp mount, which features a cleaner look and requires
less space under the desk’s surface edge for attachment.
Reposition your LCDs with just a touch. Up. Down. Forward. Back. The LX
provides unparalleled range of motion. Save time by using multiple
applications at once - eliminate toggling back and forth between
documents and programs.

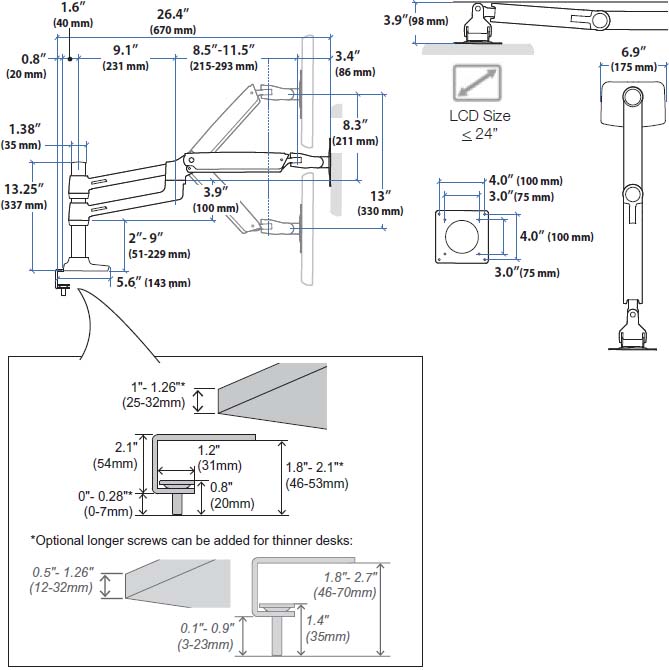

Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24" |
Up to 40 lbs 18.1 kg |
13" 33.0 cm |
75° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-502-216 |
| Description | LX Dual Monitor Stacking Arm with under-mount c-clamp (white) |
| Includes |
|
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Construction | Steel and aluminum construction offers greater durability and enhanced aesthetics |
| Snap-Fit Cap | Secures interface of arms to extensions for greater stability |
| C-Clamp |
|
| Installation | Requires 1.2" (3 cm) from edge of desktop to back wall in order to slide clamp on from rear; alternatively, clamp can slide on from the side if open |
| Allows | Room for divider panels: setback from edge of desk 0.8" (2 cm) |
| Monitor Size | To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm). Most monitors with screens of 24" or less fit within this specification. Larger screen sizes are allowable when positioning displays side by side |
| Weight Capacity | Individual LCD weight = 7 to 20 lbs (3.2 to 9.1 kg) |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Product Weight | 14 lbs (6.4 kg) |
| Shipping Dimensions | 19.6" x 15.7" x 10.7" (50 x 40 x 27 cm) |
| Shipping Weight | 16 lbs (7.2 kg) |
| Warranty | Ten (10) years |
Benefits
C-clamp mount presents a cleaner look when desk is seen from back; requires less space under the desk’s edge for attachment
Frees up the desktop to increase workspace
Easy to use: Simple installation and effortless operation
Frees up the desktop to increase workspace
Cable management feature routes cables under the arm, out of the way
Easily turn one or both screens from landscape mode to portrait mode - view entire pages without scrolling
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Patented Constant Force lift-and-pivot motion technology
Product Options/Accessories
| Model | 45-502-216 |
| Manufacturer | Ergotron |
| Part Number | 45-502-216 |
| Color | White |
| Monitor Size | Up to 24" |
| Weight Capacity | Up to 40 lbs (18.1 kg) |
| Lift | (33.0 cm) 13 in |
| Tilt | 75 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Surface Edge Thickness | 0.5" to 1.26" (1.2–3.2 cm) |
| Weight | 14 lbs (6.4 kg) |
| Shipping Dimensions | 19.6" x 15.7" x 10.7" (50 x 40 x 27 cm) |
| Shipping Weight | 16 lbs (7.2 kg) |
| Warranty | Ten (10) years |
| Maximum Monitor Size | 24" |
| Monitor Placement | Stacked One Over the Other |
