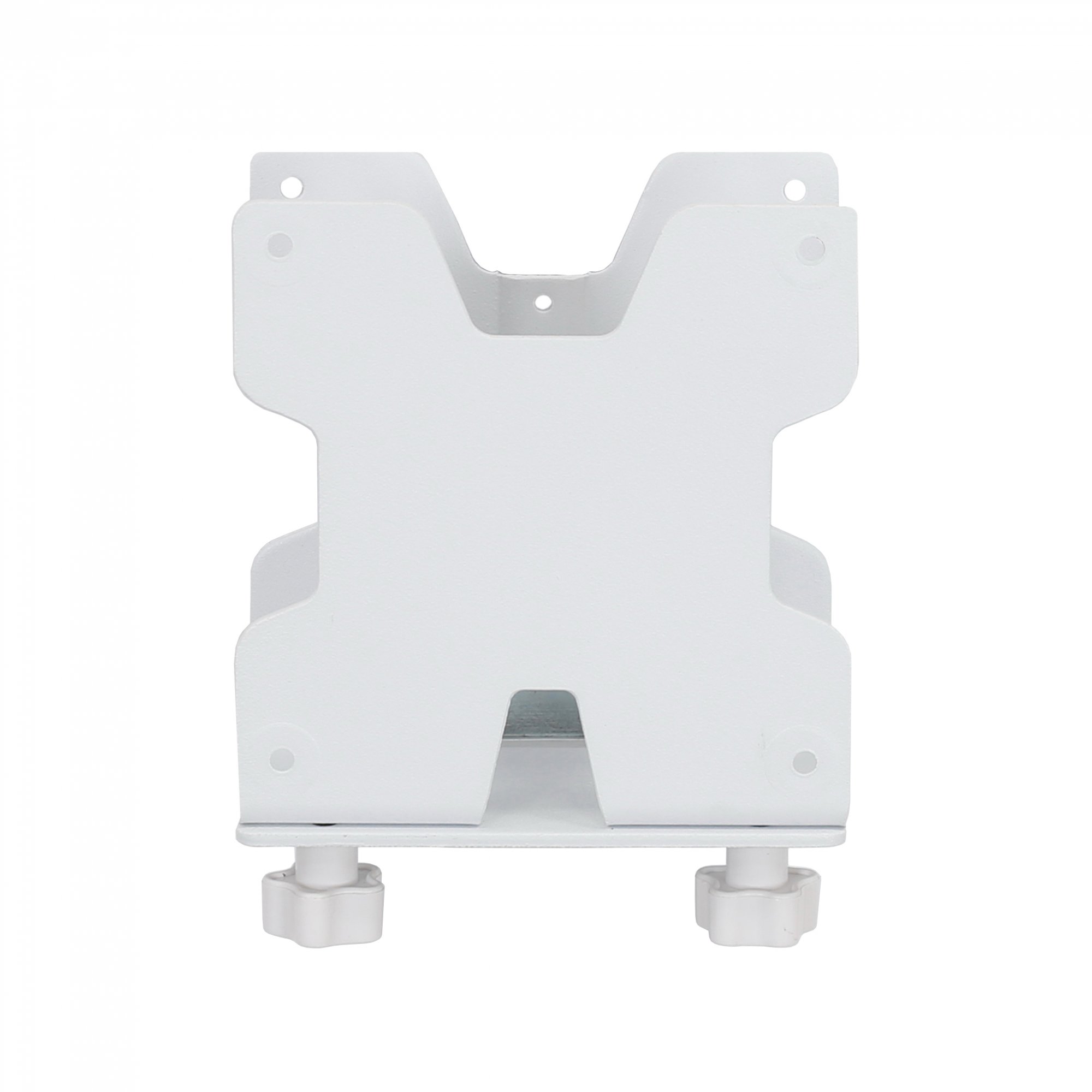

Ergotron 80-107-216 Thin Client Mount (White)

Product ID 18960
Ergotron 80-107-216 Thin Client Mount (White)
Ergotron 80-107-216 Thin Client Mount (White)
Ergotron 80-107-216 Thin Client Mount (White)
Ergotron 80-107-216 Thin Client Mount (White)

Description

Ergotron 80-107-216 versatile computer mount offers an easy method for integrating a small PC into your workspace. It’s perfect for thin client hardware, a Wyse client, Mac mini or other peripherals. The universal design adapts to the dimensions of the box, while its mounting interface attaches to a variety of surfaces: a VESA plate, directly to a desk, clamped to a pole or fastened to Ergotron Wall Track.

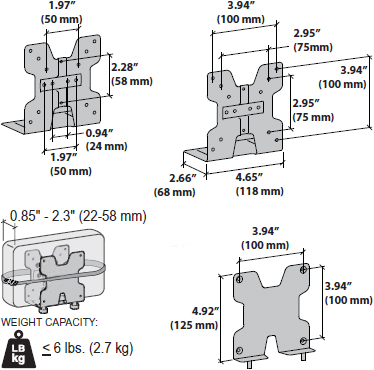

Technical Drawing

Technical Drawing for Ergotron 80-107-216 Thin Client Mount (white)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
-

Up to 6 lbs

2.7 kg

- - - - MIS-D

Product Information

Part Number 80-107-200 (Black), 80-107-216 (White)
Description Mini PC Mount (formerly known as Thin Client Mount)
Includes
  • 2-piece holder

  • Mounting brackets

  • Pads

  • Strap

  • Attachment hardware for mounting to VESA plate

  • Wall Track

  • Pole or wood surface

Mounting Options
  • VESA mount; between monitor and VESA plate interfaces

  • Pole with diameter of 1.38" to 1.58" (35 to 40 mm); poles used in LX arm and DS100 configurations

  • Ergotron Wall Track

  • Under desktop to wood surface

Weight Capacity
  • PC  ≤ 6 lbs (2.7 kg)

  • Monitor ≤ 18 lbs (8.2 kg) if attached via VESA mount interface

Allowable Thin Client or CPU Dimensions
  • Depth = 0.85" to 2.3" (22 to 58 mm)

  • Height = 6.8" to 10" (173 to 254 mm)

  • Width = 4" to 9" (102 to 229 mm)

Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Mounting Pads and Strap Are included for increased stability
Product Weight 1.9 lbs
Shipping Dimensions 6" x 7" x 4.25" (15 x 18 x 11 cm)
Shipping Weight 2.4 lbs
Warranty Five (5) years

Benefits

  • Extremely versatile: Includes hardware for attachment to several surfaces and Ergotron mounts

  • Size-adjustable holder fits a wide range of small computers

  • Accommodates most thin clients on the market

  • Perfect holder for Mac mini from Apple (compatible with all generations)

  • Efficiently integrates a small computer into a display-mount configuration, creating a complete workstation solution

  • Saves space with a universal VESA interface that attaches to any VESA mount with a 100 or 75 mm hole pattern

  • Pro tip: Match with a Wall Track accessory for a low profile when VESA mounting may not be possible

  • Steel construction for strength and durability

Model 80-107-216
Manufacturer Ergotron
Part Number 80-107-216
Color White
Weight Capacity PC ≤ 6 lbs (2.7 kg). Monitor ≤ 18 lbs (8.2 kg) if attached via VESA mount interface
Dimensions Depth = 0.85" to 2.3" (22 to 58 mm), Height = 6.8" to 10" (173 to 254 mm), Width = 4" to 9" (102 to 229 mm)
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Weight 1.9 lbs
Shipping Dimensions 6" x 7" x 4.25" (15 x 18 x 11 cm)
Shipping Weight 2.4 lbs
Warranty Five (5) years
