Chief KRA228B or KRA228S K2P, K2W Dual Monitor Upgrade Kit
Description
Chief KRA228 K2 Dual Monitor Upgrade Kit provides a fast & easy means of adding a second arm to any single-arm K2P120 or K2W120 mount; converting them to the dual-arm K2P220 or K2W220.

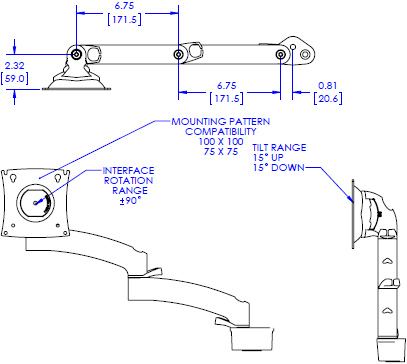

Technical Drawing
Specifications
| Color | Black, Silver |
| Maximum Extension | 17.1" (434 mm) |
| Minimum Depth | 2.95" (75 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Shipping Weight | 5.5 lbs (2.49 kg) |
| Tilt | +/- 15° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | Up to 25 lbs (11.3 kg) per monitor |
| Orientation | Landscape, Portrait |
Features
Converts a single-arm K2P120 or K2W120 into a dual-arm K2P220 or K2W220
Includes Y-Adapter, K2 articulating monitor arm, and all necessary hardware to complete the upgrade
Sleek, solidly-constructed forged aluminum arms in subtle semi-gloss silver & black finishes
Patented Centris Head provides +/- 15° of effortless tilt, for optimal viewing comfort whether sitting or standing
Infinite manual height adjustment on the Pole for optimizing screen position
Tool-free cable management clips provide a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Product Options/Accessories
| Model | KRA228B, KRA228S |
| Manufacturer | Chief Mounts |
| Part Number | KRA228B, KRA228S |
| Color | Black, Silver |
| Maximum Extension | 17.1" (434 mm) |
| Minimum Depth | 2.95" (75 mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Shipping Weight | 5.5 lbs (2.49 kg) |
| Tilt | +/- 15 degree |
| Monitor Size | 10 - 30" (254 - 762 mm) diagonals |
| Weight Capacity | Up to 25 lbs (11.3 kg) per monitor |
| Orientation | Landscape, Portrait |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
