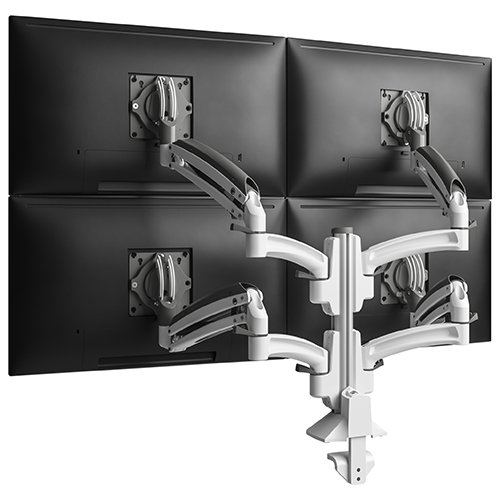

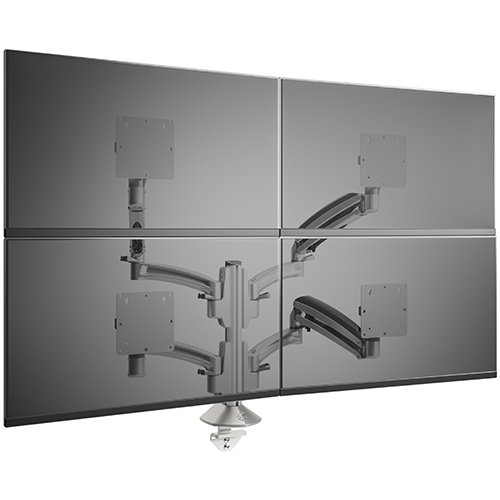

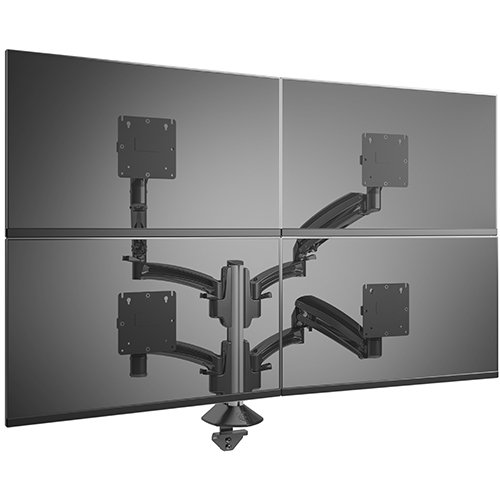

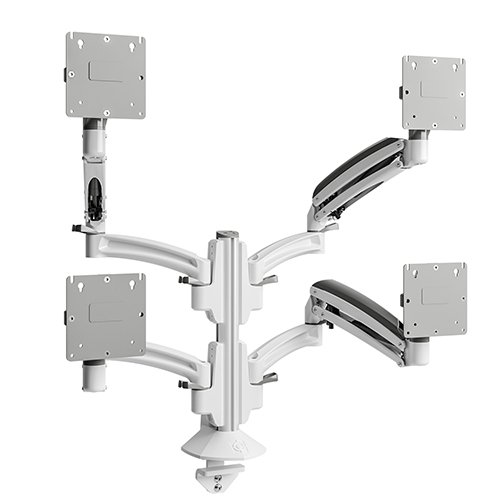

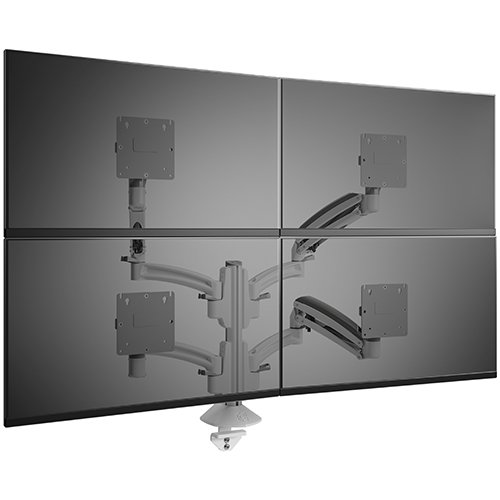

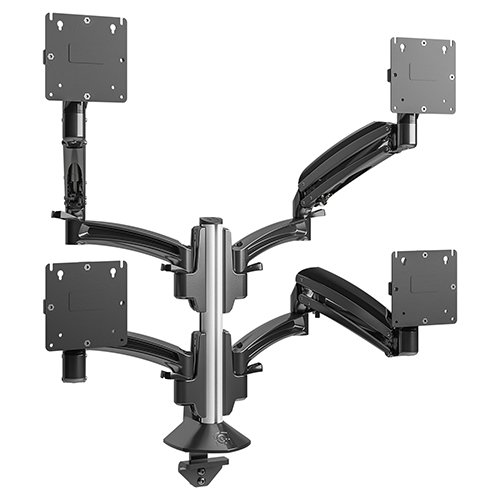

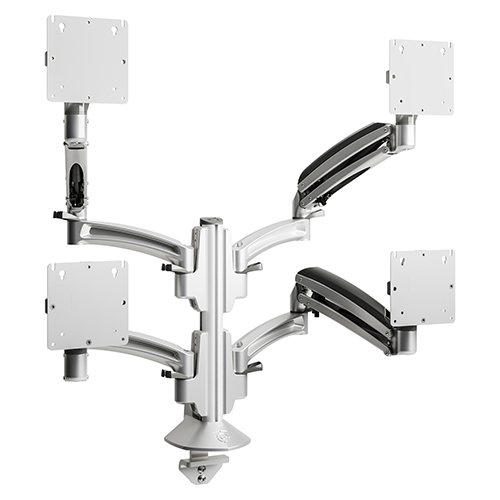

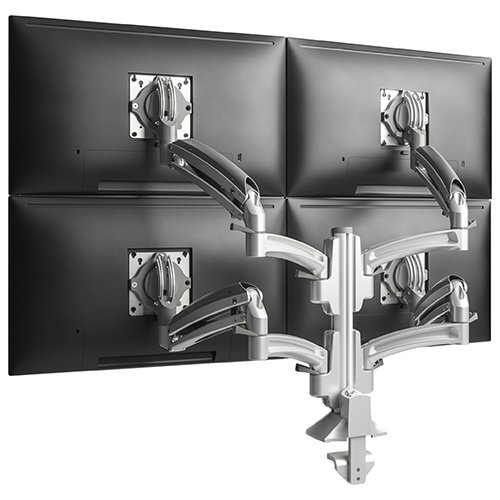

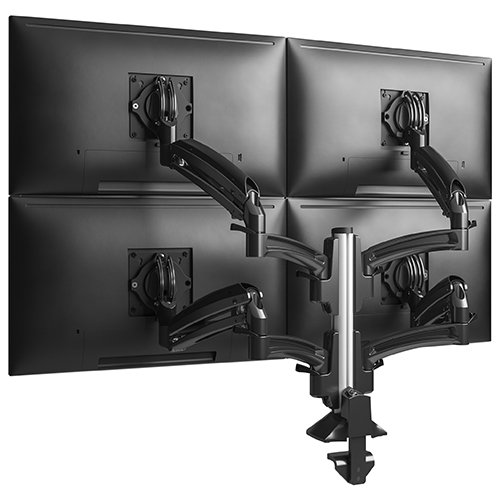

Chief K1C420 Kontour K1C Quad 2x2 Monitor Dynamic Column Mount
Description

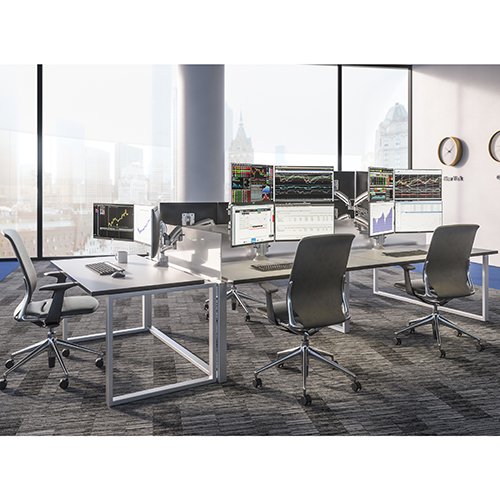

Chief K1C420, Kontour K1C Dynamic Height-Adjustable Column Mounts are the perfect solutions for the office, healthcare facilities or home. K1C mounts provide both dynamic and manual height adjustment for the ultimate ergonomic solution. And best-in-class weight capacity range makes specification simple. Chief's patented Centris Extreme Tilt technology provides effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.

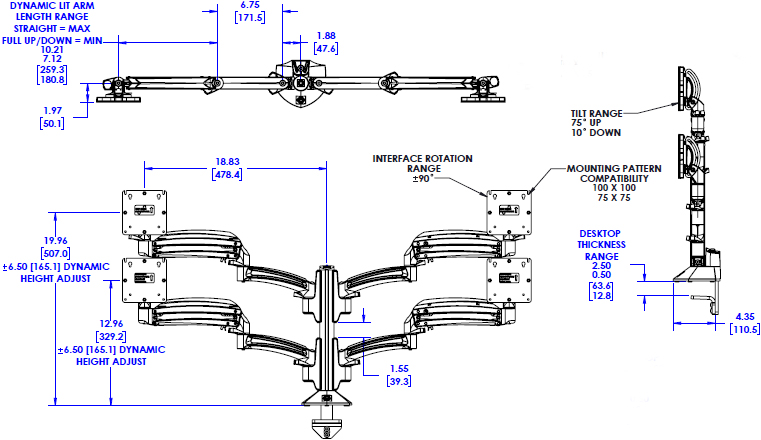

Technical Drawing
Specifications
| Color | Black, Silver and White |
| Certifications | TAA Compliant |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Dynamic Height Adjustment | 13.0" (330.2 mm) |
| Maximum Extension | 25.5" (647.7 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 4 |
| Shipping Weight | 33 lbs (15.0 kg) |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 36" (254 - 914 mm) |
| Weight Capacity | 5 - 20 lbs (2.3 - 9.07 kg) |
| Orientation | Landscape, Portrait |
Features
Best-in-class weight capacity range of 5 to 20 lbs. makes specification simple
No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One
Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes
Patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
Column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms contribute to valuable LEED-CI, -NC, and -EB credits
| Model | K1C420B, K1C420S, K1C420W |
| Manufacturer | Chief Mounts |
| Part Number | K1C420B, K1C420S, K1C420W |
| Color | Black, Silver and White |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Dynamic Height Adjustment | 13.0" (330.2 mm) |
| Maximum Extension | 25.5" (647.7 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Tilt | +75 degree, -10 degree |
| Shipping Weight | 33 lbs (15.0 kg) |
| Monitor Size | 10 - 36" (254 - 914 mm) |
| Weight Capacity | 5 - 20 lbs (2.3 - 9.07 kg) |
| Orientation | Landscape, Portrait |
| Mounting Options | Desk |
| Number of Monitors | 4 Monitors |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
