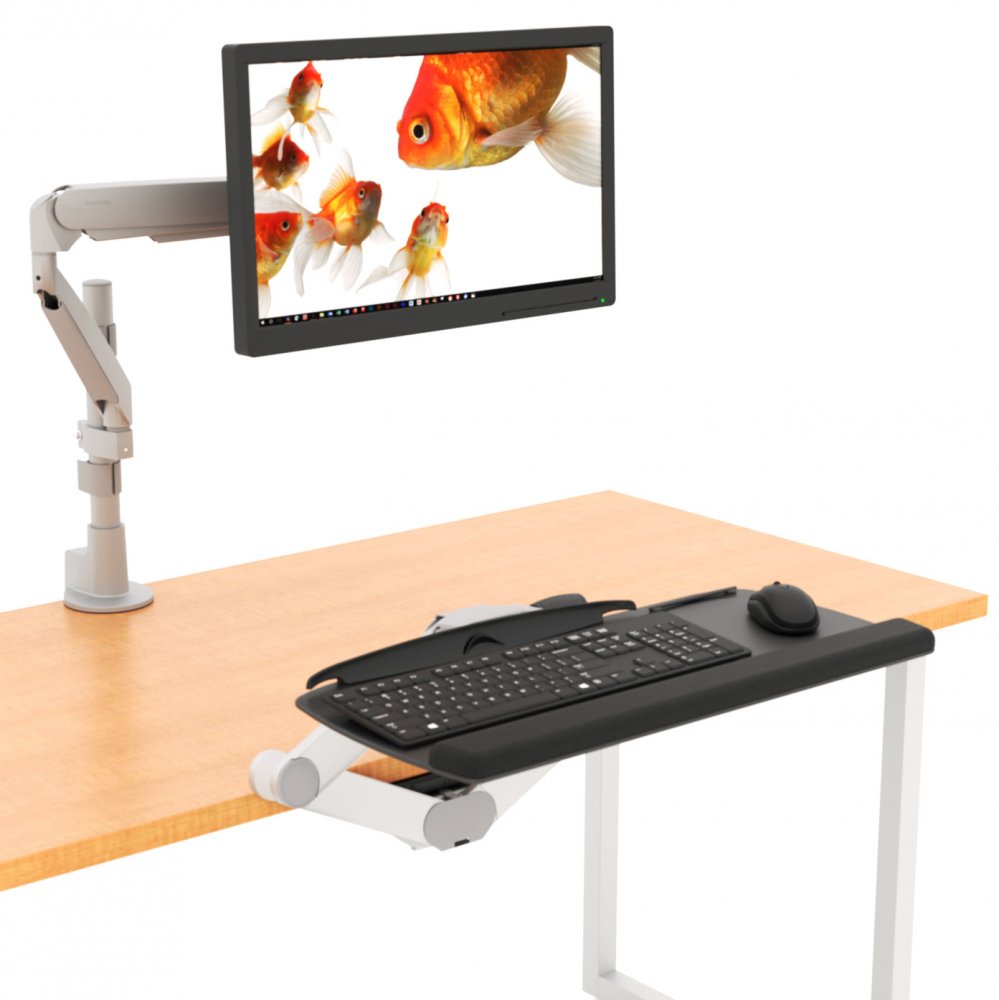

Workrite S2S Ultrathin Height Adjustable Keyboard System
Description
Workrite S2S Ultrathin System offers the greatest user height adjustability range in a keyboard arms coupled with our Ultrathin Tray for a real sit to stand height range for larger keyboards. This system creates a sit to stand height range that allows fixed height workstations to become sit stand workstations.
Ultra-thin phenolic material backed by our lifetime warranty provides years of dependable quality and performance. The removable palm support adjusts easily from side to side to accommodate both right or left mouse use. Includes our Optimizer document holder & cable management for both the mouse and keyboard.
Technical Drawing
Specifications
| Color | Black |
| Height Adjustment | Adjusts from 16" above to 6" below worksurface |
| Tilt | 30° (-20° +10°) |
| Track Length | 17" and 22" |
| Keyboard Arm | System includes Pinnacle S2S keyboard arm |
| Material | UltraThin 0.25" solid phenolic |
| Warranty | Lifetime |
Features
Keyboard and Mouse Tray
Optimizer document holder & cable management
UltraThin 0.25" solid phenolic construction
Removable palm support
Available in black
Keyboard Arm
System includes Pinnacle S2S keyboard arm

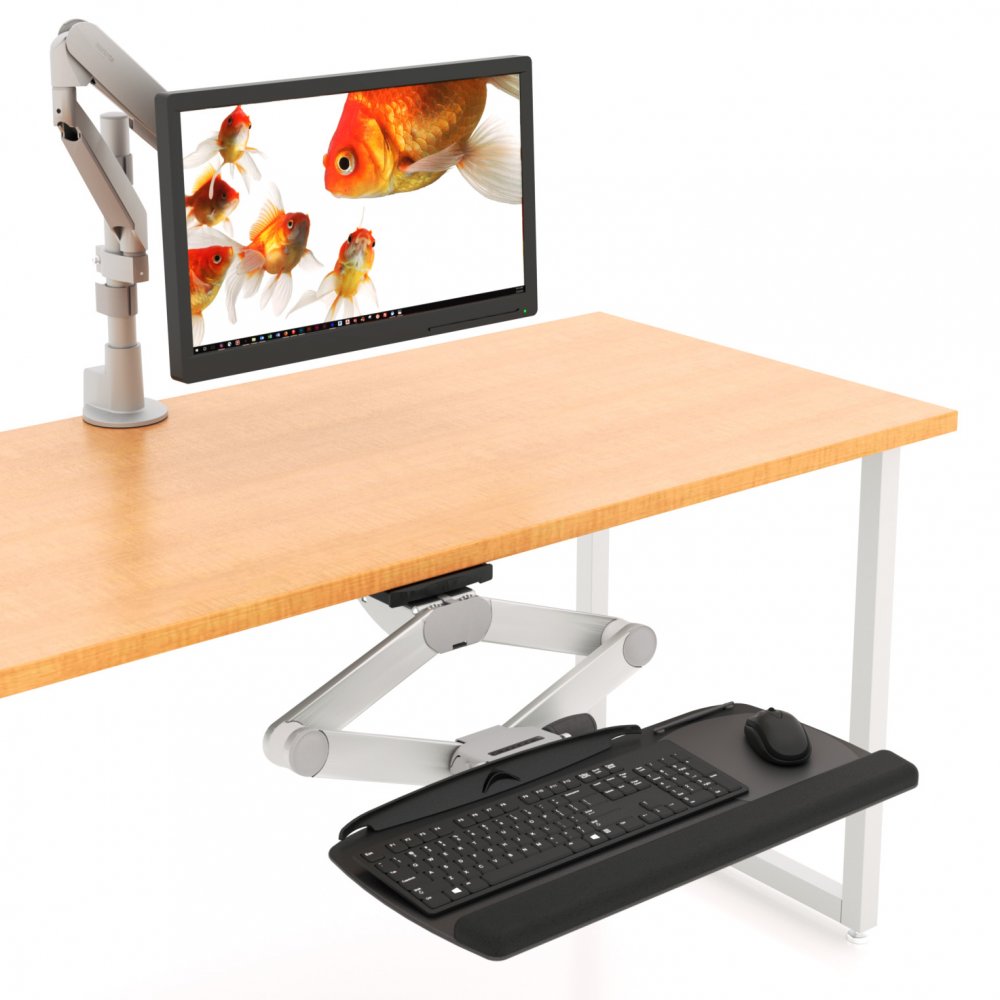

Adjusts from 16" above to 6" below worksurface
No knob/no lever Lift-n-Lock height adjustment
30° tilt range: -20° +10°
Smooth nylon glide track
Meets ANSI/BIFMA X5.5 standards
Exceeds front of track 0.75" on 22" track
Exceeds front of track 5.75" on 17" track
Product Options/Accessories
Frequently Asked Questions

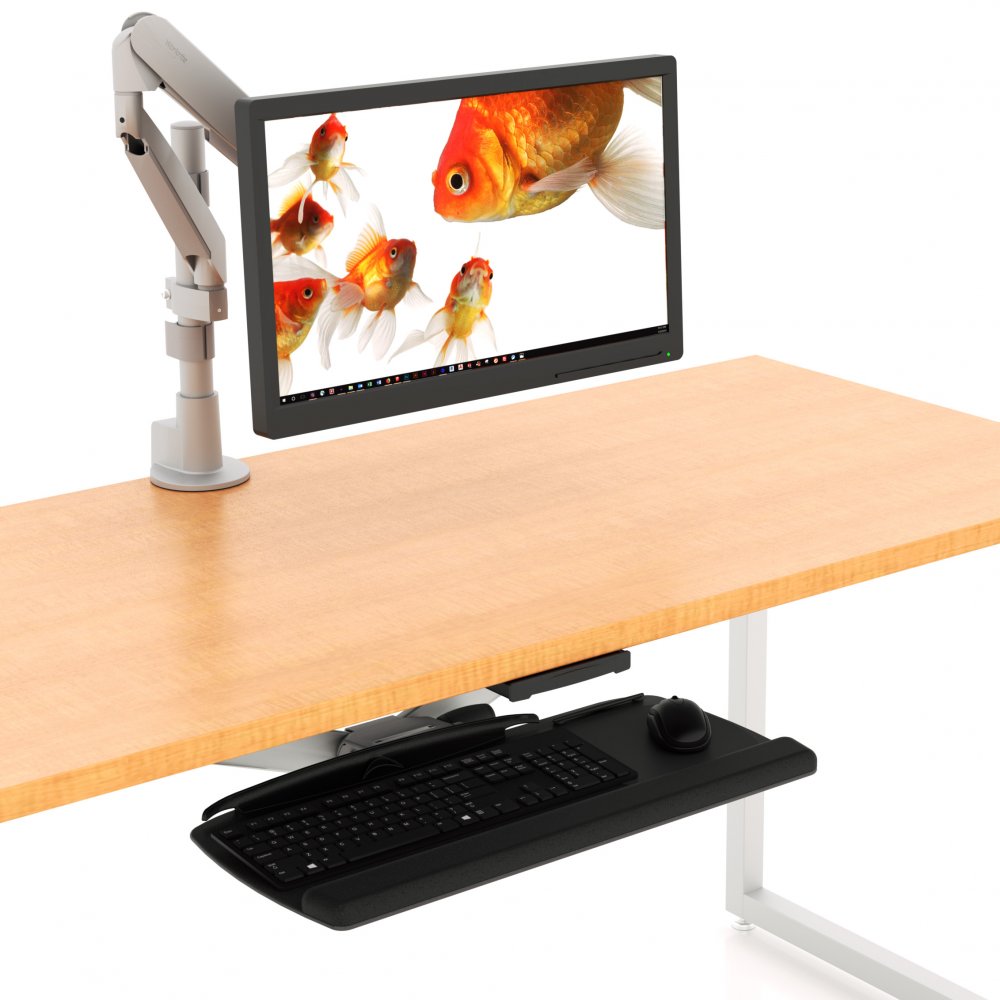

The 2485 S2S comes in two models; 2485-17 and 2485-22; the models indicating the track length on which the under desk keyboard tray is installed. With 2485-22 and a 22" track, the keyboard tray will stick out 0.75" from the desk edge, when not in use. But with 2485-17 and a 17" track, the keyboard tray will stick out 5.75" from edge of the desk when retracted. Please make this decision based on where you are going to instal this product. If in a public area, a 22" track might be preferable as the keyboard tray will only stick out 0.75" and not cause an obstruction in the communal space. But if are buying this product for your cubicle, which has enough space for the keyboard tray to stick out about 6", a 17" track will work.
| Model | 2485-17, 2485-22 |
| Manufacturer | Workrite Ergonomics |
| Part Number | 2485-17, 2485-22 |
| Color | Black |
| Height Adjustment | From 16" above to 6" below work surface |
| Tilt | (-20 +10) 30 degree |
| Track Length | 22" and 17" |
| Warranty | Lifetime |
| Material | Ultra-thin phenolic |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.
Sierra HX Height Adjustable Workcenter components - Limited Lifetime
Electric components, motors, frames, brackets and feet.
All of the following exceptions to the limited lifetime warranty apply:
Fundamentals Electric Height Adjustable Workcenter components - 10 years
Electric components, motors, frames, brackets and feetEssentia Height Adjustable Workcenter components - 5 years
Electric components, motors, frames, brackets and feetLaminated worksurfaces and modesty panels - 5 years
Sierra HXL Crank Height Adjustable Workcenter components - 5 years
Including crank mechanismsCascade Height Adjustable Workcenter components - 5 years
Including counter-balance mechanismsLine of Sight electrical components and manual lifts - 5 years
Line of Sight frames and metal desk parts - 5 years
Monitor supports and mounts - 10 years
Solace Clamp-on sit-stand products - 5 years
Solace Desktop sit-stand products - 2 years
LED and florescent lighting fixtures - 5 years
Lighting transformers and fluorescent ballasts - 1 year
Tranquility Wool & PET Felt panels and mounts - 5 years
Tranquility Poly Panels - 2 years
Fabrics, modesty panels, custom products and special order items - 2 years
Mousing surfaces and Slide Guide - 1 year
