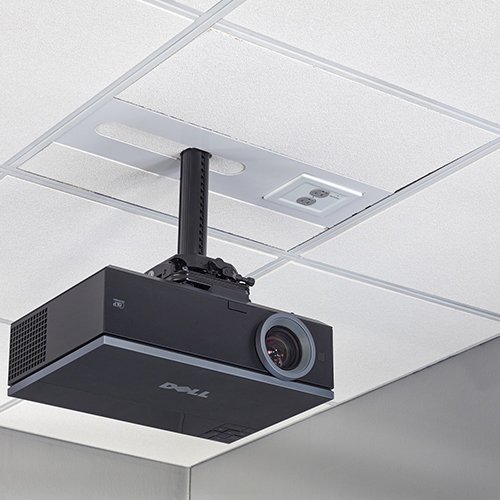

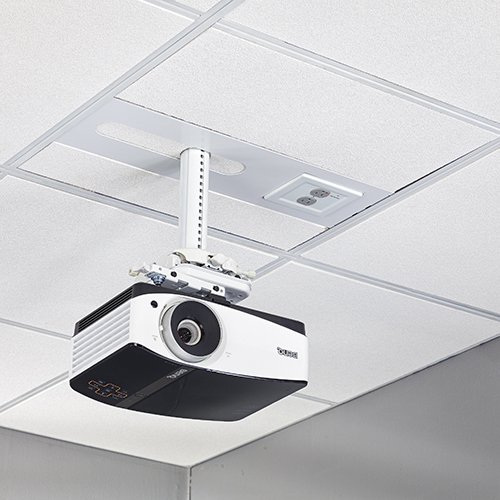

Chief SYSAUBP2 Suspended Ceiling Projector System, 2-Gang Filter & Surge
Description
Chief SYSAUBP2 is designed for speed and flexibility from an ordering
and installation standpoint. Chief's SYSAU Suspended Ceiling Projector
System cuts installation time by one-third and includes everything
needed to complete the majority of installations.
Chief SYSAUWP2 includes a high-performance, dual gang housing, isolated ground, dual
receptacle outlet featuring the SurgeX non-sacrificial multi-stage
filtration and surge protection system. This protects equipment from
disruptive high frequency noise and damage caused by power disturbances.
Chief's powered solutions were co-developed with SurgeX, a brand of
AMETEK Electronic Systems Protection.

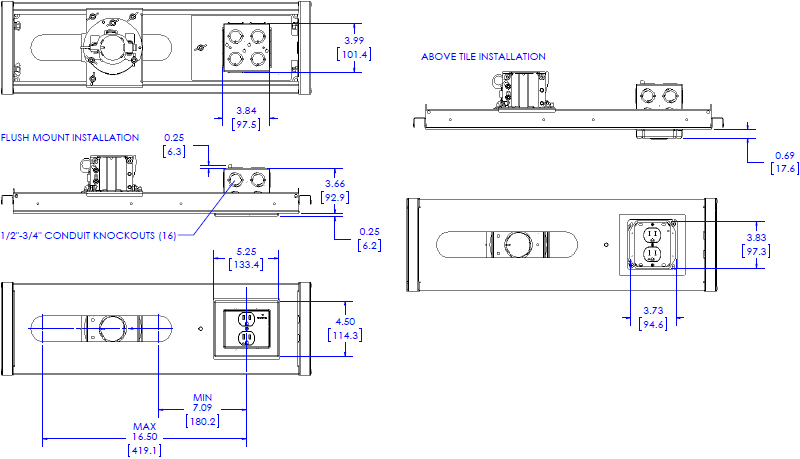

Technical Drawing
Specifications
| Adjustments | Roll, Pitch, Yaw (3°, 10°, 360°) |
| Certifications | UL Listed |
| Color | Black and White |
| Extension | 0 - 12" ( 0 - 304.8 mm) |
| Notes | Output: 15A, 1875 W continuous |
| Overall Dimensions (H x W x D) | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Power Requirements | Power Consumption: <0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C |
| Shipping Weight | 25 lbs (11.34 kg) |
| Solution Type | Universal |
| Weight Capacity | 35 lbs (15.9 kg) |
Features

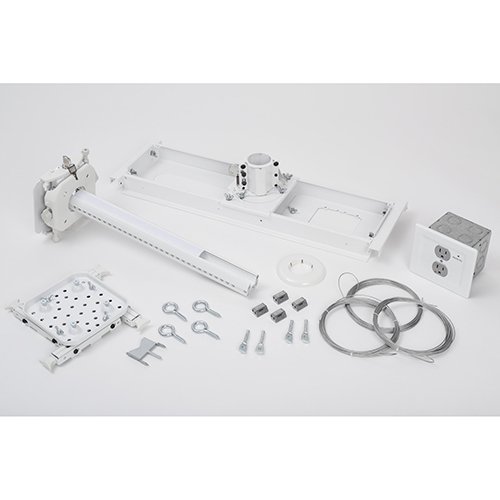

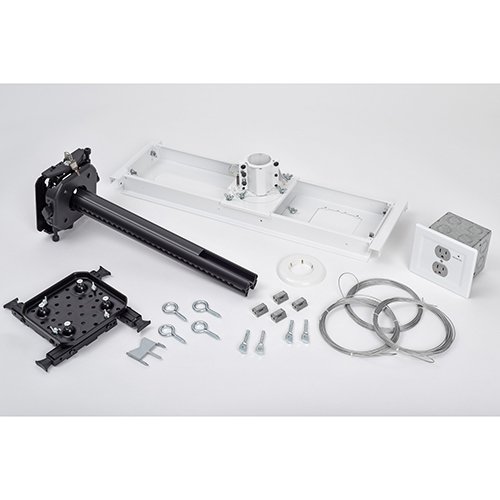

System comes out of box in the order needed with mount and column preassembled
Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
Detachable electric plate for pre-wiring
Compatible with popular 2 gang adjustable mud rings
Tool-Free Microzone adjustment eliminates the need for set screws
Centris Technology enables effortless fingertip positioning with new tool-free lockdown
Adjustable 0-12" column with dual inlay channels for high and low voltage cables
Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
Improved universal interface for easier lock/unlock at projector connection
Surge and Filter Module
Non-volatile spike protection with LED power indicator
Non-sacrificial multi-stage technology
Non-current limiting design passes full power on a regular circuit; redundant protection circuits
Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
Line filter reduces common and differential mode noise by up to 40 dB
Rated for 125V~, 60Hz, 15 A
1875 watt maximum
Ferrite toroid based EMI Filter
Withstand rating of 240 VAC continuous without damage or loss of protection
| Model | SYSAUBP2, SYSAUWP2 |
| Manufacturer | Chief Mounts |
| Part Number | SYSAUBP2, SYSAUWP2 |
| UPC | 841872167152 |
| Color | Black and White |
| Roll | 3 degree |
| Pitch | 10 degree |
| Yaw | 360 degree |
| Extension | 0 - 12" (0 - 304.8 mm) |
| Overall Dimensions | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Power | Power Consumption: Less 0.5 watt Type 3 Surge Protective Device Voltage Protection Rating: 600V L-N, N-G; 800V L-G Maxi Continuous Operating Voltage: 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating: 5kA Ambient Temp Max: 40 degrees C |
| Shipping Weight | 25.00 lbs (11.34 kg) |
| Weight Capacity | 35 lbs (15.9 kg) |
