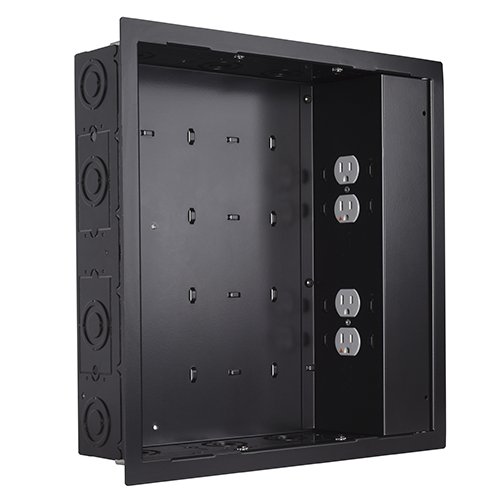

Chief PAC526FBP4 In-wall Storage Box, 4 Receptacle Filter & Surge
Description
Chief PAC526FBP4 simplifies flat panel installation by providing an
organized, recessed space for routing excess cables. The addition of the
flange adds an aesthetic trimmed appearance and drywall mounting
capability.
Includes a high-performance, dual gang housing, isolated ground,
4-receptacle outlet featuring the SurgeX non-sacrificial multi-stage
filtration and surge protection system. This protects equipment from
disruptive high frequency noise and damage caused by power disturbances.
Chief's powered solutions were co-developed with SurgeX, a brand of
AMETEK Electronic Systems Protection. Compatible with the PST, PRO, PLP,
MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.
Specifications
| Certifications | UL Listed |
| Color | Black |
| Notes | Output: 15A, 1875 W continuous |
| Overall Dimensions (H x W x D) | 15.51 x 15.4 x 3.88" (394 x 391 x 98 mm) |
| Power Requirements | Power Consumption: <0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C |
| Shipping Weight | 14.00 lbs |
| Weight Capacity | 10 lbs |
Features
Pre and post construction installation options
Drywall and stud mountable
Knockouts for single gang outlets and 1-1/4", 1", 0.5" conduit
Integrated universal zip tie anchor points
Landscape/Portrait installation
Stores a large variety of AV components
Paintable flange to blend in any environment
Black & white color options
Enclosure UL 2416 Listed for installation of AV, IT & Communication Technology Equipment
Surge and Filter Module
Non-volatile spike protection with LED power indicator
Non-sacrificial multi-stage technology
Non-current limiting design passes full power on a regular circuit; redundant protection circuits
Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
Line filter reduces common and differential mode noise by up to 40 dB
Rated for 125V~, 60Hz, 15 A
1875 watt maximum
Ferrite toroid based EMI Filter
Withstand rating of 240 VAC continuous without damage or loss of protection
Product Options/Accessories
| Model | PAC526FBP4 |
| Manufacturer | Chief Mounts |
| Part Number | PAC526FBP4 |
| UPC | 841872167077 |
| Color | Black |
| Overall Dimensions | 15.51 x 15.4 x 3.88" (394 x 391 x 98 mm) |
| Shipping Weight | 14 lbs |
| Weight Capacity | 10 lbs |
| Power | Power Consumption: Less 0.5 watt Type 3 Surge Protective Device Voltage Protection Rating: 600V L-N, N-G; 800V L-G Maxi Continuous Operating Voltage: 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating: 5kA Ambient Temp Max: 40 degrees C |
