Ergotech 7Flex-ETUS-104 7Flex Single Monitor Arm - TAA Version
Description

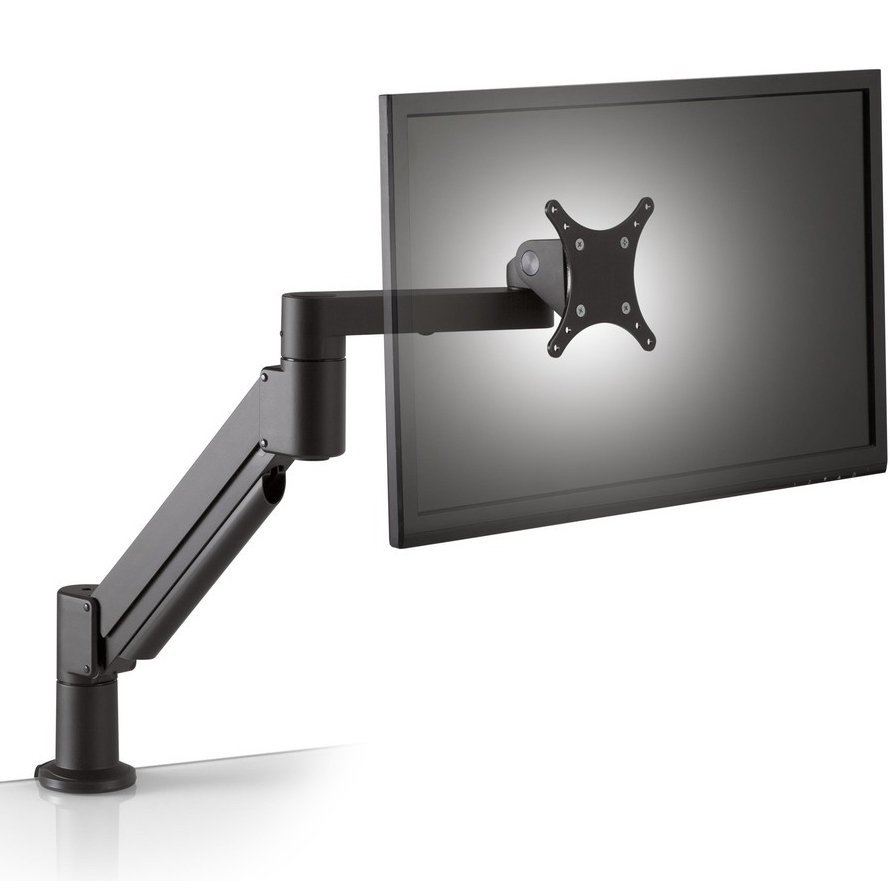

Ergotech 7Flex-ETUS-104 LCD monitor arm suspends your flat panel
monitor above the work surface. Move your monitor precisely where you
need it, and simply move it out of the way when not in use. The unique
slim profile design folds up flat to occupy just 3.5" of space. All
7Flex models include FlexMount: a 6-in-1 mounting interface that
includes clamp, thru-desk, wall, grommet, side bolt and reverse wall.
7Flex is compatible with all VESA displays, including the 2012-present
iMac.

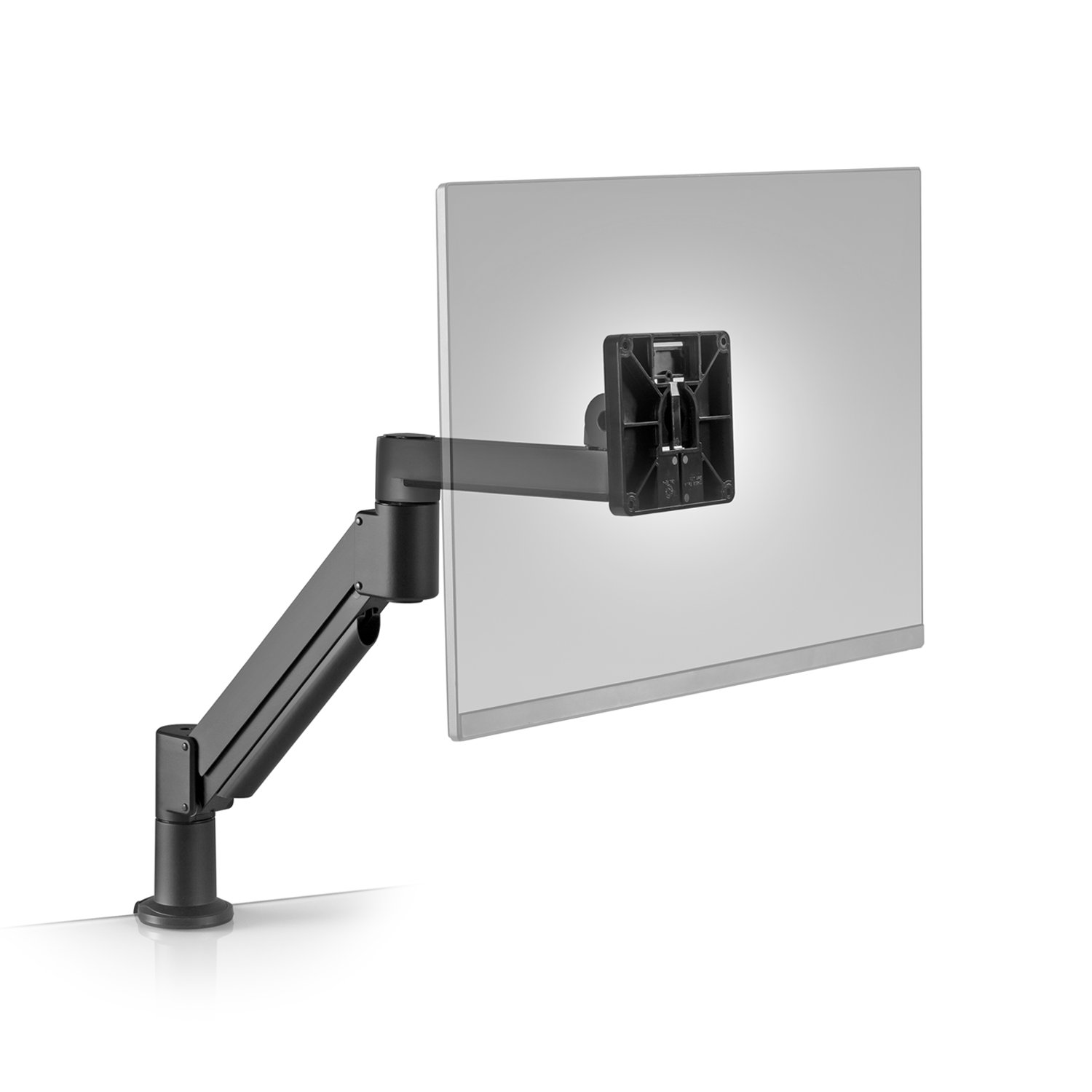

Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |  8336 Standard Monitor Tilter |

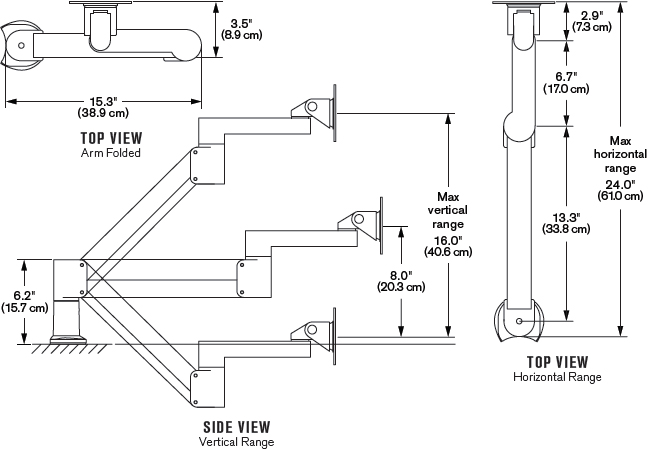

Technical Drawing
Specifications
| Weight Capacity | 7 - 17 lbs |
| Mounting Pattern | VESA 75mm, 100mm |
| Height Adjustment | 16" |
| Extension Range | 23.4" |
| Tilt | 200° |
| Pan | 180º |
| Rotation | 360º on 3 joints |
| Max Desk Thickness | 2.5" |
| Warranty | 10 years |
Product Options/Accessories
| Model | 7Flex-ETUS-104 |
| Manufacturer | Ergotech |
| Part Number | 7Flex-ETUS-104 |
| UPC | 814595020455 |
| Color | Black |
| Weight Capacity | 7-17 lbs |
| Mounting Pattern | VESA 75mm, 100mm |
| Height Adjustment | 16" |
| Extension | 23.4" |
| Tilt | 200 degree |
| Pan | 180 degree |
| Rotation | 360 degree |
| Maximum Desk Thickness | 2.5" |
| Warranty | 10 years |
| Mounting Options | FlexMount (6-in-1 mounting interface) |
