Chief FRA Freestyle Rotation Adapter

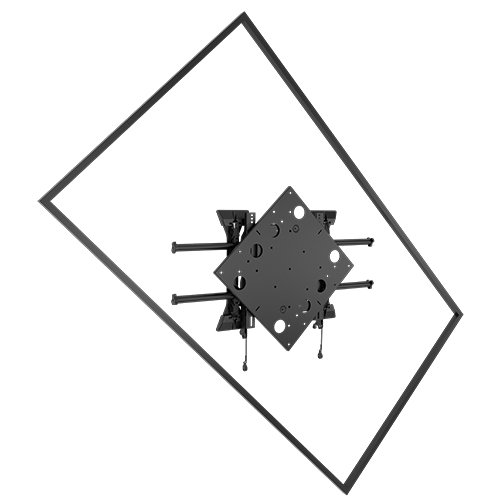

FRA shown in picture with Fusion mount.
Description

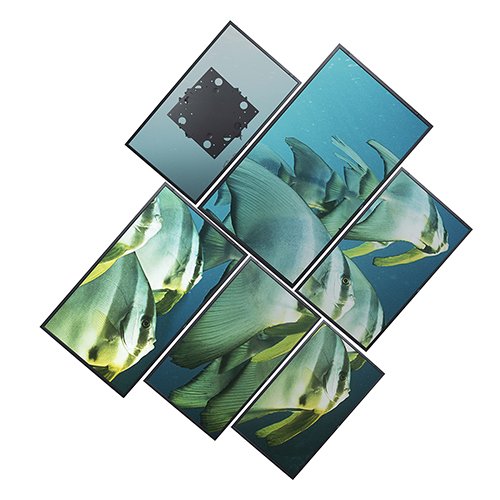

Chief FRA Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys or Fusion mounts. The accessory provides infinite orientation possibilities to support your most creative installations, and also serves as a fast and flexible landscape-to-portrait solution.

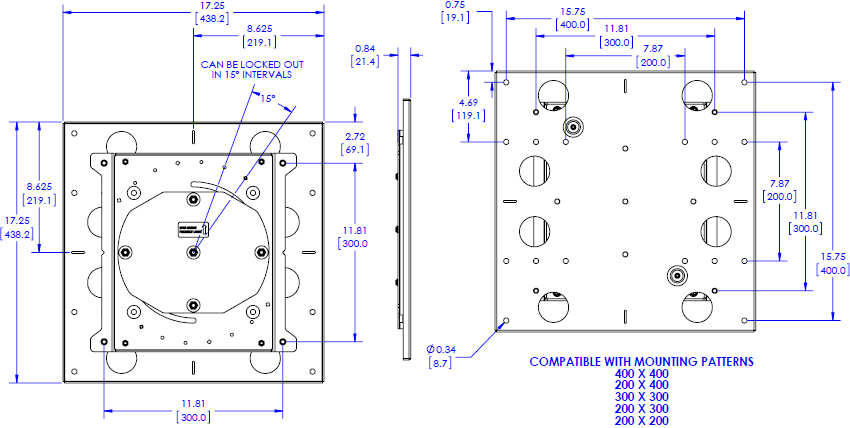

Technical Drawing
Specifications
| Color | Black |
| Minimum Depth | 0.84" (21 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200; 200 x 300; 200 x 400; 300 x 300; 400 x 400 |
| Notes | Positive lockouts at 15 degree increments |
| Orientation | Infinite |
| Overall Dimensions (H x W x D) | 17.25 x 17.25 x 0.84" (438 x 438 x 21 mm) |
| Rotation | 90 degrees; can be installed in different orientations to achieve 360 degrees of range |
| Solution Type | Universal |
| Typical Screen Sizes | Varies by mount |
| Weight Capacity | With single-stud Fusion 55 lbs (24.9 kg): With ConnexSys 125 lbs (56.7 kg) |
Features
Infinite orientation possibilities
Provides 90 degrees of rotation; can be installed in different orientations to achieve 360 degrees of range
Positive lockouts at 15 degree increments
Overlapping displays (with Fusion FCADA) adds another level of customization and creativity
Micro-adjustment (with ConnexSys)
Weight capacity when used with ConnexSys: 125 lbs (56.7 kg)
Weight capacity when used with single-stud Fusion: 55 lbs (24.95 kg)
Compatible with ConnexSYS mounts and Fusion wall, ceiling and freestanding mounts
Product Options/Accessories
| Model | FRA |
| Manufacturer | Chief Mounts |
| Part Number | FRA |
| UPC | 841872169910 |
| Color | Black |
| Minimum Depth | 0.84" (21 mm) |
| Mounting Pattern | 200 x 200; 200 x 300; 200 x 400; 300 x 300; 400 x 400 |
| Overall Dimensions | 17.25 x 17.25 x 0.84" (438 x 438 x 21 mm) |
| Rotation | 90 degree |
| Weight Capacity | With single-stud Fusion 55 lbs (24.9 kg): With ConnexSys 125 lbs (56.7 kg) |
