Peerless RMI2C Rotational Mount Interface for Carts and Sands
Description
Peerless RMI2C allows you to rotate a display from landscape to portrait orientation with a simple pull of the spring-loaded lever, eliminating the hassle of having to remove the screen from the mount. This mount interface allows the display on a cart or stand to be stored in portrait, which saves space and protects the display from accidental damage. In addition, the RMI2C enables a display to be easily rotated and set at 15-degree increments within 360-degrees, and is compatible with a variety of Peerless Carts and Stands. Ideal for standard or creative digital signage displays, the RMI2W allows for endless screen positioning.
Helpful Hints: Easily rotate a display from landscape to portrait to save storage space and protect your display from accidental damage.

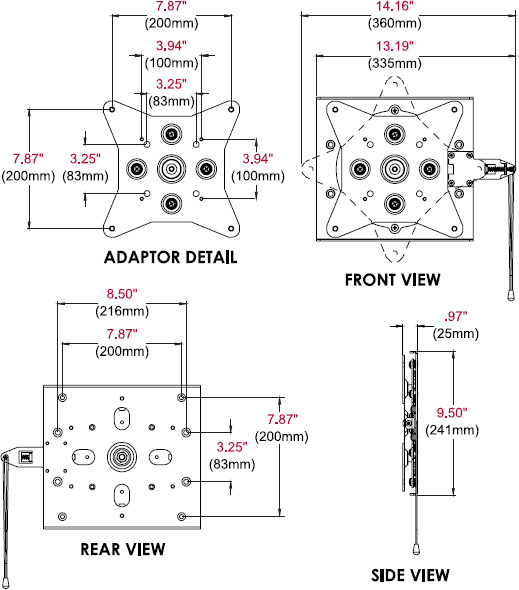

Technical Drawing
Specifications
| Color | Black |
| Finish | Powder Coat |
| Security Features | Security Hardware |
| Roll | 360 degree |
| Dimensions | 14.16" x 9.50" x .97" (360 x 241 x 25mm) |
| Weight | 6.7 lbs (3.04kg) |
| Shipping Dimensions | 20.00" x 10.00" x 1.75" (508 x 254 x 44mm) |
| Shipping Weight | 7.15 lbs (3.24kg) |
| Weight Capacity | 175 lbs (79kg) |
| Package Contents |
|
| UPC Code | 735029315445 |
| Warranty | Limited 5 year |
Features

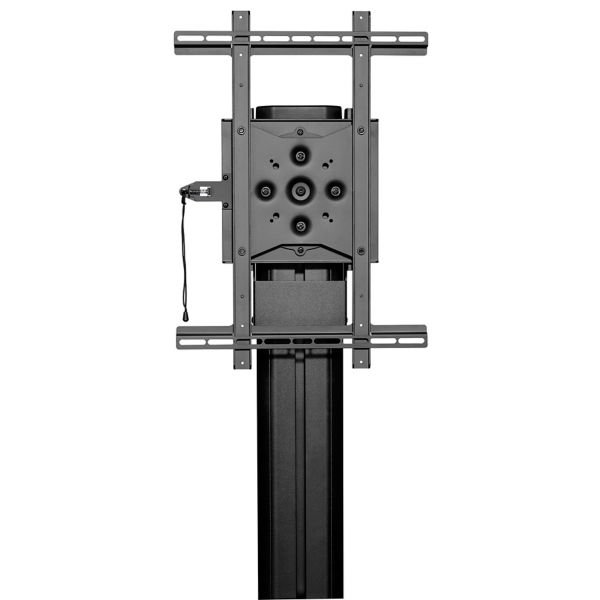

Rotate landscape to portrait orientation without removing the screen
Roll angle can be locked in 15° increments, creating endless screen positioning possibilities
Screen can be rolled 360° with impediment, no tools required

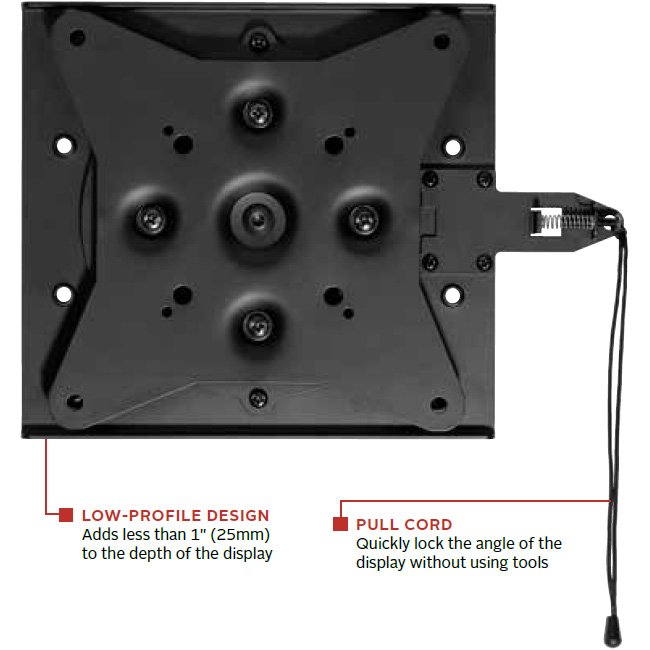

Tamper-resistant, spring-loaded lever with pull cord makes adjusting the screen’s position simple
Low-profile design adds less than 1" to any application

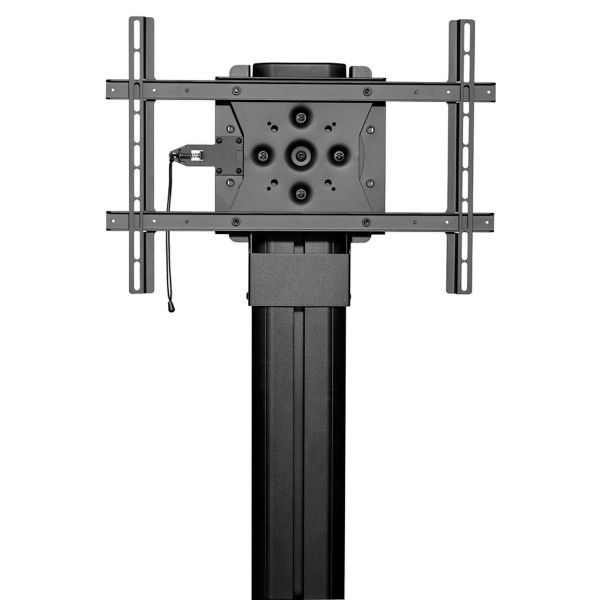

Compatible with the following Peerless-AV Carts & Stands: SR560, SR575, SR575M, SR575K, SS560, SS575K, FPZ-600 and FPZ-670
| Model | RMI2C |
| Manufacturer | Peerless Mounts |
| Part Number | RMI2C |
| UPC | 735029315445 |
| Color | Black |
| Finish | Powder Coat |
| Roll | 360 degree |
| Weight Capacity | 175 lbs (79kg) |
| Dimensions | 14.16" x 9.50" x .97" (360 x 241 x 25mm) |
| Weight | 6.7 lbs (3.04kg) |
| Shipping Dimensions | 20.00" x 10.00" x 1.75" (508 x 254 x 44mm) |
| Shipping Weight | 7.15 lbs (3.24kg) |
| Warranty | Limited 5 year |
