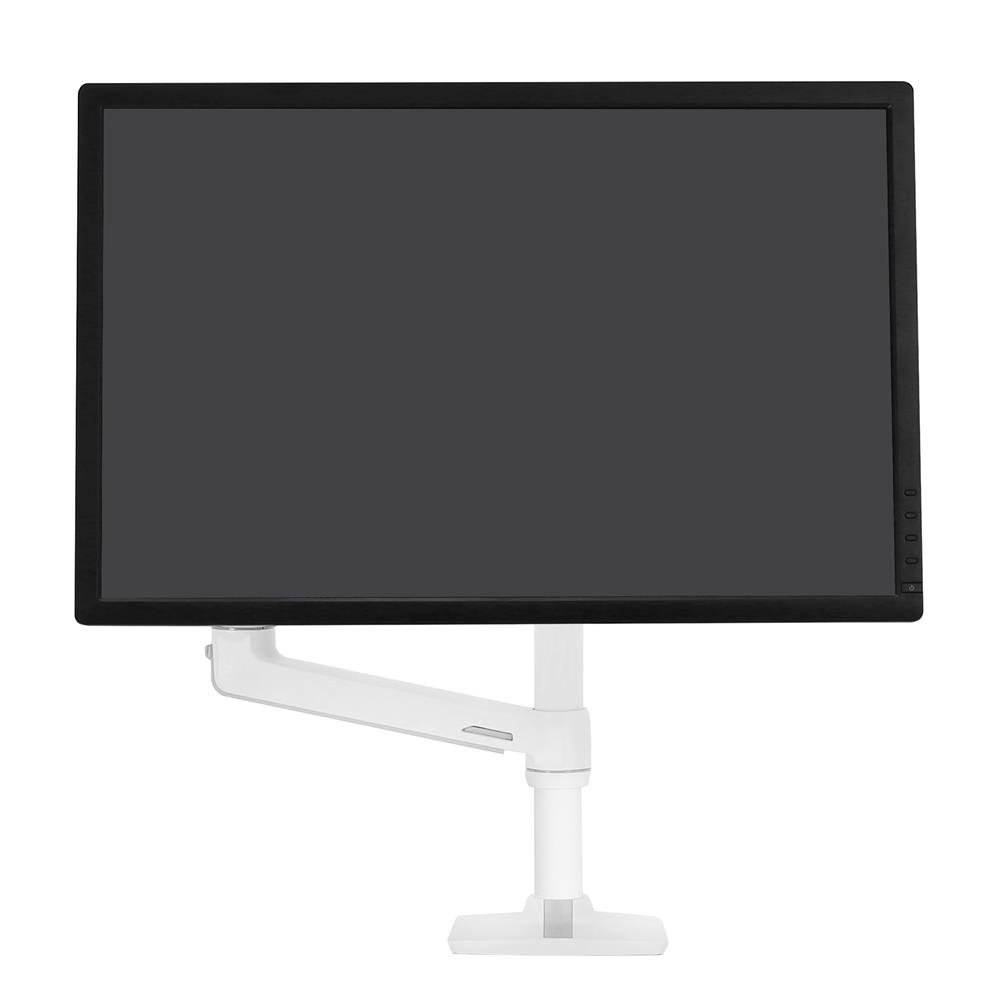

Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)

Product ID 18748
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Application
Application
 	Application
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Application
Application
 	Application
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)
Shipping:
$0.00

More shipping >

Our Price:
Qty:

Description

Durable steel and aluminum construction! Tested to perform 10 times the expected life-cycle of other competitive brands at roughly half the price.

Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.

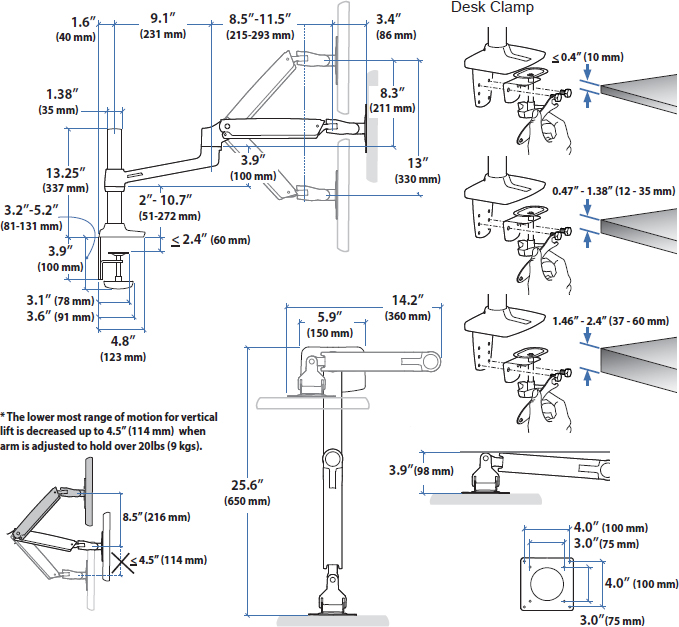

Technical Drawing

Technical Drawing for Ergotron 45-537-216 LX Desk Mount Monitor Arm, Tall Pole (white)

Technical Specifications

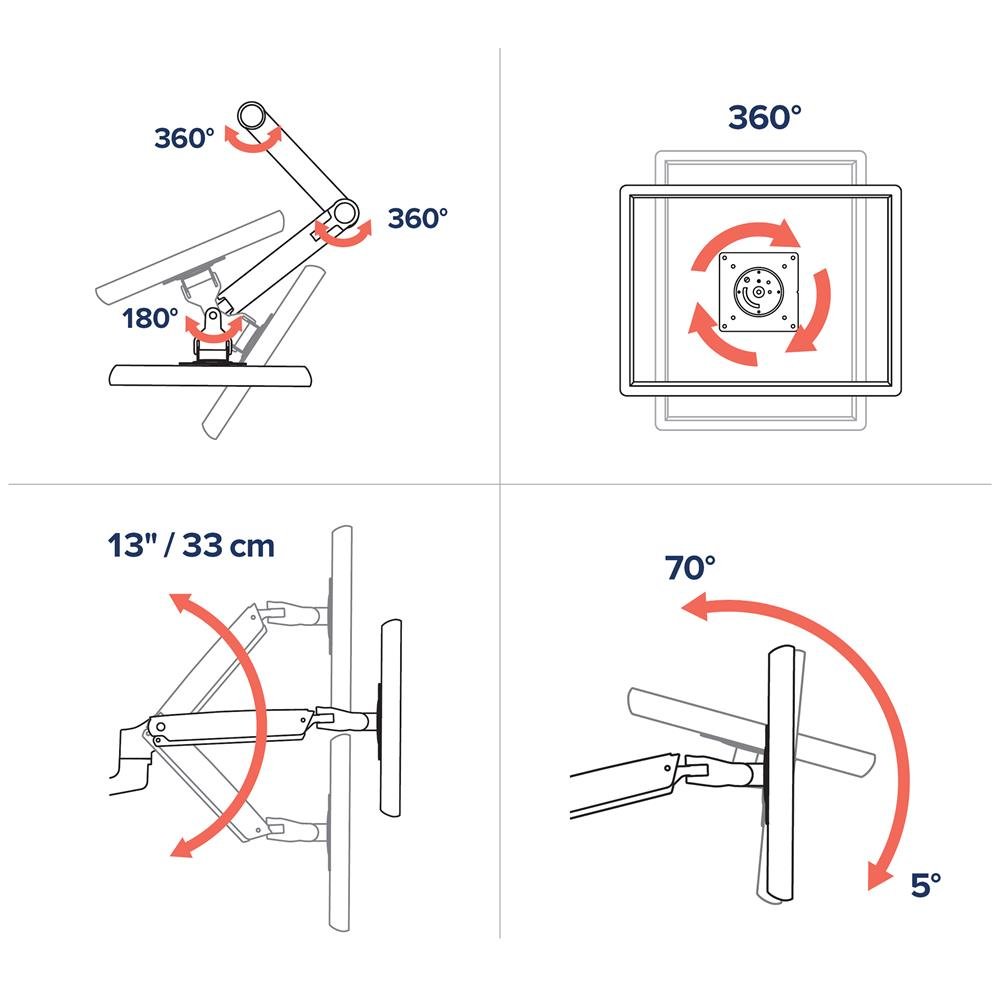

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 34"

7-25 lbs

3.2-11.3 kg

13"

33.0 cm

75° 360° 360° MIS-D

Product Information

Part Number 45-537-216
Description LX Desk Mount LCD Monitor Arm, Tall Pole (white)

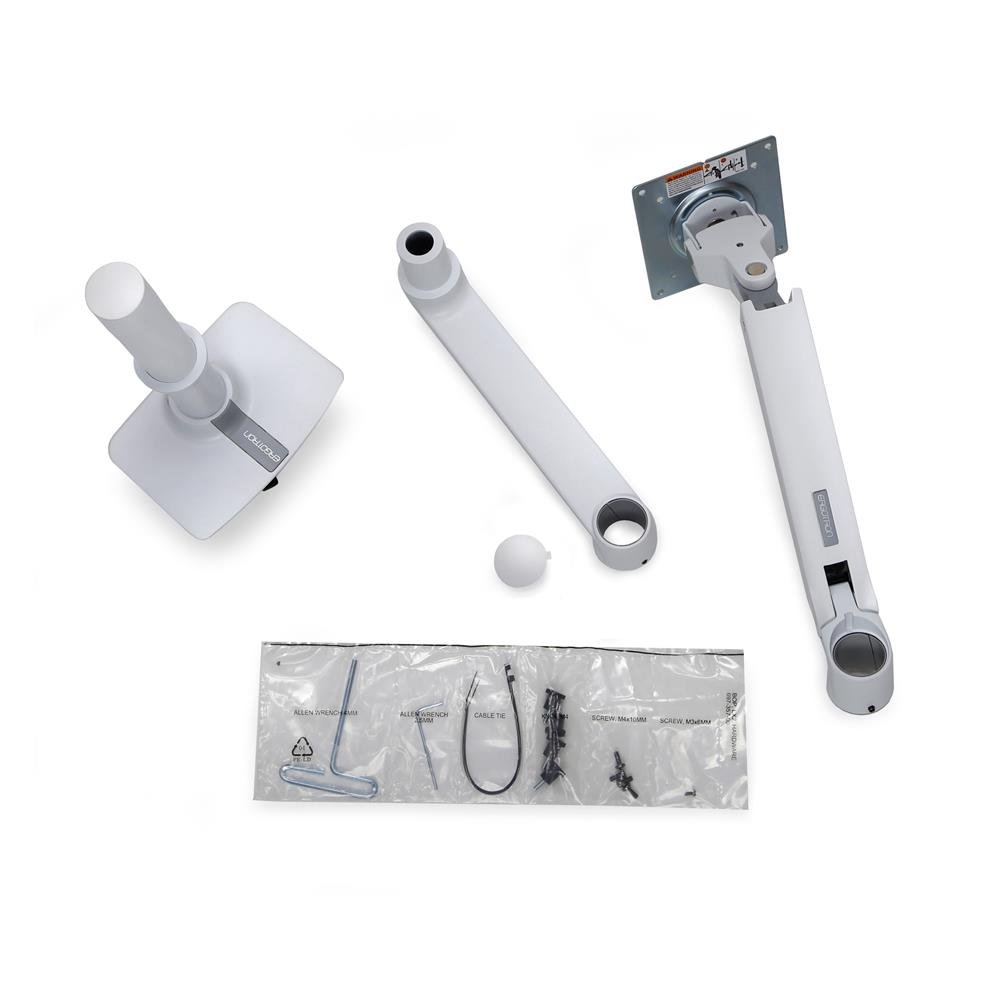

Includes
  • LX arm

  • Tall pole

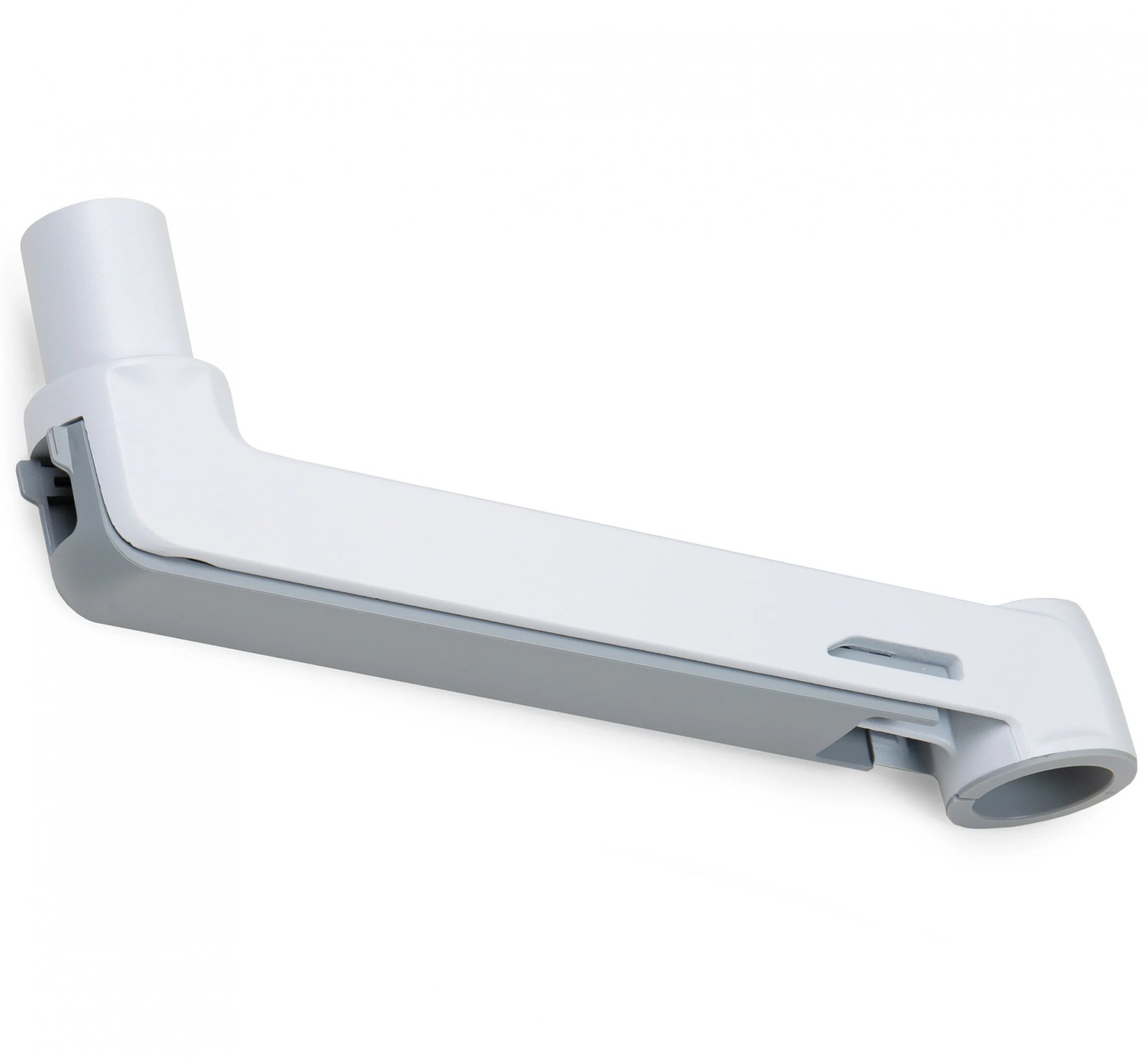

  • Extension

  • Desk clamp base

Pole Length 13.25" (34 cm)
Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Construction Aluminum and steel construction offers greater durability and enhanced aesthetics
Arm Folds Back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Snap-fit Cap Secures interface of arm to extension for greater stability
Base Ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
Mounting Options Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick
Grommet Mount An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-035
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Complies With all international environmental regulations related to its design, manufacture and packaging. Read more about our Environmentally Responsible Process
Product Weight 9.7 lbs (4.4 kg)
Shipping Dimensions 22.8"H x 11.4"W x 7.1"D (58 x 29 x 18 cm)
Shipping Weight 11.2 lbs (5.2 kg)
Warranty Ten (10) years

Benefits

  • Includes taller pole for greater range of vertical positioning. Position your LCD high above your worksurface for added clearance and increased visibility within your workflow

  • Increase viewing comfort - help reduce eye, back and neck strain

  • Upgrade LCD monitors and TVs with improved ergonomic adjustment

  • Patented CF motion technology provides premium ease-of-use display adjustment

  • Cable management feature routes cables under the arm, out of the way

  • Extends LCD up to 25" (64 cm); push your display out of the way when not in use

  • 13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults

  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Frequently Asked Questions

Model 45-537-216
Manufacturer Ergotron
Part Number 45-537-216
UPC 698833064421
Color White
Pole Length 13.25" (34 cm)
Mounting Options Desk Clamp attaches to surface edge 0.4"-2.4" (1-6 cm) thick
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Monitor Size Up to 34"
Lift (33 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Shipping Weight 9.7 lbs (4.4 kg)
Shipping Dimensions 22.8"H x 11.4"W x 7.1"D (58 x 29 x 18 cm)
Shipping Weight 11.2 lbs (5.2 kg)
Warranty Ten (10) years
Number of Monitors 1 Monitor
Monitor Arm Types 1 Monitor
