Ergotron 98-029 StyleView HD Monitor Kit

Product ID 18721
Ergotron 98-029 StyleView HD Monitor Kit

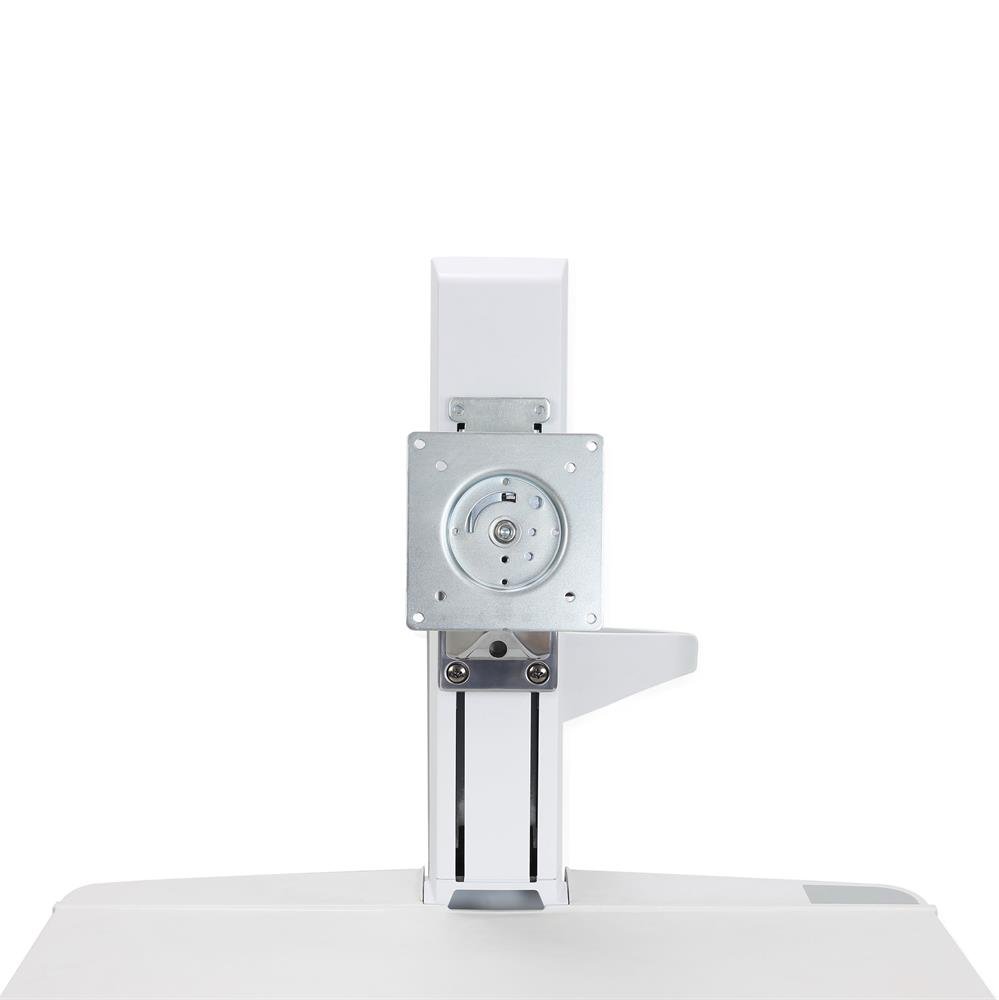

Front view
Ergotron 98-029 StyleView HD Monitor Kit
Ergotron 98-029 StyleView HD Monitor Kit
Front view
Ergotron 98-029 StyleView HD Monitor Kit
Shipping:
$12.75

More shipping >

Our Price:
Qty:

Description

Upgrade a StyleView cart to add independent height adjustment for a heavy monitor or all-in-one computer. Ergotron 98-029 is compatible with SV42 and SV44-series powered carts that include a 5" lift pivot (this kit re-uses the gravity-tilt pivot already in place).

Technical Drawing

Technical drawing for Ergotron 98-029 StyleView HD Monitor Kit

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

14 - 24 lbs

6.4 - 10.9 kg

5"

12.7 cm

25° 24° 90° MIS-D

Product Information

Part Number 98-029
Description StyleView SV HD Monitor Kit (white)

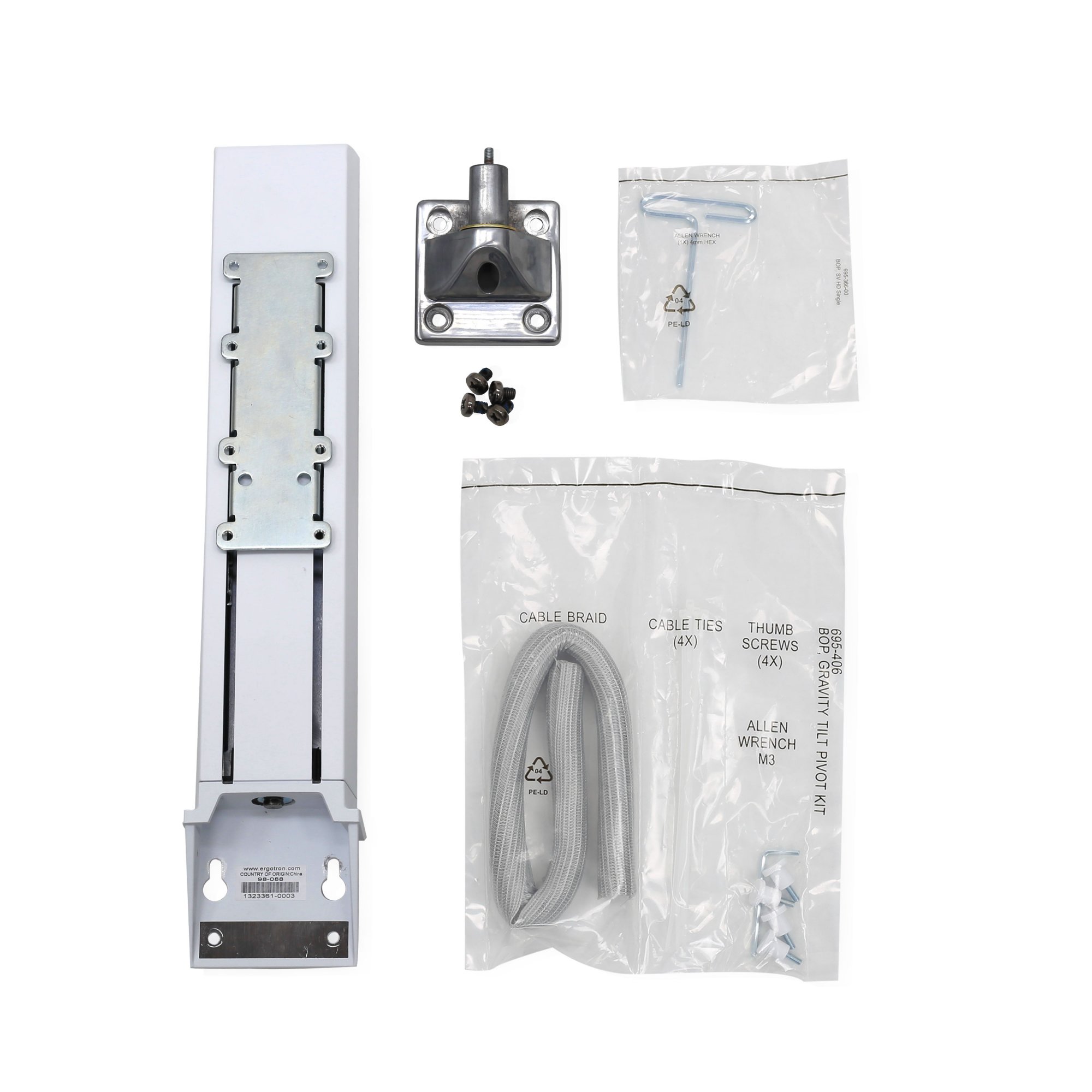

Includes
  • HD lift engine
  • Cable management
  • Attachment hardware
Recommended

For use with SV42 and SV44 powered carts. Compatible only with LCD carts with lift pivot

Weight Capacity

It is imperative that total weight capacity of cart be factored when adding this kit and monitor

This Kit Is made to re-use the gravity-tilt mechanism already in place on the existing cart. If a new gravity-tilt pivot is needed because your cart presently uses an LCD arm, instead order 98-088
Shipping Dimensions 23" x 6.5" x 6.5" (56 x 15.5 x 15.5 cm)
Shipping Weight 8 lbs (3.7 kg)
Warranty Five (5) years

Benefits

  • Accommodates medical imaging displays up to 24 lbs (10.9 kg) in weight

  • Robust construction ensures many years of service

  • Ease of installation: design feature prevents improper installation

  • Conceal and organize cables: cords can be neatly routed behind displays

  • Maintains full range of motion: tilt, pan and lift

Product Options/Accessories

Model 98-029
Manufacturer Ergotron
Part Number 98-029
Color White
Monitor Size Up to 27"
Weight Capacity 14-24 lbs (6.4-10.9 kg)
Lift (12.7 cm) 5 in
Tilt 25 degree
Pan 24 degree
Rotation 90 degree
Mounting Pattern MIS-D
Compatible Recommended for use with SV42 and SV44 powered carts. Compatible only with LCD carts with lift pivot
Shipping Dimensions 23" x 6.5" x 6.5" (56 x 15.5 x 15.5 cm)
Shipping Weight 8 lbs (3.7 kg)
Warranty Five (5) years

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
