Innovative STX-03S Staxx Triple Monitor Mount - Standard
Description
Innovative's modular display system, Staxx, is a completely configurable pole
based system that supports up to six monitors. Once your system is locked into
place at the desired height using the new anti-rotation clip and collar, a
single modular component can support anywhere from one tilter head to several
different combinations of arms and up to six monitors.
Introducing Staxx - Modularity. Flexibility. Simplicity
Scalable Solution - Staxx is easy to install and reconfigure, more monitors can be added by simply adding more of the same parts.
Large Screen Sizes Welcome - Staxx is capable of mounting three monitors, up to 30" wide, side-by-side.
Independent Monitor Adjustment - Flexible extension arms allow you to position the monitors for your perfect viewing angle.
Small Footprint, Big Capabilities - Designed for modularity, Staxx can accommodate up to six monitors using a single mount.
|
Space |
Flexibility |
Ergonomics |
|
|
|
|
|
Staxx is as sleek as it is functional. It supports up to six monitors to a solid mount that requires little desk space. |
Workspace configurations are continually changing and evolving. Staxx makes it easy to adapt to your changing needs with little time or effort. |
Staxx allows you to work and feel better throughout the day by making it easy to create your perfect viewing position. Independent monitor tilt, pivot, and rotation gives you control to work in comfort. |

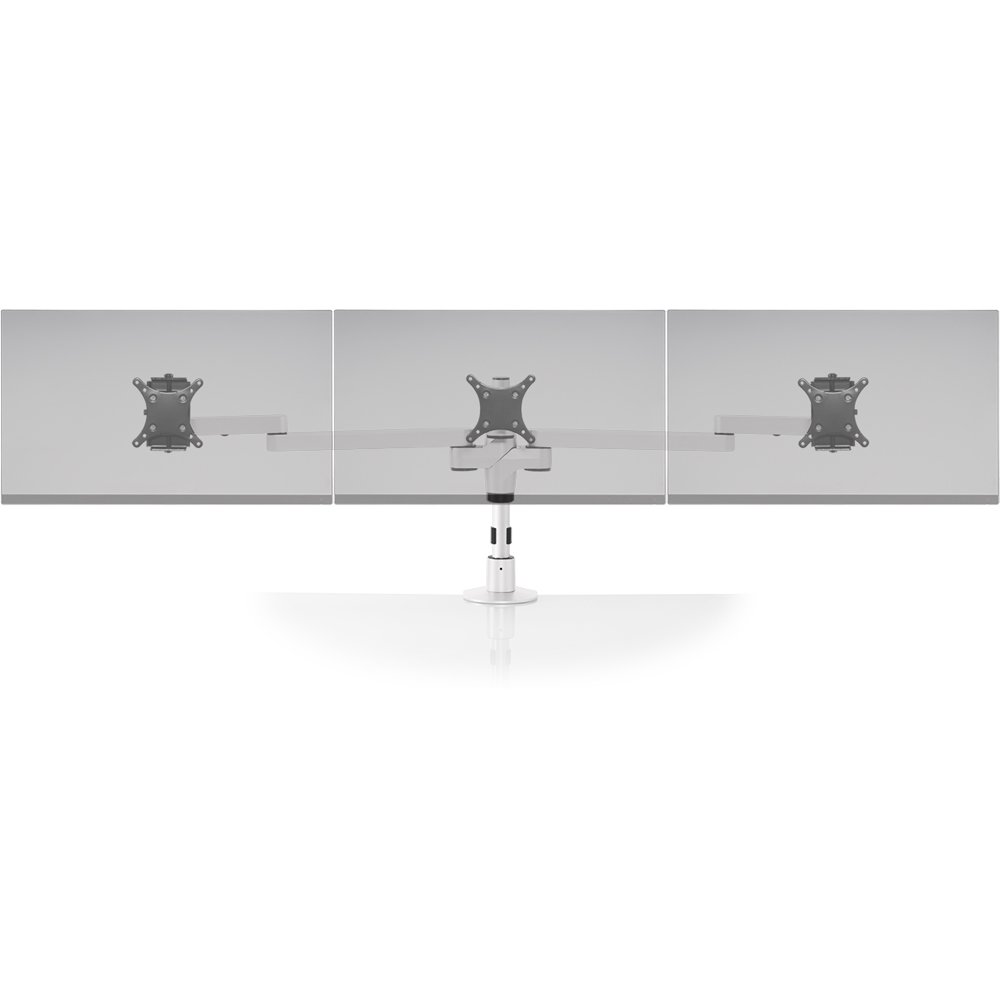

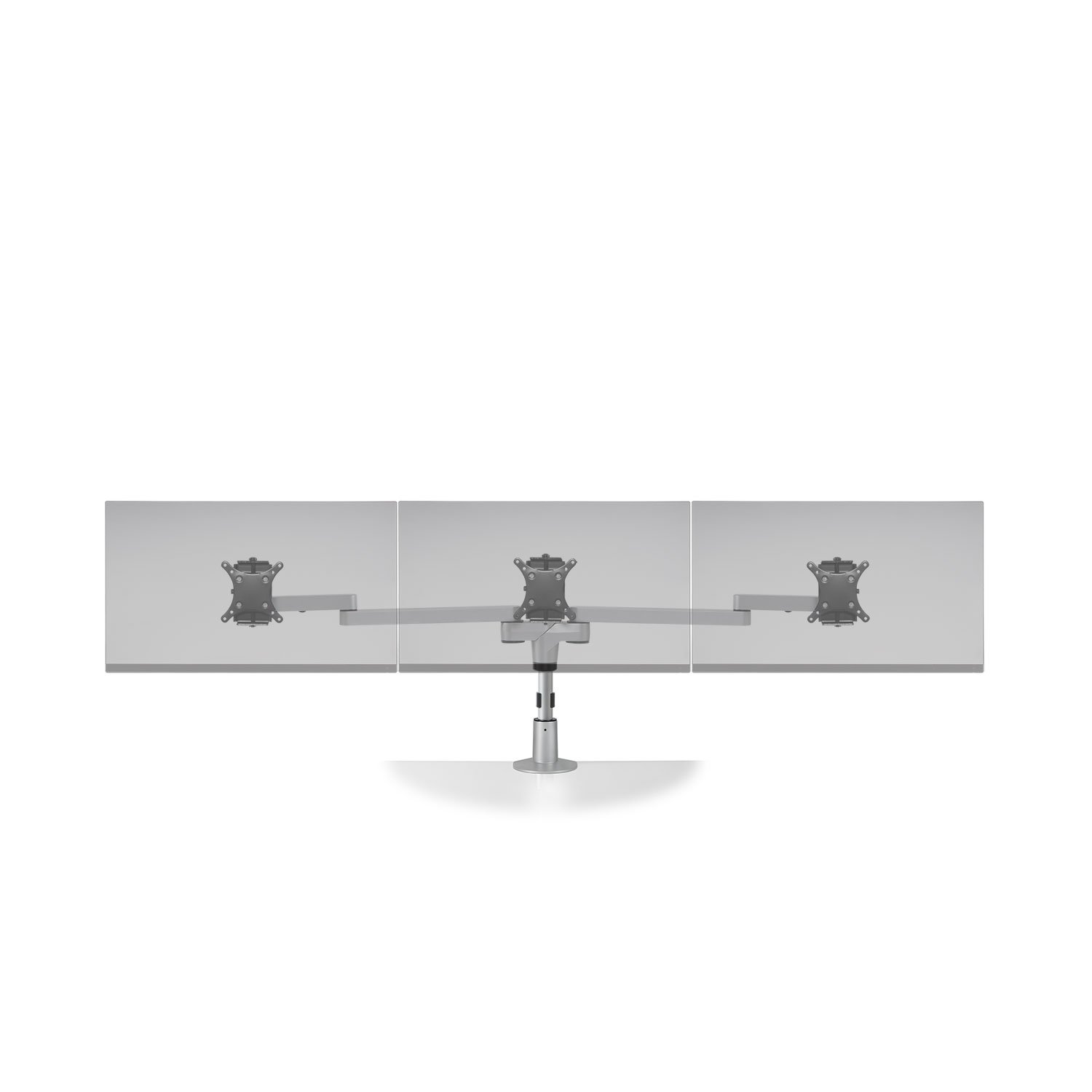

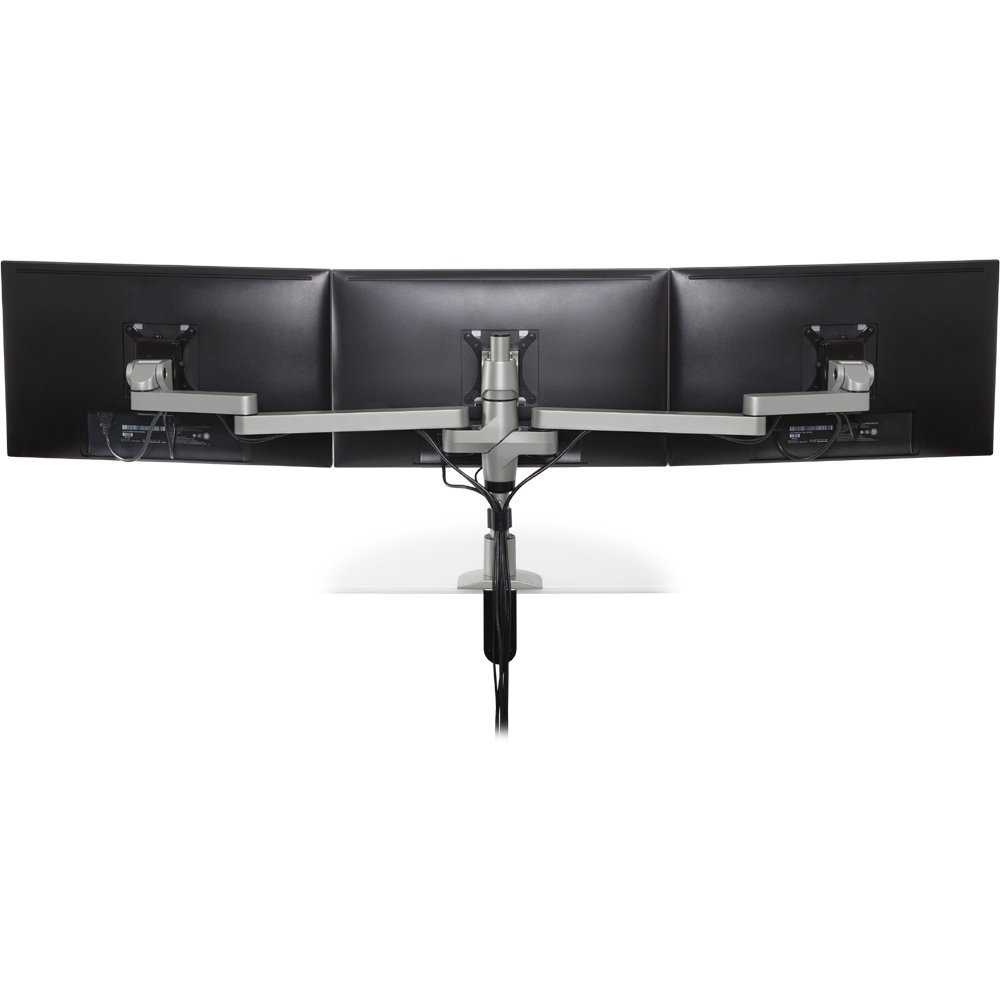

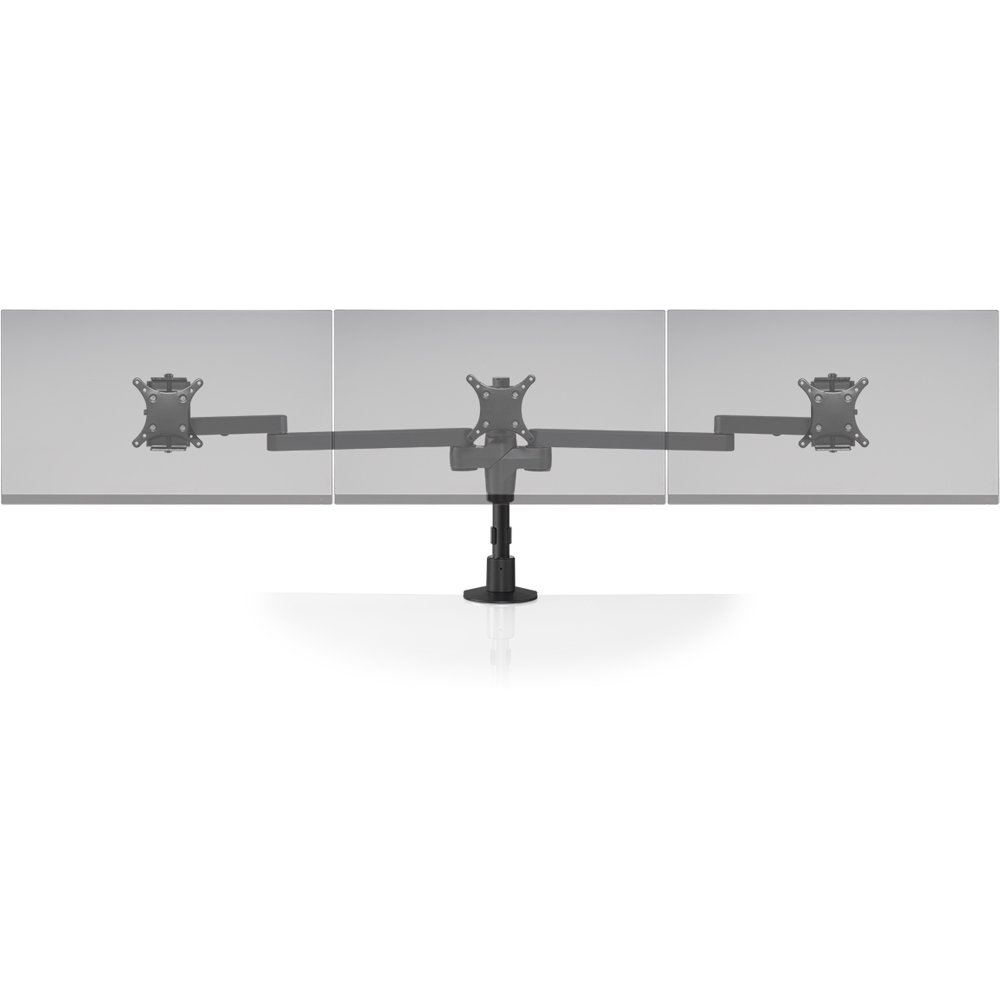

Innovative STX-03S Staxx Triple Monitor Stand suspends three monitors above your desk. Monitors can be mounted flat or in an arch with easy-to-adjust arms. Staxx shown with (3) 24", 16:9 monitors.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded one part -
Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.
8524 Top Down Mount
Technical Drawing
Specifications
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Screen Size | Up to 24" |
| Extension Range | 22" side-by-side |
| Monitor Pivot | Landscape / Portrait |
| Rotation | Three rotation joints |
| Tilt | 200 degrees |
| Mount Configurations | Top Down Mount includes Desk Edge and Grommet Mount |
| VESA Compatibility | 75mm, 100 mm adapters included |
| Warranty | 10 Years |
| Pole Height | 14" |
| Weight Capacity | Up to 15 lbs (6.8 kg) per monitor |
Features
-
Each monitor can be positioned independently allowing for quick adjustment, pivot and placement
-
Friction control system provides smooth adjustment while adjusting the position of the arm
-
Integrated cable management allows cables to be tucked under the forearm extensions
-
Adjust height of monitors on pole in 1" increments
-
VESA-monitor compatible - 75mm, 100mm VESA adapters included
-
Provides 200 degrees of monitor tilt
-
Option of laptop support arm
-
10 year warranty
Product Options/Accessories
| Model | STX-03S |
| Manufacturer | Innovative LCD Arms |
| Part Number | STX-03S |
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Weight Capacity | Up to 15 lbs (6.8 kg) per monitor |
| Monitor Size | Up to 24 |
| Pole Length | 14 |
| Tilt | 200 degree |
| Mounting Options | Desk Edge and Grommet mount |
| Number of Monitors | 3 Monitors |
| Warranty | 10 year |
| Pivot | Landscape to Portrait |
| Mounting Pattern | VESA 75mm, 100mm |
| Extension | 22 |
