Innovative STX-02W Staxx Dual Monitor Mount - Wide
Description
Innovative's modular display system, Staxx, is a completely configurable pole
based system that supports up to six monitors. Once your system is locked into
place at the desired height using the new anti-rotation clip and collar, a
single modular component can support anywhere from one tilter head to several
different combinations of arms and up to six monitors.
Introducing Staxx - Modularity. Flexibility. Simplicity
Scalable Solution - Staxx is easy to install and reconfigure, more monitors can be added by simply adding more of the same parts.
Large Screen Sizes Welcome - Staxx is capable of mounting three monitors, up to 30" wide, side-by-side.
Independent Monitor Adjustment - Flexible extension arms allow you to position the monitors for your perfect viewing angle.
Small Footprint, Big Capabilities - Designed for modularity, Staxx can accommodate up to six monitors using a single mount.
|
Space |
Flexibility |
Ergonomics |
|
|
|
|
|
Staxx is as sleek as it is functional. It supports up to six monitors to a solid mount that requires little desk space. |
Workspace configurations are continually changing and evolving. Staxx makes it easy to adapt to your changing needs with little time or effort. |
Staxx allows you to work and feel better throughout the day by making it easy to create your perfect viewing position. Independent monitor tilt, pivot, and rotation gives you control to work in comfort. |

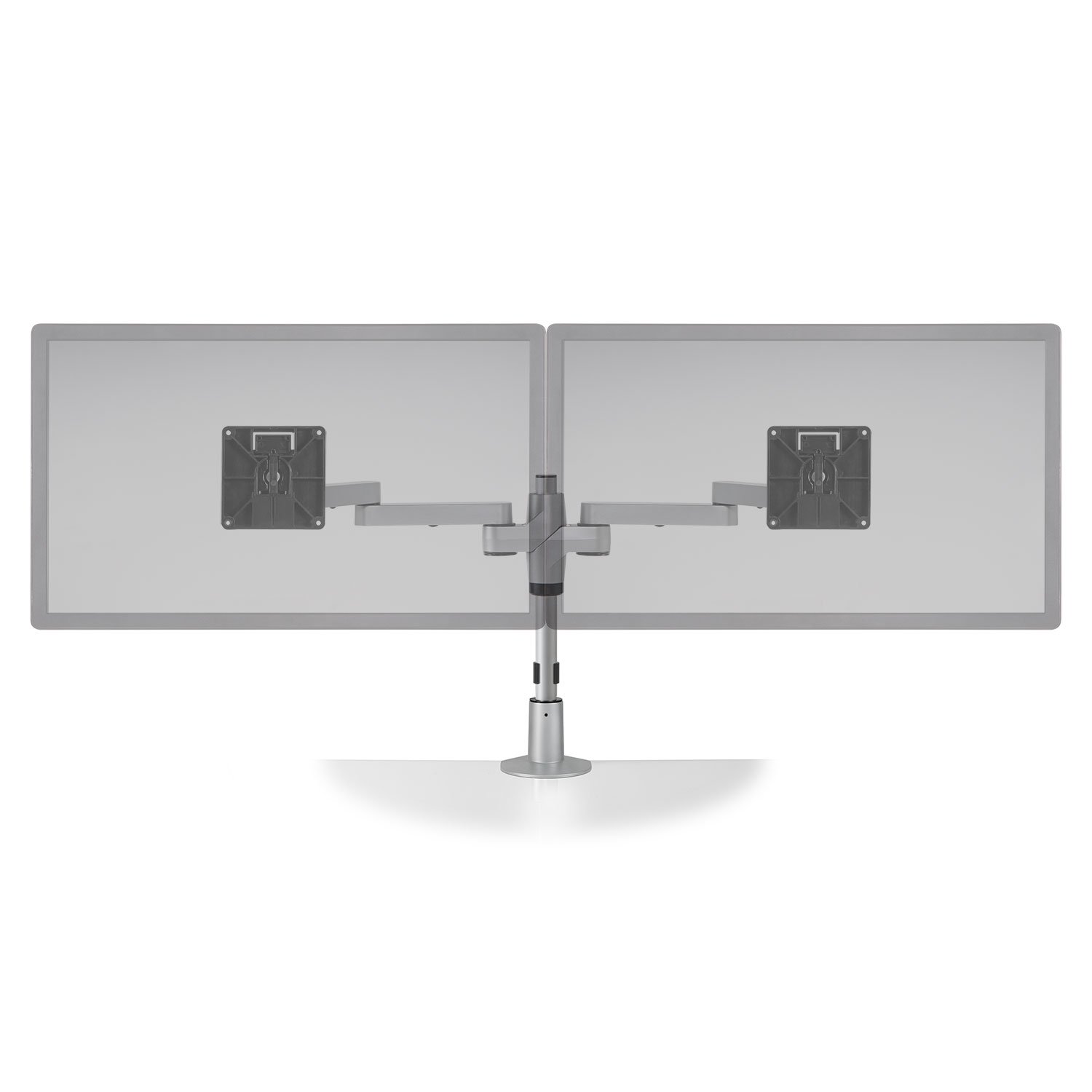

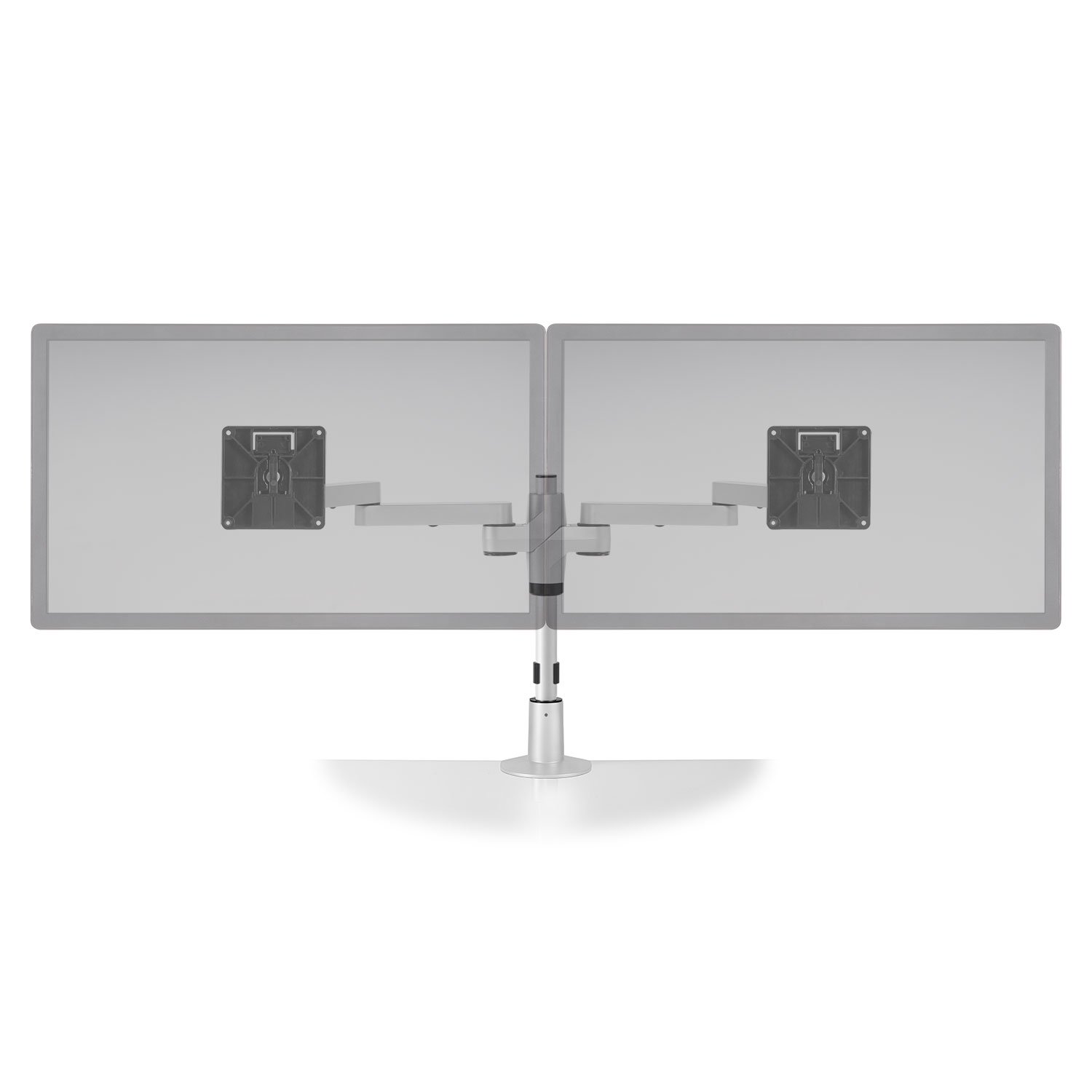

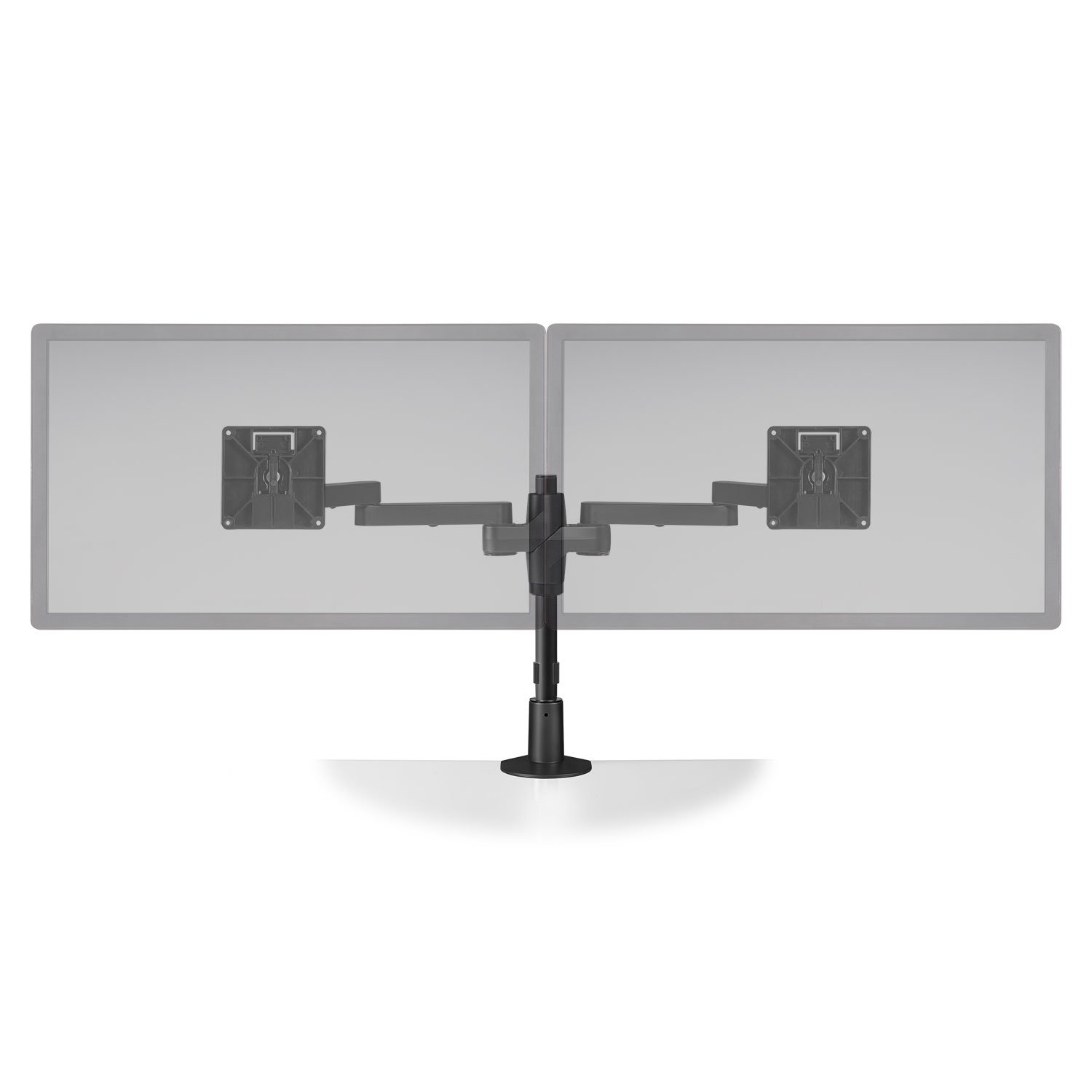

Mount two monitors side-by-side with Innovative STX-02W Staxx. This dual monitor stand can support monitors weighing up to 20 lbs. each. The adjustable monitor stand design enables monitors to be positioned for maximum comfort. Staxx shown with (2) 27", 16:9 monitors.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |
 8336 Standard Monitor Tilter |
Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.
8524 Top Down Mount
Technical Drawing
Specifications
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Screen Size | Up to 30" |
| Extension Range | 33.1" side-by-side |
| Monitor Pivot | Landscape / Portrait |
| Rotation | Three rotation joints |
| Tilt | Up to 190 degrees |
| Mount Configurations | Top Down Mount includes desk edge and grommet mount |
| VESA Compatibility | 75mm and 100 mm adapters included |
| Warranty | 10 Years |
| Pole Height | 14" |
| Weight Capacity | Up to 20 lbs (9.0 kg) per monitor |
Features
-
Each monitor can be positioned independently allowing for quick adjustment, pivot and placement
-
Friction control system provides smooth adjustment while adjusting the position of the arm
-
Integrated cable management allows cables to be tucked under the forearm extensions
-
Adjust height of monitors on pole in 1" increments
-
VESA-monitor compatible - 75mm and 100mm VESA adapters included
-
Provides up to 190 degrees of monitor tilt
-
Option of laptop support arm
-
10 year warranty
Product Options/Accessories
| Model | STX-02W |
| Manufacturer | Innovative LCD Arms |
| Part Number | STX-02W |
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Weight Capacity | Up to 20 lbs per monitor |
| Monitor Size | Up to 30 |
| Pole Length | 14 |
| Tilt | 200 degree |
| Mounting Options | Desk edge and Grommet mount |
| Number of Monitors | 2 Monitors |
| Extension | 33.1 |
| Pivot | Landscape to Portrait |
| Mounting Pattern | 75mm, 100mm |
| Warranty | 10 year |
| Maximum Monitor Size | 30 |
| Monitor Placement | Side-by-Side |
