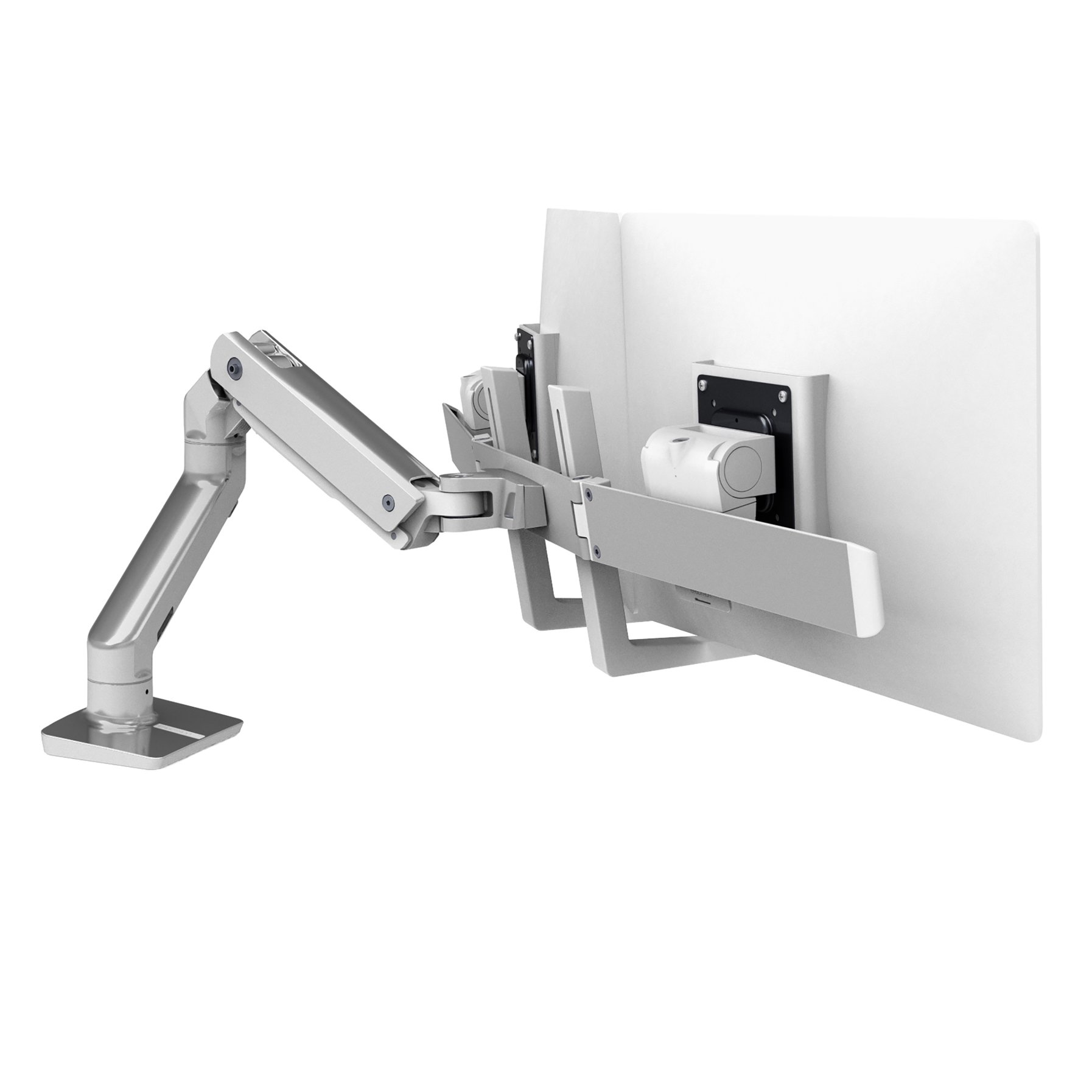

Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)

Product ID 18666
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Arm Your Battlestation with the Ergotron HX Desk Monitor Arm
HX Monitor Arm Adjustments
The Ergotron Difference: HX Monitor Arms
In Motion: Ergotron HX Monitor Arm
HX Monitor Arm Review: Filmmakers Select HX for New Studio
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Arm Your Battlestation with the Ergotron HX Desk Monitor Arm
HX Monitor Arm Adjustments
The Ergotron Difference: HX Monitor Arms
In Motion: Ergotron HX Monitor Arm
HX Monitor Arm Review: Filmmakers Select HX for New Studio
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)

Description

Mount two heavy monitors on Ergotron 45-476-026 HX Desk Mount arm up to 32" in size and 17.5 lbs in weight and free up valuable desk space. This arm's 11.5 vertical adjustment and 23.9" reach not only allows you to position your display to suit your preference but also lets you fold the arm in space constrained areas. Both the monitors are installed on the hinged bow with pivots letting monitors pan and tilt independently so that working with colleagues becomes easier.

Higher weight capacity of this arm makes it suitable for healthcare, hospital diagnostic/treatment rooms like radiation, graphic designing and surveillance needs that demand heavy monitors. Modular ability to increase from dual monitor setup to triple monitor setup (with a HX Triple Bow Kit sold separately) is a big attraction for these industries too. Available in white and polished aluminum, this arm looks slick and chic and comes with a ten year warranty.

The HX Dual Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The sleek new post design combined with the dual hinge bow works with two 32" monitors and includes a handle for easy positioning. Extension/retraction motion and integrated height adjustment capability promote user comfort.

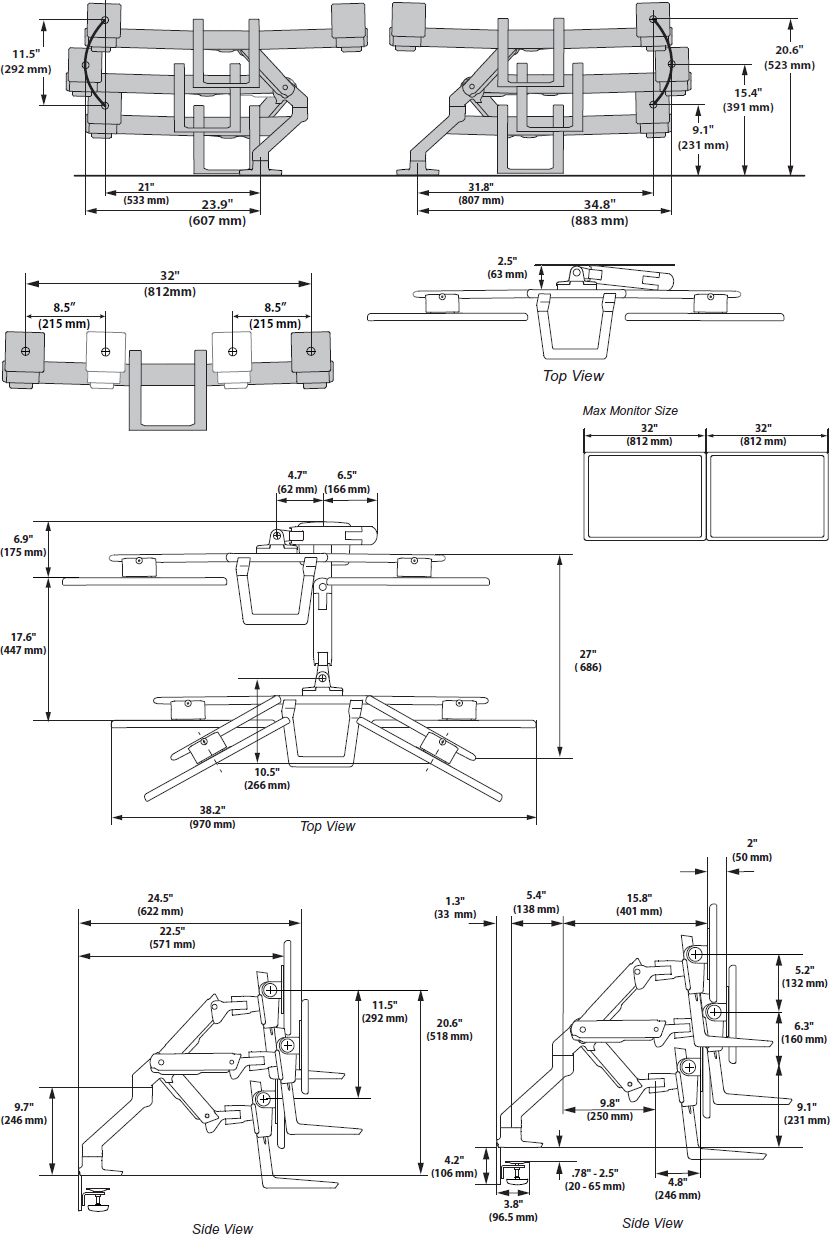

Technical Drawing

Technical drawing for Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 32"

10 - 35 lbs

4.5 - 15.9 kg

11.5"

29.2 cm

75° 180° 360° MIS-D

Product Information

Part Number 45-476-026
Description HX Desk Dual Monitor Arm (polished aluminum)
Includes
  • Arm

  • Extension

  • Hinge bow

  • (2) monitor pivots

  • Handle and desk clamp

  • Grommet mount

  • Monitor mounting hardware

Clamp Base Clamp base ensures greater stability of display and arm

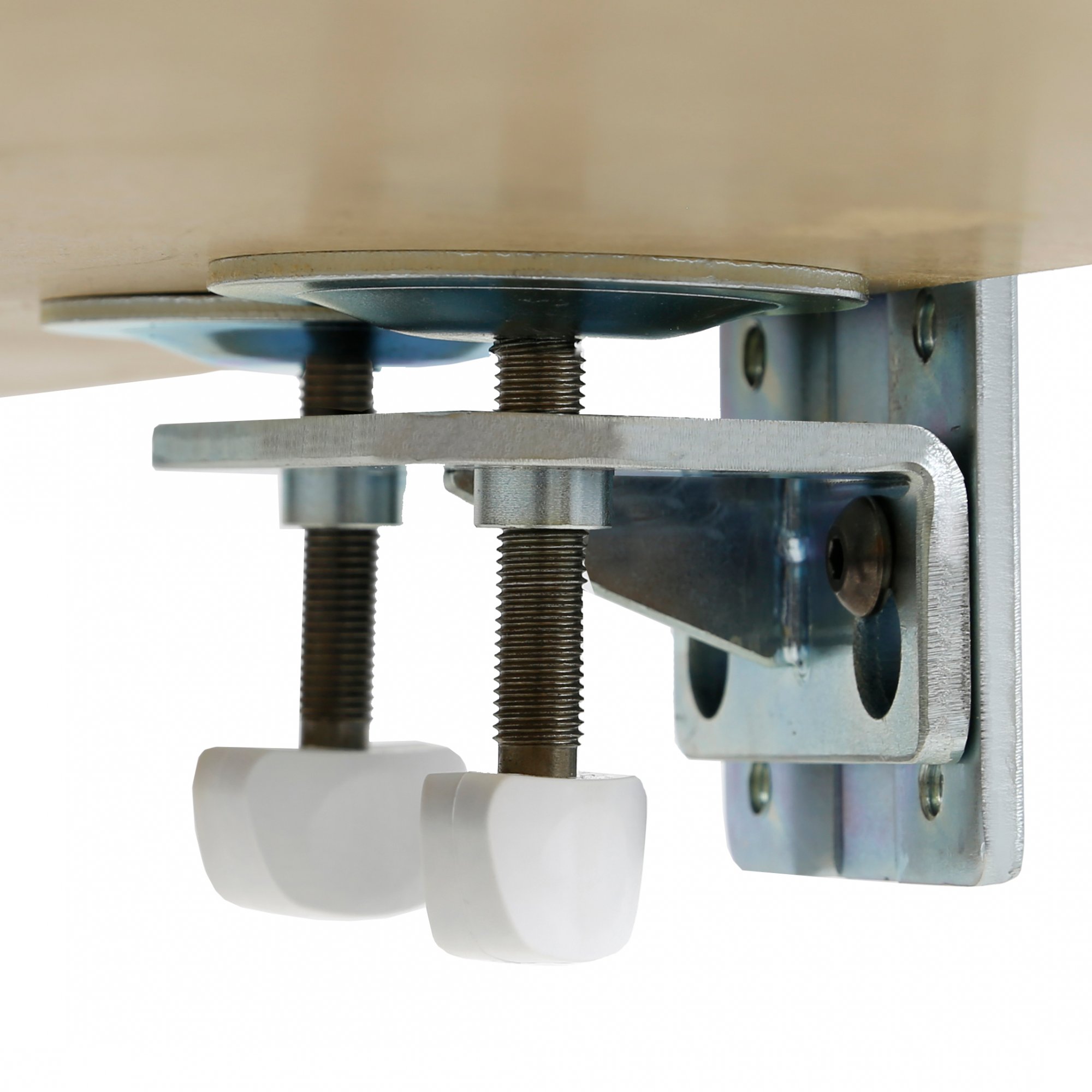

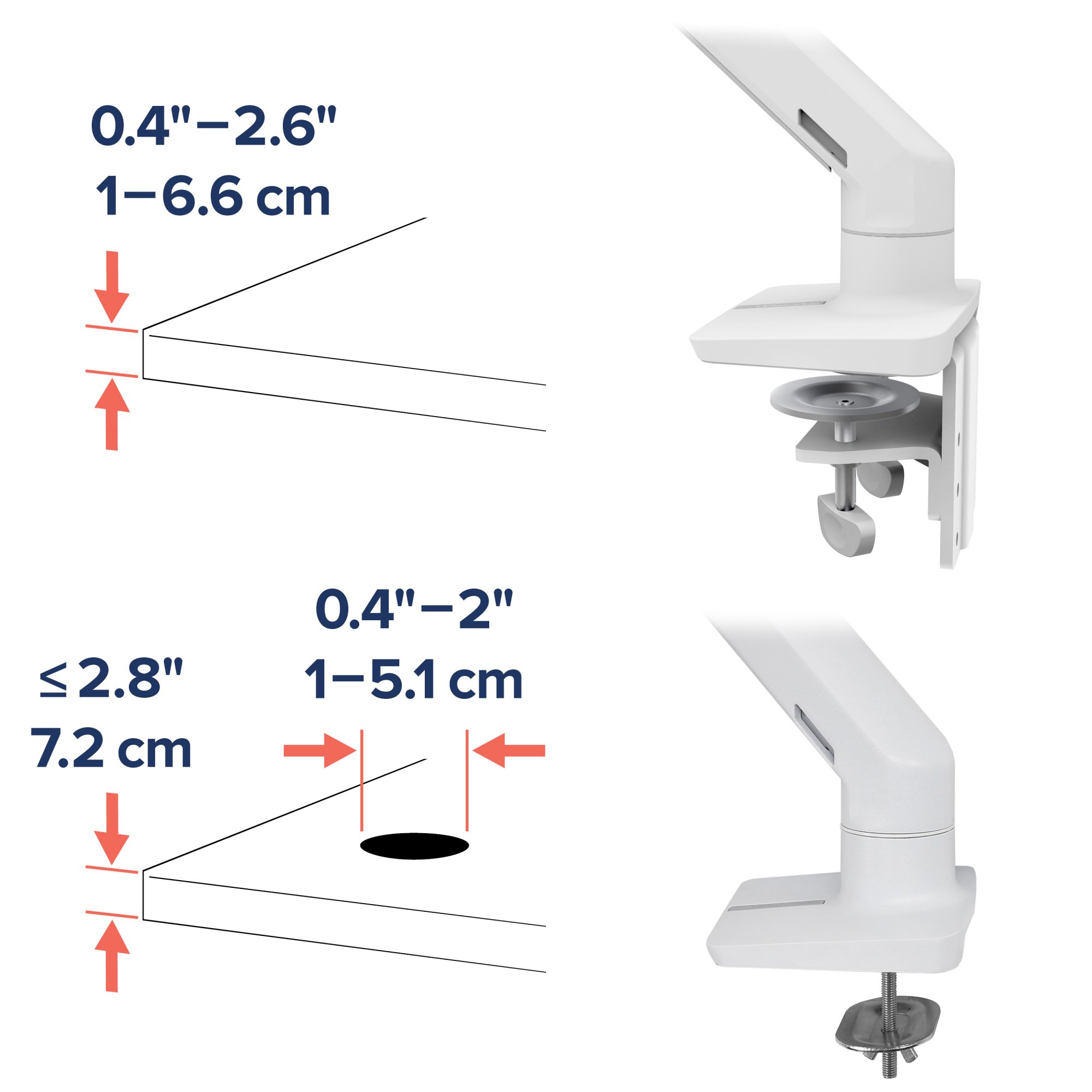

Desk Clamp Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick
Grommet Mount Grommet Mount (included) attaches through surface holes
Arm Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Portrait or Landscape Portrait/landscape rotation with lockout

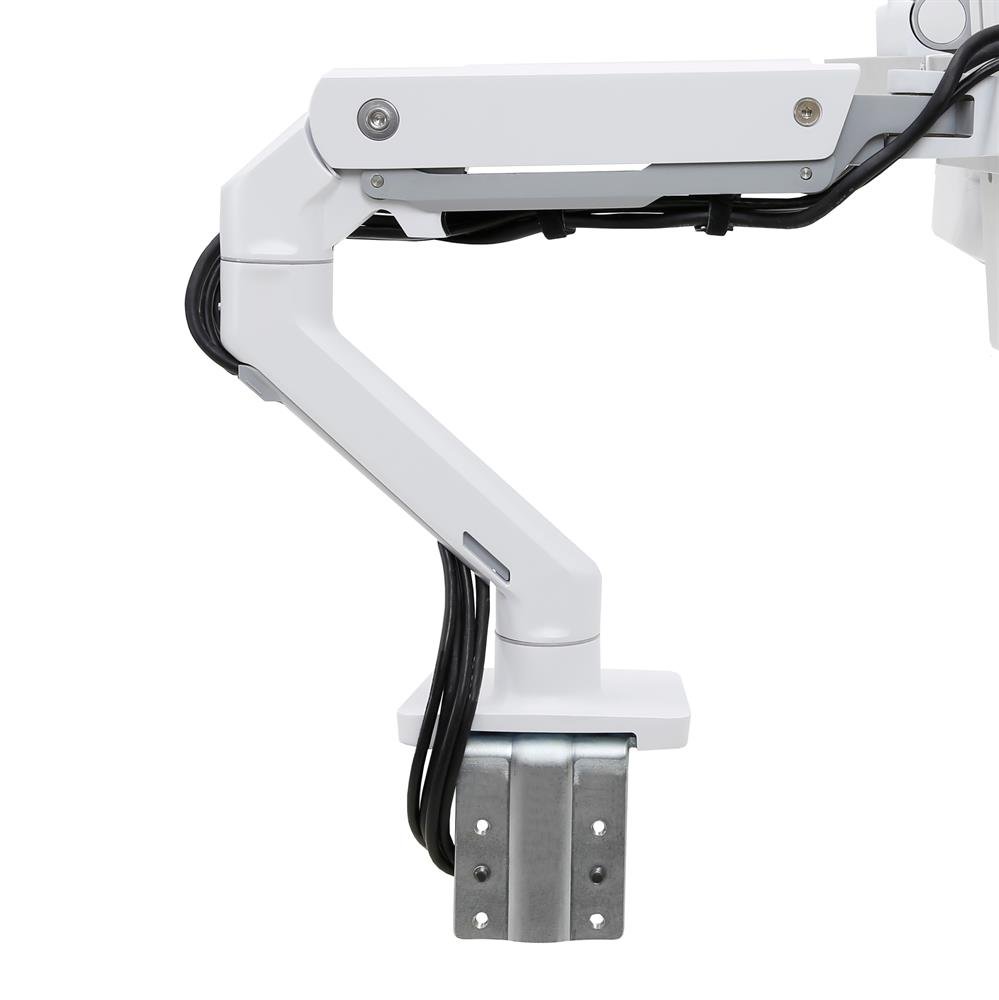

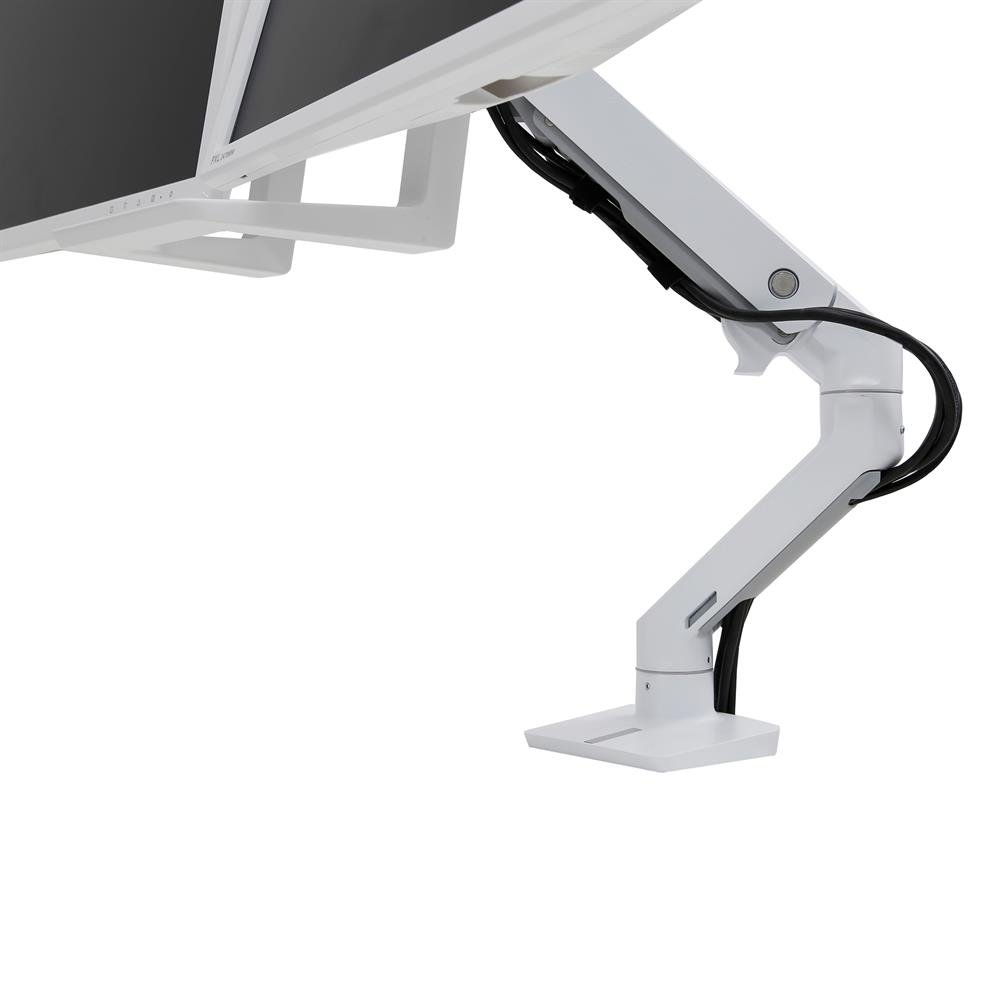

Cable Management Streamline cable management that routes cables under arm and within extension
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Weight Capacity Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)
Monitor Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

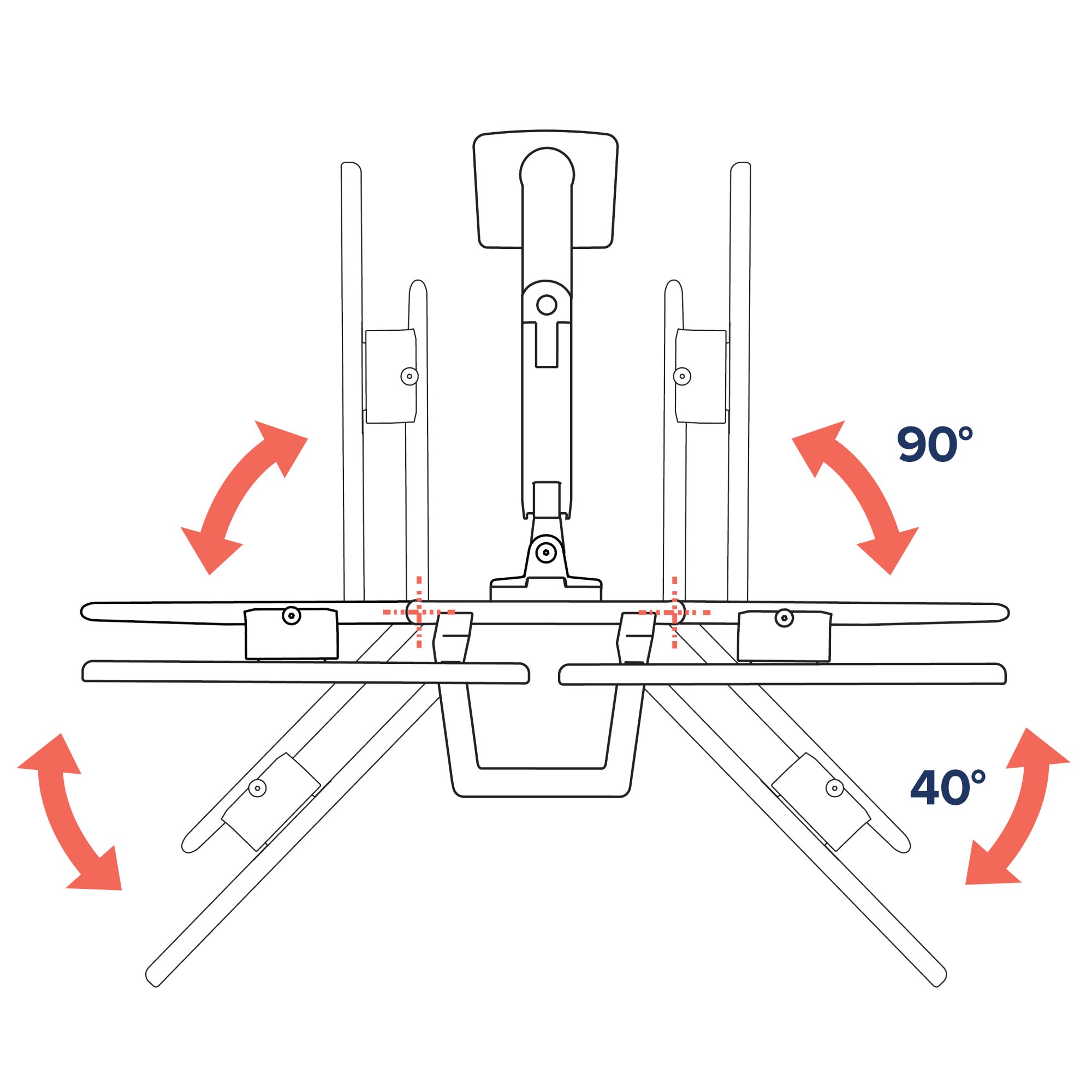

Hinge Bow Pivots 40° inward and 90° outward

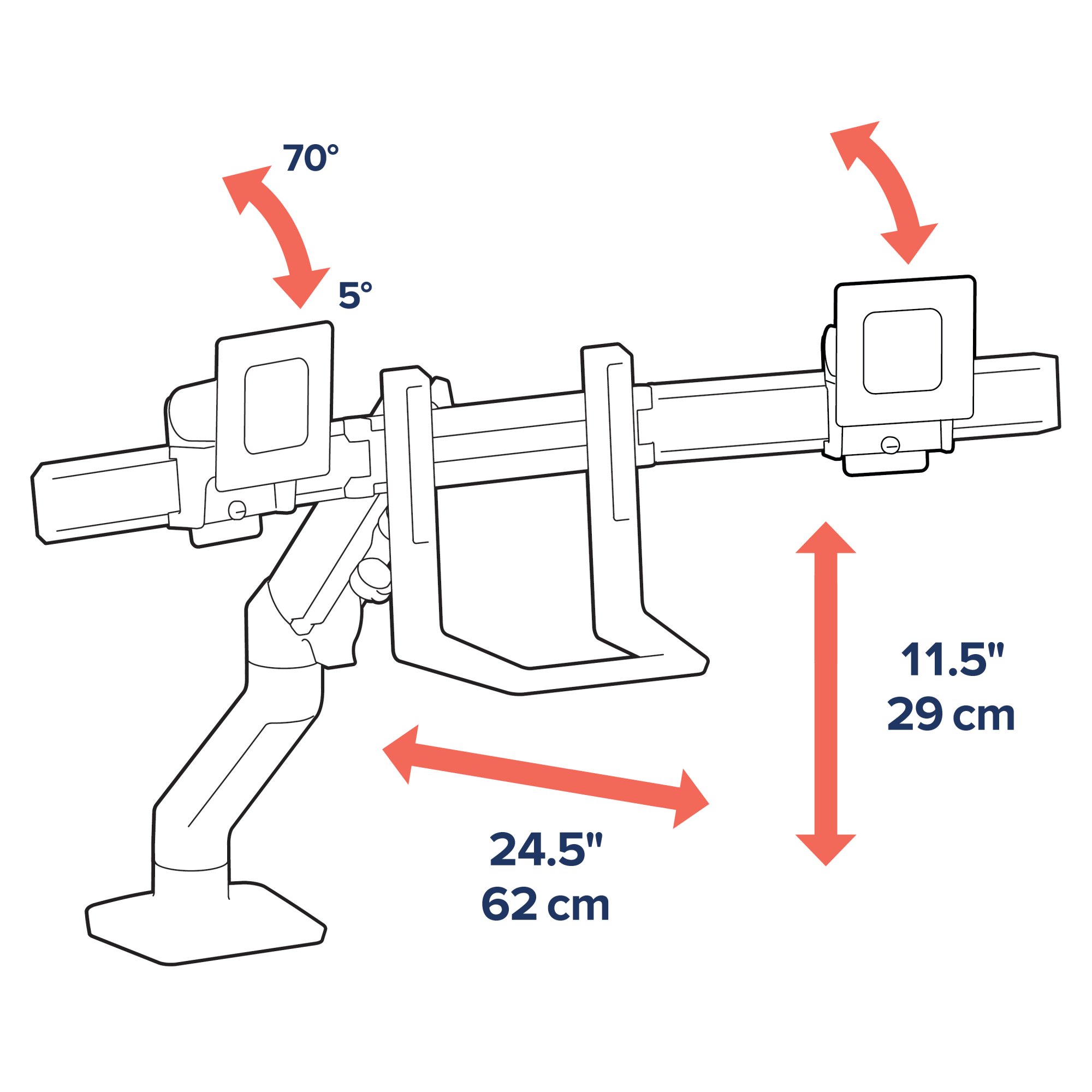

Tilt Range 70° backward, 5° forward
Pivots Feature quick install and release and feature effortless portrait to landscape 6° pan and tilt
Extended Reach Up to 24.5" (60 cm) extended reach
Vertical Height Adjustment 11.5" (29.2 cm) vertical height adjustment
Shipping Dimensions 16.0" x 18.8" x 7.5" (48 x 41 x 19 cm)
Shipping Weight 26.9 lbs (12.2 kg)
Warranty Ten (10) years

Benefits

  • Increases viewing comfort: Helps reduce eye, back and neck strain

  • Sleek new post design

  • The hinged bow allows monitors to pan from left to right independently with ease, ideal for sharing screens and optimal monitor alignment

  • Additionally, the hinged bow optimizes the viewing range for enhanced ergonomic comfort

  • Independent, quick release monitor pivots with effortless rotation, pan and tilt for custom positioning of each monitor

  • Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall

  • Patented CF motion technology provides premium ease-of-use display adjustment

  • Cable management feature routes cables tightly under the arm and through the extension, out of the way

  • Eliminates scrolling: Rotate screens for portrait viewing of photos and documents

  • Folding arm frees up space in constrained areas

  • Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Model 45-476-026
Manufacturer Ergotron
Part Number 45-476-026
UPC 698833060966
Color Polished aluminum
Weight Capacity Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)
Maximum Monitor Size 32"
Lift (29.2 cm) 11.5 in
Tilt Backward 70 degree, forward 5 degree
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Desktop Thickness Range 0.62" to 2.59" (1 to 6 cm) thick
Maximum Extension Up to 24.5" (60 cm)
Shipping Dimensions 16.0" x 18.8" x 7.5" (48 x 41 x 19 cm)
Shipping Weight 26.9 lbs (12.2 kg)
Warranty Ten (10) years
Mounting Options Desk
Number of Monitors 2 Monitors
Monitor Placement Side-by-Side
