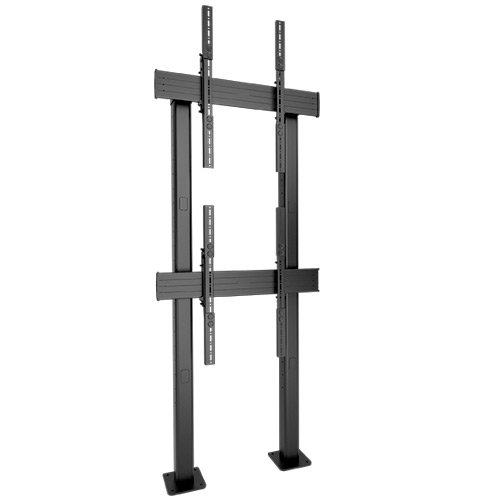

Chief LBM1X2UP Large Bolt-Down Freestanding Video Wall, Portrait
Description
Chief LBM1X2UP FUSION Bolt-Down freestanding solution makes it possible to
construct video walls in prominent locations for permanent applications.
Screen array configuration: 1 screen wide x 2 screens high in portrait.

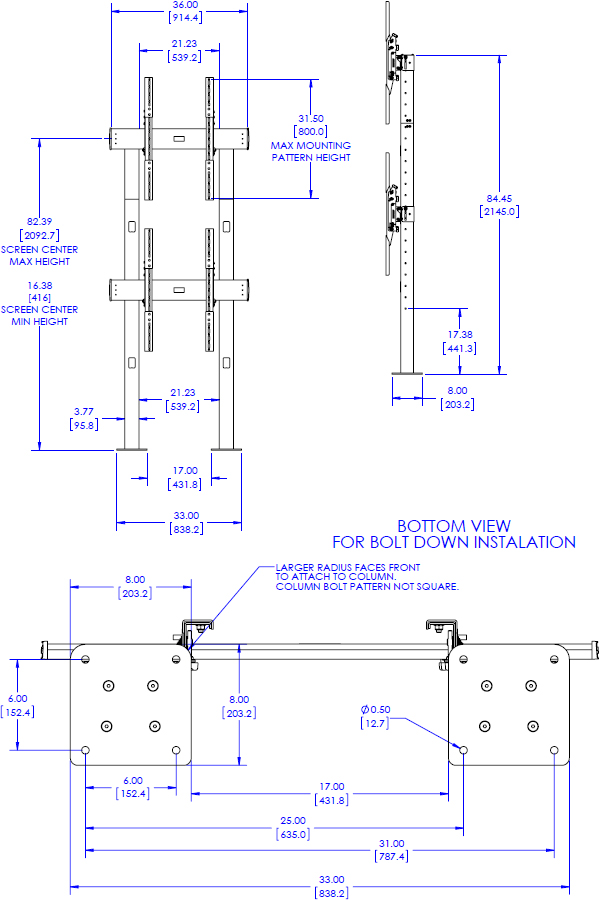

Technical Drawing
Specifications
|
Center of Display to Floor Table Range |
82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom) |
|
Certifications |
TAA Compliant |
|
Color |
Black |
|
Lateral Shift |
Yes |
|
Manual Height Adjustment |
Micro-adjustment up to 0.75" (19 mm) per screen |
|
Mounting Pattern Compatibility (Universal Versions) |
100 mm x 100 mm – 800 mm x 900 mm |
|
Number of Monitors |
2 |
|
Orientation |
Portrait |
|
Overall Dimensions (H x W x D) |
84.45 X 36 X 7.5" (2145 x 914 x 191 mm) |
|
Plumb Adjustment |
Micro-adjustment up to 0.75" (19 mm) |
|
Screen Array Configuration |
1 x 2 |
|
Shipping Weight |
190 lbs (86.18 kg) |
|
Solution Type |
Universal |
|
Typical Screen Sizes |
42 - 80" |
|
Weight Capacity |
125 lbs (56.7 kg) |
Features
1 x 2 portrait screen arrangement for 42 - 80" screens.
Easily align displays with independent height, plumb and lateral shift adjustment
Bolt-down solution allows for a permanent solution
Integrated cable management for a clean installation
TAA Compliant
Product Options/Accessories
| Model | LBM1X2UP |
| Manufacturer | Chief Mounts |
| Part Number | LBM1X2UP |
| UPC | 841872165080 |
| Color | Black |
| Center of Display to Floor/Table Range | 82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom) |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Mounting Pattern | 100 mm x 100 mm – 800 mm x 900 mm |
| Overall Dimensions | 84.45 X 36 X 7.5" (2145 x 914 x 191 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 190 lbs (86.18 kg) |
| Monitor Size | 42 - 80" |
| Weight Capacity | 125 lbs (56.7 kg) |
| Mounting Options | Wall |
| Number of Monitors | 2 Monitors |
