Chief LWM5X1U Fusion Large 5X1 Wall Menu Board
Description
Chief LWM5X1U Fusion Menu Board Wall Mounts offer perfect display positioning and flexible adjustments. The single horizontal extrusion with depth adjustment aligns the screens quickly even on irregular mounting surfaces and allows easy access behind the displays for servicing.

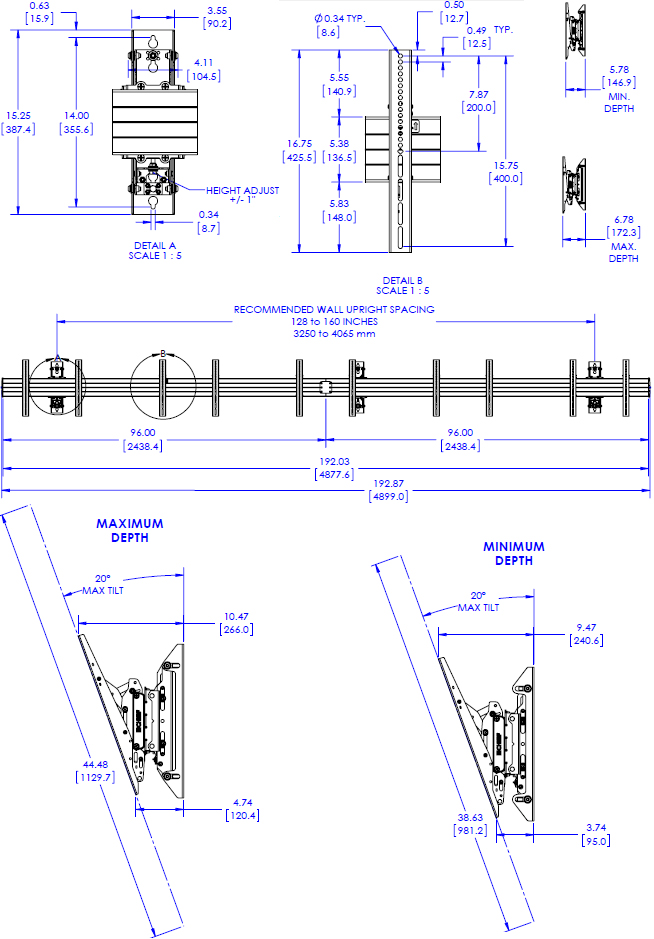

Technical Drawing
Specifications
|
Adjustments |
Depth Adjust 0" - 1" |
|
Certifications |
UL Listed |
|
Color |
Black |
|
Manual Height Adjustment |
2" (or +/- 1") |
|
Minimum Depth |
5.8" |
|
Mounting Pattern Compatibility (Universal Versions) |
Any width x 100 - 400 mm |
|
Number of Monitors |
5 |
|
Orientation |
Landscape |
|
Overall Dimensions (H x W x D) |
16.75 x 196.8 x 5.8" (425 x 4999 x 147 mm) |
|
Post-Installation Leveling Roll |
Dependant upon wall spacing |
|
Screen Array Configuration |
5 x 1 |
|
Solution Type |
Universal |
|
Tilt |
+0°, -20° |
|
Typical Screen Sizes |
40-55" |
|
Weight Capacity |
125 lbs (56.7 kg) per display |
Features
Single horizontal extrusion keeps screens aligned
ControlZone micro-height adjustment
Centris tilt between +0 and -20 degrees
Tool-free screen engagement
Portrait and landscape options for 2x1 and 3x1 configurations
Landscape for 4x1 and 5x1 configurations
Accommodate 40-55" screens
Optional padlock security
Full line of accessories that work across Fusion wall, ceiling and freestanding lines
Product Options/Accessories
| Model | LWM5X1U |
| Manufacturer | Chief Mounts |
| Part Number | LWM5X1U |
| UPC | 841872166353 |
| Color | Black |
| Adjustments | Depth Adjust 0" - 1" |
| Manual Height Adjustment | 2" (or +/- 1") |
| Minimum Depth | 5.8" |
| Mounting Pattern | Any width x 100 - 400 mm |
| Overall Dimensions | 16.75 x 196.8 x 5.8" (425 x 4999 x 147 mm) |
| Tilt | +0 degree, -20 degree |
| Monitor Size | 40-55" |
| Weight Capacity | 125 lbs (56.7 kg) per display |
| Mounting Options | Wall |
| Number of Monitors | 5 Monitors |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
