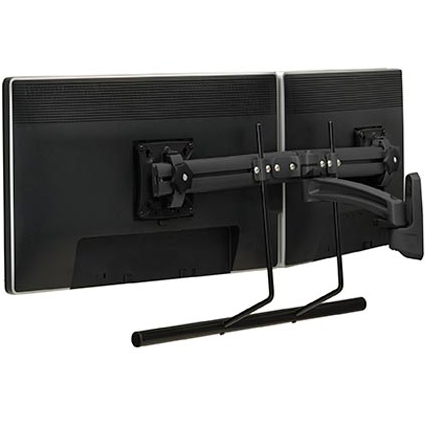

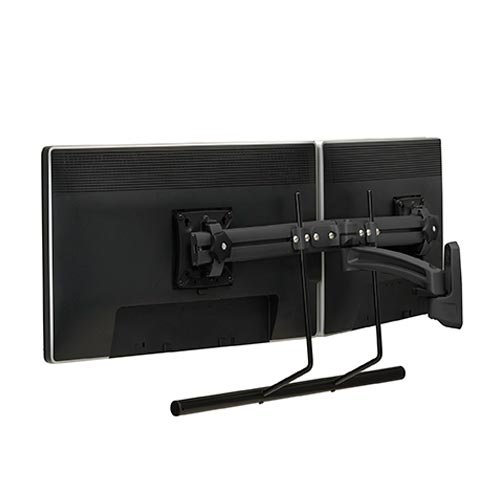

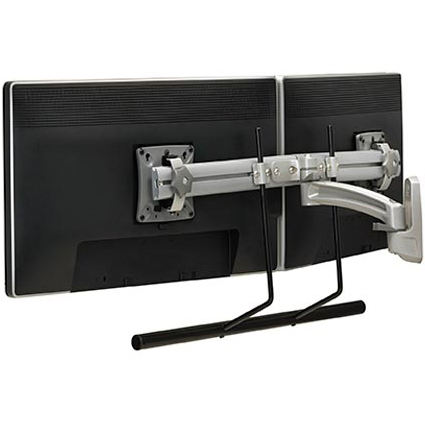

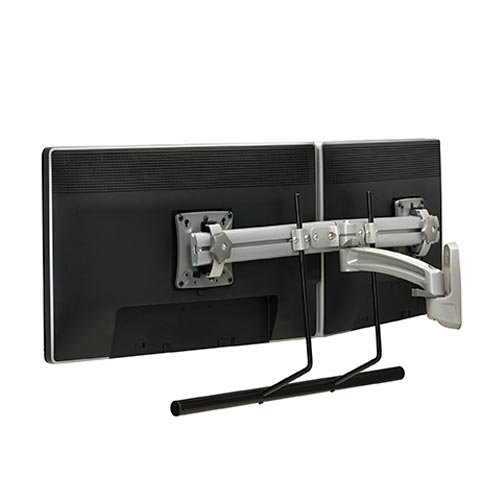

Chief Wall Mount Swing Arm, Dual Monitor Array - K2W21HB or K2W21HS
Description
Chief K2W21H enhanced Kontour K2W Wall Mount Articulating Arms are
great solutions for the office, healthcare facilities, or public spaces.
The K2W mounts provide unlimited manual height adjustment on the Pole
for optimal ergonomic positioning for any application.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work environment.

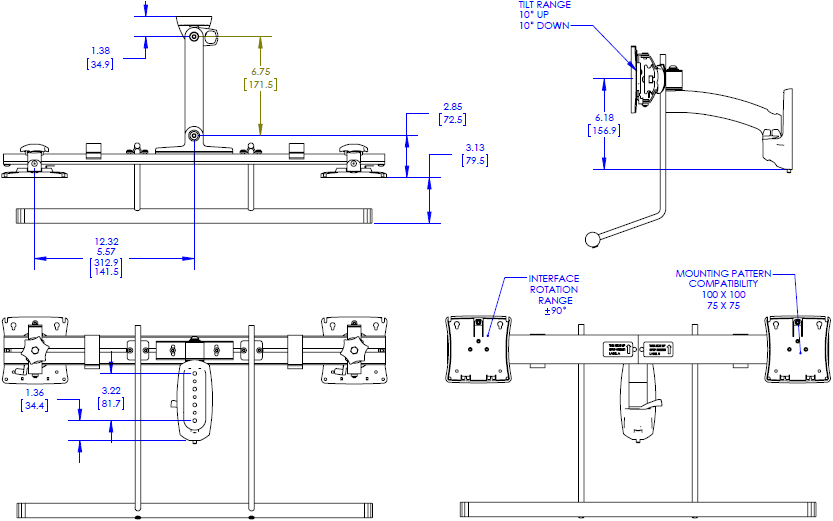

Technical Drawing
Specifications
| Color | Black, Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Maximum Extension | 10.6" (269 mm) |
| Minimum Depth | 3.10" (79 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75mm x 75mm & 100mm x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Shipping Weight | 16 lbs (7.26 kg) |
| Tilt | +/- 15° |
| TV Width Range | Up to 24.90" (632.5 mm) |
| Typical Screen Sizes | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment
Sleek, solidly-constructed forged aluminum arms in subtle semi-gloss silver & black finishes
Wall Mounts easily install to any wall using the fast-installing Wall Plate
Slat-wall mountable using OFBU interface accessory
Tool-free cable management clips provide a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

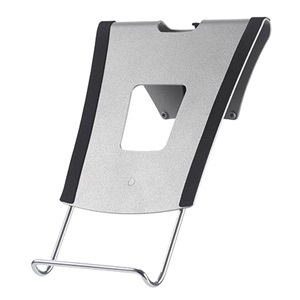

Product Options/Accessories
| Model | K2W21HB, K2W21HS |
| Manufacturer | Chief Mounts |
| Part Number | K2W21HB, K2W21HS |
| UPC | 841872160702 |
| Color | Black and Silver |
| Maximum Extension | 10.6" (269 mm) |
| Minimum Depth | 3.10" (79 mm) |
| Mounting Pattern | 75 x 75mm and 100 x 100mm VESA |
| Shipping Weight | 16 lbs (7.26 kg) |
| Tilt | +/- 15 degree |
| TV Width Range | Up to 24.90" (632.5 mm) |
| Monitor Size | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
| Number of Monitors | 2 Monitors |
| Mounting Options | Wall |
| Maximum Monitor Size | 24" |
| Monitor Placement | Side-by-Side |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
