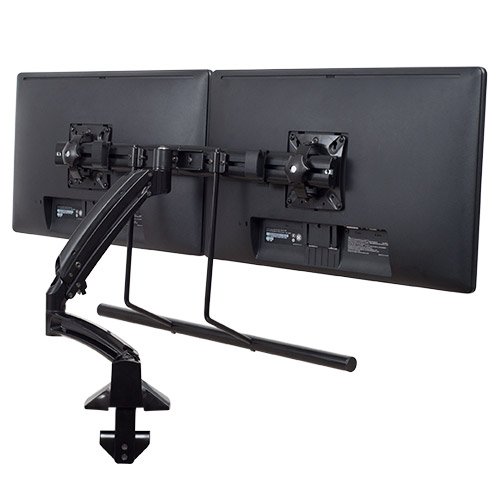

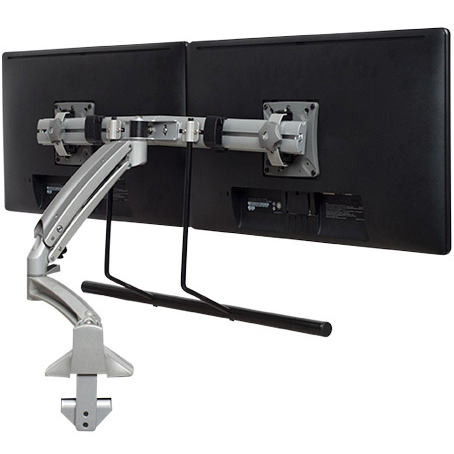

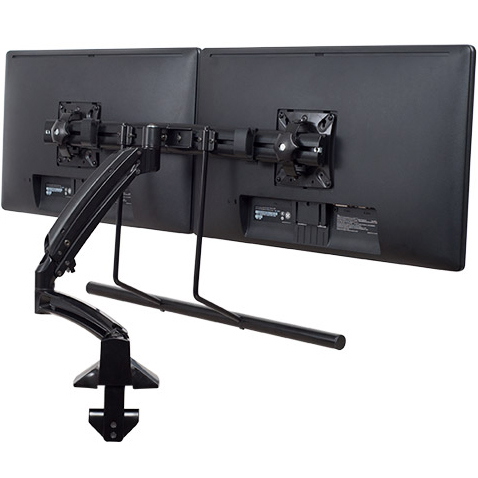

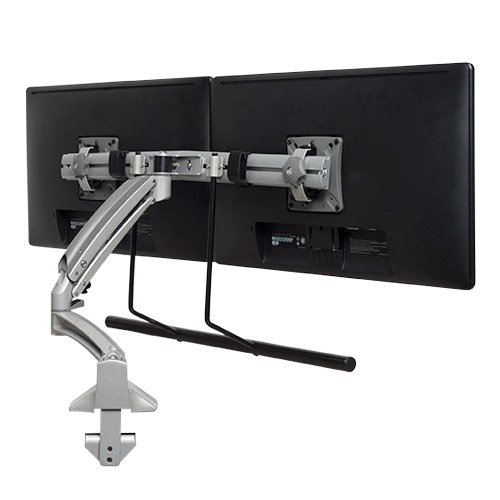

Chief Dynamic Dual Monitor Desk Mount, Reduced Height - K1D22HBXRH
More shipping >
Description
Chief K1D22HBXRH, the enhanced Kontour K1D Dynamic Height-Adjustable
Dual Monitor Array is the perfect solution for the office, healthcare
facilities, or home. The Dual Monitor Array provides optimal minimum
depth for dual monitor applications installed in typical desking
environments with rear panels at each workstation, maximizing usable
work surface. This Reduced Height model is optimal for bi-focal wearers
or touch-panel users that desire their monitors positioned as close to
the work surface as possible.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for the ultimate in effortless fingertip monitor positioning.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work space.

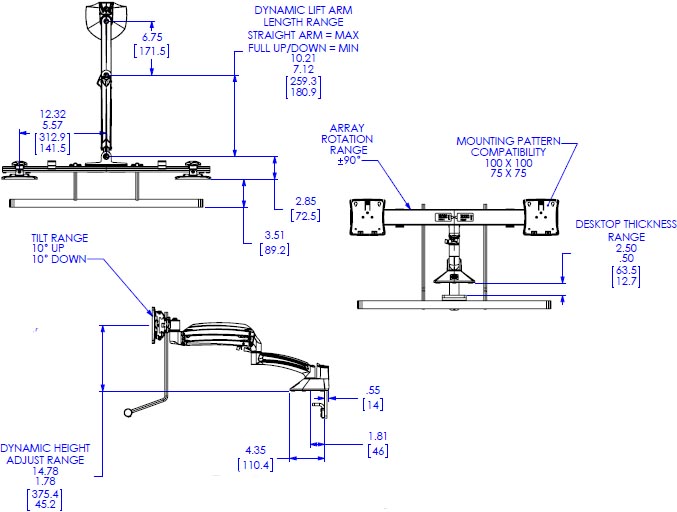

Technical Drawing
Specifications
| Color | Black and Silver |
| Certifications | TAA Compliant |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 1.78" to 14.78" (45 to 375 mm) center of monitor height range |
| Maximum Extension | 22.17" (563 mm) |
| Minimum Depth | 4.3" (109 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Screen Array Configuration | 2 x 1 |
| Shipping Weight | 20.5 lbs (9.3 kg) |
| Tilt | +/- 10° |
| TV Width Range | Up to 24.9" (633 mm) |
| Typical Screen Sizes | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Orientation | Landscape, Portrait |
Features
New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment
Reduced Height model provides optimal minimum height for bi-focal wearers and touch-panel users that require the display be as close to the work surface as possible
Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Frequently Asked Questions
| Model | K1D22HBXRH, K1D22HSXRH |
| Manufacturer | Chief Mounts |
| Part Number | K1D22HBXRH, K1D22HSXRH |
| UPC | 841872163154 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 1.78" to 14.78" (45 to 375 mm) center of monitor height range |
| Maximum Extension | 22.17" (563 mm) |
| Minimum Depth | 4.3" (109 mm) |
| Mounting Pattern | 75 x 75mm and 100 x 100mm |
| Shipping Weight | 20.5 lbs (9.3 kg) |
| Tilt | +/- 10 degree |
| TV Width Range | Up to 24.9" (633 mm) |
| Monitor Size | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Orientation | Landscape, Portrait |
| Mounting Options | Desk |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Maximum Monitor Size | 24" |
| Monitor Placement | Side-by-Side |
