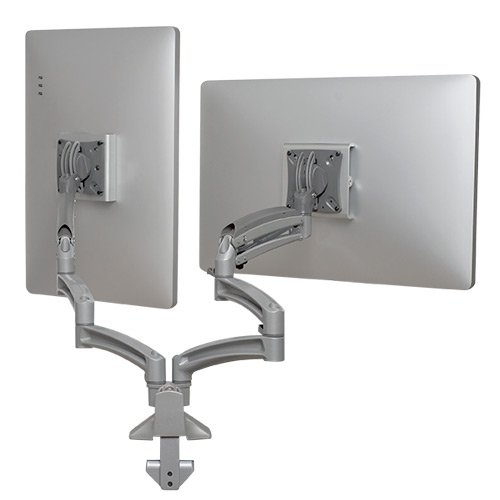

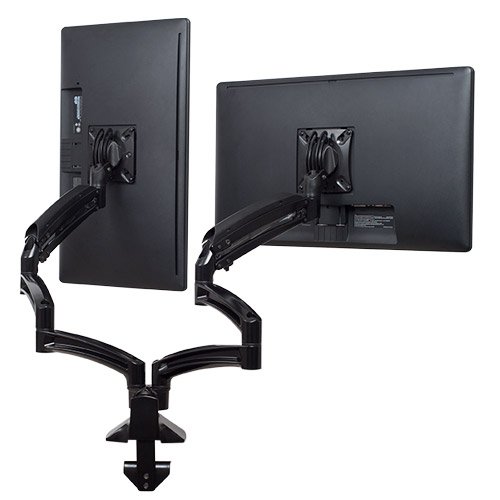

Chief K1D230 Dual Monitor Dynamic Desk Mount, Extended Reach
Description
Chief K1D230 enhanced Kontour K1D Dual Monitor Dynamic
Height-Adjustable Desk Clamp Mount is the perfect solution for the
office, healthcare facilities, or home. This Extended Reach model
provides additional reach for deeper desks and for improved side-by-side
positioning of wide-screen monitors.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for the ultimate in effortless fingertip monitor positioning.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work space.

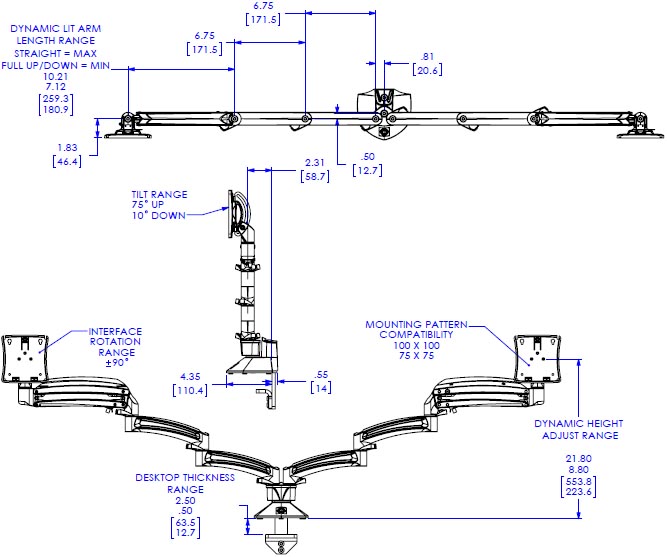

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black, Silver |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 13.0" (330 mm) |
| Maximum Extension | 28.1" (714 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Shipping Weight | 25 lbs (11.34 kg) |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 32" (254 - 813 mm) diagonals |
| Weight Capacity | 5 - 10 lbs (2.3 - 4.5 kg) |
| Orientation | Landscape, Portrait |
Features
Extended length provides an additional 6.5" of reach versus the K1D220 arm, for over 28" of extension
Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

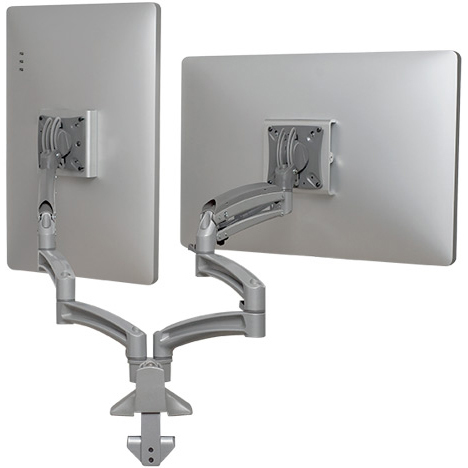

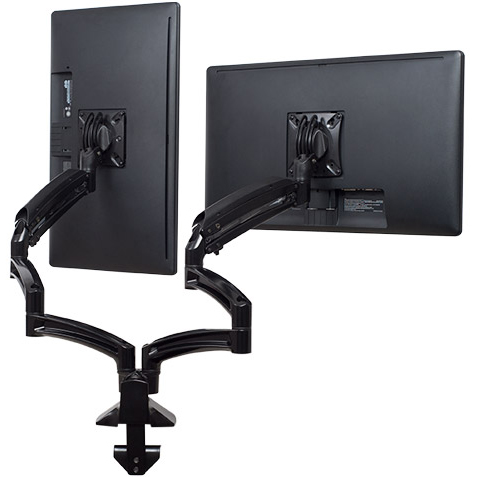

| Model | K1D230B, K1D230S |
| Manufacturer | Chief Mounts |
| Part Number | K1D230B, K1D230S |
| UPC | 841872163178 |
| Color | Black and White |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 13.0" (330 mm) |
| Maximum Extension | 28.1" (714 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern | 75 x 75mm and 100 x 100mm |
| Shipping Weight | 25 lbs (11.34 kg) |
| Tilt | +75 degree, -10 degree |
| Monitor Size | 10 - 32" (254 - 813 mm) diagonals |
| Weight Capacity | 5 - 10 lbs (2.3 - 4.5 kg) |
| Mounting Options | Desk |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 32" |
| Monitor Placement | Side-by-Side |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
