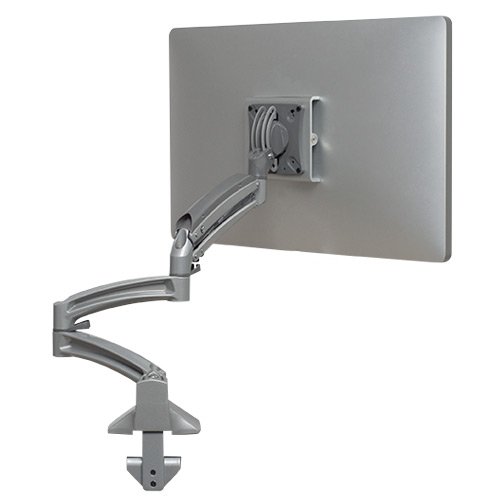

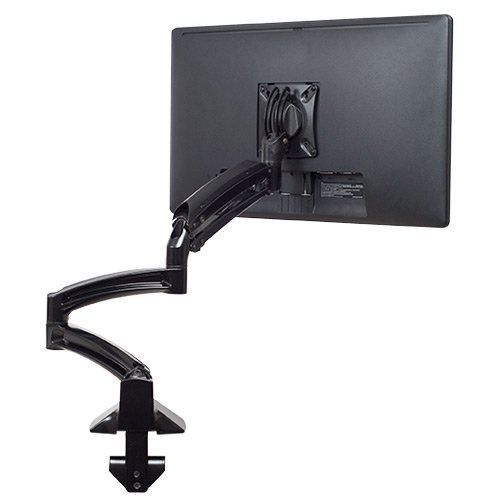

Chief Kontour K1D Dynamic Desk Mount, Extended Reach - K1D130
Description
Chief K1D130 enhanced Kontour K1D Dynamic Height-Adjustable Desk
Clamp Mount is the perfect solution for the office, healthcare
facilities, or home. This Extended Reach model provides additional reach
for deeper desks.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for the ultimate in effortless fingertip monitor positioning.
Kontour monitor mounts float your displays in the optimal ergonomic
position above your work surface to create a more productive and
comfortable work space.

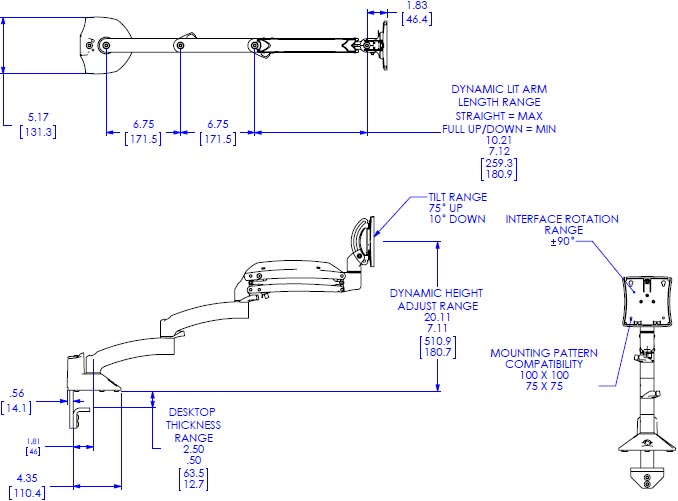

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black, Silver |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 7.11" to 20.11" (181 to 511 mm) center of monitor height range |
| Maximum Extension | 25.5" (648 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 1 |
| Shipping Weight | 12 lbs (5.44 kg) |
| Tilt | +75°, -10° |
| Typical Screen Sizes | 10 - 32" (254 - 813 mm) diagonals |
| Weight Capacity | 5 - 10 lbs (2.3 - 4.5 kg) |
| Orientation | Landscape, Portrait |
Features
Extended length provides an additional 6.5" of reach versus the K1D120 arm, for over 27" of extension
Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes
Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

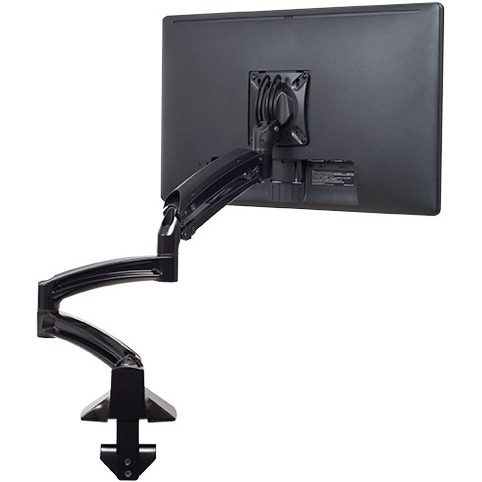

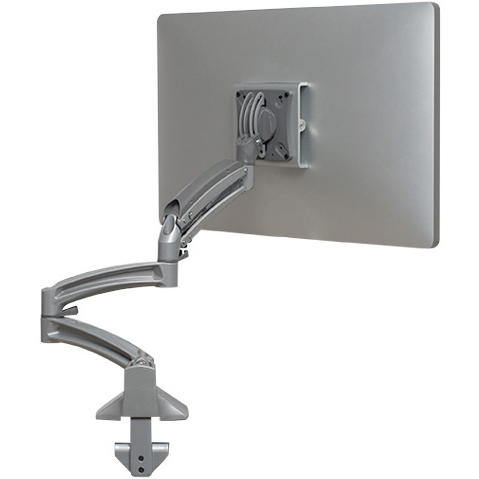

| Model | K1D130B, K1D130S |
| Manufacturer | Chief Mounts |
| Part Number | K1D130B, K1D130S |
| UPC | 841872163116 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 2.5" (13 - 63 mm) |
| Dynamic Height Adjustment | 7.11" to 20.11" (181 to 511 mm) center of monitor height range |
| Maximum Extension | 25.5" (648 mm) |
| Minimum Depth | 2.45" (62 mm) |
| Mounting Pattern | 75 x 75mm and 100 x 100mm |
| Shipping Weight | 12 lbs (5.44 kg) |
| Tilt | +75 degree, -10 degree |
| Monitor Size | 10 - 32" (254 - 813 mm) diagonals |
| Weight Capacity | 5 - 10 lbs (2.3 - 4.5 kg) |
| Mounting Options | Desk |
| Number of Monitors | 1 Monitor |
| Monitor Arm Types | 1 Monitor |
| Orientation | Landscape, Portrait |
