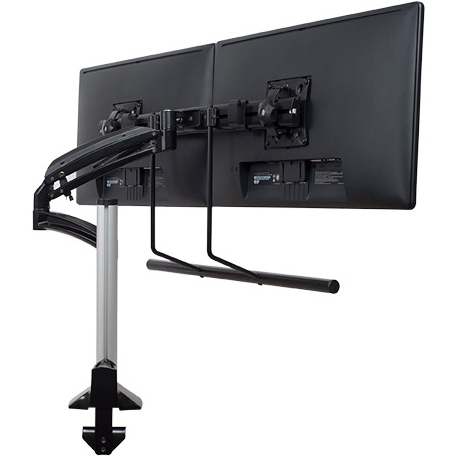

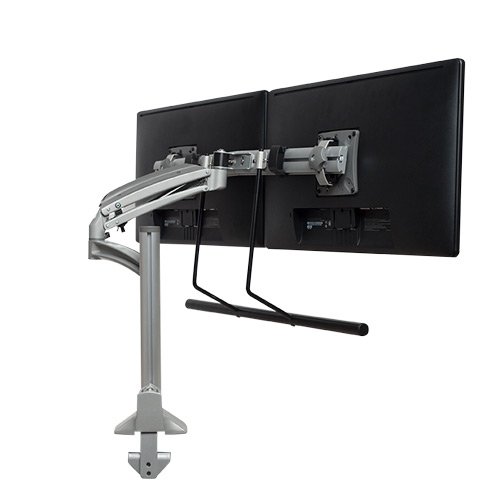

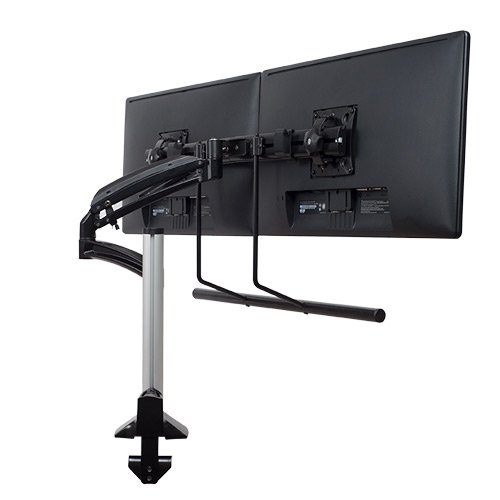

Chief Kontour Dynamic Column Dual Mount, Reduced Height - K1C22HBXRH
Description
Chief K1C22HBXRH enhanced Kontour K1C Dynamic Height-Adjustable Dual
Monitor Array is the perfect solution for the office, healthcare
facilities, or home. This Reduced Height model provides the maximum
amount of both dynamic and manual height adjustment for the ultimate
ergonomic solution, and is optimal for bi-focal wearers or touch-panel
users that desire the displays as close to the work surface as possible.
Key enhancements have been made to Chief's patented Centris Extreme Tilt
technology for effortless fingertip monitor positioning. Chief

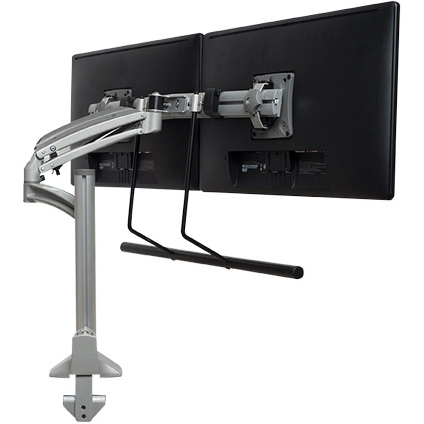

K1C22HSXRH Kontour monitor mounts float your displays in the optimal
ergonomic position above your work surface to create a more productive
and comfortable work environment.

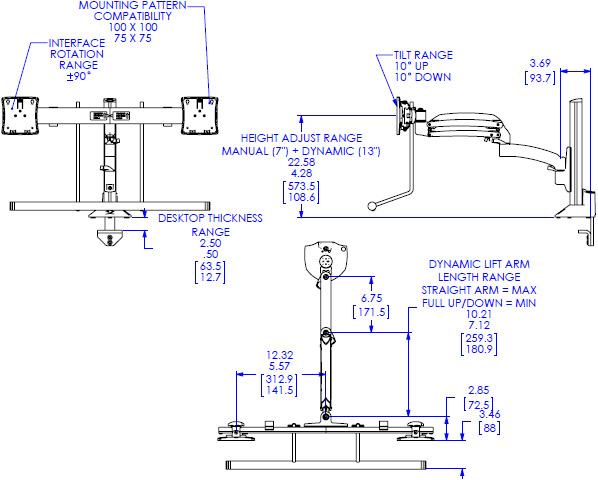

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black, Silver |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Manual Height Adjustment | 7.0" (177.8 mm) |
| Maximum Extension | 23.12" (587.2 mm) |
| Minimum Depth | 6.16" (156.5 mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Screen Array Configuration | 2 x 1 |
| Shipping Weight | 20.5 lbs (9.3 kg) |
| Tilt | +/- 10° |
| TV Width Range | Up to 24.90" (632.5 mm) |
| Typical Screen Sizes | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Orientation | Landscape, Portrait |
Features
New dual-monitor Array Bar with low-profile Tilt and Rotation adjustment
Reduced Height model provides optimal minimum height for bi-focal wearers and touch-panel users that require the display be as close to the work surface as possible
Sleek, solidly-constructed forged aluminum arms in enhanced silver & black finishes
Enhanced Column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment
20" (508mm) of total height adjustment range
13" of dynamic height adjustment using smooth motion gas-spring technology
Additional 7" of manual height adjustment on the column
Enhanced 3-step installation and quick-release Monitor Interface for easy mounting and maintenance, with included tool storage in the updated Base
Easily clamps to edge of desk or through standard grommet hole, or through bolt hole with included Kit
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits
Product Options/Accessories
| Model | K1C22HBXRH, K1C22HSXRH |
| Manufacturer | Chief Mounts |
| Part Number | K1C22HBXRH, K1C22HSXRH |
| UPC | 841872163079 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.50 - 2.50" (12.7 - 63.5 mm) |
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Manual Height Adjustment | 7.0" (177.8 mm) |
| Maximum Extension | 23.12" (587.2 mm) |
| Minimum Depth | 6.16" (156.5 mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Shipping Weight | 20.5 lbs (9.3 kg) |
| Tilt | +/- 10 degree |
| TV Width Range | Up to 24.90" (632.5 mm) |
| Monitor Size | 10 - 24" (254 - 609.6 mm) diagonals |
| Weight Capacity | 2 - 9 lbs (0.9 - 4.1 kg) |
| Mounting Options | Desk |
| Monitor Arm Types | 2 Monitors |
| Number of Monitors | 2 Monitors |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 24" |
| Monitor Placement | Side-by-Side |
